Creality K1 / K1C / K1 Max Levelling Board

You press print on your K1C and, instead of the familiar bed probing routine, the screen shows Key 2529: levelling sensor chip abnormality. You tighten the bed screws, reseat the plate and run a factory reset. The error comes straight back. Without bed levelling, the printer will not start a job at all.

The Creality K1 levelling board sits under the heated bed and reads the four strain gauge sensors that make hands-free levelling possible. When it fails, the printer loses its sense of where the bed is.

Fit a new board and your printer can home, probe and lay down a reliable first layer again, with no manual levelling.

Genuine Creality part 2101020225 | Fits K1, K1C and K1 Max | Reads four strain gauge sensors | Drives automatic bed levelling and Z homing | Board revision K1-MAX-L V1.1 | Plug-in connectors, no soldering | Local stock in South Africa

Who the Creality K1 levelling board is built for

The K1 series owner with a Key 2529 error

You have already worked through the usual fixes for levelling errors: bed screws checked, sensor plugs reseated, bed surface cleaned. The error keeps coming back, so the board that reads the sensors is the next suspect. This is the exact factory replacement for the K1, K1C and K1 Max, so there is no firmware to flash and no settings to change. Swap it, run the self-check, and print a full-plate batch of PETG clips the same evening.

The small print farm operator

When you run several K1C or K1 Max machines, one levelling fault takes a whole printer out of the rotation. The board is inexpensive and quick to swap, so keeping one on the shelf turns days of downtime into a short bench job. Because the same board fits all three K1 models, a single spare covers a mixed fleet and keeps your first-layer settings consistent from machine to machine.

The school or makerspace technician

Shared printers get bumped, moved and cleaned by many hands, and the wiring under the bed takes the strain. A levelling fault on a K1C in a classroom does not have to mean sending the printer away for repair. The board has four mounting screws and plug-in connectors, which makes it a practical in-house repair and a useful lesson in how auto-levelling actually works.

What sets the K1 levelling board apart

It turns tiny bed forces into a levelling map

The K1 series levels without a probe on the toolhead. Instead, a strain gauge sensor sits at each corner under the heated bed. When the nozzle touches the bed, the bed flexes by a tiny amount and the gauges register the force. This board powers those four sensors, amplifies their very small signals and converts them to digital readings through an analogue-to-digital converter. The printer uses those readings to home the Z axis and build its bed mesh.

Four dedicated channels, one per corner

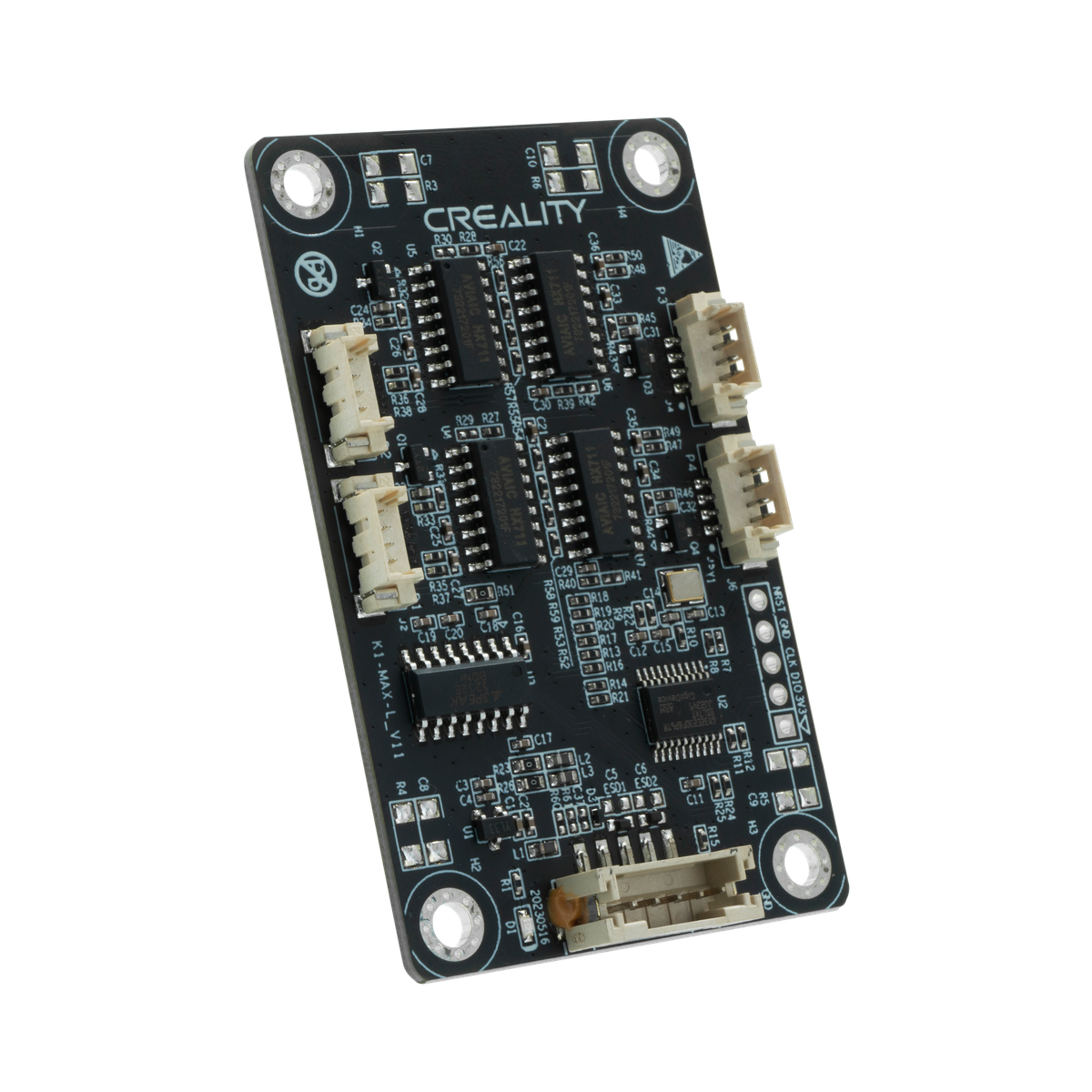

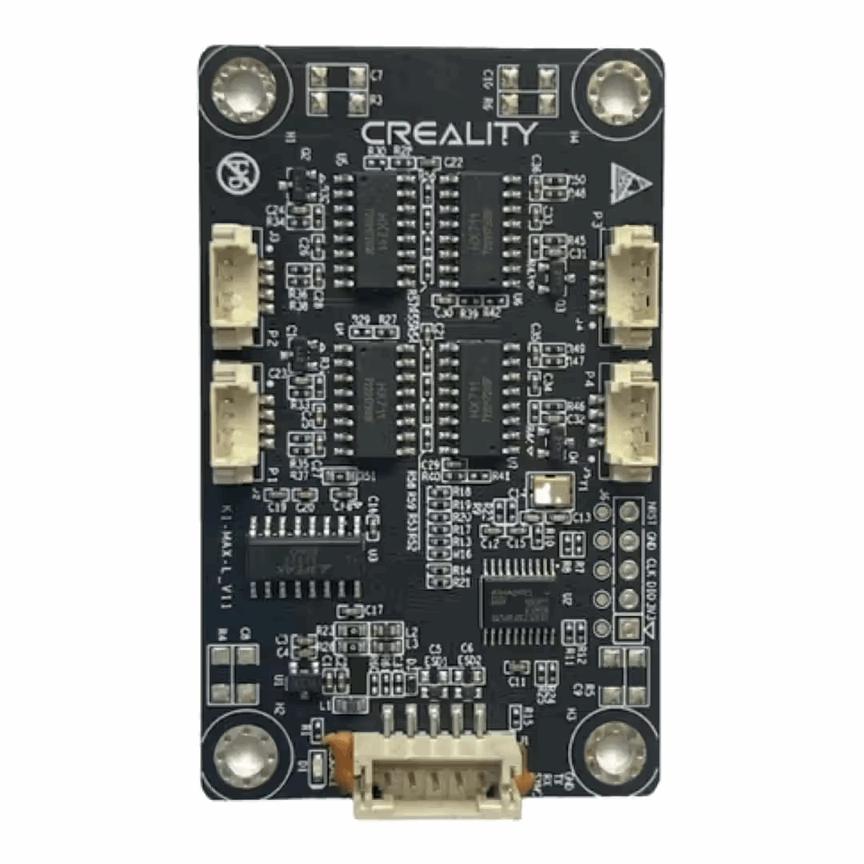

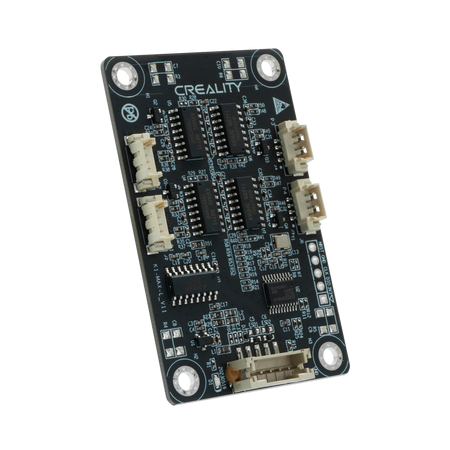

The board has four separate sensor inputs, labelled P1 to P4, each with its own amplifier chip. Every corner of the bed is measured independently rather than through one shared input, which is how the printer can tell where along the bed it made contact. A single five-pin connector carries the combined result to the printer's mainboard. On the K1 Max, this works alongside the AI LiDAR sensor, which scans the first layer after levelling.

One board across the K1 family

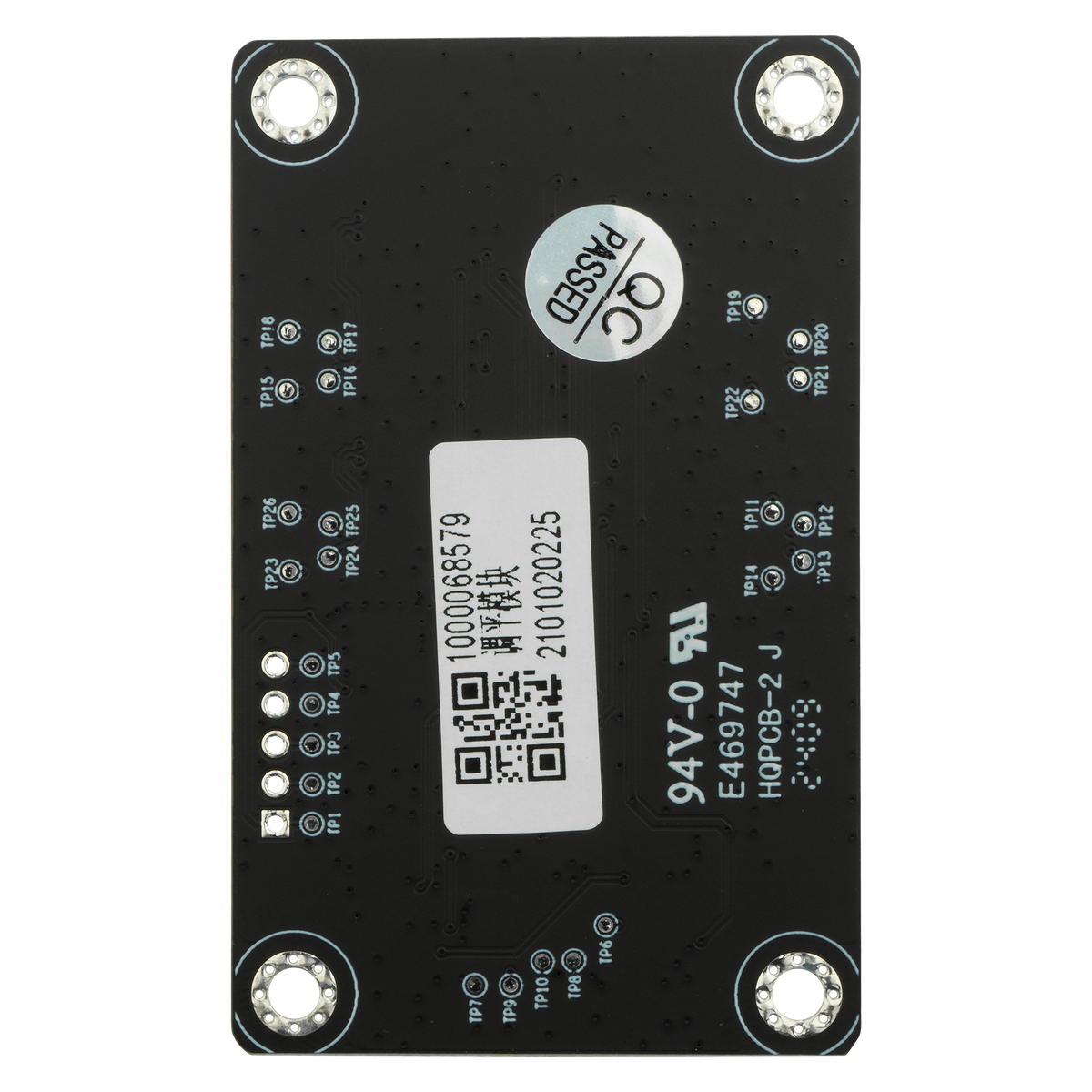

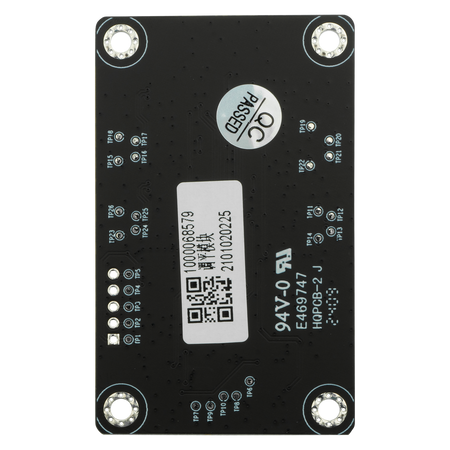

The same part 2101020225 fits the K1, K1C and K1 Max, even though the K1 Max has a much larger bed. The board revision printed on the PCB reads K1-MAX-L V1.1. For you, that means one part number to remember and one spare to stock, whichever K1 model you own. It connects to the original sensors and wiring, so the printer's standard firmware recognises it without any changes.

Know which part you actually need

Levelling errors on the K1 series can come from several places. The table below shows where each part sits and what it does, so you replace the right one.

Full specifications: K1 levelling board

Ordering, shipping and support for your K1 levelling board

We ship the K1 levelling board by courier anywhere in South Africa, or you can collect it from our Centurion or Boksburg store. Warranty claims are handled locally by our team, not sent offshore. Our technicians can help you work out whether a levelling fault is the board, a sensor or loose hardware. Build plates, a K1 Max heated bed kit and other Creality spare parts ship from local stock.

Frequently asked questions about the K1 levelling board

Will a new levelling board fix Key 2529?

It fixes the error when the board itself is faulty, but check the simple causes first. Creality owners often clear Key 2529 by checking the bed mounting screws, reseating the sensor connectors under the bed and cleaning debris from the printer's feet. If the error persists after that, a faulty board or sensor is the likely cause.

Does the same board fit the K1, K1C and K1 Max?

Yes, part 2101020225 fits all three. The K1 Max has a larger 315 x 310 mm bed, but it uses the same four-sensor layout and the same board. That makes one spare useful across a mixed fleet of K1 printers.

How hard is it to replace?

It is a moderate job that most owners handle with hex keys and a steady hand. Switch off and unplug the printer first. Unplug the sensor and mainboard cables, remove the four mounting screws and fit the new board. Plug each sensor back into its original port, then run the self-check and auto-levelling before printing.

Why does the levelling board fail?

Most failures come from connections rather than the chips themselves. Repeated heating, vibration and moving the printer can loosen connectors or strain the cables under the bed. Avoid pulling on the sensor leads, keep the underside of the bed free of filament scraps and check that the connectors are seated when you clean the printer.

Is there local support in South Africa if I am not sure this is the fault?

Yes, submit a technical support ticket with your error code and what you have already tried. Our team will help you confirm the fault before you buy, so you do not replace the wrong part.
