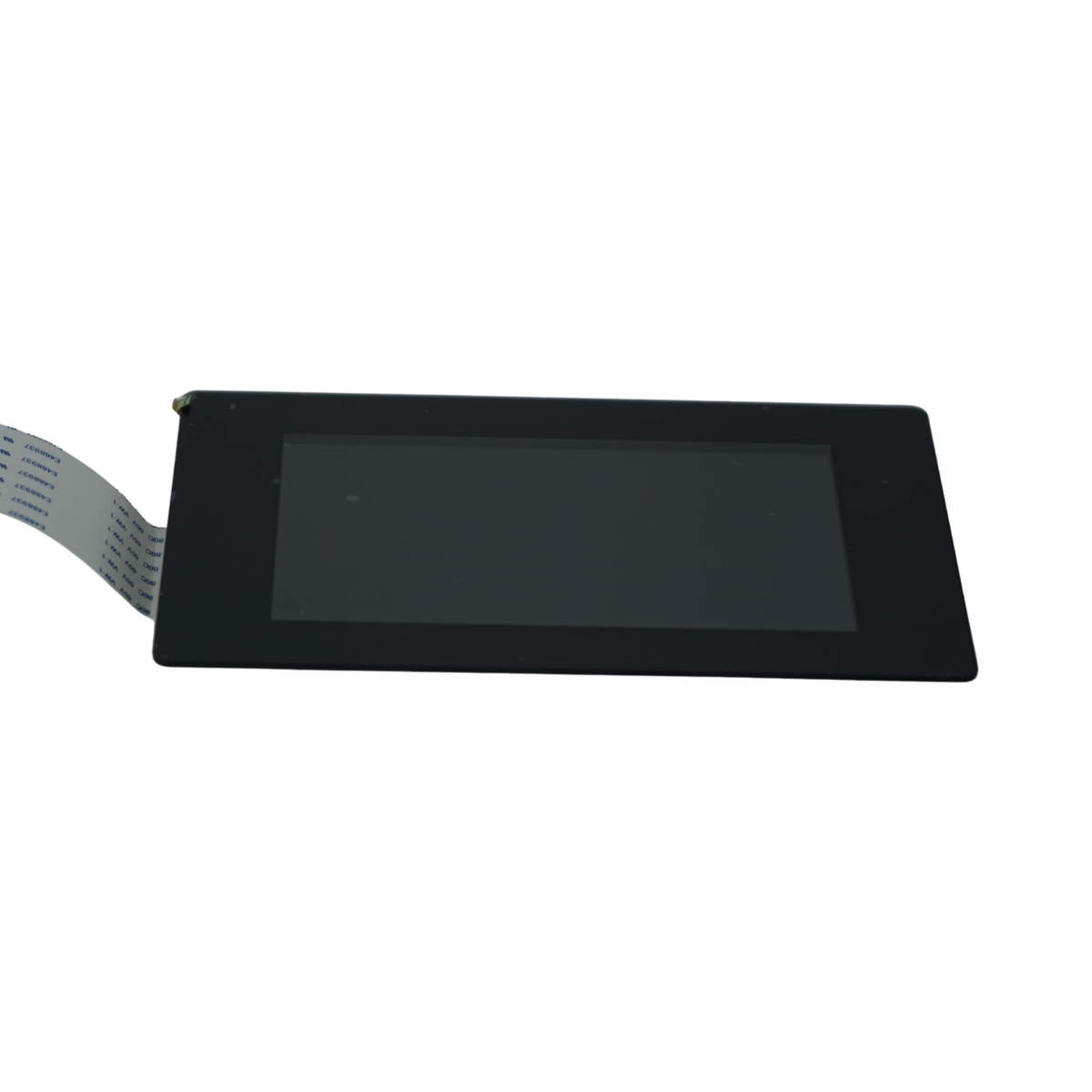

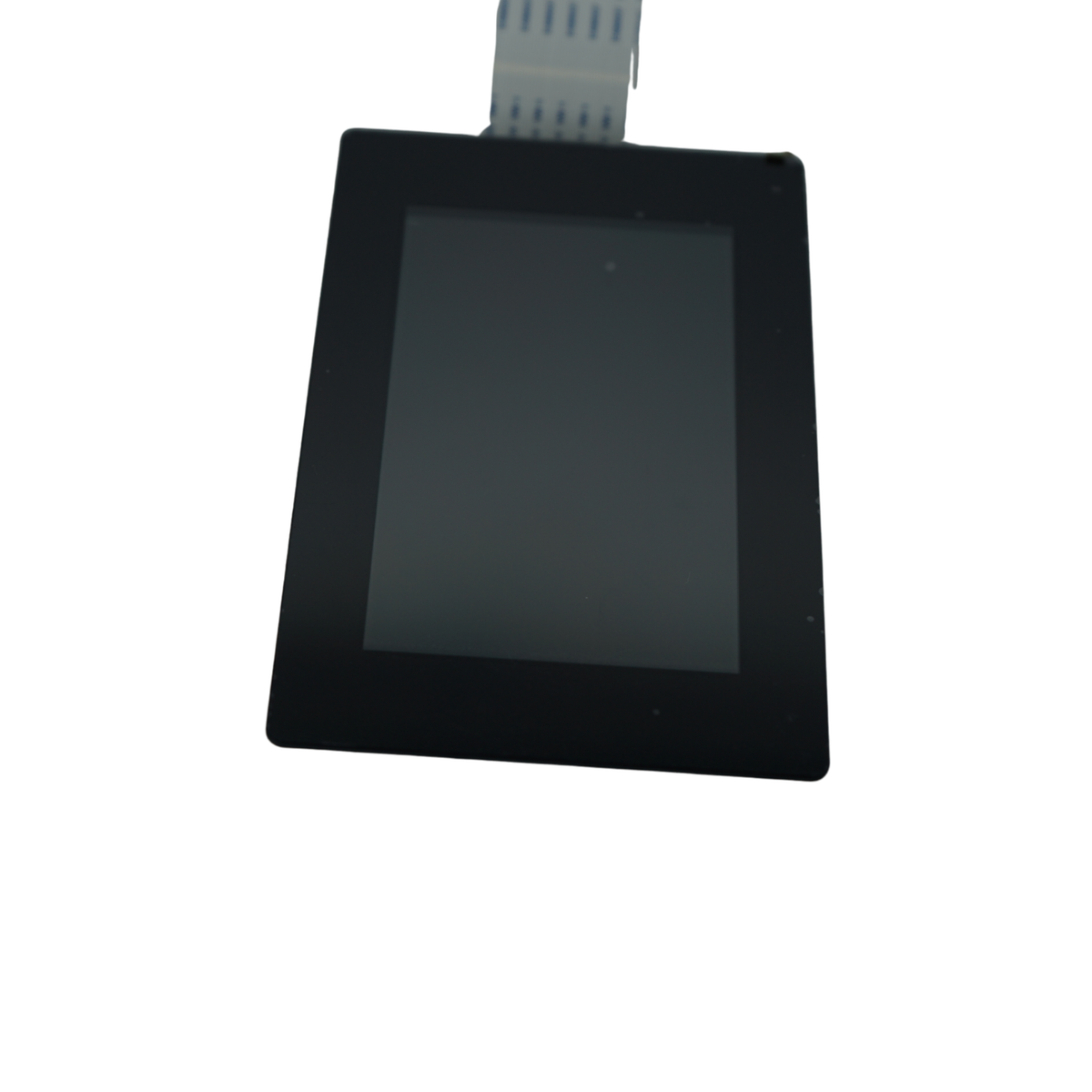

Anycubic Control Screen for M7 and M7 Pro (C Version)

Your Anycubic Photon Mono M7 Pro doesn't stop needing parts once the warranty ends, and a dead or cracked touchscreen is one of the most common reasons a print farm or home workshop loses a machine to downtime. The icons stop responding, the panel goes dark, or a corner takes a knock during a resin change, and a printer capable of 14K detail sits idle over one part.

This control screen restores full function to your control panel without a repair shop visit or a wait on an overseas supplier. It ships as a complete assembly, touch panel, adapter board and connecting cable already matched to each other, so you're reconnecting one ribbon cable rather than diagnosing a fault across three separate components.

Fits Photon Mono M7 & M7 Pro | C Version hardware revision | Capacitive touchscreen | Includes adapter PCBA & FFC cable | Plug-and-play, no firmware flashing | Nationwide delivery, local warranty support

Who the Anycubic M7 Pro control screen replacement is built for

Home Makers repairing their own M7 or M7 Pro

If your control panel has gone dark, stopped registering taps, or cracked after a resin tray came loose, you don't need to send the printer away. The job is a front bezel swap, a few captive screws and one ribbon connector, following Anycubic's own replacement guide. Your build plate calibration, resin vat and mainboard stay exactly as they were, and you're back to slicing the same evening.

Small print farms and production studios

Running several M7 Pro units on a jewellery, dental or miniatures line means one dead touchscreen can take a machine out of rotation for days while you wait on an import. A spare control screen on the shelf, at a fraction of the cost of a new mainboard, lets your technician swap the panel between jobs and keep utilisation high instead of routing work around an idle printer.

Workshop technicians and resellers servicing client machines

If you repair or resell Anycubic resin printers, a correctly matched control screen means you're not guessing at compatibility on-site. Confirmed fit for both the M7 and M7 Pro lets you carry one part number for callouts across both models, and the plug-and-play adapter board means the swap is billable in minutes, not diagnostic time.

What sets this Anycubic control screen apart

A fix for the exact fault, not a guess

A panel that lights up but won't register a tap, or one that's gone completely dark mid-print, points to the front panel assembly rather than the mainboard behind it. This is a capacitive touchscreen, the same technology used in most phone and appliance interfaces: a cracked digitizer stops reading touch even though the display beneath still shows an image, while a failed backlight or ribbon connection can black the screen out entirely. Replacing the panel addresses both, since it ships as one matched assembly rather than bare glass you'd have to pair with your existing electronics yourself.

One part number, two M7 printers, confirmed

Anycubic lists this control screen as the confirmed replacement for both the Photon Mono M7 and the M7 Pro, which matters because the two printers don't share a mainboard, the M7 Pro's controller board is a different part entirely. What they do share is the front panel connector and mounting. Anycubic has revised the hardware more than once since launch, which is why this is listed as the C Version. If you're unsure which revision your printer shipped with, check the serial number on the rear panel, or get in touch and we'll confirm it.

The adapter board and cable that make it plug-and-play

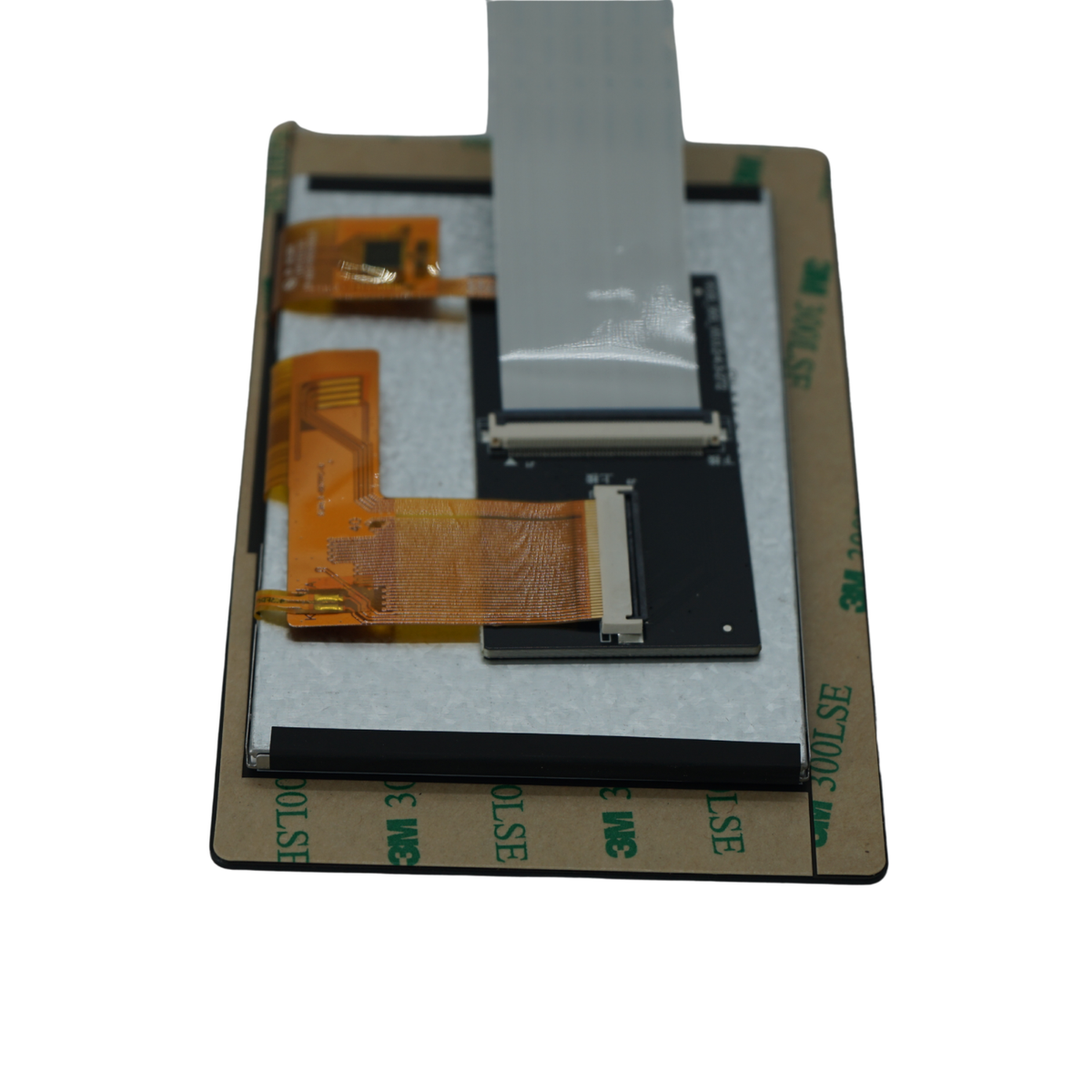

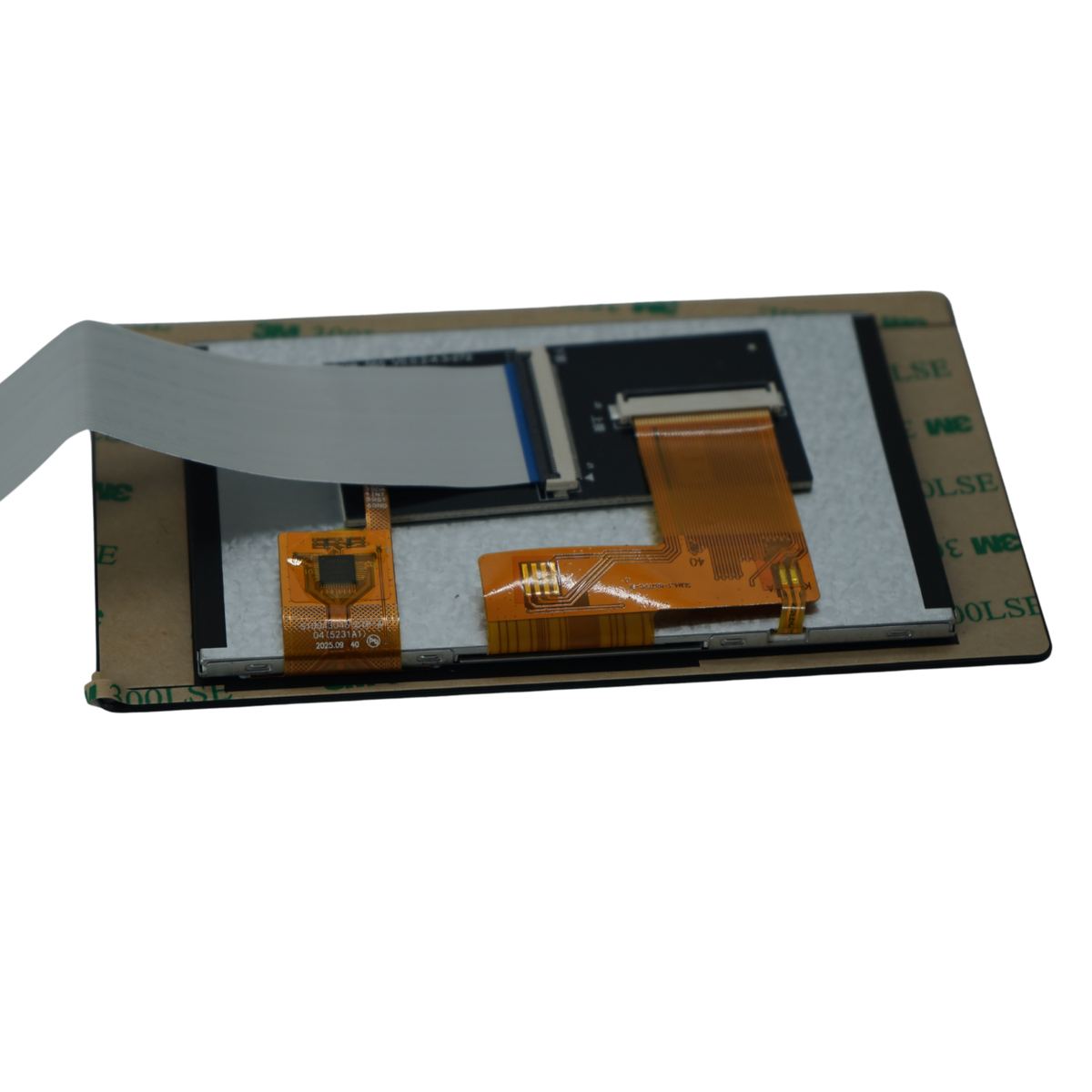

The screen doesn't arrive as bare glass. It comes with its own adapter board, a small printed circuit board assembly that translates the touch panel's signal into the format your mainboard expects, plus the flexible flat cable connecting the two. A generic touch panel bought without the correct adapter board is the most common cause of a "new screen, still not working" callback. Everything here is already paired at the factory, so there's no signal mismatch left to troubleshoot.

A bench repair, not a workshop booking

Anycubic publishes a step-by-step guide for this exact repair, and the process doesn't touch your resin vat, build plate or UV module. With the printer powered off, remove the front bezel screws, disconnect the old ribbon cable, and reconnect the new assembly, typically inside twenty minutes with a Phillips screwdriver. No soldering, firmware flashing or exposure recalibration is required once it's connected.

Full specifications for the Anycubic M7 Pro control screen

Repair or replace: comparing Anycubic M7 Pro control screen alternatives

Not every M7 or M7 Pro fault needs a new printer, or even the part you first assumed.

Materials and software behind the Anycubic control screen

The panel is a capacitive glass touch digitizer bonded to a colour LCD, not a resistive screen needing firm pressure, so navigation feels identical to the display your printer shipped with. It pairs with the adapter board rather than directly with the mainboard, and pairing happens automatically on first power-up, there's no firmware to flash or menu to configure. The screen takes no part in your printer's stereolithography curing process, it only displays and controls it, so your Photon Workshop slicing profiles are unaffected by the swap.

What's in the box with your Anycubic M7 Pro control screen

• 1x capacitive touchscreen control panel (C Version)
• 1x adapter board (PCBA), factory paired to the panel
• 1x FFC ribbon cable
• Existing mounting screws from your printer are reused, no new hardware supplied

Ordering your Anycubic M7 Pro control screen in South Africa

We ship this control screen nationwide by courier from our Centurion and Boksburg branches, so a replacement part doesn't mean waiting on an overseas supplier or a stalled print farm. It carries Anycubic's standard 3-month component warranty, handled locally rather than through an international claims process. Resin, build plates and the matching LCD printing screen for your M7 Pro are stocked alongside it, so a service visit doesn't mean several separate orders.

Anycubic M7 Pro control screen: frequently asked questions

Is this the same as the LCD printing screen for the M7 Pro?

No. This is the touch panel you use to navigate menus and start prints, while the LCD printing screen is the masking display inside the resin vat that cures each layer. A fault here shows up as an unresponsive or blank front panel; a fault in the LCD printing screen shows up as failed or partial layers.

Will this work with my Photon Mono M7, or only the M7 Pro?

It's listed by Anycubic as the confirmed control screen for both. The two printers use different mainboards, though, so don't assume every spare part is interchangeable between them, check the part page or contact us if you're replacing more than the screen.

How long does fitting this control screen take?

Most Makers complete the swap in fifteen to twenty minutes with a Phillips screwdriver and Anycubic's published replacement guide: remove the bezel screws, disconnect the old ribbon cable, connect the new assembly, and close the bezel. No firmware flashing, recalibration or resin vat removal is involved.

How do I know if I need this screen or the controller board instead?

If the display is blank or unresponsive but the printer still completes prints started from your slicer's queue or a USB drive, the fault is almost always the control screen. Boot failures, lost USB connection, or motion errors point to the controller board instead.

Does this control screen come with local warranty support?

Yes. It carries Anycubic's standard 3-month component warranty, handled through our Centurion or Boksburg branches rather than an overseas returns process, and we ship it nationwide by courier.
