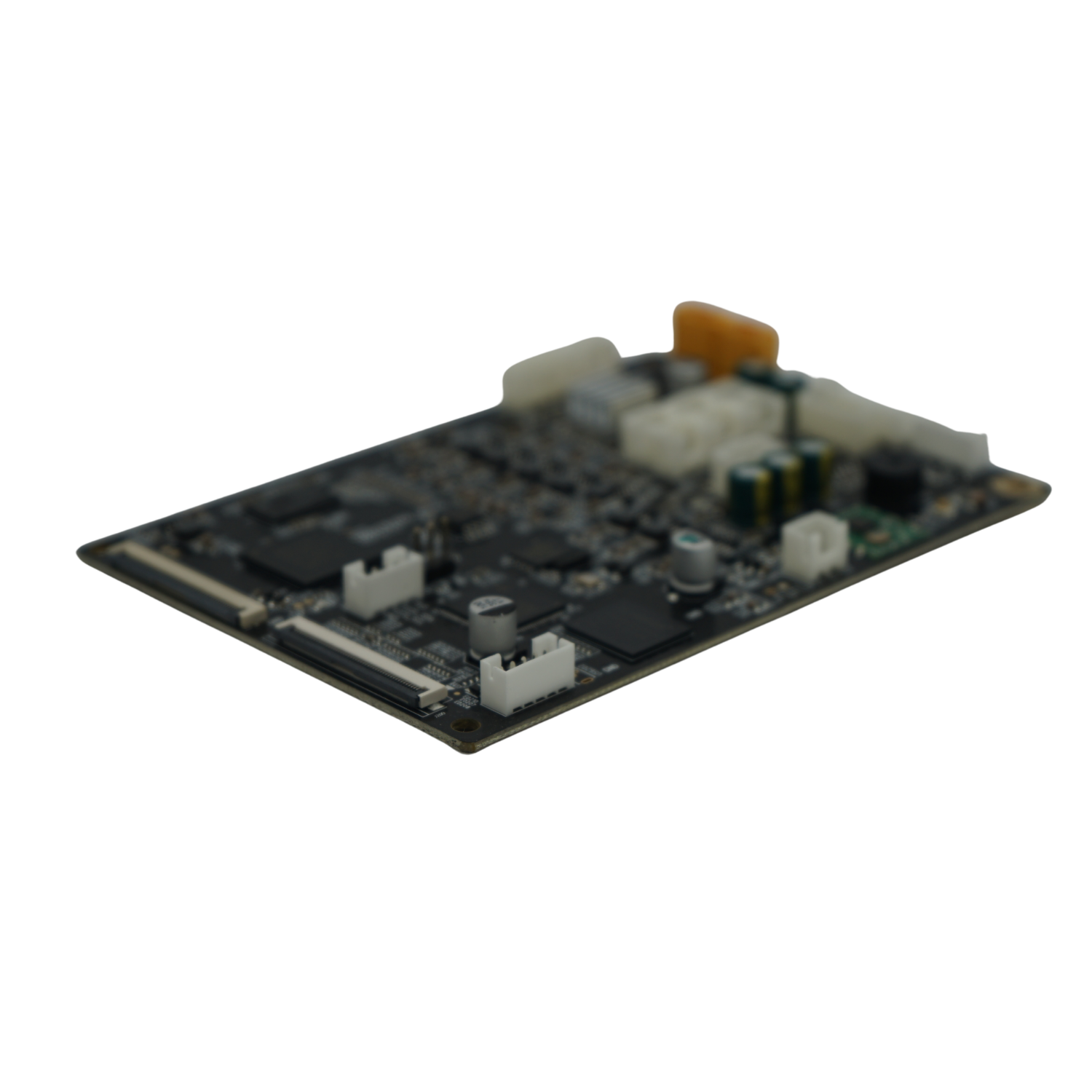

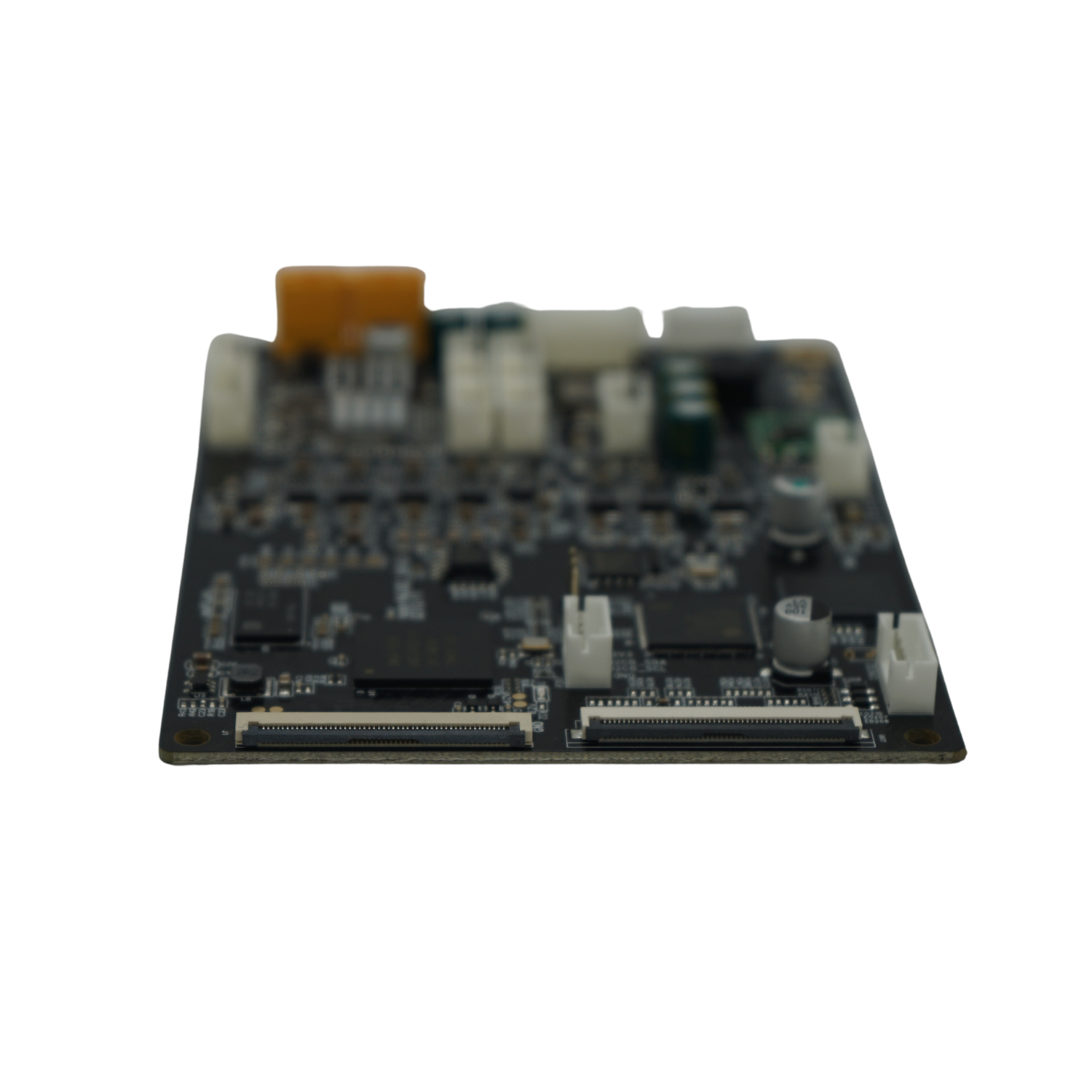

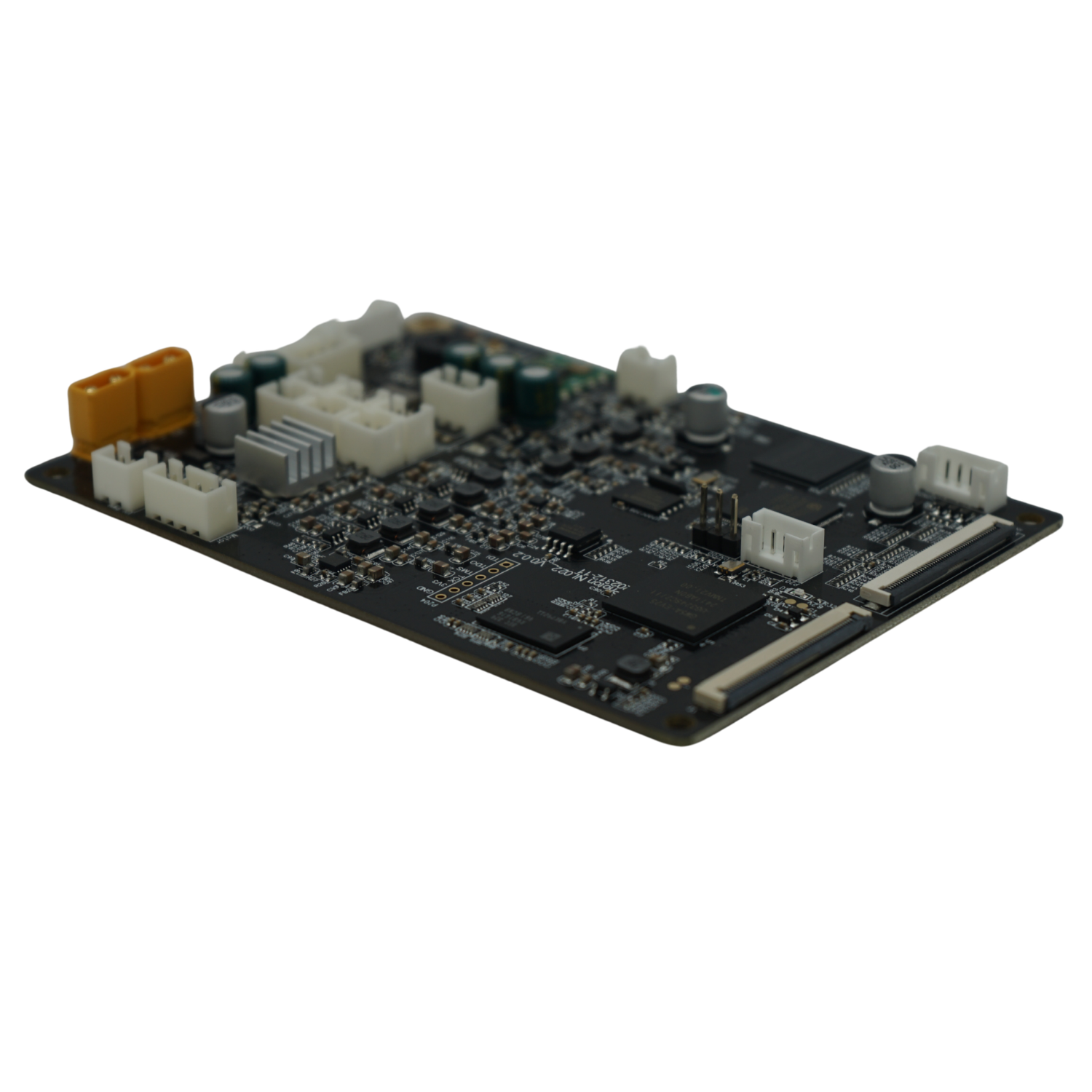

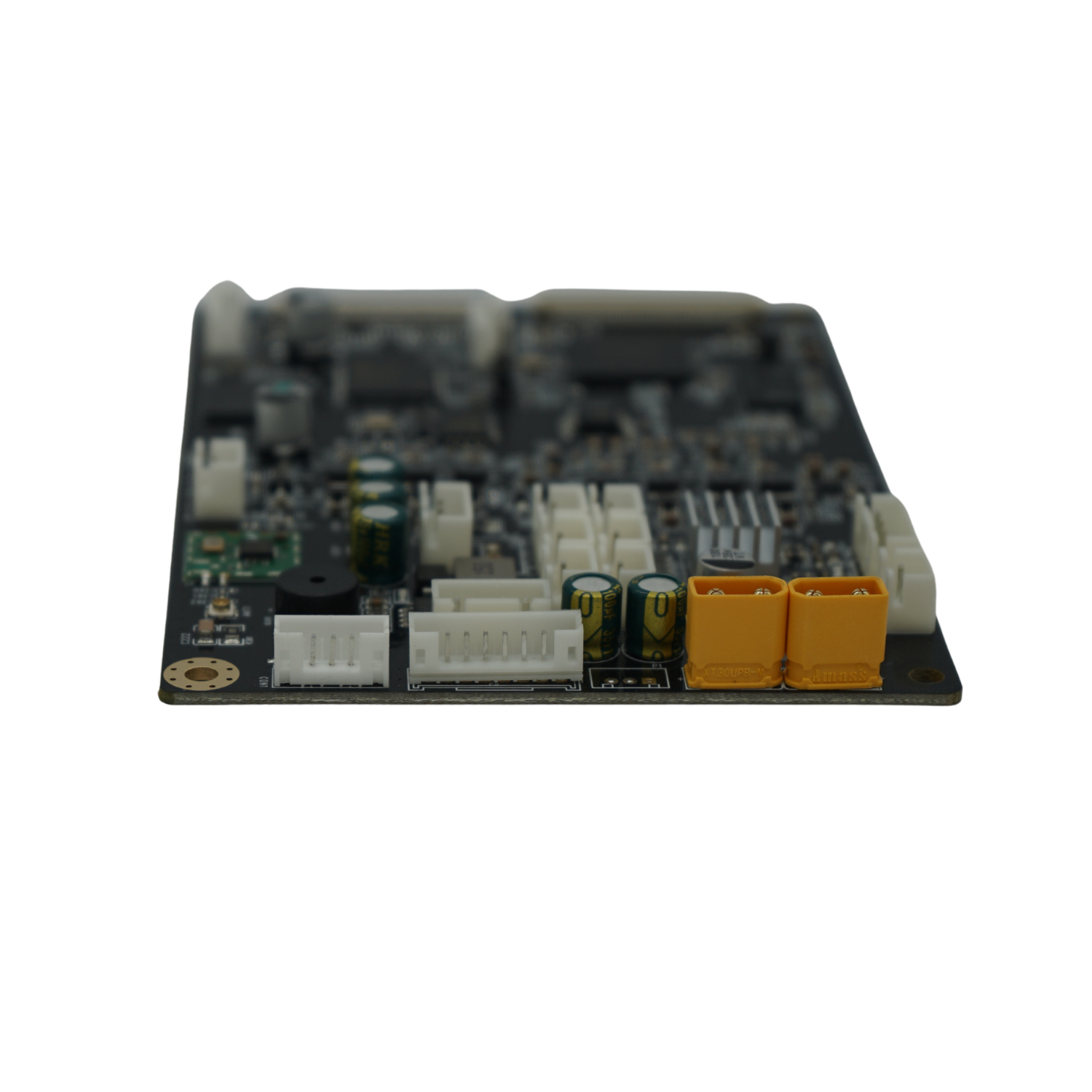

Anycubic Photon M7 Controller Board

A resin printer that will not boot, freezes mid-print, or loses connection to its USB drive is usually not a screen problem or a vat problem, it is the board underneath everything else failing quietly. On the Anycubic Photon Mono M7, that board drives the 14K LCD, times every exposure, and runs the motion system, so when it starts acting up, replacing individual parts around it will not fix anything.

A genuine replacement controller board resets the printer from the ground up. It arrives factory-flashed with the correct firmware, drops into the M7's existing wiring, and gets a printer that looked like scrap metal back to producing accurate prints.

Genuine Anycubic Spare Part | Factory-Flashed Firmware | Drives the M7's 10.1-Inch 14K LCD | LighTurbo 3.0 Light Engine Control | USB Connectivity | Built for the Base Photon Mono M7, Not Pro or Max

Who the Anycubic Photon M7 Controller Board is built for

Prototyping engineers and small business owners

A dead controller board takes an entire printer offline, not just one function, which matters when the M7 is producing parts on a deadline. Replacing the board rather than the printer keeps a roughly R10,000 machine in service for a fraction of that cost, for example getting back to a batch of engineering prototypes the same week instead of waiting weeks for a warranty repair or a new unit.

Small print farm operators

Running multiple M7 units means board failures are a matter of when, not if, usually from a resin spill finding its way into the electronics bay or a firmware update gone wrong. Keeping a spare board on hand turns a dead printer into a same-day repair rather than a machine sitting idle while you source a part, which matters when every offline unit cuts into your fleet's throughput.

Hobbyist makers comfortable with DIY repairs

If you are already opening up your printer to swap a fan or reseat a cable, a controller board swap is well within reach with basic tools and Anycubic's replacement guide. Fitting a genuine board yourself costs a fraction of a service centre repair and gets a stalled printer, one that will not pass its startup check or has stopped registering USB drives, back online without a full teardown.

What sets the Anycubic Photon M7 Controller Board apart

The board that drives every pixel on the 14K screen

The M7's 10.1-inch monochrome LCD renders at a 13312 x 5120 pixel resolution, and it is this board that times and drives every one of those pixels through the LighTurbo 3.0 COB light engine. A failing board typically shows up as banding, dead zones, or inconsistent exposure across the screen well before the screen itself is actually at fault, so replacing the board first is usually the right diagnostic step.

Precise motor control that keeps layers aligned

Beyond driving the screen, the board handles Z-axis motion control and coordinates the printer's levelling and startup checks. A board that is dropping signal or overheating under load shows up as layer shifting or inconsistent Z-height between prints, problems that look mechanical but actually trace back to the electronics controlling the motor.

Firmware already loaded, no flashing required

The board ships pre-loaded with the correct firmware for the base Photon Mono M7, so there is no flashing step or firmware download needed before you fit it. You connect the existing wiring harness, power the printer on, and it boots straight into a working state.

Handles your print jobs over USB reliably

The M7 connects to its slicer output over USB, and this board is what reads that job file, manages the print queue, and reports status back to the touchscreen. A board with a failing USB controller often shows up as a printer that will not recognise a drive at all, or drops a print partway through a long job.

Built specifically for the base Photon Mono M7, not the Pro or Max

Anycubic sells three separate M7-series printers, the base Photon Mono M7, the M7 Pro, and the M7 Max, each with its own motherboard. This board is built for the standard M7 only. Before ordering, check the model printed on your printer's spec label or the markings on your existing board, since M7 boards are not interchangeable with M7 Pro or M7 Max boards, and Anycubic has also shipped more than one hardware revision of the base M7 board over time. If you are unsure which version you have, our team can help you confirm it before you order.

Full specifications

How the Anycubic Photon M7 Controller Board compares to the rest of the range

Materials and software

Resins this board supports

The controller board itself does not restrict resin compatibility, that is governed by the printer's vat, film, and exposure settings. Once fitted, the base Photon Mono M7 runs standard UV resin, tough and ABS-like resin, and flexible resin at speeds up to roughly 150mm/h with high-speed resin, matching the printer's original specifications.

Slicers and software

The board runs on Anycubic's factory firmware and works with Photon Workshop slicer output loaded over USB, along with third-party slicers such as Chitubox and Lychee Slicer that export standard resin printer file formats. No firmware update is required after installation, since the board ships with the correct version pre-loaded.

What's in the box

• 1 x Anycubic Photon Mono M7 Controller Board, factory-flashed
• Protective anti-static packaging
• Installation reference guide

Ordering, shipping and support

We ship this board nationwide by courier from our Centurion and Boksburg stores, with local warranty handling if a manufacturing fault turns up, so you are not stuck arranging an overseas return for a board this critical to your printer's operation. If you are unsure whether your M7 needs this board or the Pro or Max version, contact our team before ordering, we would rather confirm compatibility upfront than process a return. We also stock other Anycubic spare parts locally alongside this board.

Frequently asked questions

Is this the same board as the M7 Pro or M7 Max motherboard?

No. The base Photon Mono M7, the M7 Pro, and the M7 Max each use their own motherboard, and the boards are not interchangeable between models. Check your printer's model and spec label before ordering to make sure you are buying the correct one.

Does this board come with firmware already installed?

Yes. It ships factory-flashed with the correct firmware for the base Photon Mono M7, so there is no flashing step or firmware download required before installation.

How long does it take to fit this board?

Expect roughly 30 to 60 minutes if you are comfortable opening the printer's housing and working with the existing wiring harness. Anycubic's official replacement guide covers the connector layout, and no soldering is required for a standard swap.

How do I know if my printer needs a new controller board rather than a new screen or cable?

Signs pointing to the board include the printer failing to boot at all, losing USB connection repeatedly, inconsistent Z-axis movement, or exposure faults across the whole screen rather than a localised dead zone. If swapping the screen or a cable does not resolve the issue, the board is the next most likely cause.

Is this a genuine Anycubic part with local warranty support?

Yes. It is sold as a genuine Anycubic spare part through our Centurion and Boksburg stores, with local warranty handling for manufacturing faults rather than an overseas return process.
