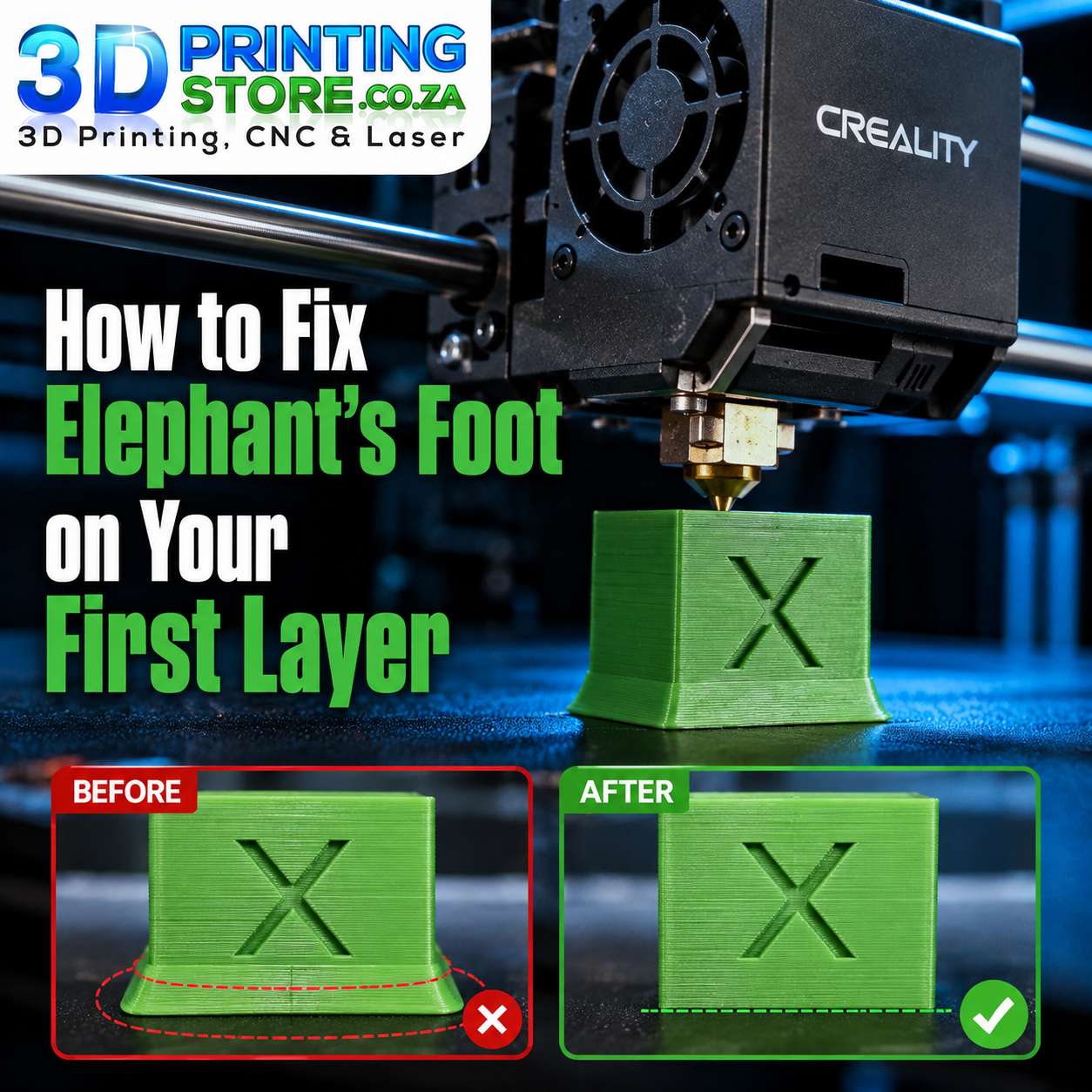

Elephant's foot happens when the bottom few layers of a 3D print bulge outward past the rest of the model, usually because the nozzle sits too close to the bed, the bed temperature runs too hot, or the first layer is squeezing out more plastic than it should. The fix comes down to three places: raising the Z-offset slightly, dropping the bed temperature after the first layer bonds, and dialling in elephant's foot compensation in the slicer. Most cases clear up within a couple of test prints once the real cause is isolated.
Key Takeaways
- Elephant's foot shows up as a flared bulge confined to the bottom layers, while the rest of the print stays straight and true to size.
- Z-offset raised by 0.02mm to 0.05mm increments is usually the fastest hardware fix, since a nozzle sitting too close pancakes the first layer outward.
- Bed temperature dropped by 5°C to 10°C, or scheduled to fall after the first layer, stops the bottom layers staying soft and sagging under the model's weight.
- Elephant's foot compensation in PrusaSlicer, Bambu Studio, OrcaSlicer, and Cura scales the first layer's perimeter slightly inward to cancel out the bulge digitally.
- A 0.5mm chamfer on the bottom edge of a CAD model gives functional parts somewhere for the expansion to go without exceeding the intended dimensions.
| First-Layer Issue | Visual Appearance | Primary Cause | Quick Fix |
|---|---|---|---|
| Elephant's Foot | Flared, uniform bulge confined to the very bottom layers | Nozzle too close to the bed, or bed too hot | Raise Z-offset, lower bed temperature |
| Warping | Corners or edges curling up and lifting off the bed | Poor adhesion or the print cooling too fast | Use a brim, an enclosure, or a cleaner bed surface |
| Over-Extrusion | Rough, blobby surface texture extending up through all layers | Flow rate or E-steps set too high | Recalibrate extruder E-steps |
What Causes Elephant's Foot on a 3D Print
Elephant's foot gets its name from the way the bottom of a print flares outward, much like the wide, splayed foot of an actual elephant supporting the weight above it. The first few layers sit closer to the bed than intended, or stay softer for longer than intended, and the weight of everything printed on top squashes them sideways before they've had a chance to solidify fully.
Three settings tend to cause this, and they often overlap on the same print. A nozzle positioned too close to the bed physically presses the first layer flatter and wider than the slicer intended, since the extruded plastic has nowhere to go but sideways. Bed temperature running too hot keeps the bottom layers semi-molten well after they've been laid down, so the model's weight continues spreading them outward layer after layer. Over-extrusion on the first layer compounds either problem by pushing more material through the nozzle than the layer height can accommodate cleanly.
Getting the diagnosis right matters, since the fix for each cause differs and applying the wrong one wastes filament without solving anything. A print that bulges only at the very bottom, with everything above sitting straight and true to size, points squarely at elephant's foot rather than a broader dimensional accuracy problem.
Fixing Elephant's Foot Through Hardware Calibration
Resolving physical calibration issues comes before reaching for a slicer workaround, since a hardware fix addresses the root cause rather than papering over it digitally.
Increase Your Z-Offset
A nozzle sitting too low physically pancakes the first layer outward as it extrudes, since the plastic has nowhere to go but sideways once the gap between nozzle and bed closes past what the layer height allows. Raise the Z-offset in small increments, 0.02mm to 0.05mm at a time, and reprint a test first layer after each adjustment. The goal is extrusion lines sitting smoothly connected without visibly flaring out at the edges.
Lower the Bed Temperature
Excess heat keeps the bottom layers semi-melted and soft for longer than they should stay that way, and a soft first layer sags sideways under the weight printed on top of it. Lowering bed temperature by 5°C to 10°C usually clears up mild elephant's foot on its own. For printers and slicers that support it, programming the bed to drop in temperature once the first layer has bonded gives strong adhesion at the start, followed by a firmer surface for the layers that follow.
Re-Level the Build Plate
An unevenly levelled bed produces uneven squish across the first layer, so one corner of a print might show pronounced elephant's foot while the opposite corner looks fine. Running an automatic bed levelling mesh, where supported, or performing a manual bed tramming pass by hand, ensures consistent nozzle-to-bed distance across the entire surface rather than just the centre point.
3D Printers Built for Reliable First Layers
Creality SparkX i7 3D Printer with CFS Lite 4 Filament Dispenser
Multicolour 3D printer with automatic bed levelling and Z-offset calibration built in, removing much of the manual guesswork behind a clean first layer. The hardened-steel hotend and CFS Lite 4 dispenser pair automated first-layer consistency with four-spool colour switching.
View Product
Creality K1C 3D Printer
Enclosed CoreXY printer with a dual-gear direct drive extruder and a powerful heated bed built for consistent, high-speed printing. The stable enclosed chamber keeps first-layer temperature steady from edge to edge, reducing the uneven squish that causes elephant's foot on one side of a print.
View Product
Creality K2 Plus 3D Printer with CFS Combo
Flagship multicolour printer with bed levelling via a strain gauge sensor and an actively heated build chamber. Precise, repeatable levelling across a 350 x 350 x 350mm bed keeps the first layer consistent across large prints where elephant's foot is easiest to miss until the print is finished.
View Product
Creality Ender-3 V3 KE 3D Printer
Entry-level printer with 121-point automatic bed levelling and a direct-drive Sprite extruder. The dense levelling mesh compensates for minor bed unevenness automatically, giving beginners a strong first layer without needing to master manual tramming from day one.
View Product
Creality K1 Max 3D Printer
Large-format enclosed CoreXY printer with automatic bed levelling and AI camera monitoring across a 300 x 300 x 300mm build volume. Consistent first-layer results across long, large-scale prints matter most on bigger beds, where uneven squish is harder to spot early.
View Product
Creality K2 Plus 3D Printer
Standalone version of the K2 Plus with upgraded stepper motors, strain-gauge bed levelling, and an actively heated build chamber. This is the pick for makers who want the K2 Plus's first-layer reliability at maximum build volume before adding multicolour capability later.
View ProductFixing Elephant's Foot Through Slicer Compensation
Modern slicing programs include settings built to counteract the outward expansion of the first layer digitally, useful once hardware calibration has been checked and the bulge still needs fine-tuning.
PrusaSlicer, Bambu Studio, and OrcaSlicer
These three slicers share a setting called Elephant Foot Compensation, tucked into the advanced print settings. Setting this to roughly 0.1mm to 0.3mm scales the first layer's perimeter slightly inward, shrinking the footprint just enough to cancel out the bulge without affecting any layer above it. Values set too high leave a visible gap where the first layer meets the second, so small, incremental adjustments work better than one large correction.
UltiMaker Cura
Cura handles the same problem through Initial Layer Horizontal Expansion. Entering a negative value, typically between -0.1mm and -0.3mm, shrinks the footprint of the first layer inward in the same way Elephant Foot Compensation does elsewhere. The naming differs between slicers, but the underlying principle, pulling the first layer's outline in slightly to compensate for physical spreading, stays the same across all of them.
Fixing Elephant's Foot Through CAD Design Changes
Makers designing their own functional parts, particularly ones meant to snap together or fit against another component, can compensate for elephant's foot directly inside the modelling software rather than relying on slicer settings alone.
Add a Bottom Chamfer
Applying a 0.5mm chamfer at a 45-degree angle to the bottom edge of a model gives the natural outward expansion somewhere to go without pushing past the model's intended dimensions. As the first few layers spread slightly under normal printing conditions, they fill out the chamfered gap rather than flaring past the design's outer edge. This works particularly well on parts destined for a tight-fitting assembly, where even a fraction of a millimetre of unwanted bulge at the base can prevent two components from seating correctly against each other.
Distinguishing Elephant's Foot From Other First-Layer Problems
Elephant's foot gets confused with warping and over-extrusion often enough that misdiagnosis wastes a print cycle before the real cause gets addressed. Warping shows up as corners or edges lifting away from the bed entirely, caused by poor adhesion or a print cooling unevenly rather than by the nozzle sitting too close or the bed running too hot. 3D Printing Store's guide on bed levelling covers the adhesion side of that distinction in more depth.
Over-extrusion produces a rougher, blobbier surface texture running consistently up through every layer, not just the bottom few, and traces back to flow rate or E-steps calibrated too high rather than anything specific to the first layer. Print speed that's too aggressive can compound both issues by giving each layer less time to bond before the next one lands, an interaction covered in 3D Printing Store's guide to 3D print speed and quality.
Stringing between separate features on a print points to retraction settings rather than anything to do with the first layer specifically, covered in 3D Printing Store's guide on retraction settings. A partially blocked nozzle can also masquerade as several of these problems at once, and clearing it first, following 3D Printing Store's guide on clearing a clogged nozzle, rules out one more variable before chasing elephant's foot through Z-offset adjustments.
Elephant's Foot Across Different Filament Types
Standard PLA tolerates a reasonably wide margin of error on both Z-offset and bed temperature, which makes elephant's foot less common than on materials needing a hotter bed to adhere properly. PETG runs a noticeably higher bed temperature than PLA and stays tacky for longer after extrusion, so it shows elephant's foot more readily if bed temperature isn't dropped once the first layer bonds. ABS and ASA sit at the hot end of the spectrum again, and printers running these materials benefit from an enclosure that keeps ambient temperature stable, since draughts across an exposed bed cause uneven cooling that compounds existing squish at the base.
Buyers working across a range of materials, particularly on a multicolour setup, benefit from saving separate first-layer temperature and Z-offset profiles per filament type rather than relying on one universal setting. 3D Printing Store stocks a full range of 3D printer filament suited to Gauteng workshop conditions, alongside the 3D printer parts range for makers wanting a hardened nozzle or upgraded hotend.
First-Layer Troubleshooting for Gauteng Makers
Makers running printers from home workshops in Midrand and small production setups in Centurion often notice elephant's foot appears seasonally, since Highveld temperature swings between a cool Johannesburg winter morning and a warmer summer afternoon shift how quickly a bed loses heat once printing starts. A printer positioned near a window or an open garage door experiences more airflow across the bed than one tucked into a still corner of a room, and that difference alone can tip a borderline first layer into visible elephant's foot.
Students at the University of Johannesburg working through prototyping coursework run into elephant's foot regularly on functional test parts, since dimensional accuracy at the base matters more for parts meant to fit together than for a purely decorative print. Dialling in Z-offset and bed temperature correctly once saves far more time across a semester of iterative design work than nudging settings print by print.
3D Printing Store's Boksburg and Centurion branches carry demonstration Creality 3D printers on the floor, useful for comparing bed levelling systems and build chamber designs before deciding which platform handles first-layer consistency most reliably. The full range of 3D printers for sale spans models from manual bed tramming through to fully automatic strain-gauge levelling, stocked and supported locally rather than shipped in from overseas.
Why Getting the First Layer Right Matters
A first layer with elephant's foot compromises more than the visible appearance of a print. Parts meant to slot into an enclosure, snap-fit assemblies, and anything printed to a tight dimensional tolerance fail to seat correctly if the base measures wider than the design intended, even when the flare is only a fraction of a millimetre. Understanding how 3D printing builds a model layer by layer explains why an error confined to the first few layers still shows up as a persistent dimensional problem at the base of an otherwise accurate print.
Filament choice affects how forgiving a print is of minor Z-offset or bed temperature drift. Reliable 3D printing filament with consistent diameter and proper moisture control extrudes evenly, whereas inconsistent filament introduces its own variability that makes isolating elephant's foot from a filament problem harder. Creality printers stocked through 3D Printing Store pair automatic bed levelling with well-documented Z-offset calibration routines, giving first-time buyers a shorter path to a clean, repeatable first layer.
3D printer training covers Z-offset calibration, bed levelling, and slicer compensation directly, and a short session with a technician resolves recurring first-layer problems faster than trial and error at home. The full 3D Printing Store range, from entry-level machines through to flagship multicolour systems, is stocked and supported locally across the Boksburg and Centurion branches.
Frequently Asked Questions
What causes elephant's foot on a 3D print?
Elephant's foot happens when the nozzle sits too close to the bed, the bed temperature runs too hot, or the first layer is over-extruded, causing the bottom few layers to squish sideways under the weight of the rest of the print. All three causes often overlap on the same model, which is why a print can show a pronounced bulge even when only one setting is clearly wrong. Isolating the actual cause, rather than adjusting several settings at once, makes it far easier to fix the problem without introducing a new one, such as poor bed adhesion from dropping the temperature too far. A print that flares only at the very base, with everything above sitting straight and dimensionally accurate, is the clearest sign that elephant's foot rather than a broader calibration issue is responsible.
How do I stop elephant's foot without changing my slicer settings?
Hardware calibration resolves most cases of elephant's foot before any slicer setting needs to change. Raising the Z-offset in small increments of 0.02mm to 0.05mm stops the nozzle from pancaking the first layer outward, and lowering bed temperature by 5°C to 10°C prevents the bottom layers from staying soft enough to sag under the model's weight. Re-levelling the build plate, either through an automatic mesh or manual tramming, rules out uneven squish across different areas of the bed. These three checks, done in order, resolve elephant's foot on the majority of prints without ever touching an Elephant Foot Compensation or Initial Layer Horizontal Expansion setting in the slicer.
Is elephant's foot the same as warping?
Elephant's foot and warping are different problems with different causes, even though both appear near the base of a print. Elephant's foot is a uniform outward bulge confined to the bottom few layers, caused by a nozzle sitting too close to the bed or a bed temperature running too hot. Warping is corners or edges lifting up and away from the bed entirely, caused by poor adhesion or a print cooling unevenly across its surface. Fixing warping generally involves a brim, an enclosure, or a cleaner bed surface, none of which address elephant's foot directly, so correctly identifying which problem is present before adjusting settings saves a wasted print cycle.
