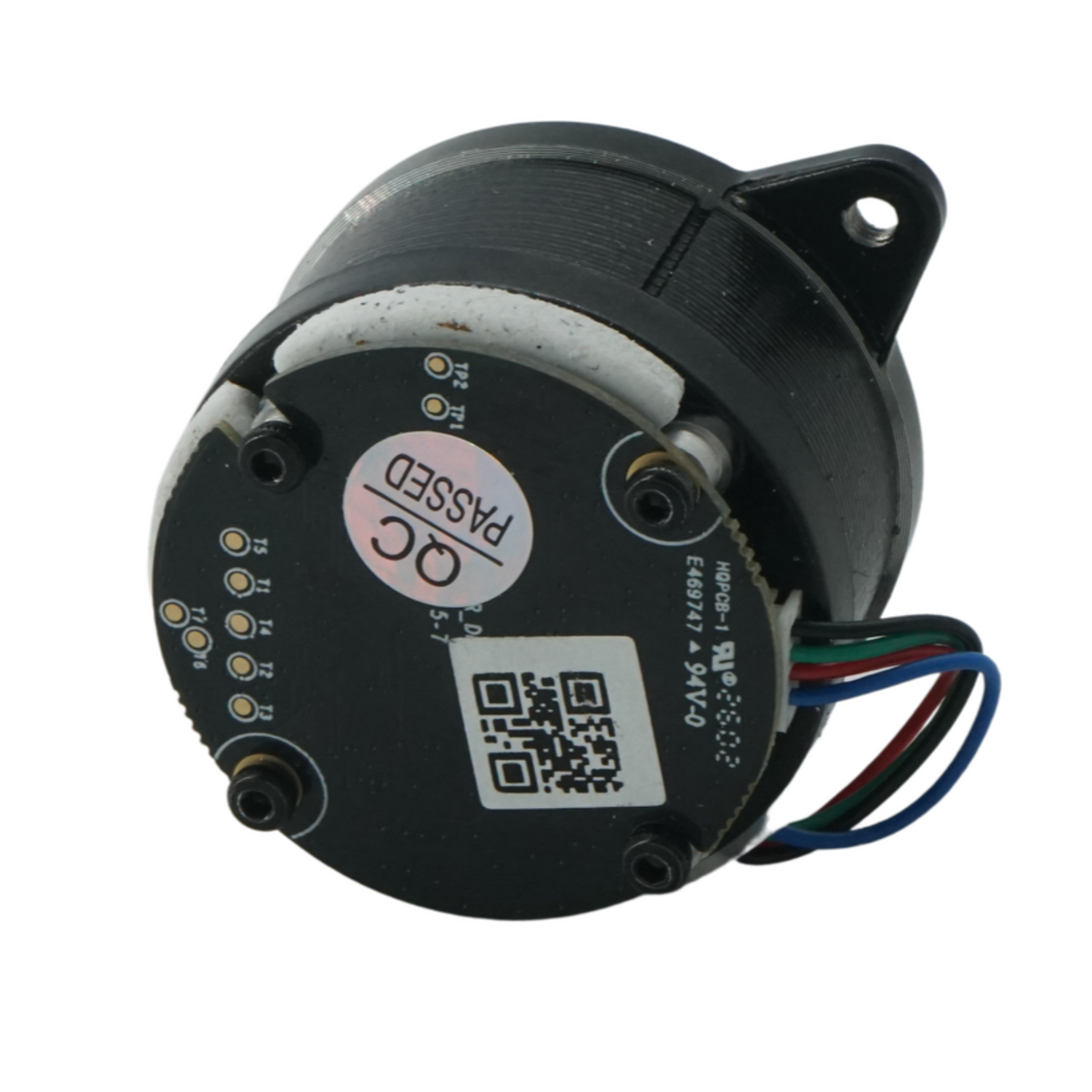

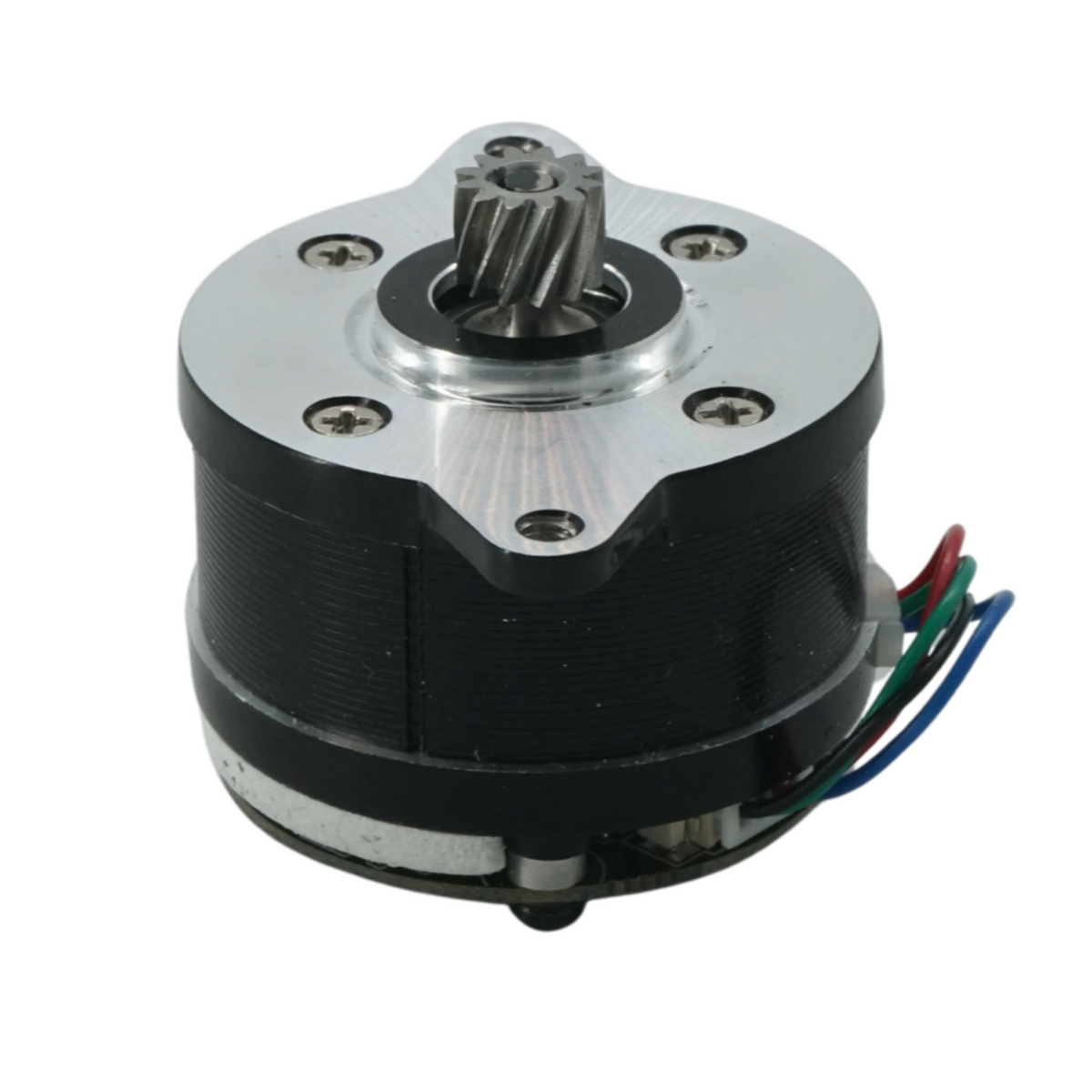

Creality Round Extruder Motor for K2 Plus

Your Creality K2 Plus heats up, the CFS feeds filament to the toolhead, and then nothing happens. The extruder twitches, clicks once, and the screen throws a CM2784 or CM2788 error. Every idle hour is lost output, whether a client prototype or a four-colour production run.

When the fault traces back to the extruder drive itself, the fix is a genuine Creality part, not a generic motor that will not talk to the K2's closed-loop controller. This K2 Plus extruder motor (Creality part number 4004100081) is the exact round E-axis servo motor fitted at the factory, so it bolts in, plugs in and calibrates through the printer's own firmware.

The result: your K2 Plus or K2 Pro back to full, consistent extrusion, usually in under an hour.

Genuine Creality part 4004100081 | Closed-loop E-axis servo motor | 1.8° step angle | 0.8 A rated current | Integrated helical drive gear | Fits K2 Plus and K2 Pro | Stocked in South Africa

Who the K2 Plus extruder motor is built for

Small print farm operators

One stalled K2 Plus means a queue of orders slipping, so you need a part that restores exact factory behaviour. Because this is the original Creality extruder motor with the same 0.8 A rating and 1.8° step angle, your existing Creality Print profiles carry straight over. Keep one on the shelf and a CM2784 failure becomes a 45 minute swap, not a two week wait for overseas shipping.

Prototyping engineers

Functional prototypes in PETG, ABS or ASA depend on accurate, repeatable extrusion, because under-extruded walls fail under load and skew your test results. The K2's encoder-equipped extruder corrects missed steps in real time, which protects dimensional accuracy on long jobs. Replace a worn or faulty motor with this genuine unit and you can again trust a 20 hour print of a 300 mm enclosure to come off the bed with consistent wall strength.

Schools, makerspaces and training labs

Shared machines take more abuse, from forced filament loads to badly timed cold pulls. When a student-used K2 Plus stops extruding, a technician needs a part that installs with basic hand tools and a documented calibration routine. This motor follows Creality's published replacement and calibration procedure, so a lab assistant can restore the machine between classes and have it printing the next set of design projects the same afternoon.

What sets this genuine K2 Plus extruder motor apart

Closed-loop feedback that catches problems before they ruin a print

Unlike the open-loop stepper motor on most desktop printers, the K2 Plus extruder runs as a servo style motor with a rotary encoder. The controller reads actual shaft position, so it detects when filament stops moving and releases the motor before the gears grind a notch into your filament. A failing encoder or winding produces false clog errors that no nozzle cleaning will fix.

Factory specification, so your profiles stay valid

This is Creality part 4004100081, the same round E-axis motor the K2 Plus and K2 Pro leave the factory with. It delivers a 1.8° step angle and runs at a rated 0.8 A, matching the drive current the printer's toolhead board expects. You do not need to touch rotation distance, flow ratio or pressure advance values after the swap, because it matches the motor Creality used to tune its stock profiles.

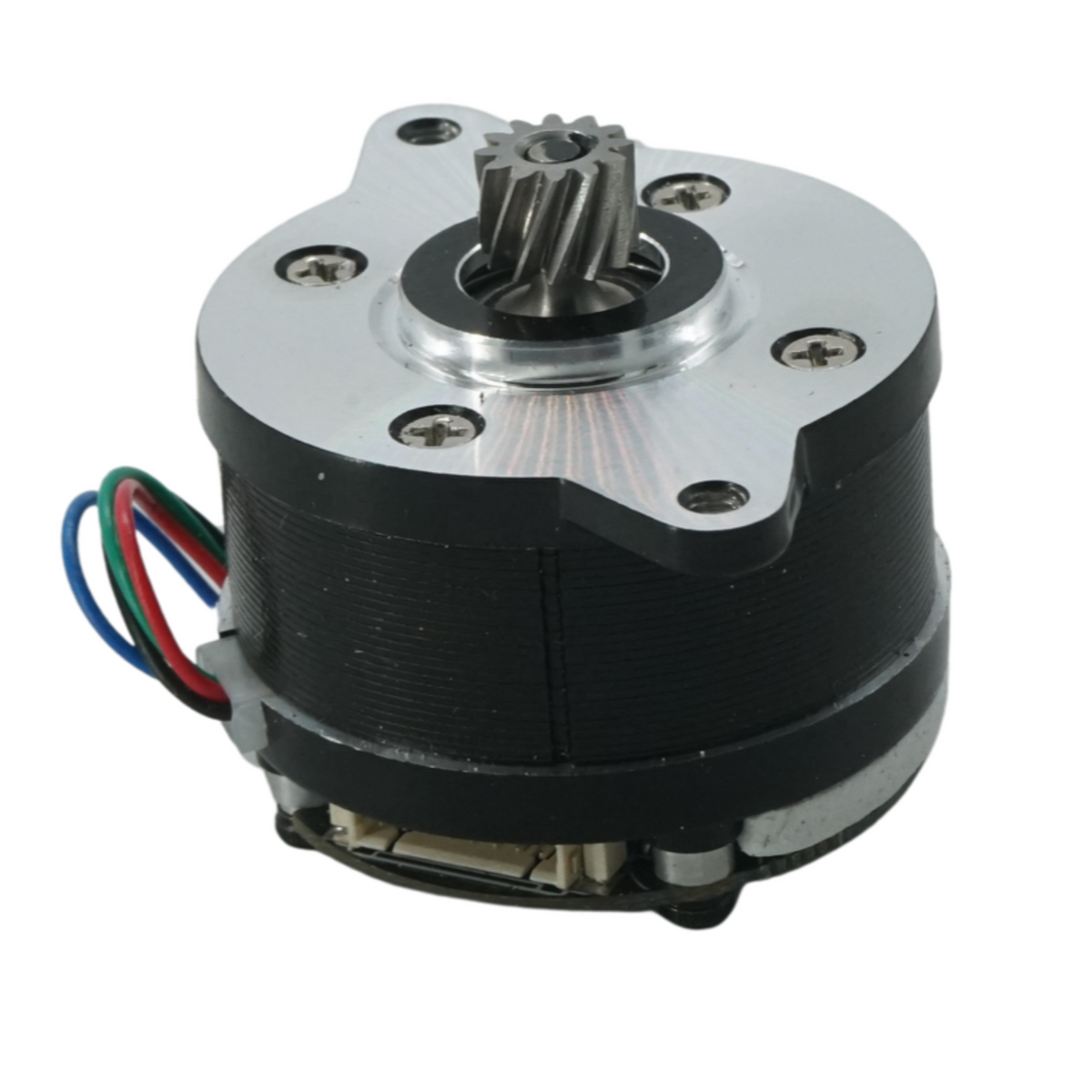

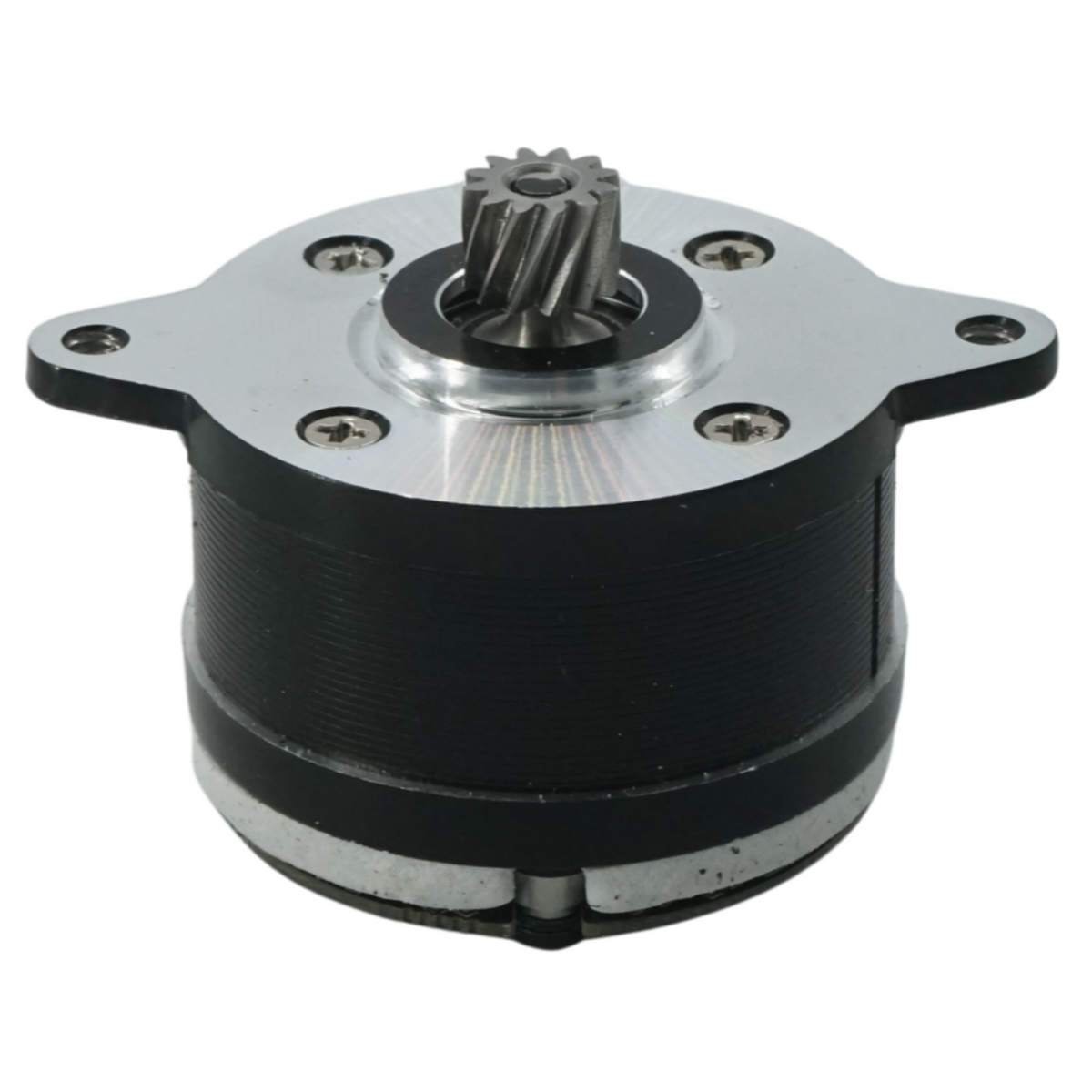

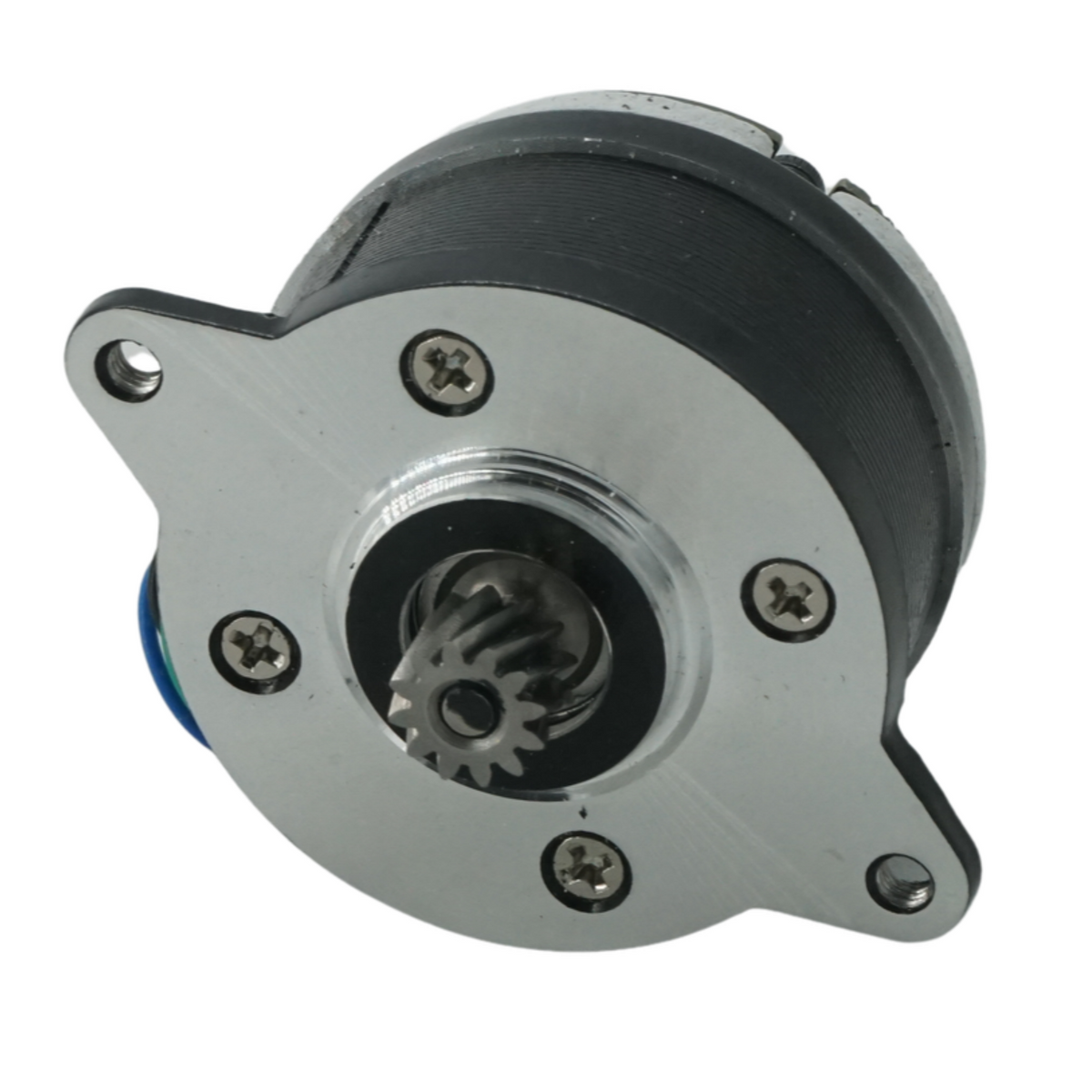

Integrated helical drive gear on a 3 mm shaft

The motor ships with its helical pinion already cut on the 3 mm shaft, with a 6 mm gear length that meshes directly with the K2's reduction gearing. There is no press-fit gear to align or grub screw to work loose, which removes one of the most common causes of intermittent under-extrusion in fused filament fabrication. If your extruder gears are also worn, pair it with the Creality K2 Series Extrusion Gears Set for a full drive refresh.

A repair you can finish yourself, with a documented calibration

Creality publishes a step-by-step motor replacement guide, plus an encoder and electrical zero calibration you run from the printer's Fluidd web interface (port 4408). The encoder calibration takes about 50 seconds. Forum reports show skipping it is the main reason a new motor twitches without turning, so install, calibrate, then print.

Full specifications for the K2 Plus extruder motor

Ordering your K2 Plus extruder motor: shipping and support

We hold stock of this motor locally and ship it by courier across South Africa, with orders confirmed before 11:00 dispatched the same day. Warranty claims are assessed by our own technical team in South Africa, so you do not deal with an overseas return. You can also collect in Centurion or Boksburg, and add Creality PETG filament and other Creality spare parts in the same order.

Frequently asked questions about the K2 Plus extruder motor

Can I use a K1 or generic NEMA 17 motor instead of this K2 Plus extruder motor?

No, a K1 or generic NEMA 17 motor will not work. The K2 Plus and K2 Pro use a round, encoder-equipped closed-loop motor that the firmware identifies and calibrates, while K1 extruders use a conventional open-loop stepper. A non-matching motor will not fit the K2 extruder housing and will trigger motor identification errors.

Will a new motor fix the CM2784 error on my K2 Plus?

Only if the motor itself has failed. CM2784 means the printer detected an extrusion anomaly, which is often a clogged nozzle, a stuck filament cutter or a loose hot end. Rule those out first. If the motor clicks without rotating, replace it, then run the encoder calibration. Owners who skipped calibration report the new motor twitching but not turning.

How long does it take to install and calibrate?

Most owners finish the swap in 30 to 45 minutes. You remove the extruder cover, unplug and unbolt the old motor, then fit the new one. Afterwards, open Fluidd at your printer's IP address on port 4408, unload all filament, run the encoder calibration (about 50 seconds), restart, and complete the electrical zero calibration.

Can the motor handle PETG, ABS, TPU and carbon fibre filament?

Yes, this is the same motor Creality fits for every material the K2 Plus supports. Material capability depends on the hot end and nozzle, so fit a hardened or Creality Unicorn K2P Quick Swap Nozzle for abrasive blends. Feed TPU from an external spool rather than through the CFS, as Creality recommends.

Is local warranty and technical support available in South Africa?

Yes, warranty and technical support for this part are handled locally by 3D Printing Store. If the motor arrives faulty or fails under normal use, log a technical support ticket and our team will diagnose it with you, including checking related parts such as the Creality K2 Plus Nozzle Adapter Board.
