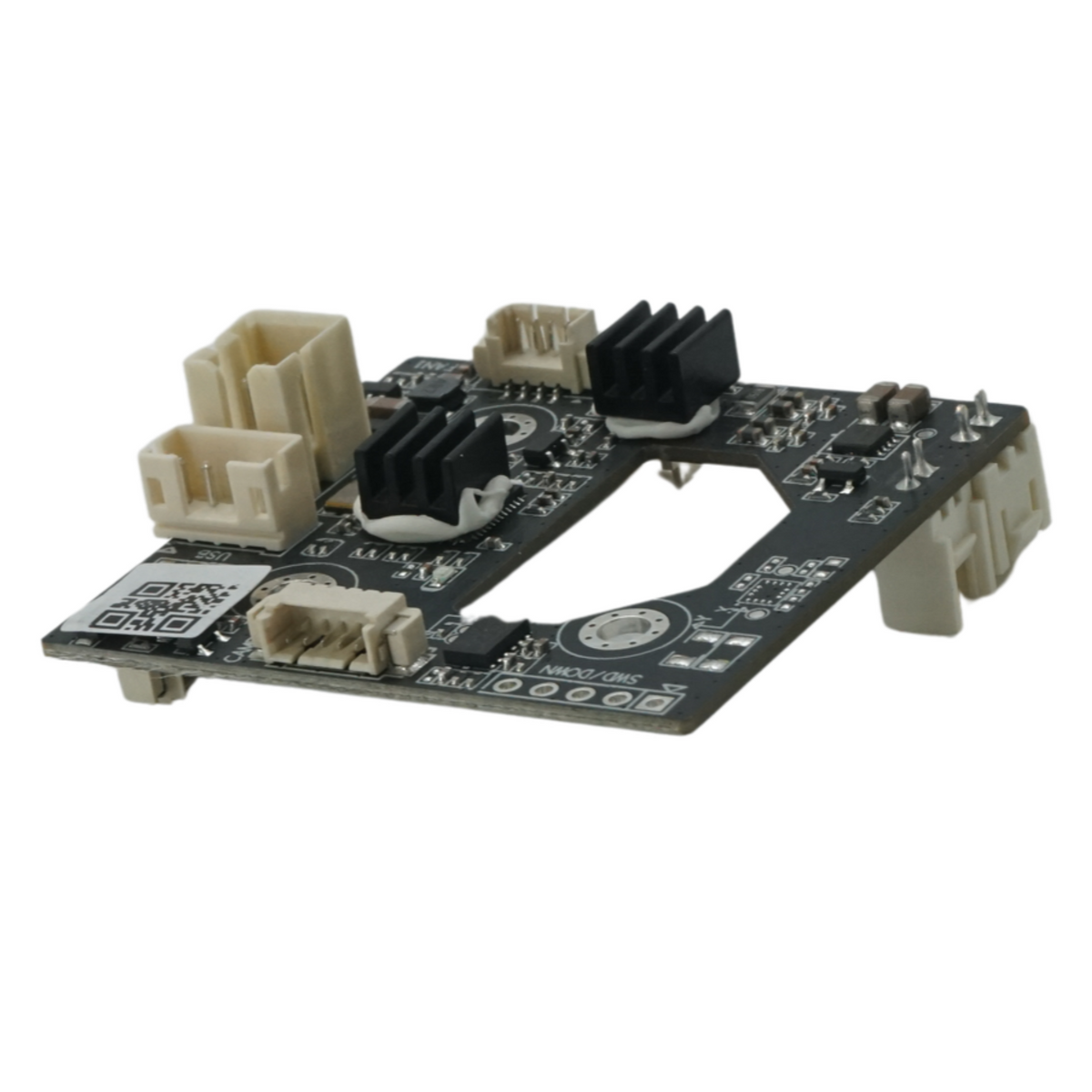

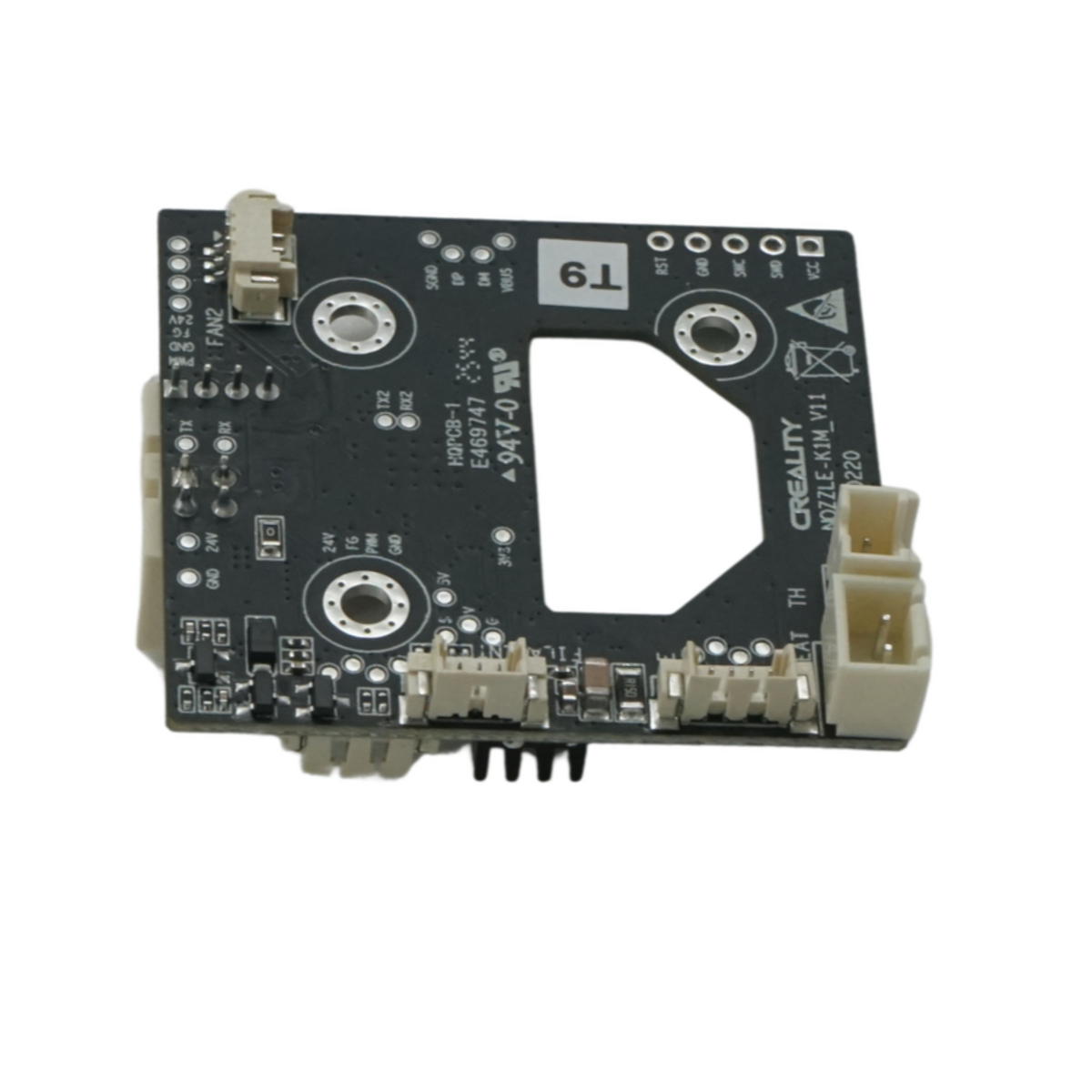

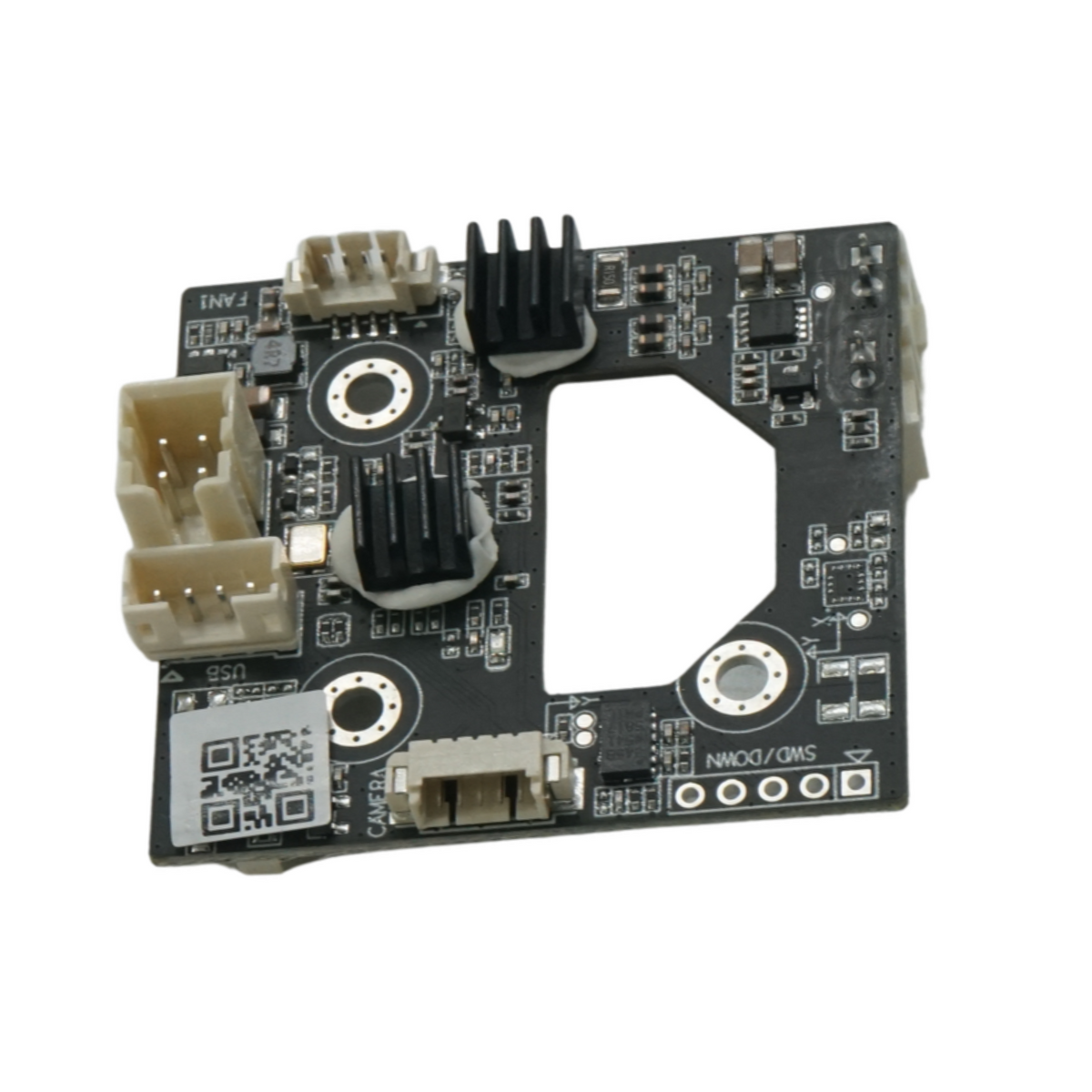

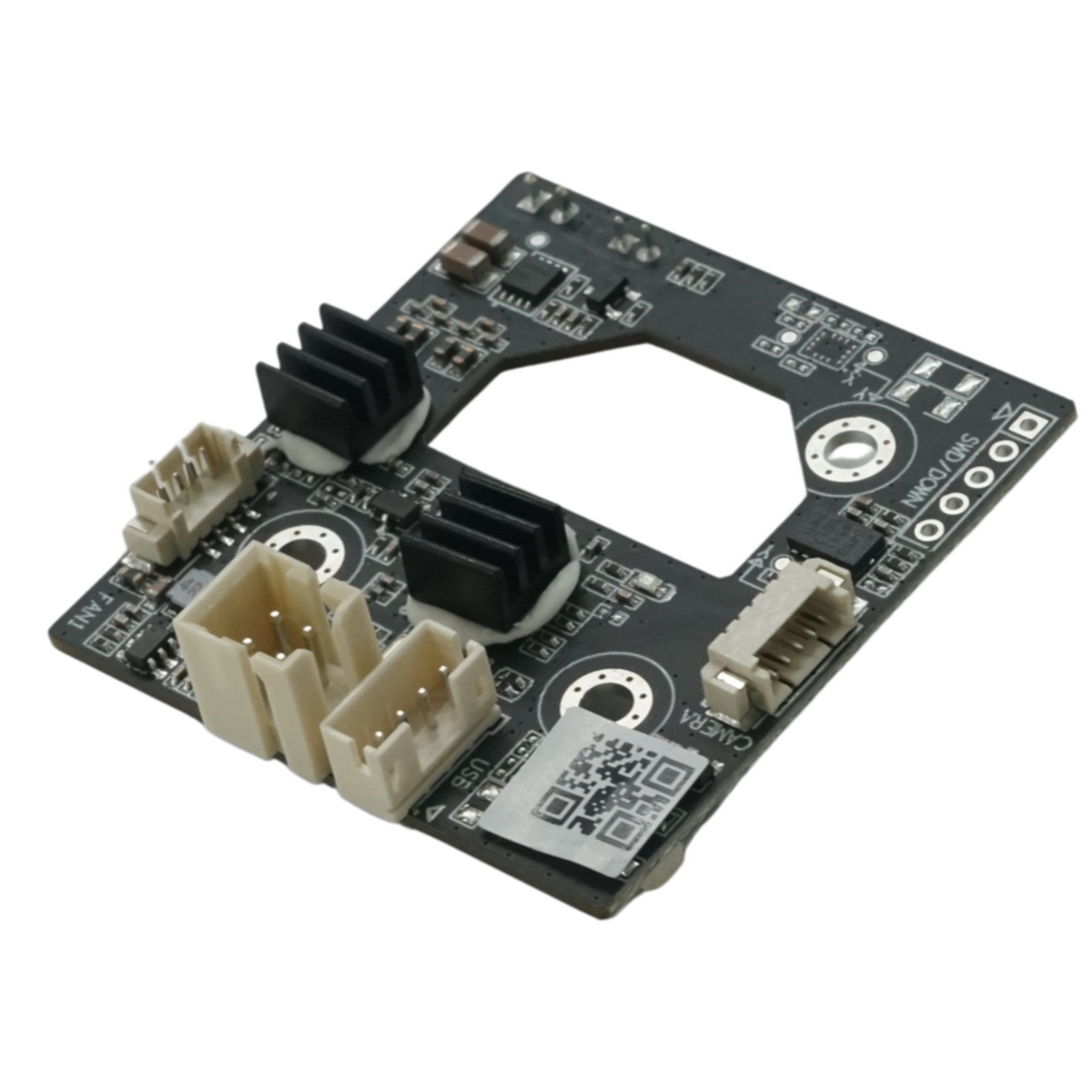

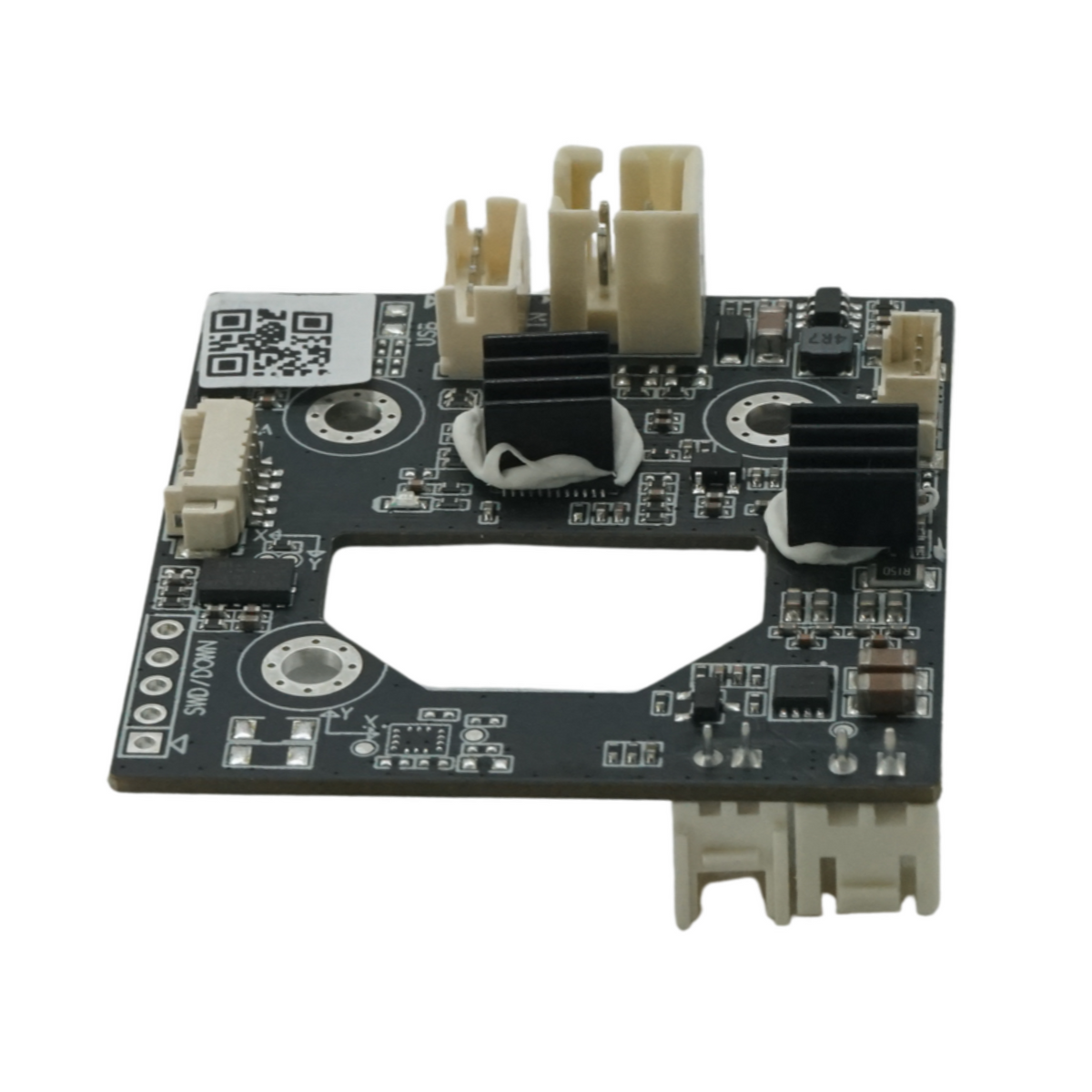

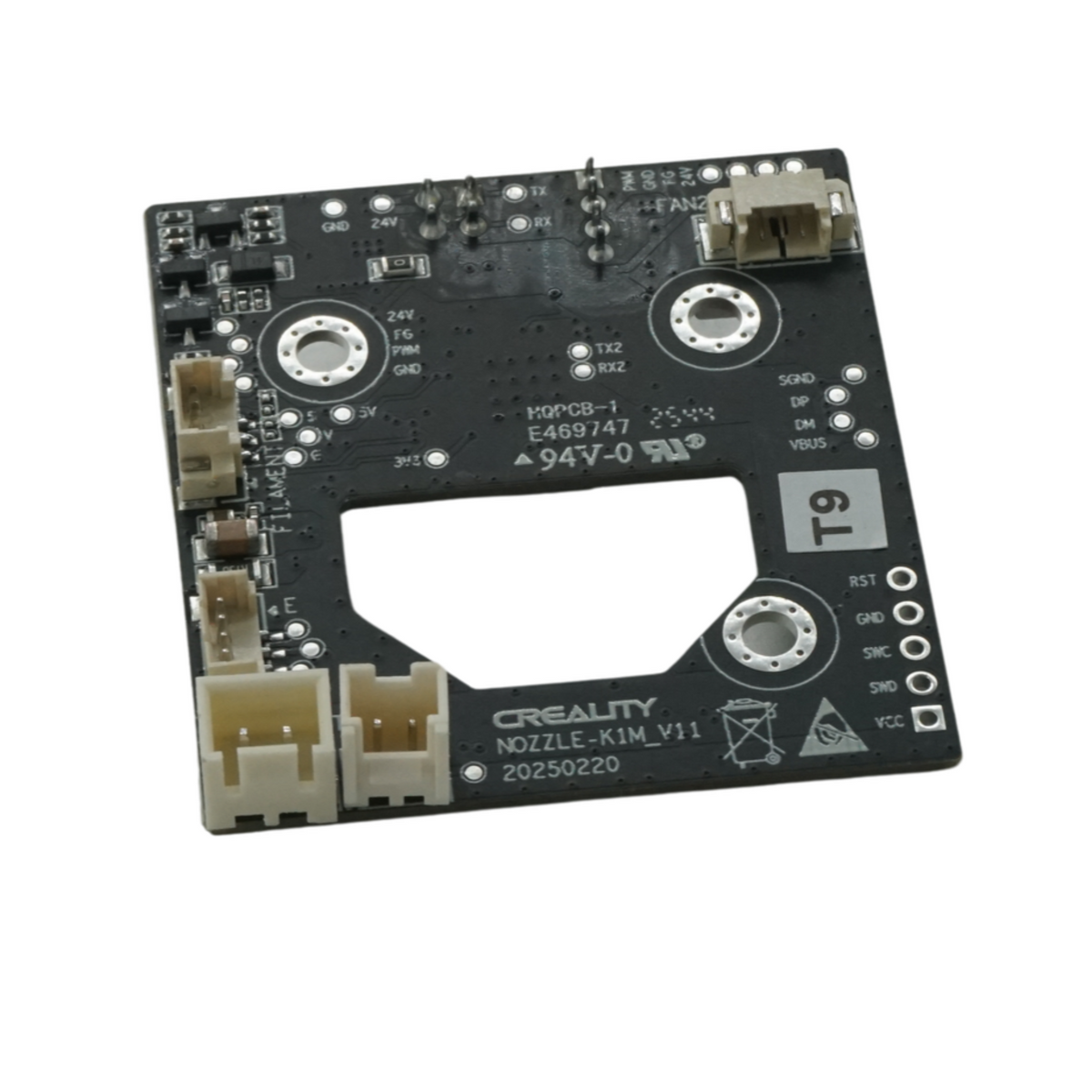

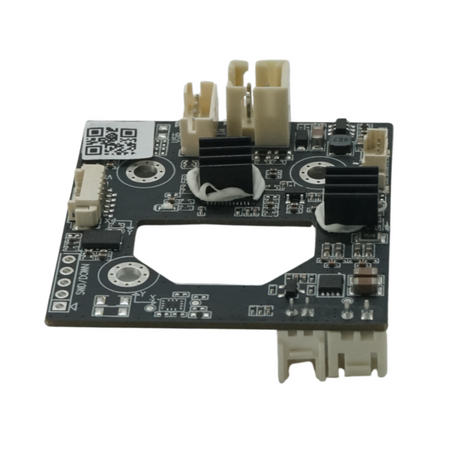

Creality K1C 2025 Toolhead Mainboard

Your K1C 2025 or K1 Max 2025 hangs on "waiting for printer to initialise", throws a nozzle communication error, or suddenly reads a nonsense hotend temperature mid-print. You have checked the hotend, reseated the cables, and the fault keeps coming back. Very often the culprit is the small circuit board in the toolhead that every hotend signal passes through.

A blob of filament that engulfs the hotend, a shorted heater wire or a cracked connector can all take that board out, and with it the whole printer.

Fit the genuine Creality K1C 2025 toolhead mainboard and your printer heats, extrudes and reports correctly again, without replacing the entire print head.

Genuine Creality part 2101020340 | Fits the K1C 2025 and K1 Max 2025 | Single-stack 2025 board design | Connects heater, thermistor, fans and extruder motor | Links the toolhead to the printer mainboard | Plug-in connectors, no soldering | Local stock in South Africa

Who the K1C 2025 toolhead mainboard is built for

The 2025 K1 owner after a hotend failure

A "blob of death", where molten filament wraps around the hotend, can damage the heater wiring and the board it plugs into. Once you have cleared the mess and fitted a new hotend, a damaged toolhead board will still stop the printer from starting. This is the factory board for both the K1C 2025 and the K1 Max 2025, so the printer recognises it on boot. Swap it, run the self-check, and have a batch of PETG brackets printing the same evening.

The small print farm operator

On a farm that mixes Creality K1C 2025 3D printers and Creality K1 Max 2025 3D printers, the toolhead board is one of the parts most exposed to heat, vibration and constant cable flexing. Because both 2025 models use this same board, a single spare on the shelf covers your whole 2025 fleet, and a toolhead fault becomes a short bench job instead of a week of downtime.

The school or makerspace technician

Learners crash nozzles, leave prints unattended and occasionally pull on the toolhead while clearing a jam. When a classroom printer stops initialising, you do not need to send it away. The board sits under the toolhead fan cover, held by three screws, with plug-in connectors throughout. It is a practical in-house repair and a useful lesson in how a modern FFF printer splits its electronics between the base and the print head.

What sets the K1C 2025 toolhead mainboard apart

Every hotend signal runs through it

This board is the hub of the print head. The heater, the thermistor that measures nozzle temperature, the cooling fans and the extruder's stepper motor all plug into it. An onboard microcontroller handles them locally and talks to the main controller in the base over a single data cable. In the printer's Klipper-based firmware this board appears as the nozzle MCU, which is why a fault here so often shows up as a communication or initialisation error rather than an obvious hardware failure.

Fewer wires through the drag chain, fewer failure points

Putting the electronics in the toolhead means only one data and power cable has to flex through the drag chain on every move, instead of a separate wire for every sensor and heater. That is a large part of why the K1C and K1 Max reliably handle fast CoreXY motion. Replacing a failed board with the genuine part keeps that design intact, so you are not adding adapter cables or splices that become new weak points.

One board for both 2025 K1 models

The 2025 printers are not electrically the same as the original K1C and K1 Max. Creality changed the mainboard, the hotend connectors and the toolhead board, and moved to a single-stack board in place of the earlier dual-stack design. Forum reports confirm that mixing old and new toolhead parts leaves printers stuck at start-up. Part 2101020340 fits both the K1C 2025 and the K1 Max 2025, so you get the right board for either machine and only need one part number on the shelf.

A short, bolt-in repair

With the printer switched off and unplugged, you remove the toolhead fan cover, unplug the part-cooling fan, take out three screws and lift the old board. Move each connector across to the matching socket on the new board, check every plug is fully seated and oriented correctly, then refit the board and cover. No soldering and no firmware flashing is needed. Most owners finish in 20 to 30 minutes with basic hex keys.

Know which toolhead board you actually need

Creality has used several toolhead boards across the K1 family. Check your printer model before you order.

Full specifications: Creality K1C 2025 toolhead mainboard

Ordering, shipping and support for your K1C 2025 toolhead board

We courier the K1C 2025 toolhead mainboard anywhere in South Africa, or you can collect it from our Centurion or Boksburg store. Warranty claims are handled locally by our own team, not sent offshore. Our technicians can help you work out whether a fault is the toolhead board, the cable or the printer mainboard. Nozzles, build plates and other Creality spare parts ship from local stock.

Frequently asked questions about the K1C 2025 toolhead mainboard

Does this board fit the K1 Max 2025 as well as the K1C 2025?

Yes, part 2101020340 fits both the K1C 2025 and the K1 Max 2025. It does not fit the original pre-2025 K1C or K1 Max, the K1 or the K1 SE, which use older toolhead boards with different connectors. Check the label on the back of your printer. If it says K1C 2025 or K1 Max 2025, this is the board you need.

How do I know the toolhead board is the faulty part?

Rule out the cable and connectors first. Initialisation hangs, nozzle MCU errors and unknown exceptions such as Key 111 can also come from the cable between toolhead and base, or from the printer mainboard. Power down, reseat every toolhead connector and the data cable, and inspect the drag chain loom for chafing. If the fault persists, a toolhead board is the likely cause.

Do I need to flash firmware after fitting the new board?

No, the board works with the printer's existing Creality OS. After fitting it, run the self-check from the screen. If the printer still will not complete start-up, update to the latest firmware for your 2025 model from Creality's download page before assuming the board is faulty.

How do I stop the board from failing again?

Prevent the blobs that cause most failures. Watch the first layer, keep the build plate clean so prints stay down, and keep the filament runout sensor enabled. Keep the silicone sock on the heater block, and always switch off the printer before unplugging anything in the toolhead.

Is there local support in South Africa if I am not sure which part I need?

Yes, submit a technical support ticket with your printer model, the error code and what you have already tried. Our team will help you confirm the fault before you buy, so you do not replace the wrong part.
