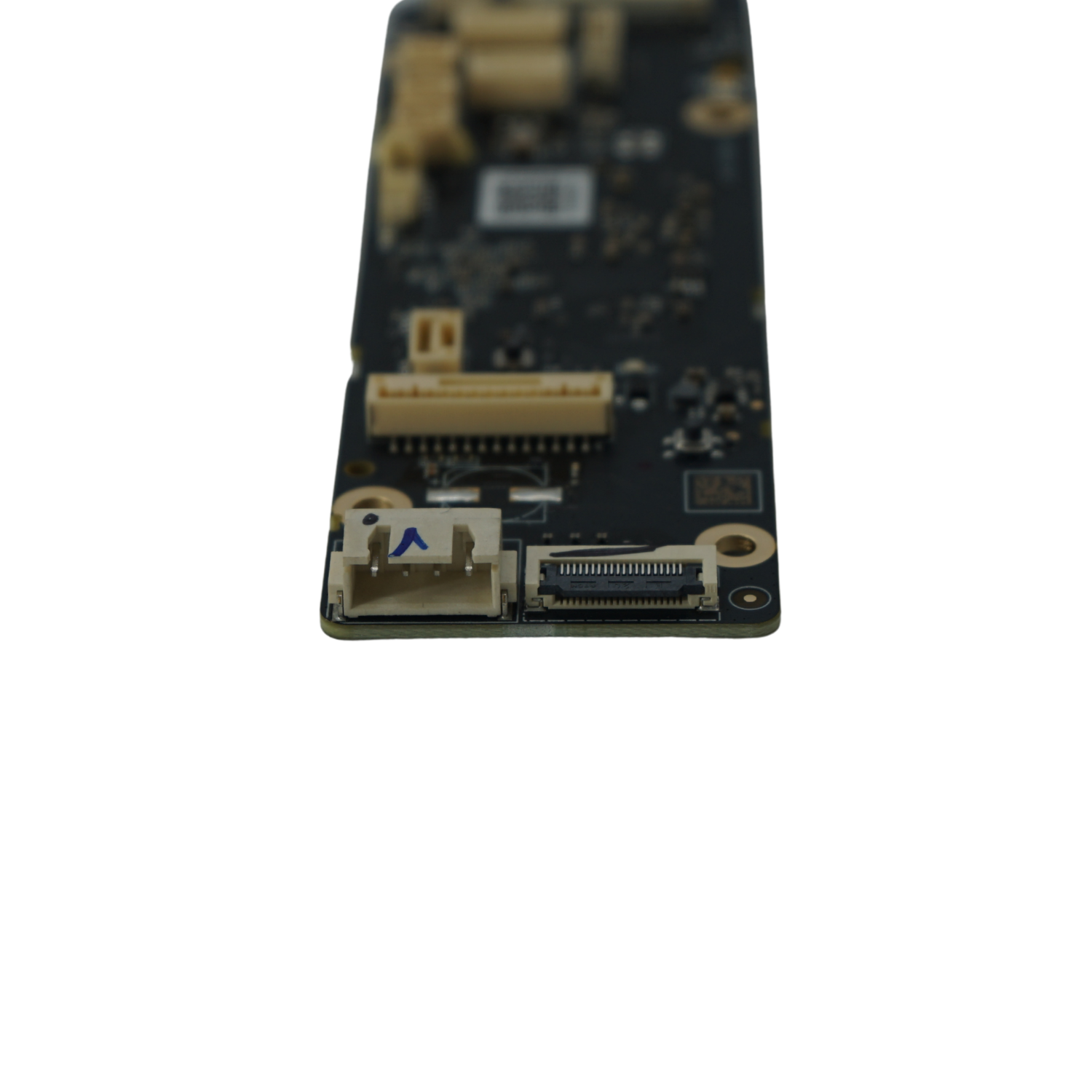

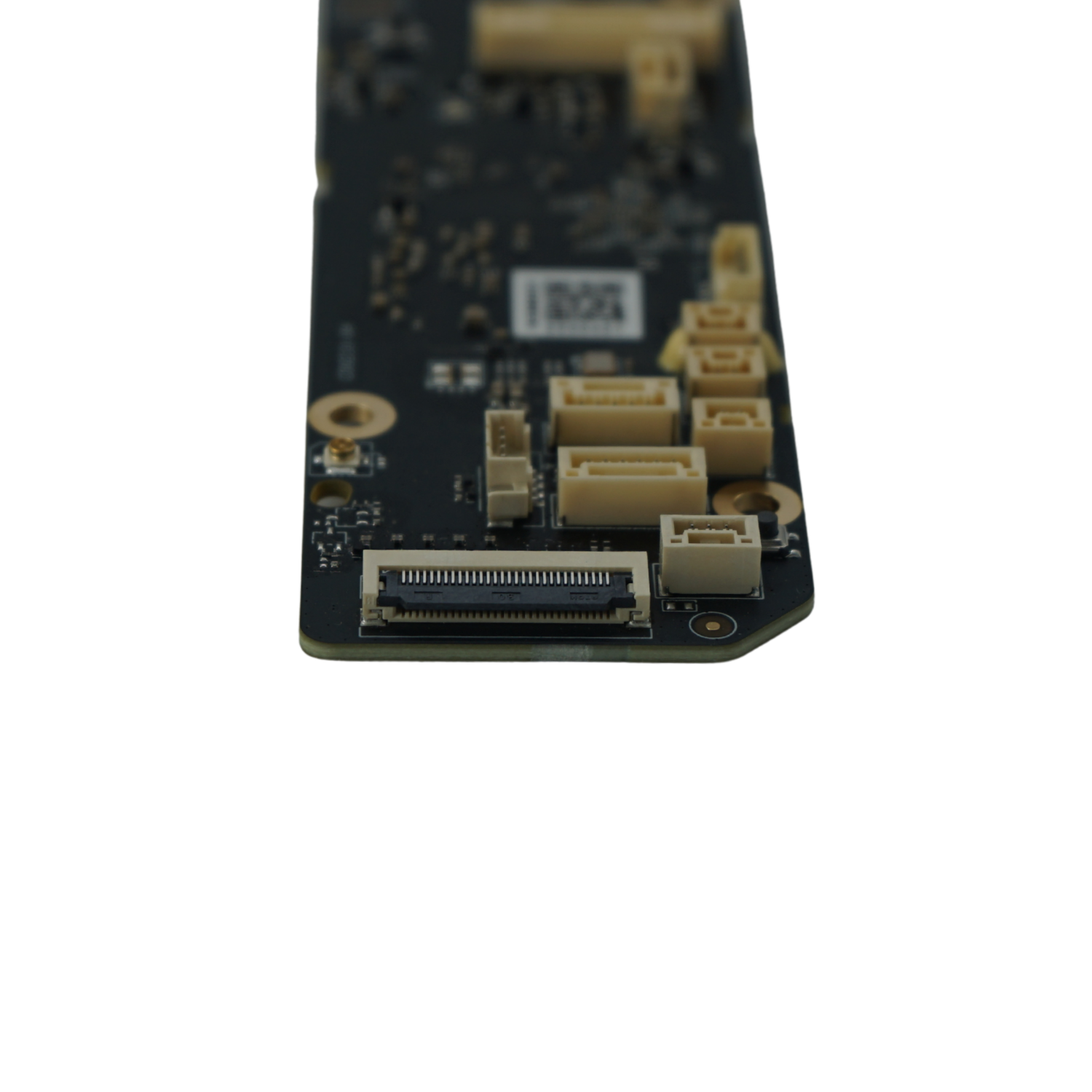

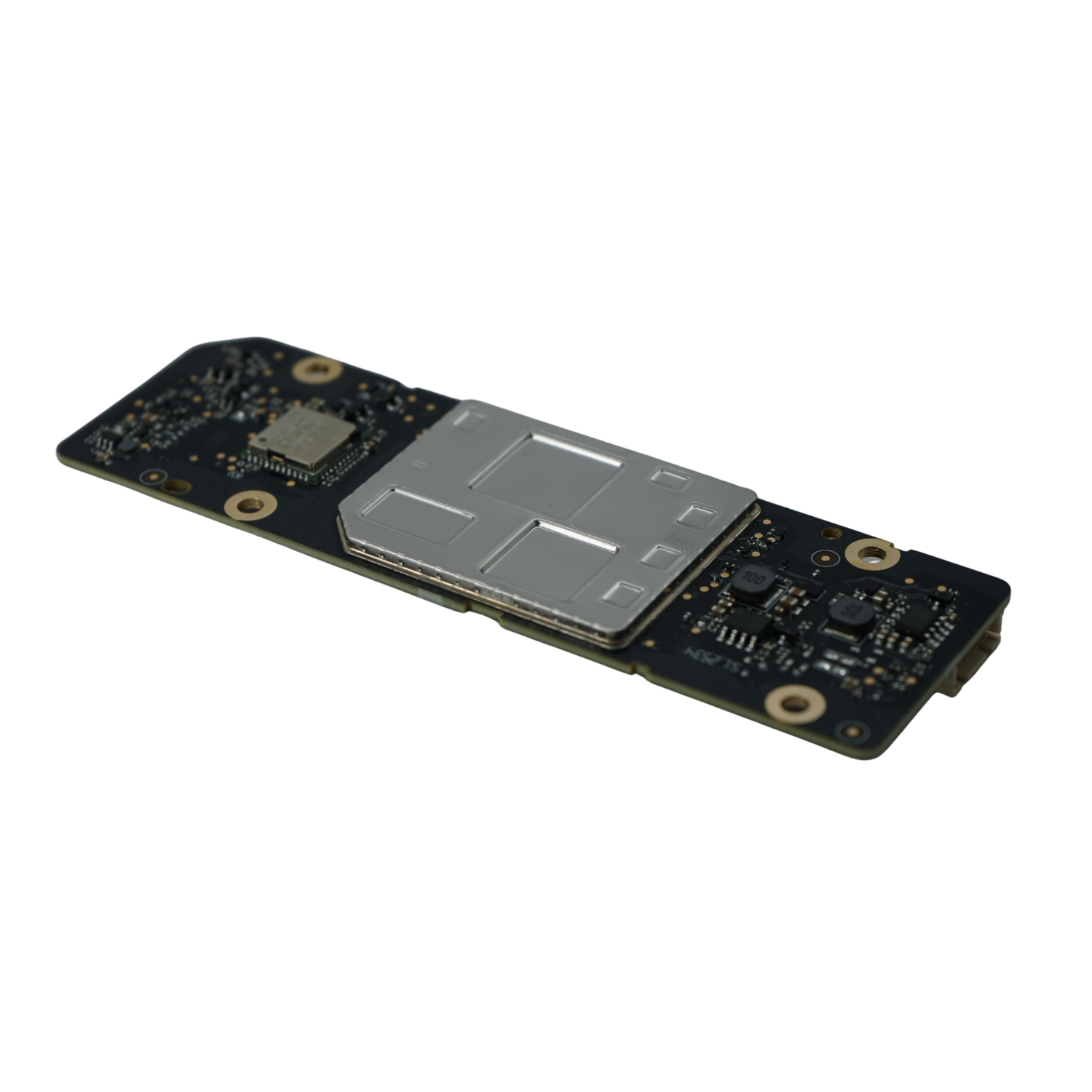

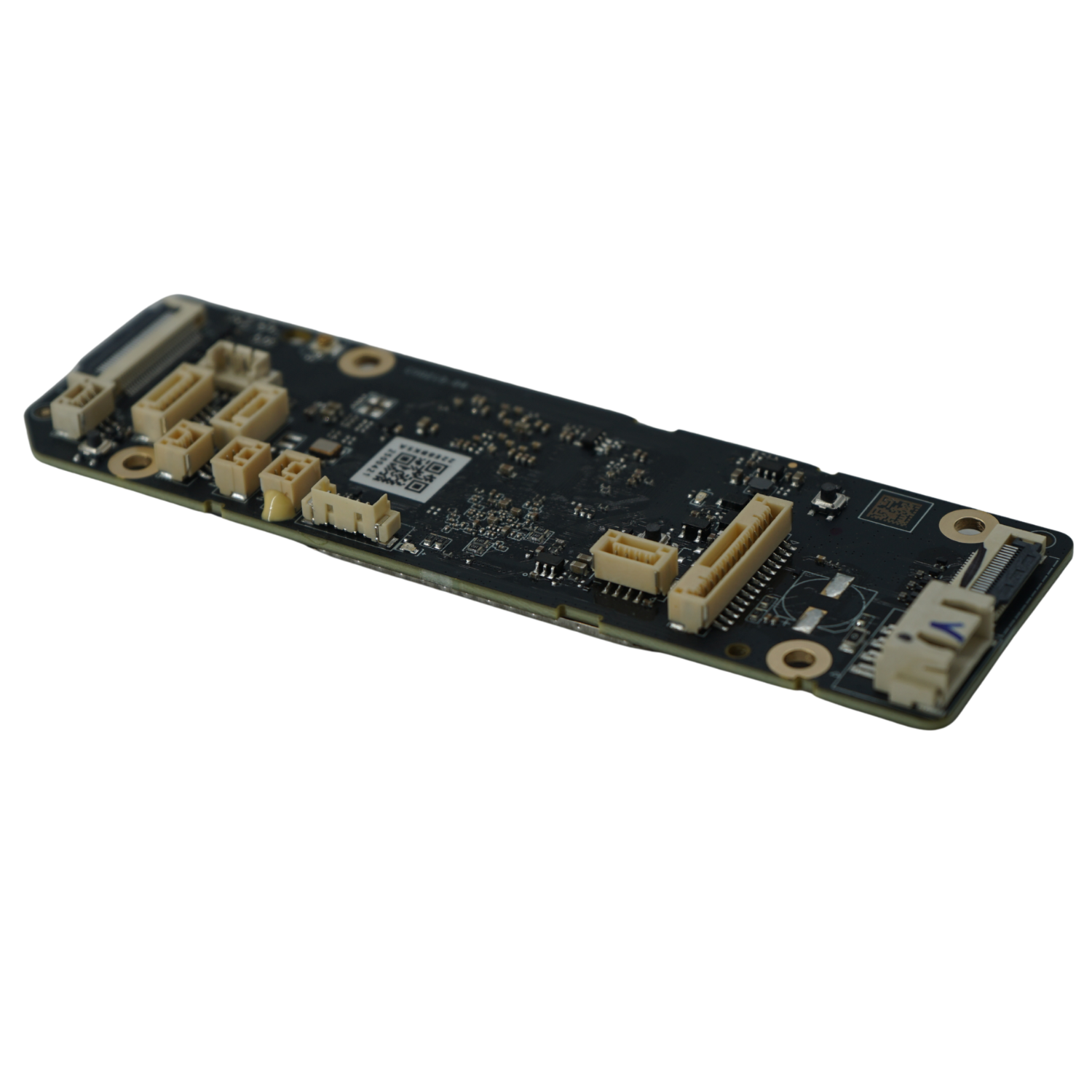

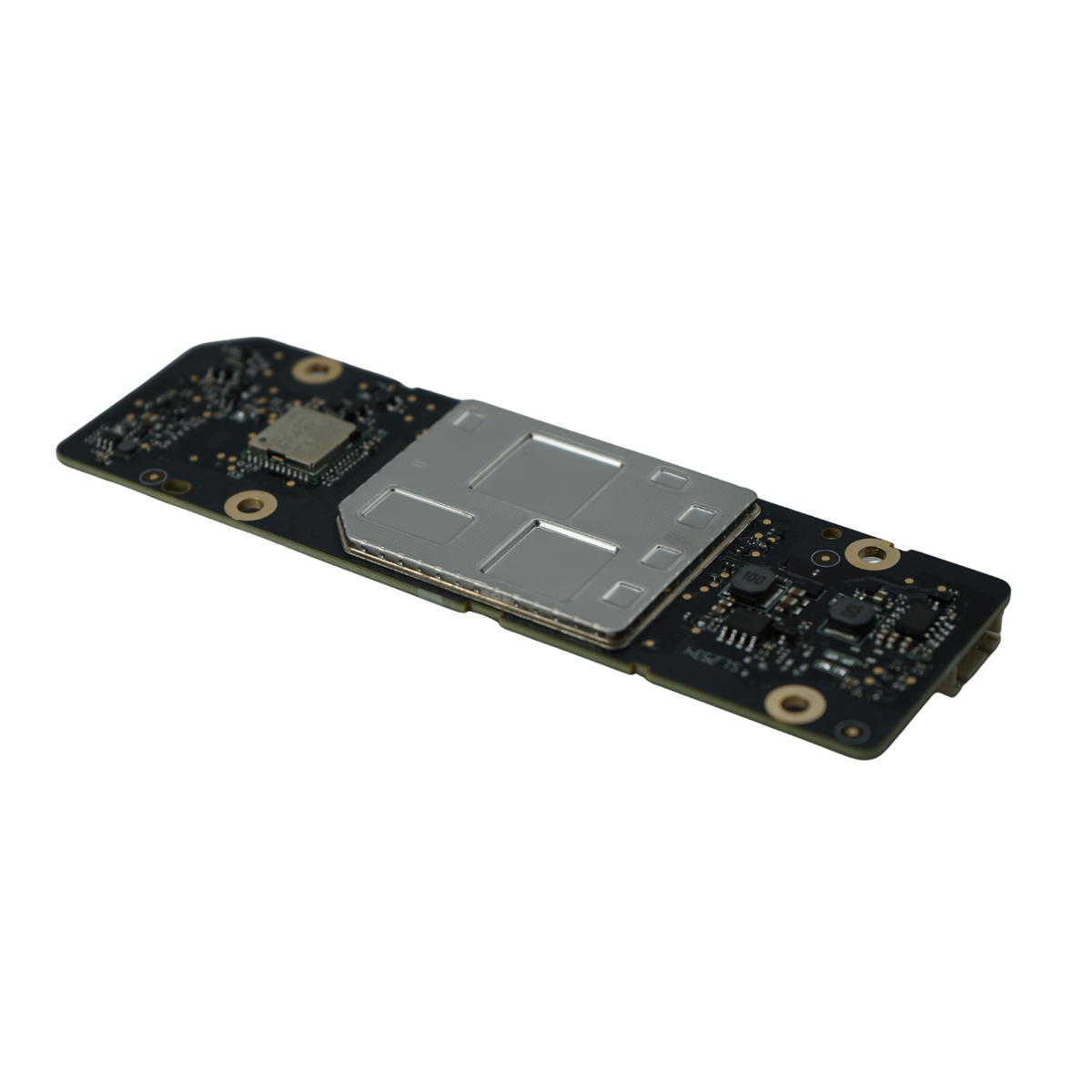

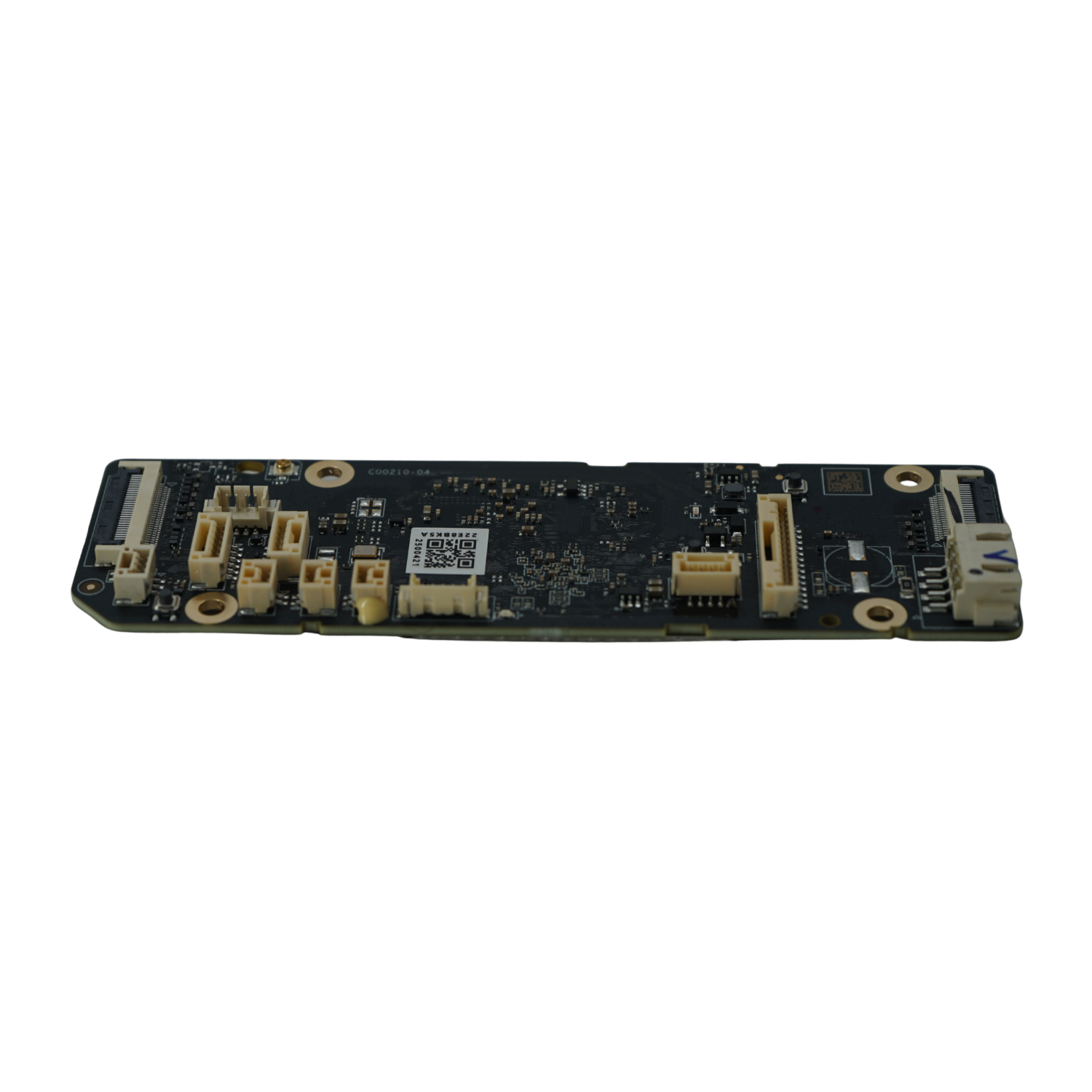

Bambu Lab P2S AP Board

A P2S that drops off Wi-Fi, loses its camera feed, or stops responding on the touchscreen is not automatically a motion or heating fault. Bambu Lab's P2S splits its electronics across three separate boards, one for hotbed power, one for motion and heating, and one for connectivity and processing, so a fault in one rarely disturbs the others.

This is the genuine Bambu Lab AP Board, HV variant, for the P2S, the board responsible for Wi-Fi, the camera, the touchscreen and onboard processing. The HV designation means it is built for 220 to 240V mains, the standard supply across South Africa.

Genuine Bambu Lab part | HV variant for 220 to 240V mains | Wi-Fi, camera and screen connectivity | P2S specific | Direct OEM fit | Requires SN activation after installation | Nationwide delivery across South Africa

Who this P2S AP Board is built for

Hobbyist Maker

When your P2S loses Wi-Fi permanently, the camera feed drops out, or the touchscreen stops responding while the printer still homes and heats correctly, the AP board is the most likely cause. Fitting a genuine replacement yourself, following Bambu Lab's official guide, is more direct than sending the whole printer in for repair.

Small print farm operator

A P2S that cannot be monitored or queued remotely through Bambu Studio is only half as useful in a farm setting, even while it keeps printing locally. Keeping a spare AP board on hand means connectivity is restored the same day rather than running a printer blind while a repair ticket works through the queue.

Electronics repair technician

With three separate boards handling hotbed power, motion and heating, and connectivity on the P2S, correctly isolating which one has actually failed before ordering a part saves a customer paying twice. A printer that still moves, heats and prints while losing Wi-Fi, camera or screen function points specifically at the AP board.

What sets this P2S AP Board apart

One of three boards, each with a distinct job

The P2S splits its electronics further than the P1 series. An AC board delivers power to the hotbed under instruction from the MC board, the MC board coordinates motors, heating and sensors, and the AP board, this product, handles Wi-Fi, the onboard camera, the touchscreen interface and general processing. A fault in one board typically leaves the other two working normally, which is what makes correct diagnosis worthwhile before ordering.

HV variant, built for South Africa's mains supply

Bambu Lab produces this AP board in two electrical variants, HV for 220 to 240V regions such as the UK, Europe and Australia, and LV for 100 to 127V regions such as North America and Japan. South Africa runs on 220 to 240V mains, so the HV variant is the correct one here. Fitting the wrong variant is a genuine risk when ordering from overseas listings that do not specify voltage clearly.

Handles more than the P1 series equivalent

Beyond Wi-Fi and the touchscreen, this board manages memory, firmware operation, graphics processing and multimedia decoding for the P2S, reflecting the printer's more capable camera and monitoring features. The kit includes thermal paste for reinstallation, since this processing load runs warmer than the equivalent board on Bambu's smaller printers.

Direct OEM fit

The board mounts with the included M3 x 4.5 screws and connects through the original wiring harness. Thermal paste is supplied for the processor interface, and the board seats into the same position as the original, following Bambu Lab's official replacement guide for the P2S.

Reactivation is part of the process, not an afterthought

Every AP board carries its own serial number, which needs to be bound to your printer's original serial number before the printer can rejoin your account. After fitting the new board, you skip the initial binding step on first power-on, then submit both serial numbers to Bambu Lab support to complete the activation.

Full specifications

How this P2S AP Board compares to other controller board options

We stock the HV AP board shown above, correct for South Africa's 220 to 240V mains supply. The LV variant and the separate MC board are included for reference only, since we do not currently hold stock of them. If you are ordering parts from an overseas listing yourself, always confirm HV or LV before paying, since the two look identical but are not interchangeable.

Firmware, activation and software

Proprietary firmware, not a Klipper board

This AP board runs Bambu Lab's own firmware and is not designed to be reflashed with third-party firmware such as Klipper. That closed approach is what allows the P2S to offer integrated Wi-Fi, camera monitoring and cloud print queuing without separate add-on modules.

Pairing with Bambu Studio and the Handy app

Once the serial number binding is complete, your printer reconnects to Bambu Studio and the Handy app exactly as it did before the fault. Firmware updates for the AP board are delivered through the same channels as any routine update, with no separate flashing tool required.

What's in the box

• 1 x Bambu Lab AP Board, HV, P2S (DLB051)
• 4 x M3 x 4.5 screws
• 2 x thermal paste, 5g

Ordering, shipping and support

3D Printing Store ships this board nationwide across South Africa from stock held at our Centurion and Boksburg branches, with courier delivery to most metro areas within a few working days. If a board arrives faulty or fails during setup, our South African support team handles the claim directly rather than routing you through an overseas RMA process. Our Bambu Lab P2S and full Bambu Lab range are stocked locally too.

Frequently asked questions

How do I know I need the HV variant and not the LV variant?

If your printer runs on South Africa's standard 220 to 240V mains supply, HV is correct. LV is built for 100 to 127V regions such as North America and Japan. The two boards look the same, so checking this before ordering, especially from an overseas retailer, matters.

My printer still homes, heats and prints correctly, but Wi-Fi and the camera do not work. Is this the right part?

Likely yes. Since motion, heating and hotbed power run through separate boards on the P2S, a printer that still functions mechanically while losing Wi-Fi, camera or screen function points toward the AP board rather than the MC or AC board.

How difficult is it to fit this board myself?

It is a moderate repair rather than a simple plug-in swap. Following Bambu Lab's official replacement guide for the P2S, most people complete the disconnection, board swap and reconnection in 30 to 45 minutes, excluding the wait for activation.

Do I need to do anything before turning the printer on for the first time after fitting it?

Yes. Skip the machine binding step on first power-on after installing the new board. Binding only completes correctly once Bambu Lab support has reassigned your printer's original serial number to the new board.

Is there local warranty support in South Africa if the board is faulty out of the box?

Yes. Manufacturing defects are handled through 3D Printing Store's local support team rather than an overseas returns process.
