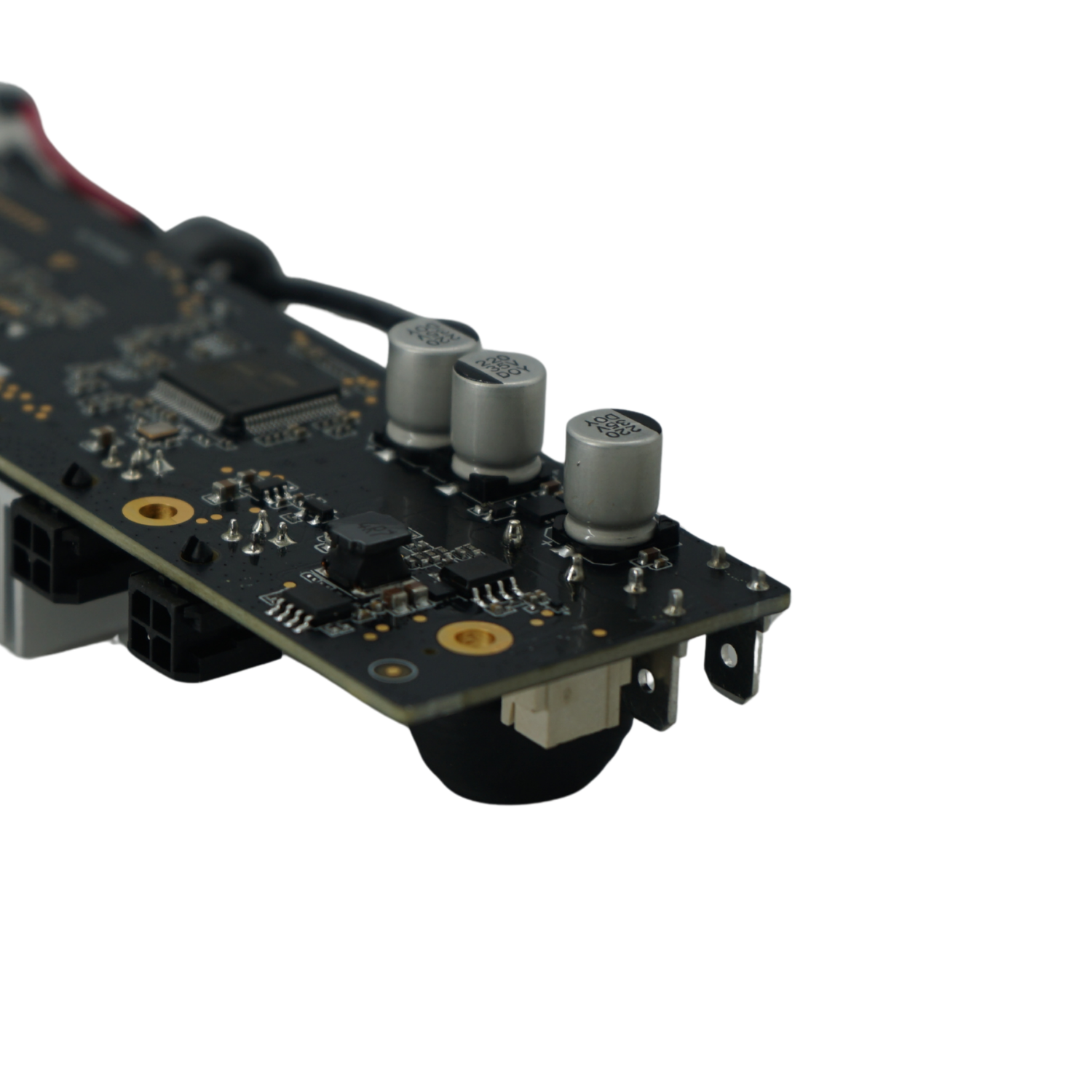

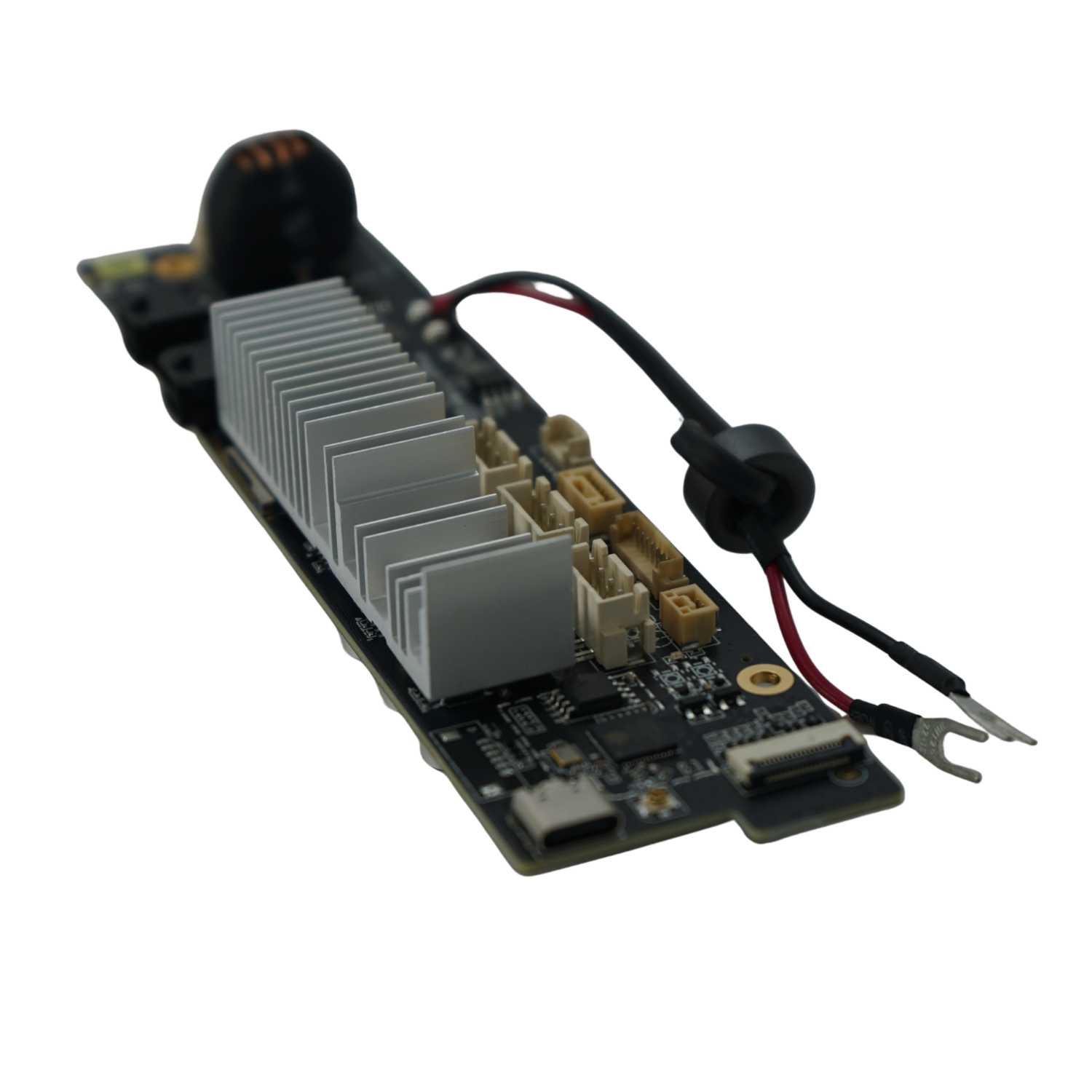

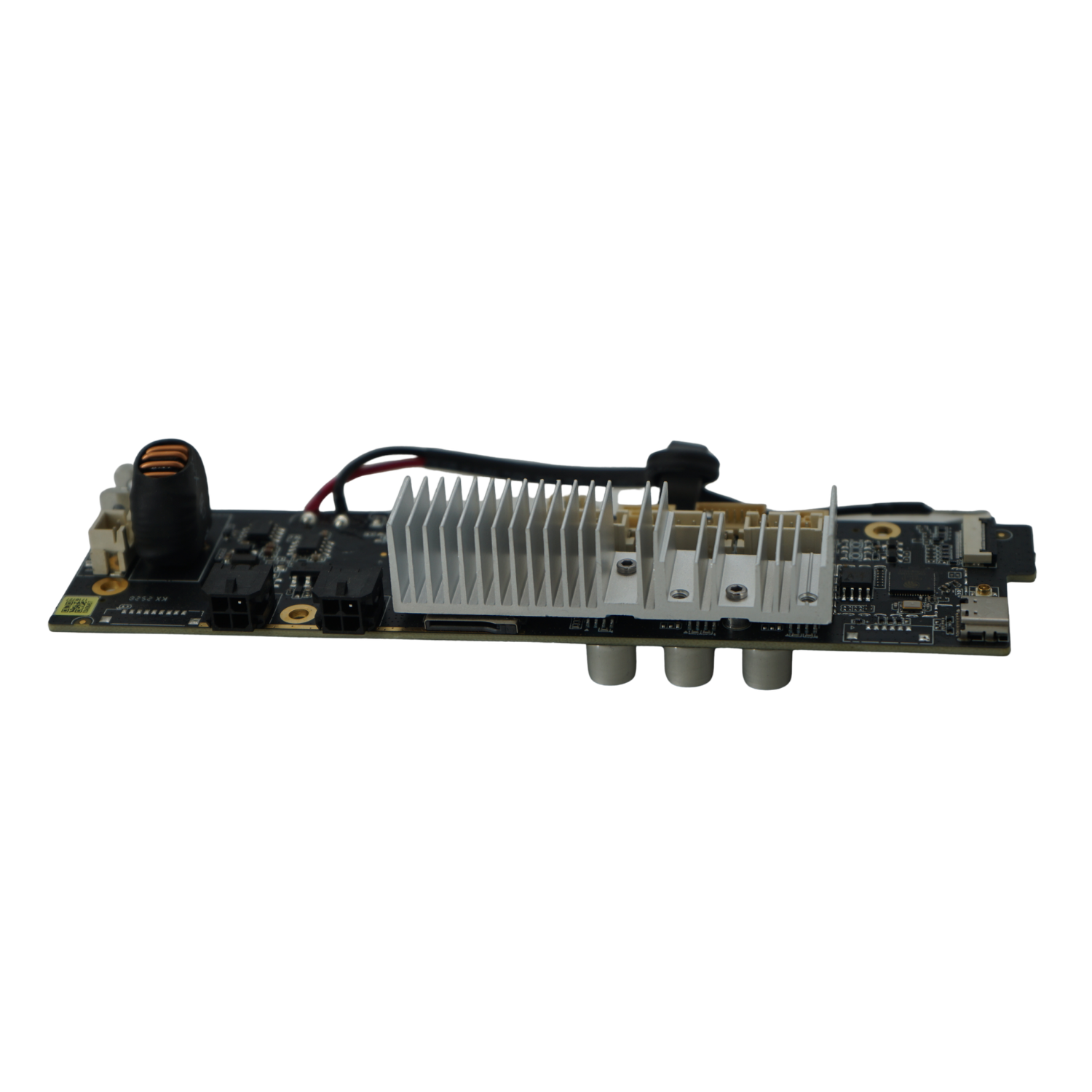

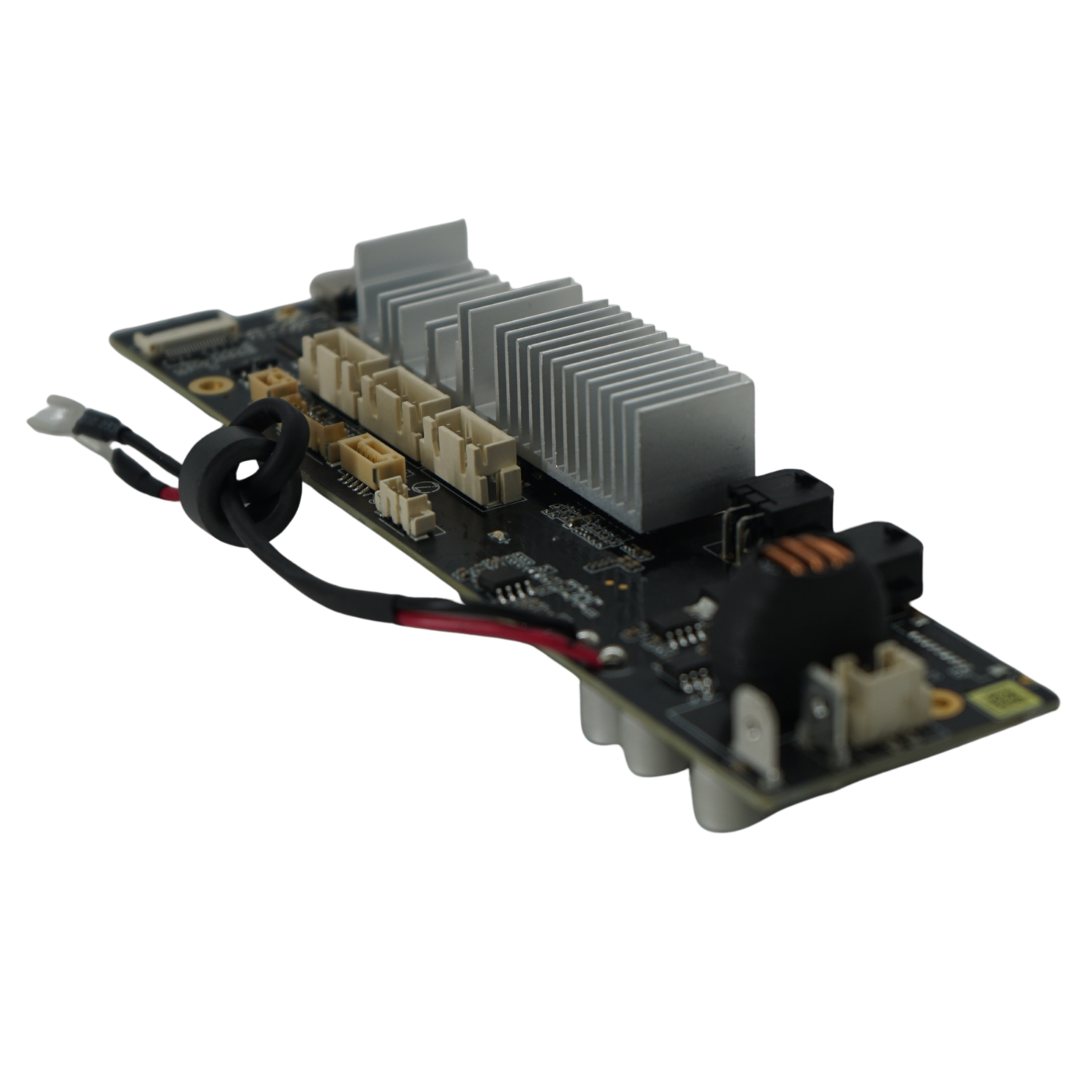

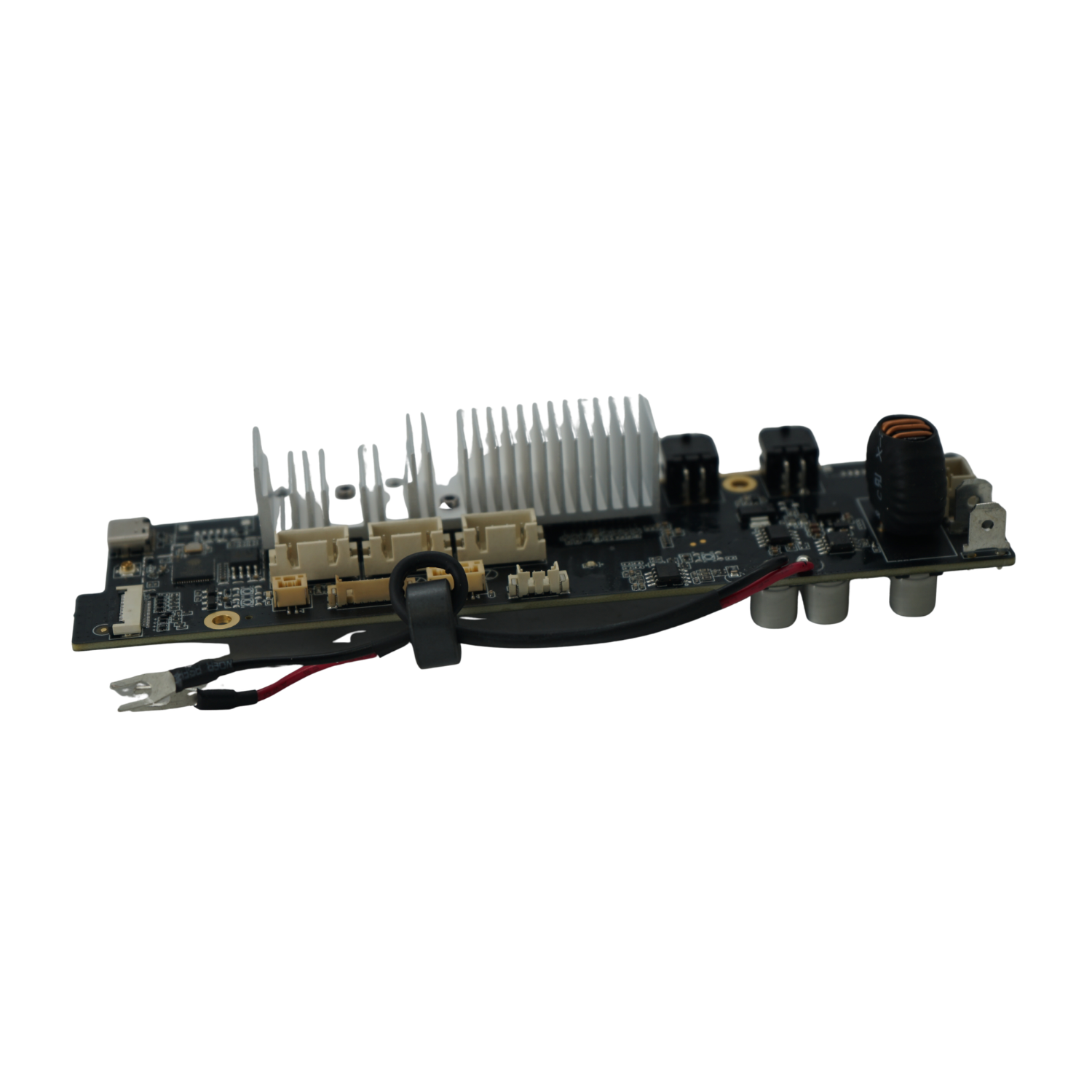

Bambu Lab A1 Mini Mainboard

A printer that will not home, a heatbed that refuses to reach temperature, or Wi-Fi that keeps dropping can all trace back to one small board rather than the toolhead or the frame. On the A1 Mini, a single mainboard handles motion, heating and connectivity, so when it fails, the symptoms can look like several different problems at once.

This is a genuine Bambu Lab replacement mainboard for the A1 Mini, built to the same specification as the board your printer shipped with, so fitting it restores full function rather than working around a compromised repair.

Genuine Bambu Lab part | Integrated motion and application processor | Fits A1 Mini only | Wi-Fi and camera connectivity built in | Direct OEM plug-and-play fit | Requires reactivation after installation | Nationwide delivery across South Africa

Who this A1 Mini Mainboard is built for

Hobbyist Maker

When your A1 Mini stops homing correctly, loses its heatbed reading, or refuses to reconnect to Wi-Fi after a firmware update, replacing the mainboard yourself is often more cost-effective than a full repair turnaround. The A1 Mini's bottom cover comes off with standard screws, and Bambu Lab's own replacement guide walks through every connector.

Small print farm operator

Board failures do not follow a schedule, and an A1 Mini sitting idle in a fleet costs you output every hour it is down. Keeping a spare mainboard on hand means a fault gets swapped out and the printer back in rotation the same day, rather than waiting on a repair queue.

Electronics repair technician

Intermittent heating errors, a camera that will not connect, or USB ports that stop being recognised often point back to the mainboard rather than the toolhead itself, since this single board manages all three. Diagnosing the fault correctly before ordering a part saves a customer paying twice.

What sets this A1 Mini Mainboard apart

One board handling motion, heating and connectivity

The A1 Mini's mainboard integrates a real-time motion control processor alongside an application processor that runs Wi-Fi, the touchscreen interface and the onboard camera. That is why a single faulty board can produce symptoms as varied as inconsistent homing, a heatbed that will not reach temperature, and a printer that drops off your network, all at once.

Genuine part, not a generic clone

This is a Bambu Lab original component, built to run the manufacturer's own firmware rather than an open-source alternative. That matters for an A1 Mini, since Bambu's ecosystem, including Bambu Studio, the Handy app, and cloud print monitoring, depends on the mainboard running Bambu's proprietary software stack correctly. A third-party or mismatched board is not something Bambu Lab supports, so a genuine replacement is the only option that keeps your printer fully within warranty and compatible with future firmware updates.

Direct OEM fit

The board mounts with three screws and connects through the original wiring harness, matching the connectors for the heatbed, thermistor, X, Y and Z motors, Wi-Fi antenna, USB-C and the ribbon cable to the toolhead. No rewiring or connector modification is needed to fit it.

Reactivation is part of the process, not an afterthought

A new mainboard ships with a different serial number to the one your printer was originally registered with. After fitting it, you photograph the QR code on the board and submit it to Bambu Lab support so your printer's original serial number can be reassigned, after which a full calibration completes the setup.

Full specifications

How this A1 Mini Mainboard compares to other controller board options

We stock the A1 Mini mainboard shown above. The A1 and P1S/X1C mainboards are included for reference only, since Bambu Lab's boards are model-specific and cannot be swapped between printer families. If you are troubleshooting a different Bambu Lab model, confirm the exact printer before ordering, since fitting the wrong board is not a straightforward return.

Firmware, activation and software

Proprietary firmware, not a Klipper board

Unlike open microcontroller boards built around Klipper or Marlin, this mainboard runs Bambu Lab's own firmware and cannot be reflashed with third-party firmware. That trade-off is what gives the A1 Mini its integrated Wi-Fi, camera and touchscreen experience out of the box, without separate modules to wire in.

Pairing with Bambu Studio and the Handy app

Once activated, the printer reconnects to Bambu Studio and the Handy app exactly as it did before the board failed. Firmware updates are pushed through the same channels, so no separate flashing tool or command-line step is needed after the initial reactivation and calibration.

What's in the box

• 1 x Bambu Lab A1 Mini Mainboard (SAA016-N)

Ordering, shipping and support

3D Printing Store ships this mainboard nationwide across South Africa from stock held at our Centurion and Boksburg branches, with courier delivery to most metro areas within a few working days. If a board arrives faulty or fails during initial setup, our South African support team handles the claim directly rather than routing you through an overseas RMA process. Our Bambu Lab A1 Mini and full Bambu Lab range are stocked locally too.

Frequently asked questions

Is this the same mainboard used in the full-size A1?

No. The A1 and A1 Mini use different mainboards with different wiring harnesses, and they are not interchangeable. This listing is specifically for the A1 Mini.

Will my printer work exactly as before once I have fitted this board?

Yes, once the board is reactivated with your printer's original serial number and a full calibration has been run. At that point Wi-Fi, the camera, heating and motion all function as they did before the original board failed.

How difficult is it to fit this board myself?

It is a moderate repair, not a simple plug-in swap. You will remove the bottom cover, disconnect around a dozen labelled connectors, and reconnect them to the new board in the same order. Following Bambu Lab's official replacement guide, most people complete it in 30 to 45 minutes.

Do I need to reflash the firmware after installing it?

Not manually. The board ships with compatible firmware, and any update needed after reactivation is pushed automatically through Bambu Studio or the Handy app, the same way routine firmware updates normally arrive.

Is there local warranty support in South Africa if the board is faulty out of the box?

Yes. Manufacturing defects are handled through 3D Printing Store's local support team rather than an overseas returns process.

How do I know the mainboard is the problem and not the toolhead or power supply?

Look at whether the fault spans more than one system. A toolhead issue usually stays limited to extrusion or nozzle heating, and a power supply fault tends to cause a total shutdown rather than partial symptoms. If you are seeing a mix of unrelated faults together, such as inconsistent homing alongside Wi-Fi dropouts or a heatbed that will not read correctly, that combination points to the mainboard, since it is the one component common to all three systems.
