Taper Ball Nose Cutting Bit

In stock - 8 items available
SKU: TBN001
(0)
R 269.95 incl. VAT
Taper Ball Nose Cutter Radius
Centurion - 8
198 Edward Avenue Zwartkop Centurion, Gauteng 0157
+27126651391
Boksburg - 0
Cnr North Rand Road & Romeo Street Hughes Boksburg, Gauteng 1459
+27115680204

Share on social media:

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Taper ball nose cutting bits are used for surfacing cuts on a CNC machine. This means the CNC machine is cutting a 3D surface. The taper ball nose bits are designed to be able to get into those small pockets while still being able to maintain required stability and stiffness in the bit and not breaking the bit.

We offer a range of sizes, please see the table below:

Nose radius Flute length Shaft diameter Total bit length

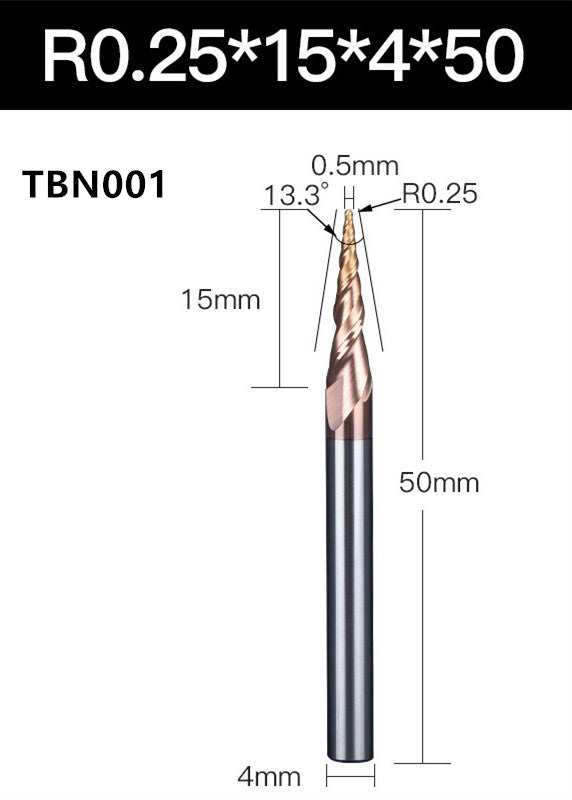

0.25mm 15.5mm 4mm 50mm

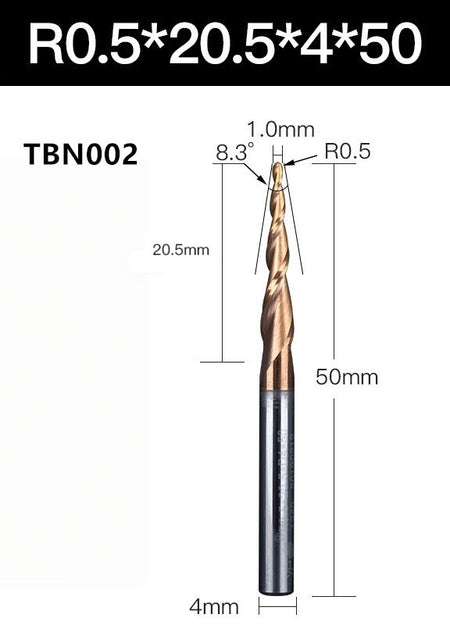

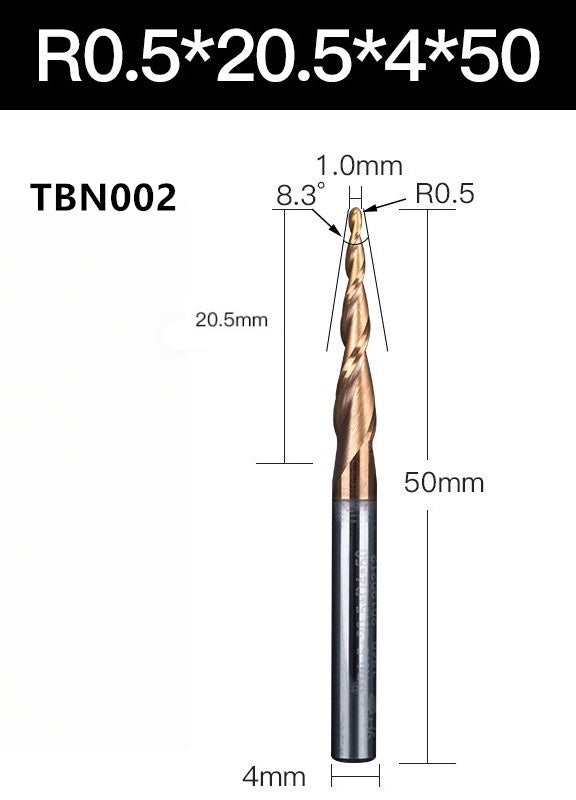

0.5mm 20.5mm 4mm 50mm

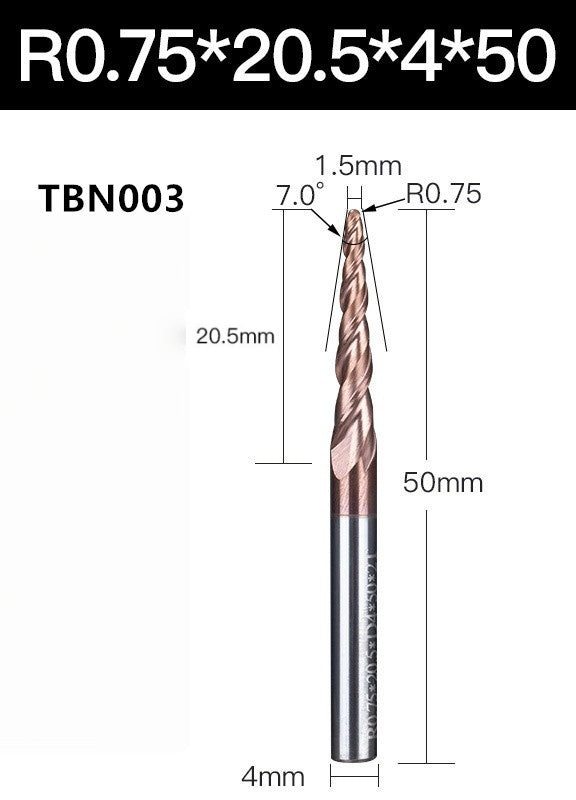

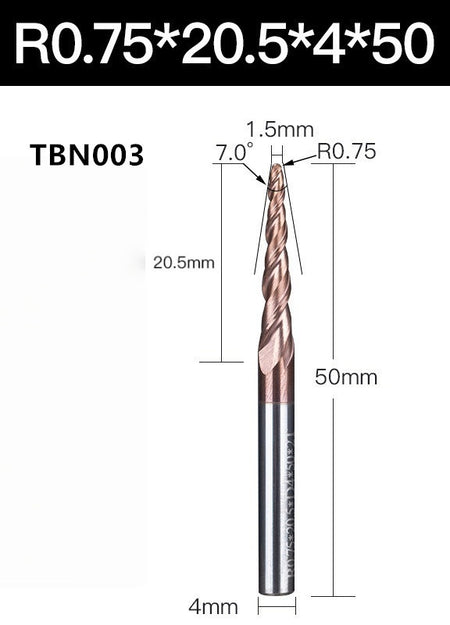

0.75mm 20.5mm 4mm 50mm

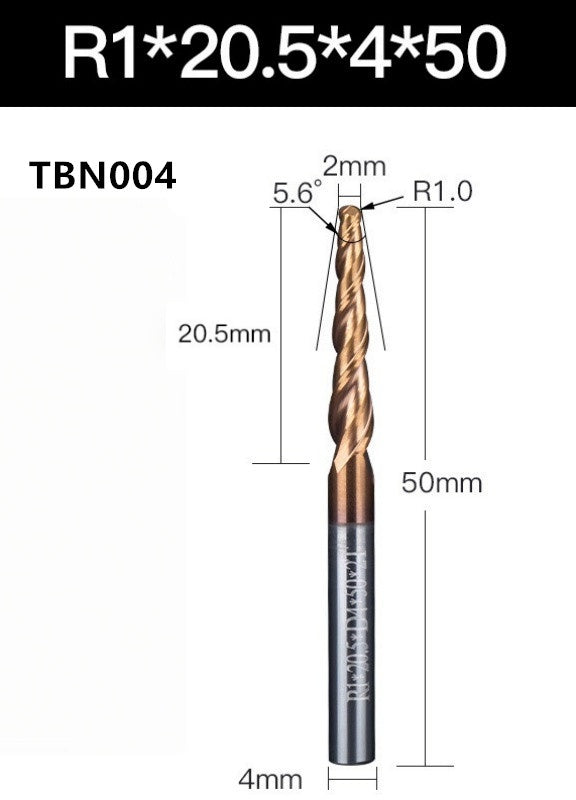

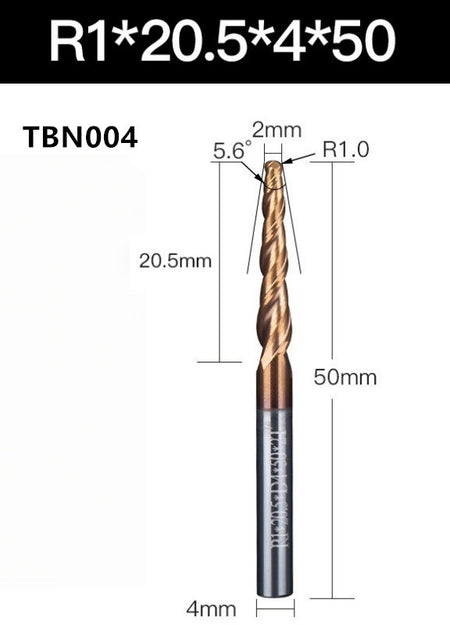

1mm 20.5mm 4mm 50mm

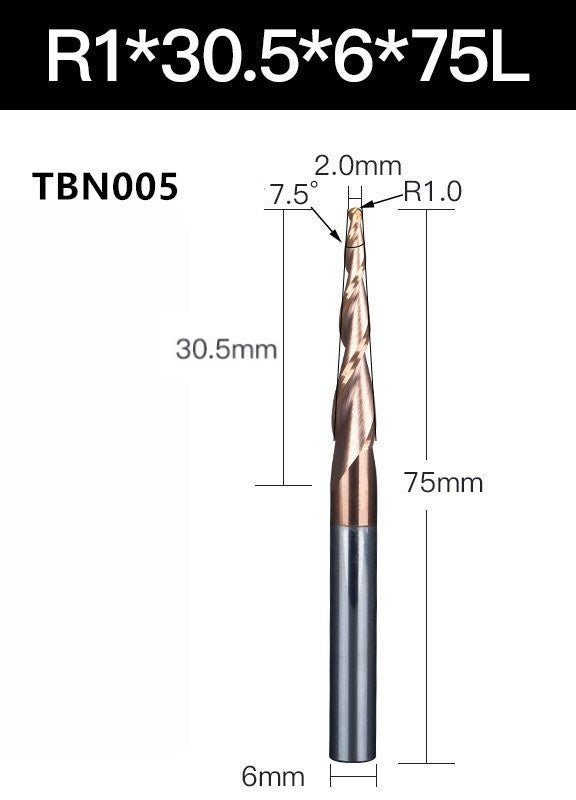

1mm 30.5mm 6mm 75mm

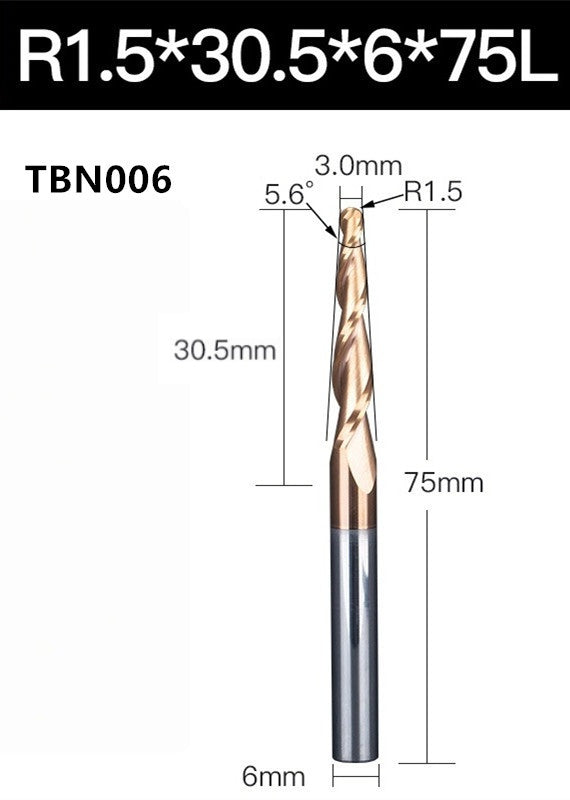

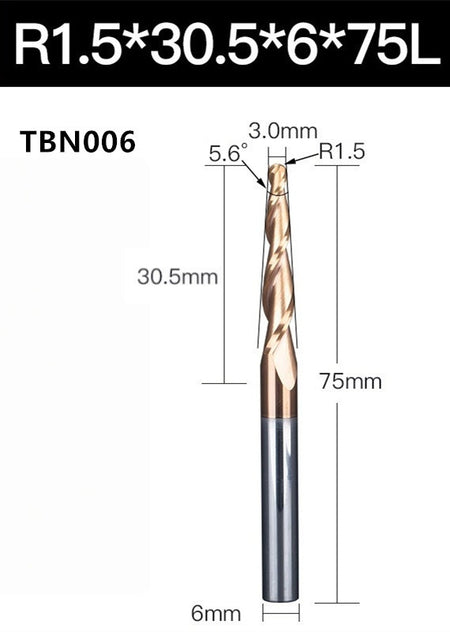

1.5mm 30.5mm 6mm 75mm

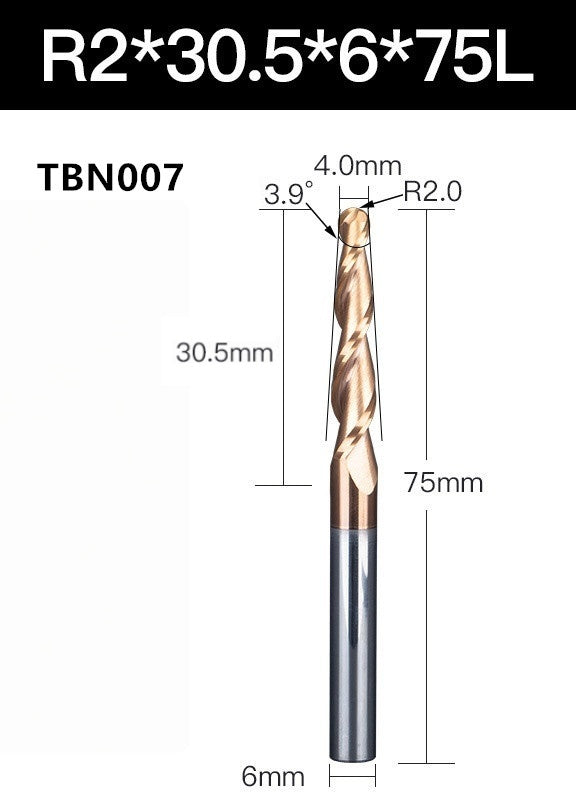

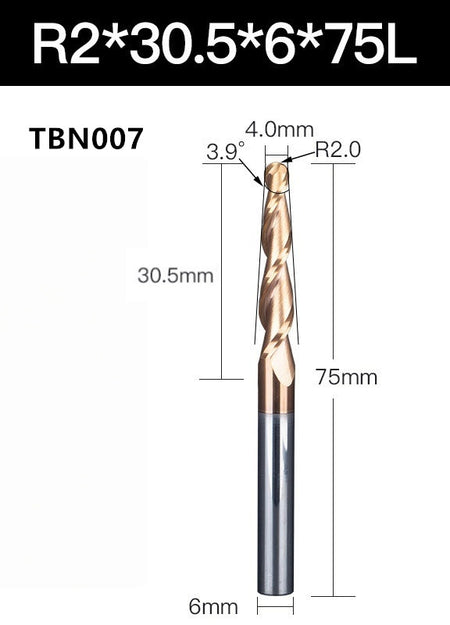

2mm 30.5mm 6mm 75mm

Specifications:

  • Material: Tungsten Carbide
  • Coating: TiSiN
  • Suitable for the following materials: Wood, Plastic, Aluminium, Copper, Structural foam, Acrylic, Polystyrene.
