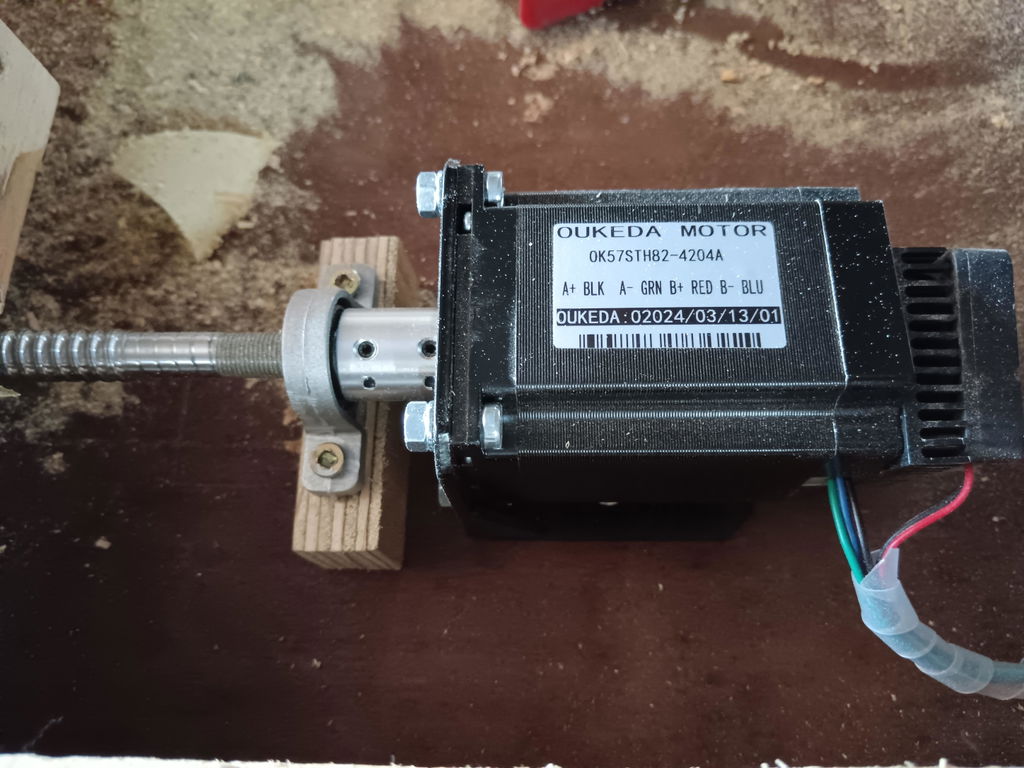

Stepper motor, NEMA 23 x 82mm, 1.8 Deg/Step

In stock - 14 items available
SKU: MOT008
Regular price R 749.95 incl. VAT

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

NEMA 23 stepper motors are used on big 3D printers and mid size CNC machines. This is a high torque stepper motor and comes with 300mm leads.

The stepper driver we recommend with this motor is the MKS TMC2160-OC or the Wantai DQ542MA stepper driver.

Specifications:

  • Size: NEMA 23 (56.4mm x 56.4mm)
  • Length: 82mm ± 2mm
  • Step angle: 1.8 Degrees
  • Rated voltage: 2.52V
  • Current/Phase: 4.2A
  • Resistance/Phase: 0.6 Ohm
  • Inductance/Phase: 1.5 mH
  • Holding Torque: 22kg.cm (2.2 Nm)
  • Number of leads: 4
  • Weight: 1.09 kg
  • Max Radial Force on output shaft: 75N (20mm from flange)
  • Max Axial Force on output shaft: 15N

Dimensions:
