Stepper motor, NEMA 17 x 48mm, 1.8 Deg/Step

In stock - 273 items available
SKU: MOT001
Regular price R 329.95 incl. VAT

NEMA 17 stepper motors are used in almost all the Reprap 3D Printers. This motor is used to drive the X, Y and Z axis as well as the extruder. This is a high torque, bi-polar, 4-wire stepper motor and comes with 300mm leads.

Specifications:

  • Size: NEMA 17 (42mm x 42mm)
  • Length: 48mm
  • Step angle: 1.8 Degrees
  • Rated voltage: 3.6V
  • Current/Phase: 1.2A
  • Resistance/Phase: 3.0Ohm
  • Inductance/Phase: 5mH
  • Holding Torque: 4500g.cm
  • Number of leads: 4
  • Rotor inertia: 68g.cm^2
  • Weight: 366g

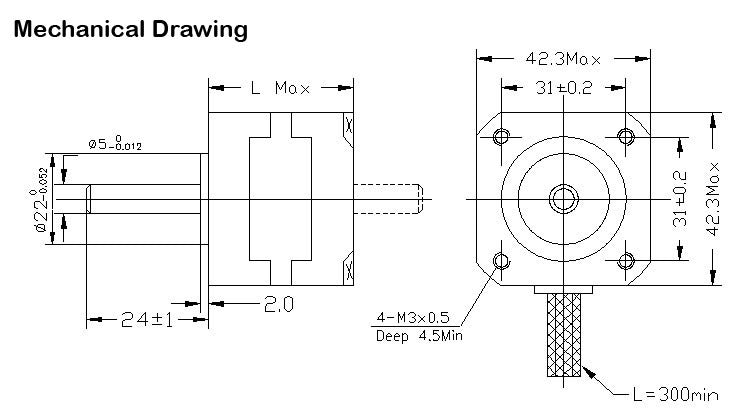

Dimensions:
