Spindle 2.2KW, 80mm, ER20, Air Cooled

In stock - 24 items available
Regular price R 5,499.95 incl. VAT

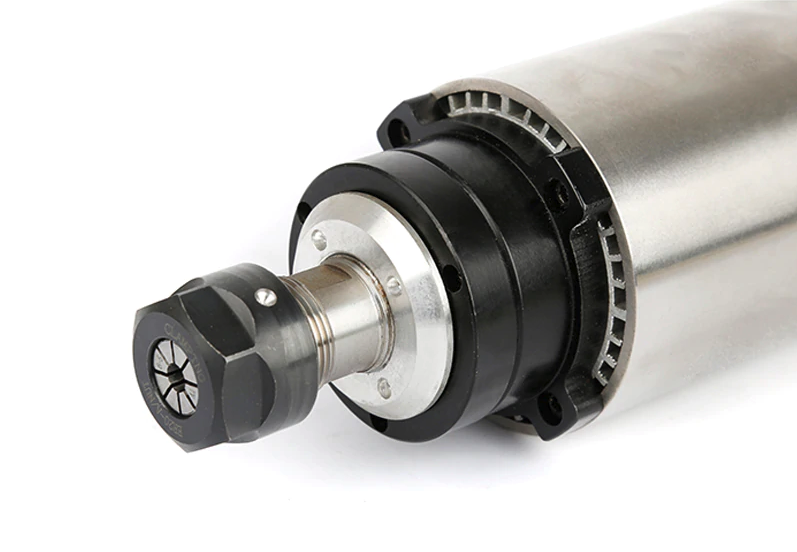

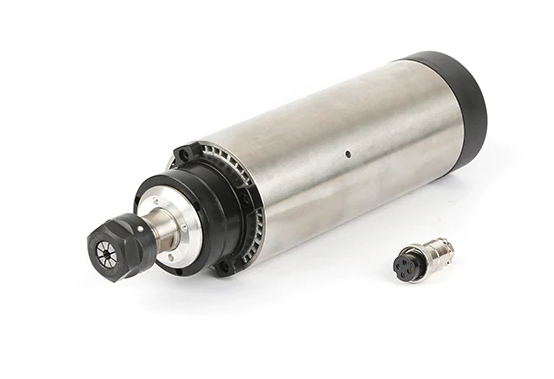

2.2kW Air-cooled Spindle for CNC machine. This is a 3-phase spindle designed to work with a 2.2kW Variable Frequency Drive (VFD). It has a built in ER20 Collet holder which can mount from 1mm to 13mm cutting bit shaft sizes. The spindle is mounted to the gantry of the CNC machine with an aluminium bracket (sold separately). The rotor of the spindle is mounted with 2 bearings at the bottom of the spindle and 2 bearings at the the top, to ensure a long service life. This spindle is perfect for milling and engraving of wood, plastic, foam, aluminium, brass, steel and even stone.

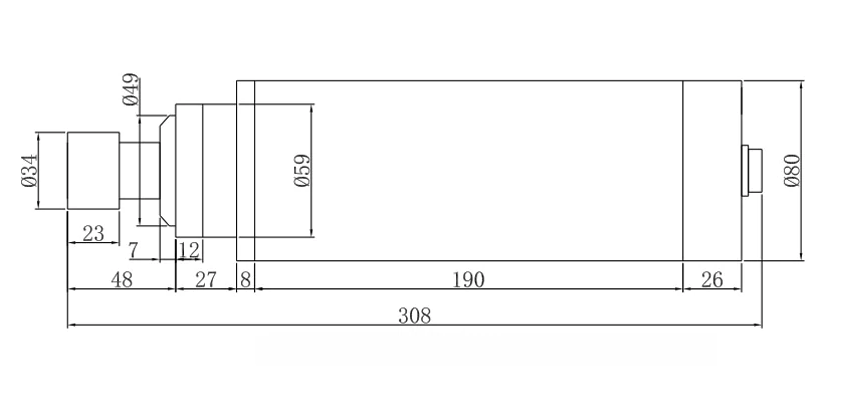

  • Diameter: 80mm
  • Power: 2.2KW
  • Current: 8.5A
  • Voltage: 220V
  • Frequency: 0-400Hz
  • Speed: 10-24000rpm
  • Collet Size: ER20
  • Cooling: Air Cooled
  • Runout: 0.003mm - 0.005mm
  • Bearings: C7002 x 2, C7005 x 2
