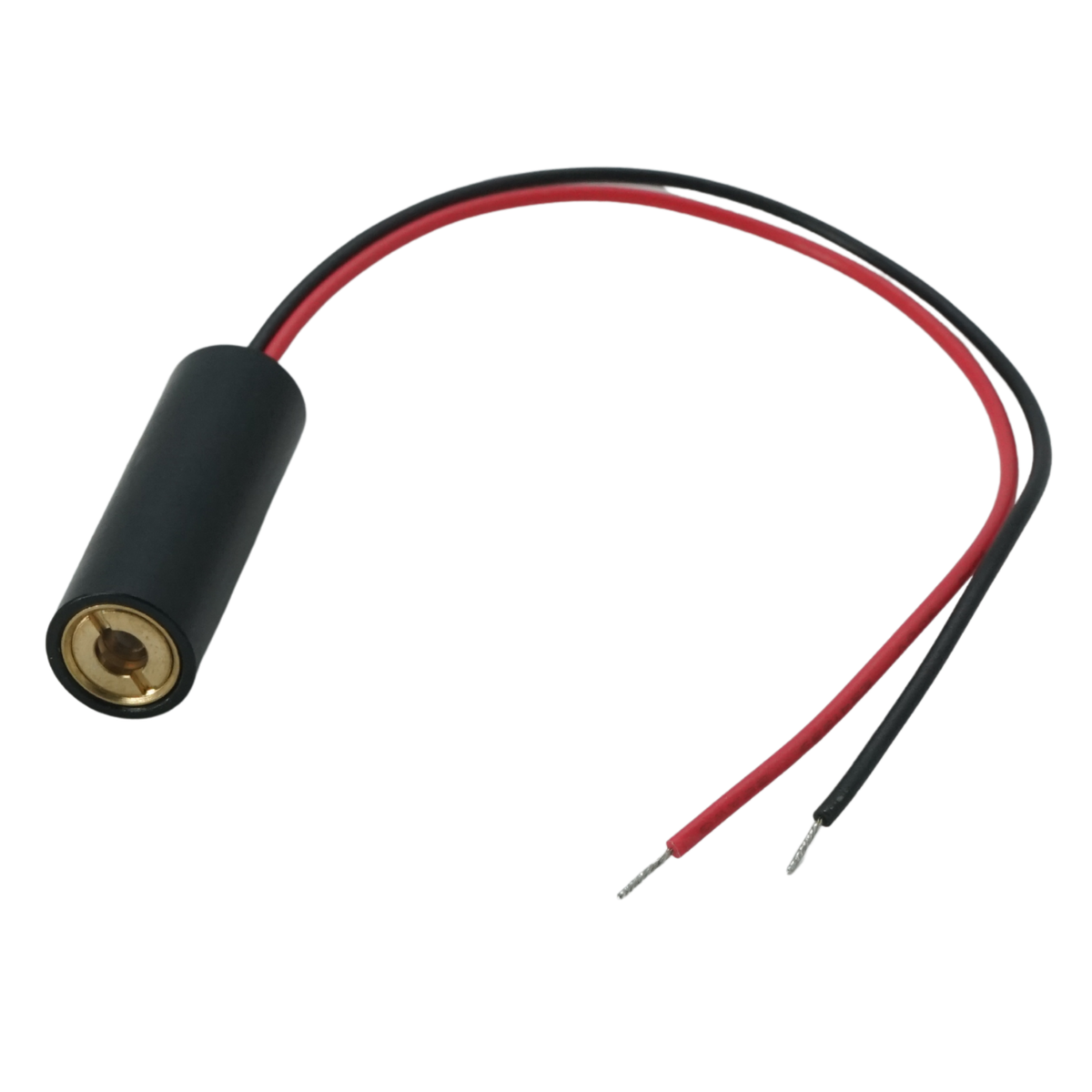

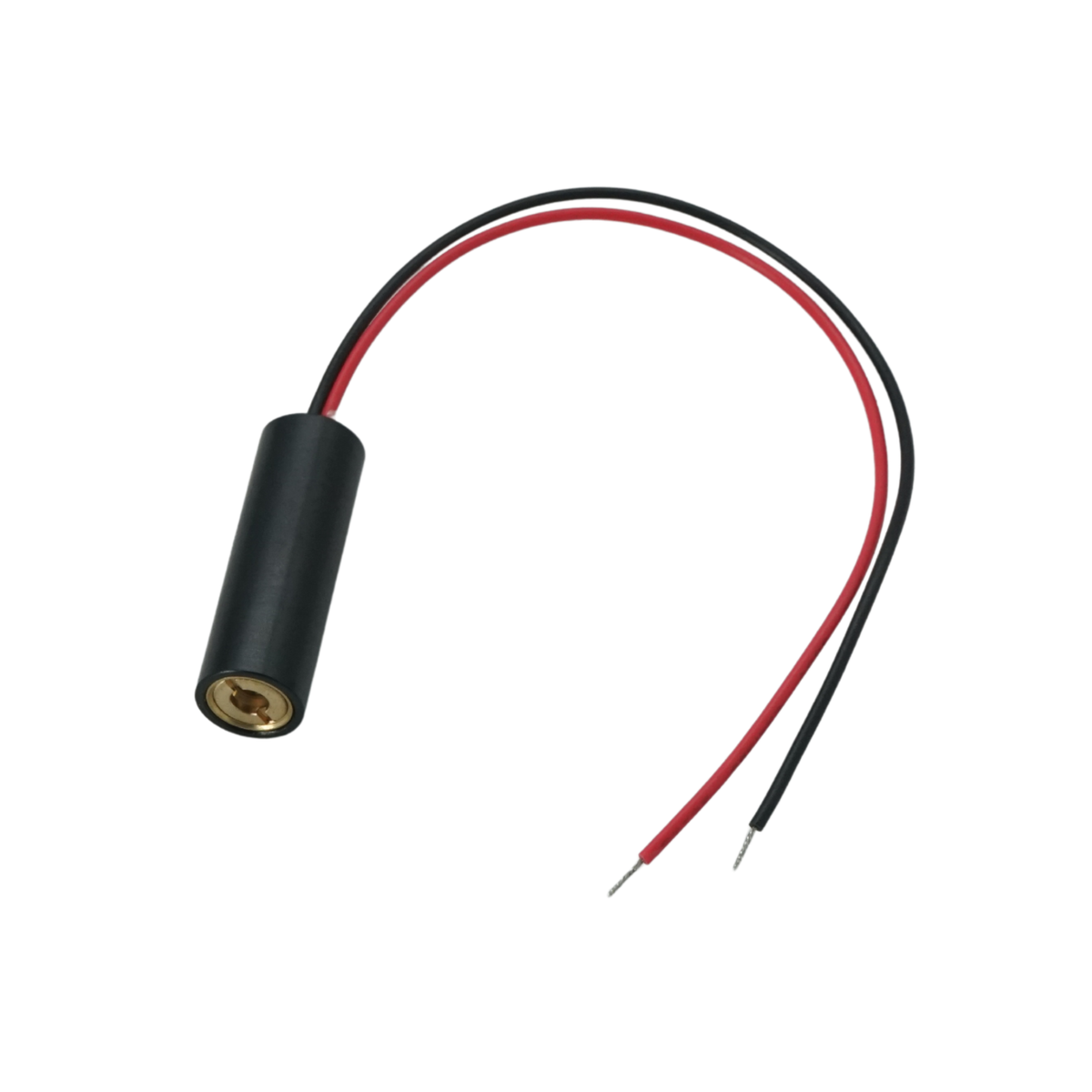

Red Dot Laser for CO2 Laser Cutter
Share on social media:
A CO2 laser beam is invisible. Until the tube fires, you have no way of seeing exactly where the cut will start, so every job on an offcut or a pre-made blank becomes a guess. Get it wrong by a few millimetres and your engraving runs off the edge of a bamboo coaster, or the cut clips a logo you spent an hour positioning.
This red dot laser for CO2 laser cutters solves that problem. It projects a visible 650nm red dot onto your workpiece, showing you where the laser head is pointing before you press start. Frame the job, line up the blank, and cut it right the first time.
650nm visible red dot | Up to 5mW output | 5V DC supply | 10mm diameter body | Adjustable brass focus lens | Pre-wired red and black leads | Suits CO2 laser heads
Who the red dot laser for CO2 laser cutters is built for
Small laser businesses engraving pre-made blanks
If you personalise tumblers, cutting boards, leather key rings or slate coasters, most of your work is placing a design onto an item that already exists. Every misaligned piece is stock you cannot sell. A working red dot pointer lets you jog the head to the corner of each blank and confirm the position visually. Line up a batch of 20 engraved wooden gift boxes and each design lands where the customer expects it.
Owners replacing a failed pointer
Red dot pointers are one of the most common parts to fail on a CO2 laser. The laser diode ages, the leads fracture from constant head movement, or the dot fades until you cannot see it in daylight. This 10mm, 5V module replaces the pointer on many desktop CO2 lasers, including machines that use red light positioning such as the Cron CO2 Laser Cutter, 4040. Fit it into the existing holder and solder the two leads.
Schools and makerspaces
New users on a shared laser cutter waste material placing work by trial and error. A visible dot turns positioning into a step learners can see and check before a teacher approves the job. That cuts spoiled sheets of MDF and acrylic and makes each practical session more productive. It also teaches good habits: confirm the position, then fire, rather than running a test cut on every piece.
What sets this CO2 laser red dot pointer apart
See where the cut starts before the tube fires
A CO2 laser works at a wavelength of 10.6µm, far into the infrared, so you cannot see the cutting beam at all. This module emits visible red light at 650nm, a wavelength your eye picks up easily on wood, card, leather and most coloured acrylics. Use it with your software's framing function and the dot traces the outline of your job across the material, so you know the design fits before you commit a single pass.
Adjustable focus for a sharp, small dot
The front of the module holds a slotted brass lens that you can turn to adjust focus. Set it for the distance between your laser head and the material, and you get a small, crisp dot rather than a blurry patch. A sharper dot means more precise alignment, which matters when you are placing an engraving on a small item like a pen or a phone case. Once set, a drop of thread locker keeps the lens from creeping under vibration.
Simple 5V wiring with pre-wired leads
The module runs on 5V DC and comes with red (positive) and black (negative) leads with tinned ends, ready to solder or crimp into your machine's wiring. Many CO2 lasers already provide a 5V supply for the pointer. If yours does not, a small 5V source is enough, since a pointer at this power draws very little current. Always check the polarity before you apply power, because reversing the leads can damage the diode.
Understand parallax before you rely on the dot
Most red dot pointers mount at an angle on the side of the laser head. That means the dot lines up exactly with the CO2 beam at one material height only. Raise or lower the bed and the dot shifts sideways, an effect known as parallax. Set the pointer's angle with your usual material thickness in place, and re-check it when you switch between thin card and thick plywood. For a dot that stays aligned at every height, you need a beam combiner kit instead.
| Option | Mounting | Accuracy across material heights | Best suited to |
|---|---|---|---|
| Red dot laser, 10mm (this module) | Angled holder on the laser head | Exact at the set height, shifts as height changes | Replacing a head-mounted pointer, mostly one material thickness |
| 9mm or 12mm red dot module | Angled holder on the laser head | Same as above | Machines with a 9mm or 12mm holder, not interchangeable with 10mm |
| Beam combiner kit | At the tube, before the first mirror | Stays aligned at every height | Varied material thicknesses, requires full mirror alignment |
Full specifications: red dot laser for CO2 laser
| Spec | Value |
|---|---|
| General | |
| Product type | Red dot laser pointer module for CO2 laser positioning |
| Store SKU | LAS517 |
| Compatibility | CO2 laser heads with a 10mm pointer holder |
| Optical | |
| Wavelength | 650nm (visible red) |
| Output power | Up to 5mW |
| Beam pattern | Dot |
| Focus | Adjustable brass lens |
| Laser class | Class 3R at up to 5mW (IEC 60825-1) |
| Electrical | |
| Supply voltage | 5V DC |
| Leads | Red (+) and black (−), tinned ends |
| Physical | |
| Body diameter | 10mm |
| Housing | Black cylindrical metal housing |
Ordering, shipping and support for your CO2 laser red dot
We courier the red dot laser anywhere in South Africa, or you can collect it from our Centurion or Boksburg store. It carries our carry-in warranty against manufacturing defects, handled locally by our own technical team. Not sure which pointer your machine uses? Log a technical support ticket with a photo of your laser head. We also stock CO2 laser accessories and CO2 laser tubes.
Frequently asked questions about the red dot laser for CO2 lasers
Will this red dot laser fit my CO2 laser head?
It fits if your existing pointer holder takes a 10mm diameter module. Measure the body of your current pointer with a vernier before you order. Modules also come in 9mm and 12mm sizes, and these are not interchangeable without changing the holder. If you are unsure, send us a photo of your laser head and we will confirm.
Why does the red dot not line up with where the laser cuts?
This is almost always parallax, because the pointer sits at an angle on the head. The dot and beam meet at one height only. Place your usual material on the bed, fire a short test pulse onto masking tape, then adjust the pointer holder's angle until the red dot sits on the burn mark.
How do I wire the red dot laser?
Connect the red lead to a 5V DC positive supply and the black lead to negative. Switch off and isolate the machine first. Solder the joints and cover them with heat shrink, then route the leads along the existing cable chain so they flex without strain. Check polarity before powering up, since reversed leads can damage the diode.
Is the red dot laser safe to look at?
No, never look into the beam directly. At up to 5mW it falls under Class 3R, and direct eye exposure can cause injury. Viewing the dot on your workpiece is safe. Remember that your CO2 laser itself is far more hazardous, so keep the lid closed and the interlocks working while the machine runs.
Why has my red dot become dim or started flickering?
A dim dot usually means the diode is ageing, while flickering usually points to a broken lead or loose joint. The leads flex every time the head moves, so check them for fractures near the module first. Also clean the brass lens gently, as smoke residue from cutting can build up and dim the dot.
