Power Supply for Cron 4040 CO2 Laser

Your Cron 4040 switches on, but the head will not home, the stepper motors sit silent and the computer no longer sees the controller. Or a job starts normally, then the gantry stalls halfway through a cut. Before you replace the laser tube or the controller board, check the part that feeds them both: the low-voltage power supply.

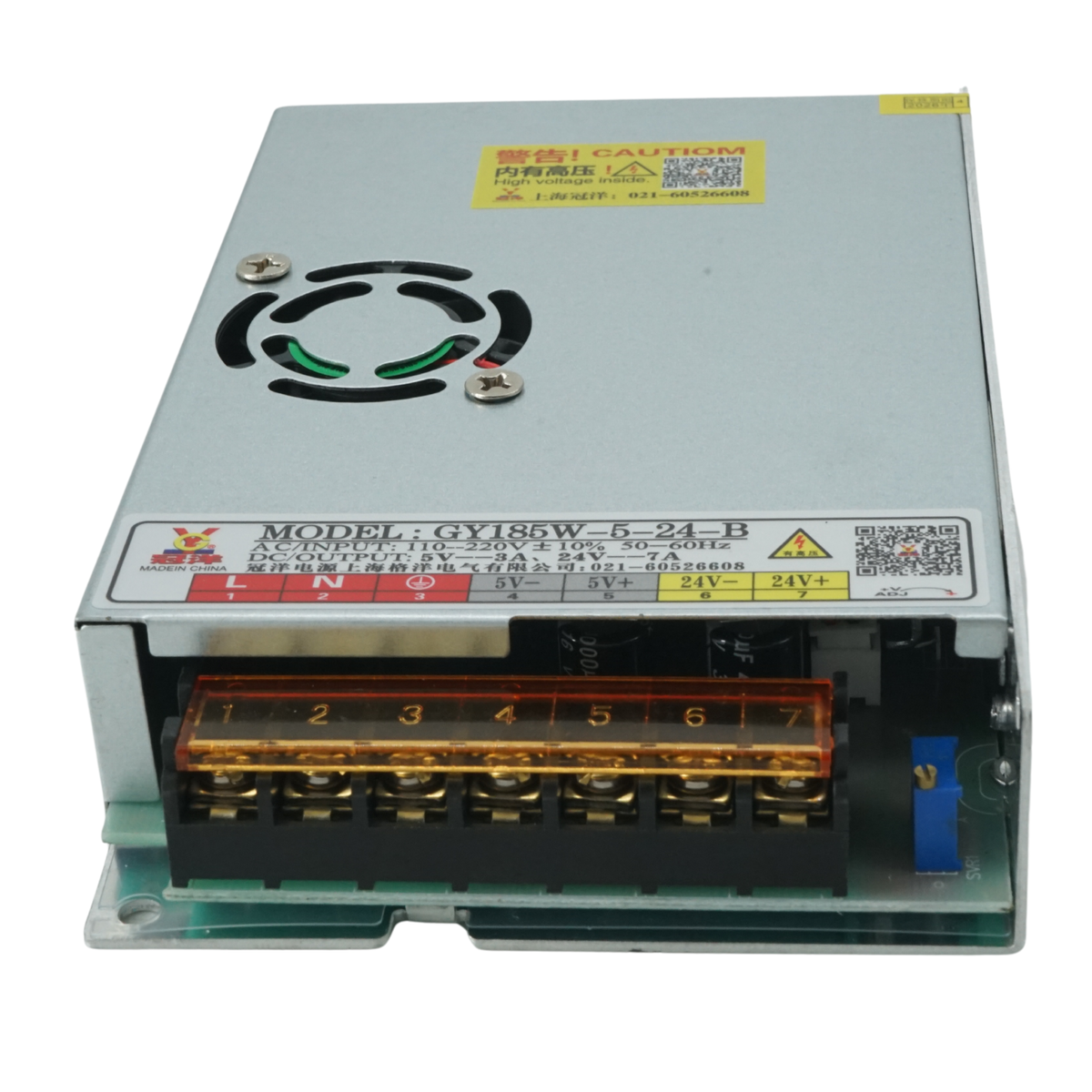

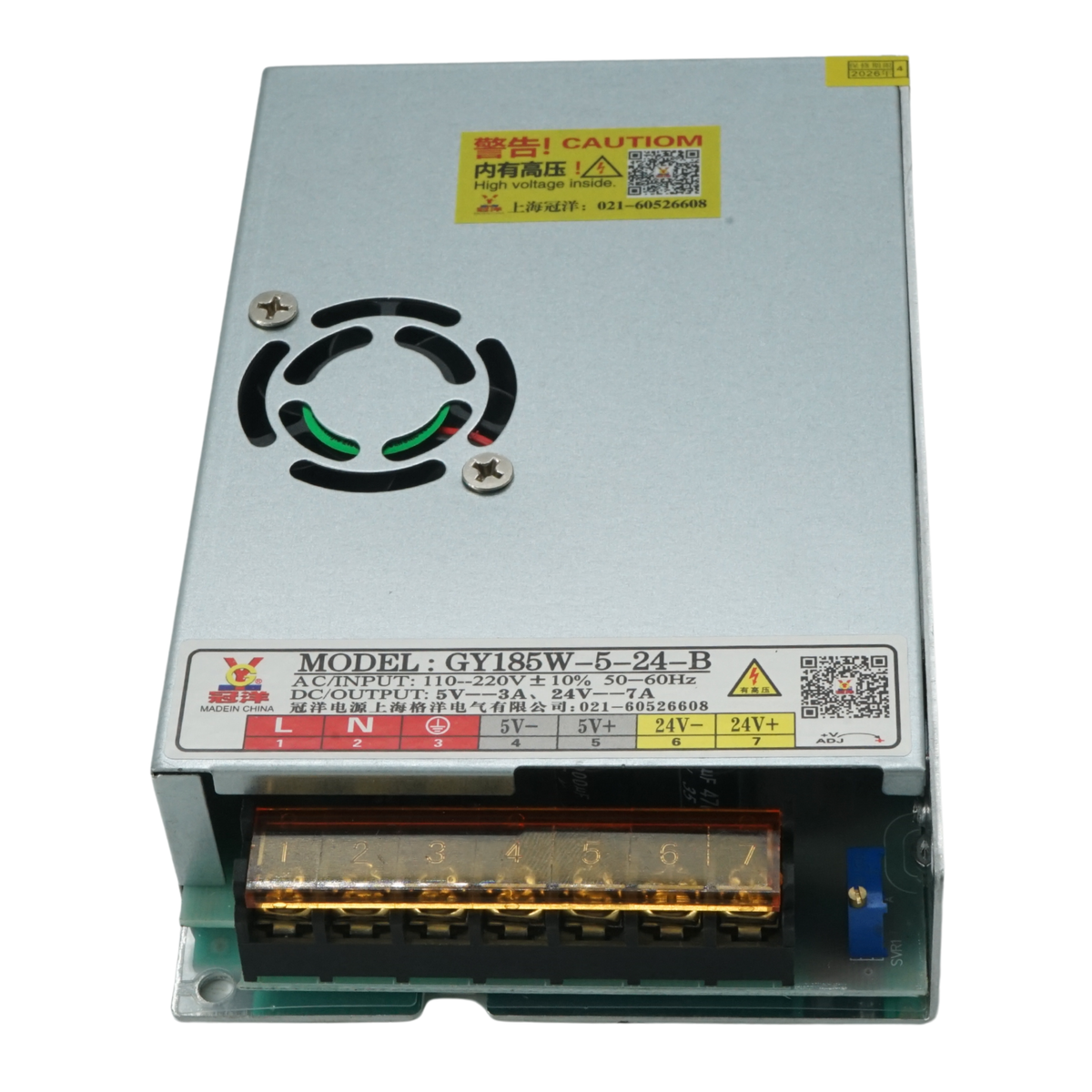

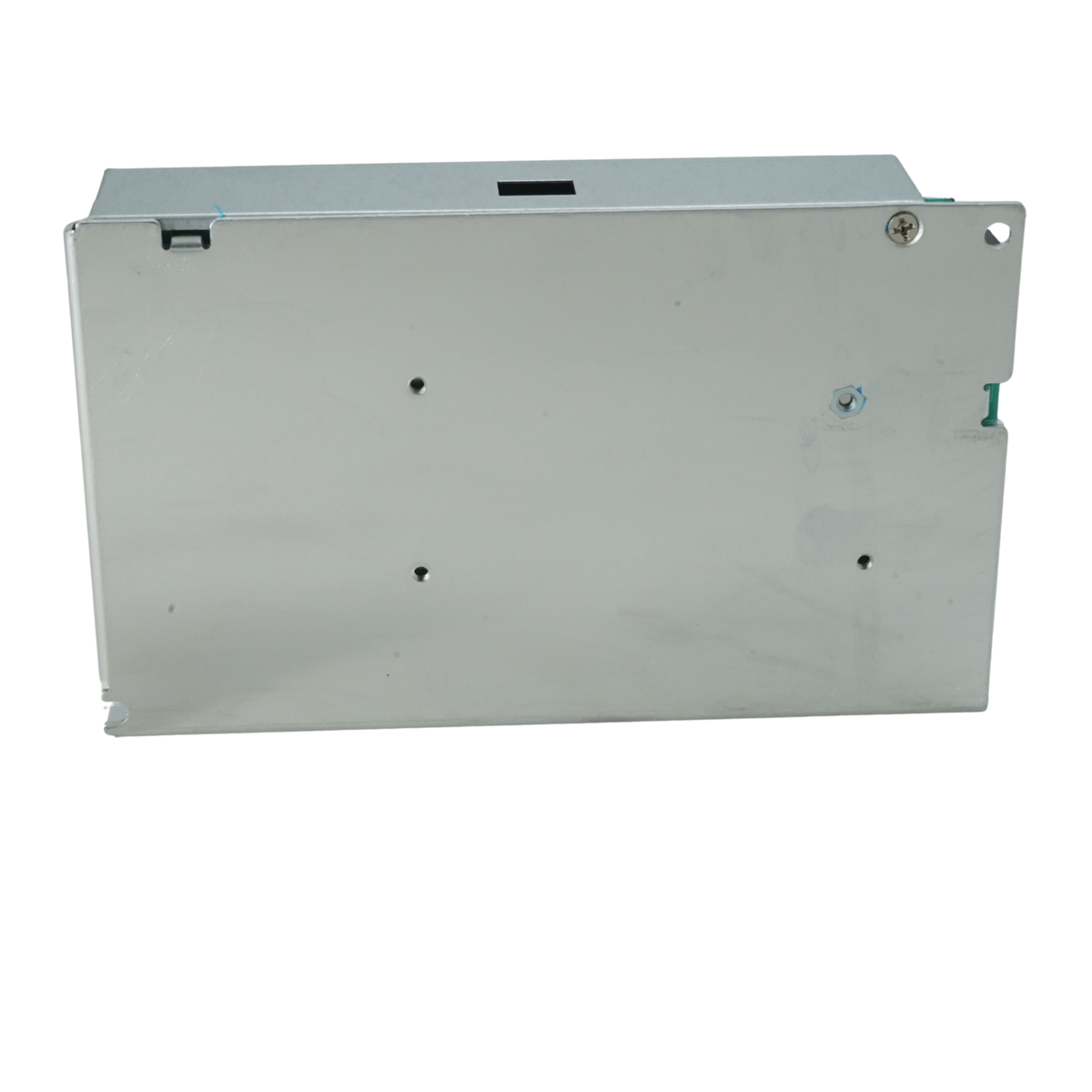

This replacement Cron 4040 power supply is the Guanyang GY185W-5-24-B dual-output unit. It delivers a regulated 24V rail for the motion system and a separate 5V rail for the controller logic, through the same seven-position terminal layout used in the machine. Match the label, move the wires across and your Cron 4040 CO2 laser cutter is back to cutting within the hour.

24V 7A + 5V 3A dual output | 185W rated | 110 to 220V AC input | Fan-cooled metal enclosure | 7-way screw terminal block | Adjustable output trimmer | Replacement for the Cron 4040

Who the Cron 4040 power supply is built for

Small laser businesses that cannot afford downtime

If your Cron 4040 produces engraved signage, wooden gifts or leather patches for paying customers, every day it stands still costs you orders. This Cron 4040 power supply matches the original 24V 7A and 5V 3A ratings, so there is nothing to recalculate or adapt. The numbered, colour-coded terminals make the swap a straightforward wire-for-wire job. Replace a failed supply over a lunch break and still finish the afternoon's batch of 50 engraved coasters.

School and makerspace technicians

A shared laser cutter in a design and technology classroom sees long days and many hands. When the power supply fails in the middle of a term, learners lose practical time you cannot easily reschedule. Keeping a spare Cron 4040 power supply on the shelf turns a week-long wait into a same-day repair. The clearly marked L, N and earth positions and the clear terminal cover help your technician wire it correctly and keep fingers away from live connections once it is closed up.

Laser technicians and maintenance staff

Fault-finding on a CO2 laser goes faster when you can rule parts out with certainty. A known-good supply lets you separate a power fault from a controller or wiring fault in minutes. Measure both rails with a multimeter, fit this unit, and if the machine homes and responds normally, the diagnosis is done. The output trimmer also lets you set the rail voltage precisely on the bench before the unit goes into a client's machine.

What sets this Cron 4040 PSU apart

Two regulated rails from one compact unit

Your laser cutter needs two very different kinds of power. The stepper motors that drive the X and Y axes draw heavy, fast-changing current every time the head accelerates, while the controller logic needs a small, steady supply. This unit handles both. The 24V rail supplies up to 7A (168W) for the motion system, and the independent 5V rail supplies up to 3A (15W) for the logic. That totals 183W, inside the unit's 185W rating, so you are not running it at its limit during heavy engraving jobs.

Designed for 220V, 50Hz mains

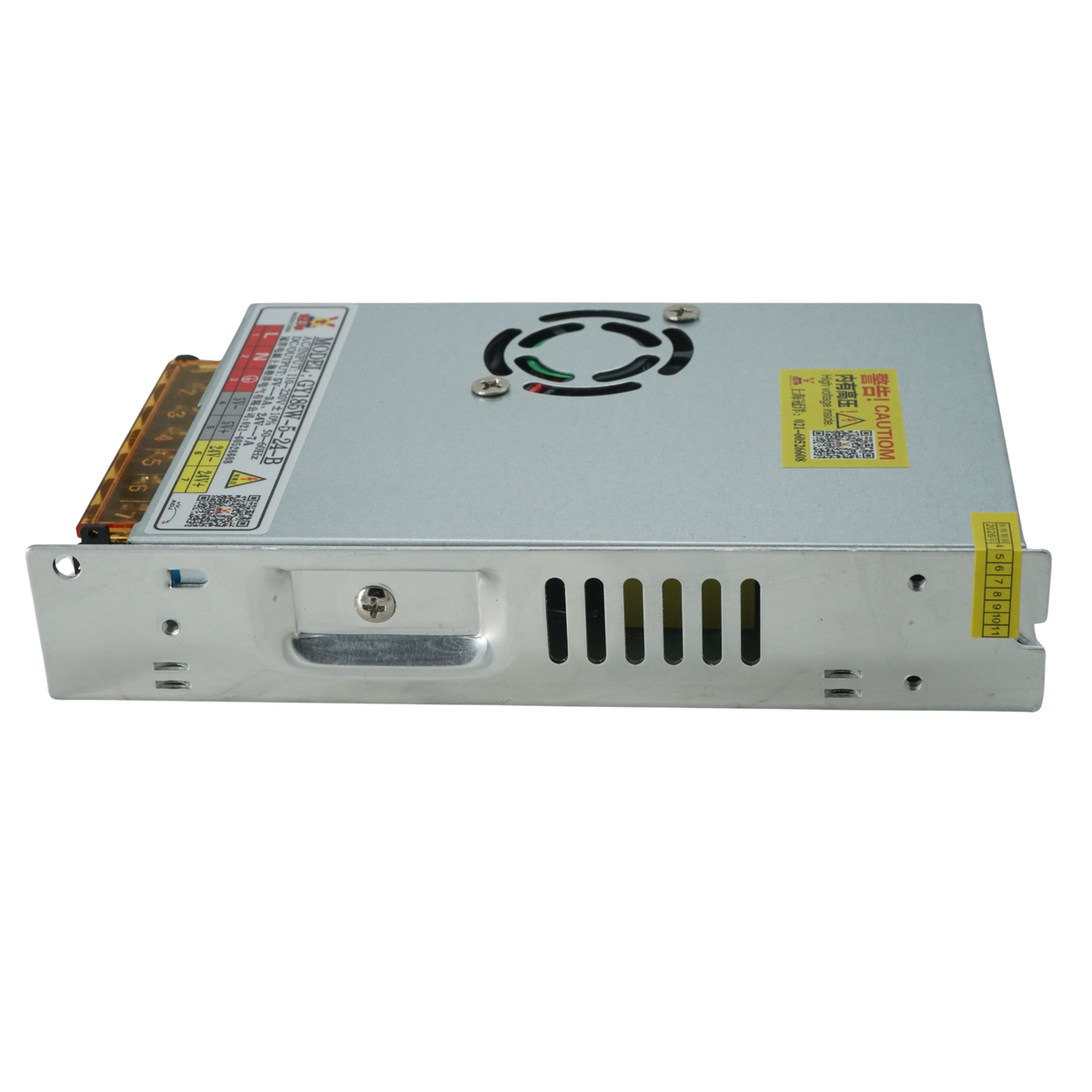

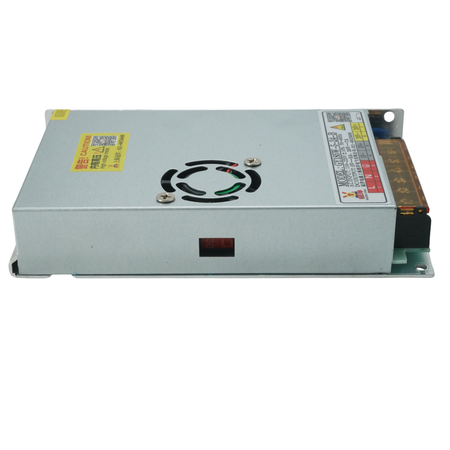

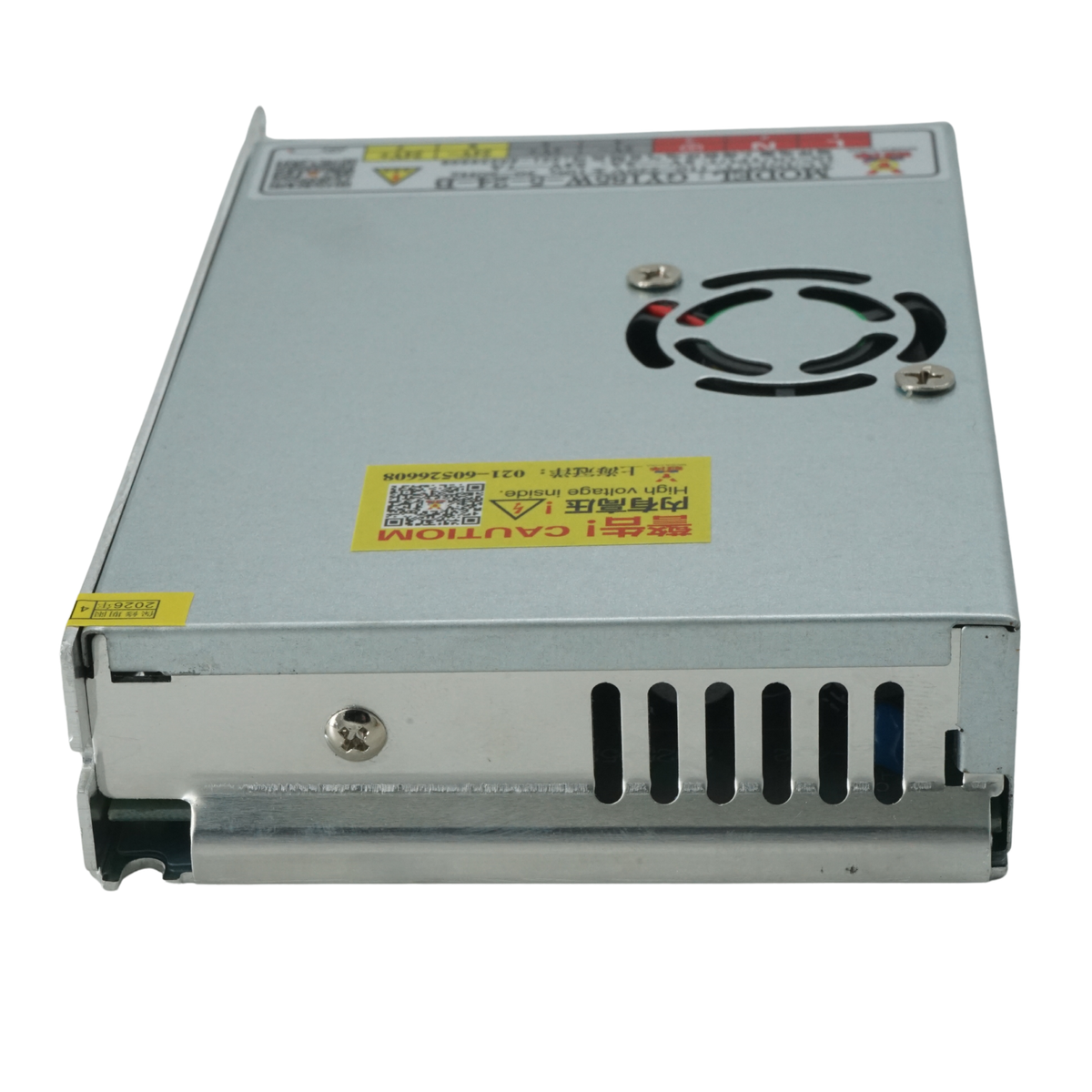

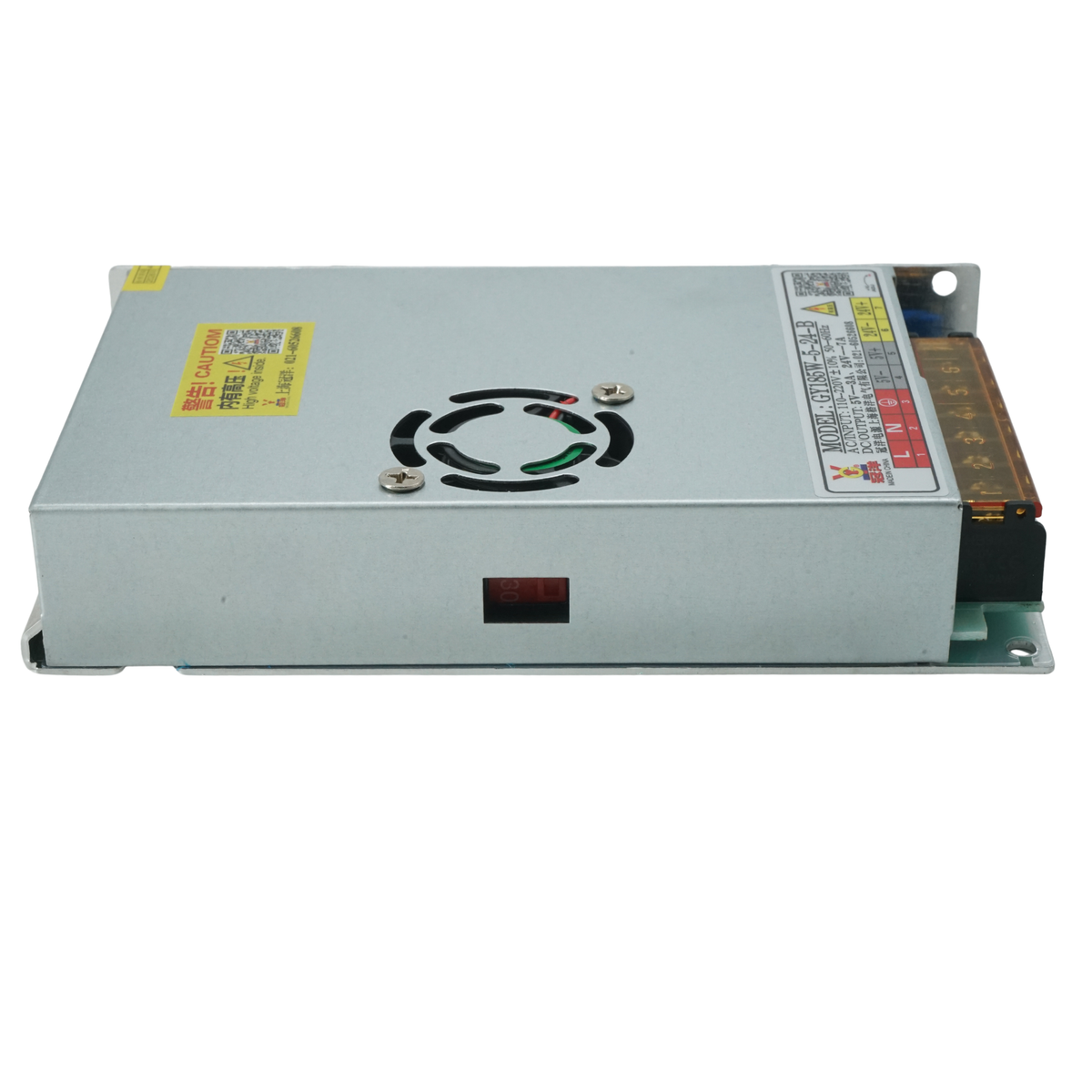

The GY185W-5-24-B is a switched-mode power supply rated for 110 to 220V AC input with a ±10% tolerance, at 50 to 60Hz. That covers the South African 230V, 50Hz supply without an external transformer. A built-in cooling fan draws air through the perforated metal enclosure, which matters inside the electronics bay of a CO2 laser where heat builds up on long jobs. Because voltage spikes are common when power returns after an outage, we recommend running your machine from a surge-protected outlet.

A terminal block you can wire without guesswork

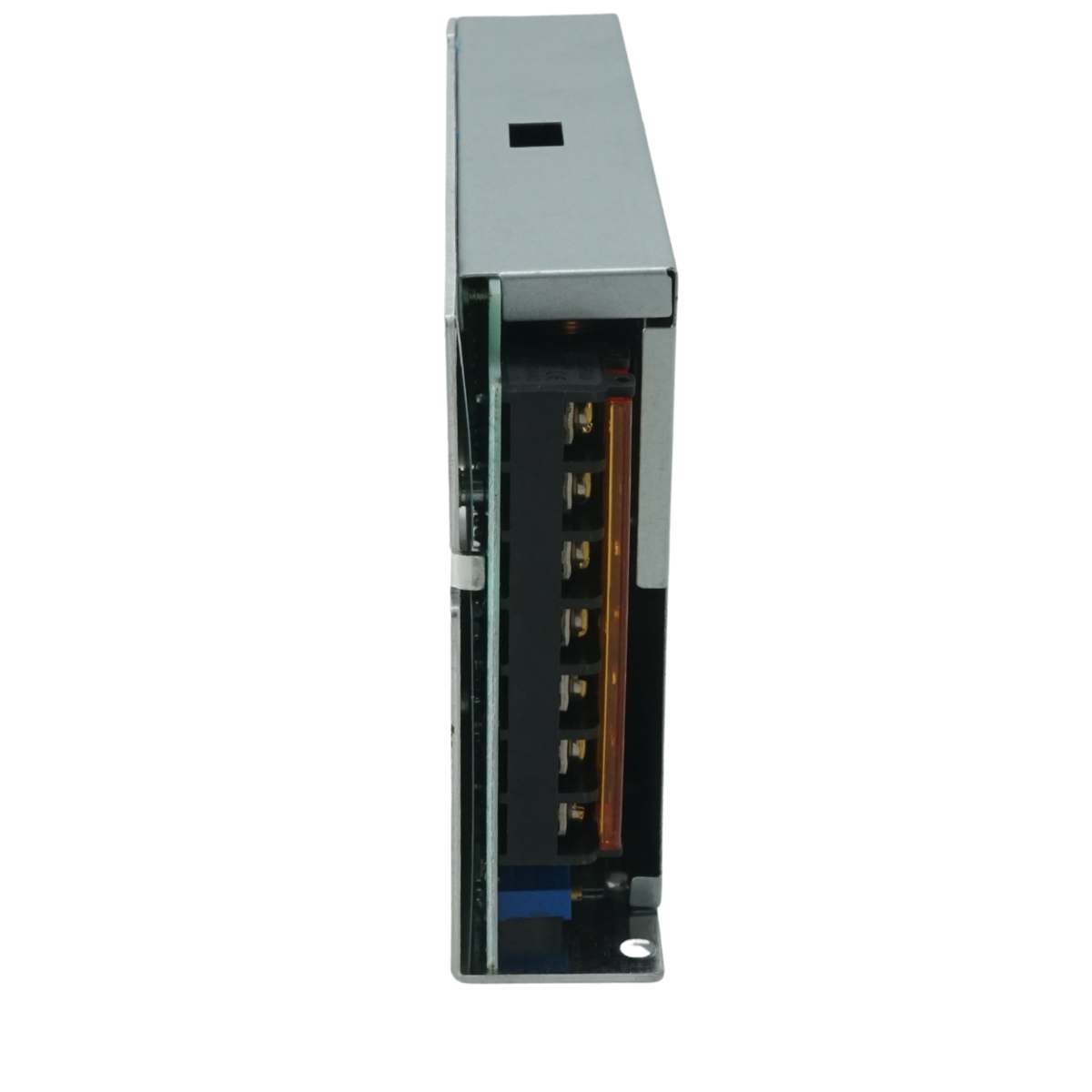

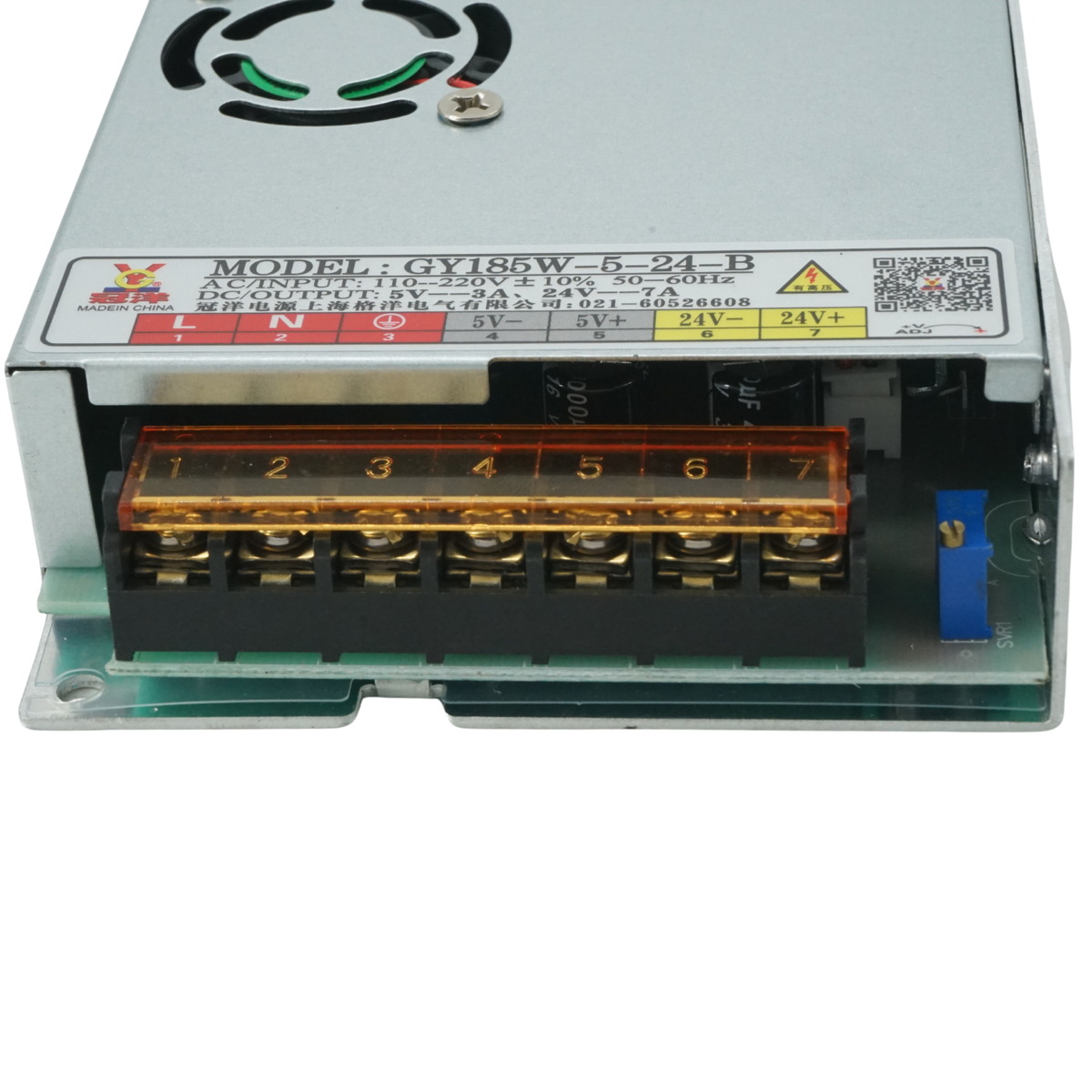

Every connection sits on a single seven-position screw terminal block, numbered 1 to 7 and matched to a colour-coded label directly above it: L, N and earth on the input side, then 5V−, 5V+, 24V− and 24V+ on the output side. A clear protective cover sits over the terminals once you are done. Before you remove the old unit, take a photo of its wiring. Moving each wire to the same numbered terminal on the new unit is then a quick, low-risk job.

Fine-tune the output on the bench

Beside the terminal block you will find a small trimmer marked +V ADJ (SVR1). Turning it clockwise raises the output voltage slightly; turning it anticlockwise lowers it. Most owners never need to touch it, but it is useful when you want the new unit to match the reading of the original, or to compensate for voltage drop on longer cable runs. Measure with a multimeter while you adjust and make small turns only.

Know which power supply your machine actually needs

A Cron 4040 contains two separate power supplies, and buyers often order the wrong one. This low-voltage unit runs the motion system and controller. The high-voltage CO2 Laser Power Supply, 50W fires the laser tube. The symptoms point you to the right part.

Full specifications: Cron 4040 power supply

Ordering, shipping and support for your laser cutter power supply

We courier the Cron 4040 power supply anywhere in South Africa, or you can collect it from our Centurion or Boksburg store. It is covered against manufacturing defects under our carry-in warranty, handled locally by our own technical team. Not sure the power supply is the fault? Log a technical support ticket first. We also stock CO2 laser tubes, CO2 laser power supplies and CO2 laser accessories for the Cron range.

Frequently asked questions about the Cron 4040 power supply

Is this the same as the CO2 Laser Power Supply, 50W?

No, they are two different parts. This unit supplies 24V and 5V DC to the stepper motors and controller. The 50W CO2 laser power supply generates the high voltage that fires the laser tube. If your axes move but the laser does not fire, the high-voltage supply is the more likely fault. If nothing moves and the controller is not detected, start with this unit.

Will this power supply fit my Cron 4040?

Yes, if your existing unit is labelled GY185W-5-24-B or shows 5V 3A and 24V 7A outputs. Check the label on your current supply before you order, since this confirms a direct wire-for-wire replacement. If your machine carries a different unit, send us a photo of its label through a support ticket and we will confirm the correct part for your machine.

How long does it take to replace the power supply?

Most owners replace a Cron 4040 power supply in 30 to 60 minutes with a screwdriver and a multimeter. Unplug the machine and wait a few minutes for stored charge to dissipate. Photograph the old wiring, move each wire to the matching numbered terminal, and connect the earth wire first. Once powered up, confirm the outputs read close to 24V and 5V before running a job.

How do I make the new power supply last longer?

Keep the cooling fan and vents free of dust and smoke residue. Laser cutting produces fine particles that settle inside the electronics bay and trap heat. With the machine unplugged, blow the unit clean with dry compressed air every few months, and make sure your fume extraction is working so less residue reaches the electronics in the first place.

Does it work on South African mains and during power outages?

Yes, it is rated for 220V, 50Hz mains and South Africa's 230V supply falls within its input tolerance. The main risk is the voltage spike when power returns after load shedding or an outage. Switch the machine off at the wall when power drops, and run it from a surge-protected outlet to protect this unit and your controller.
