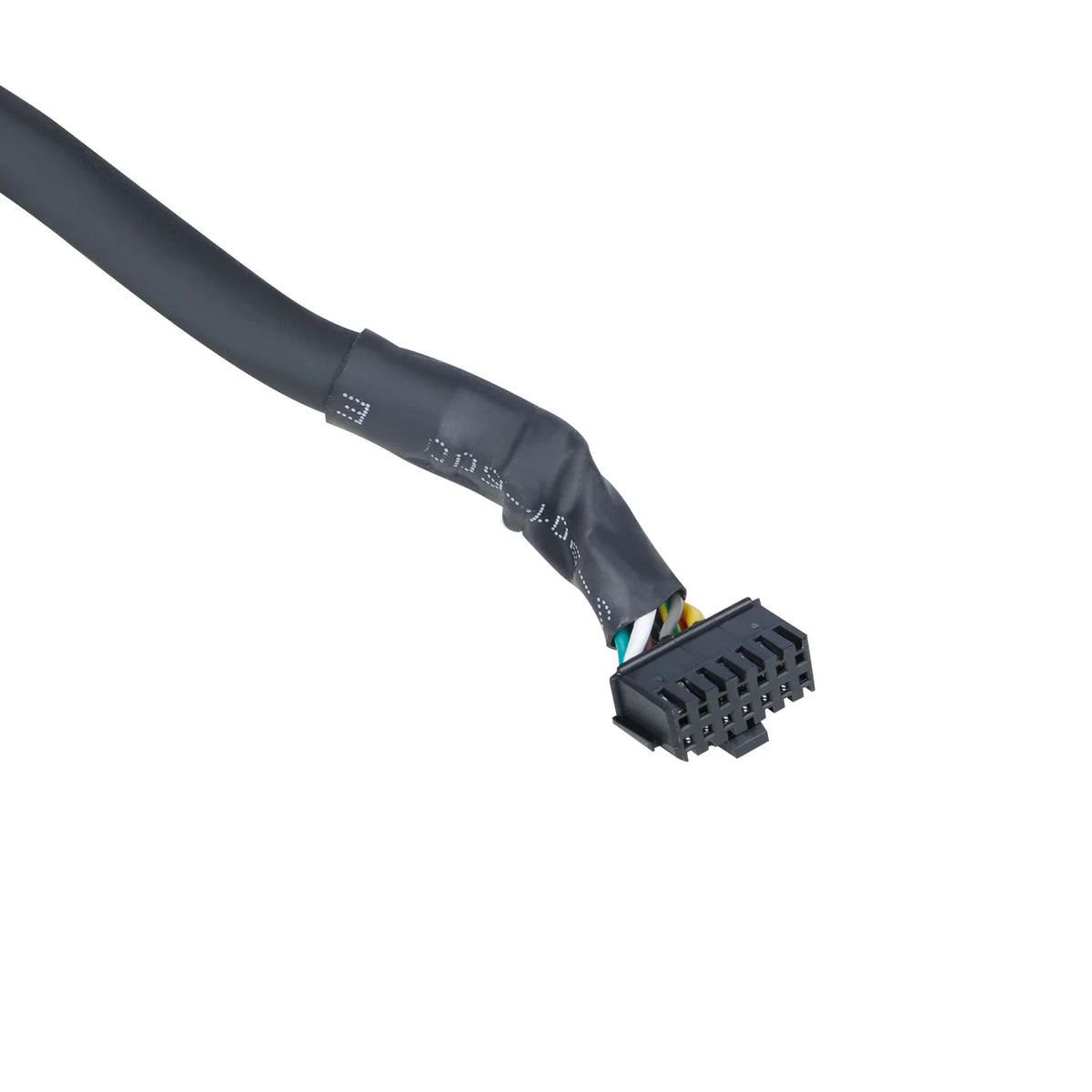

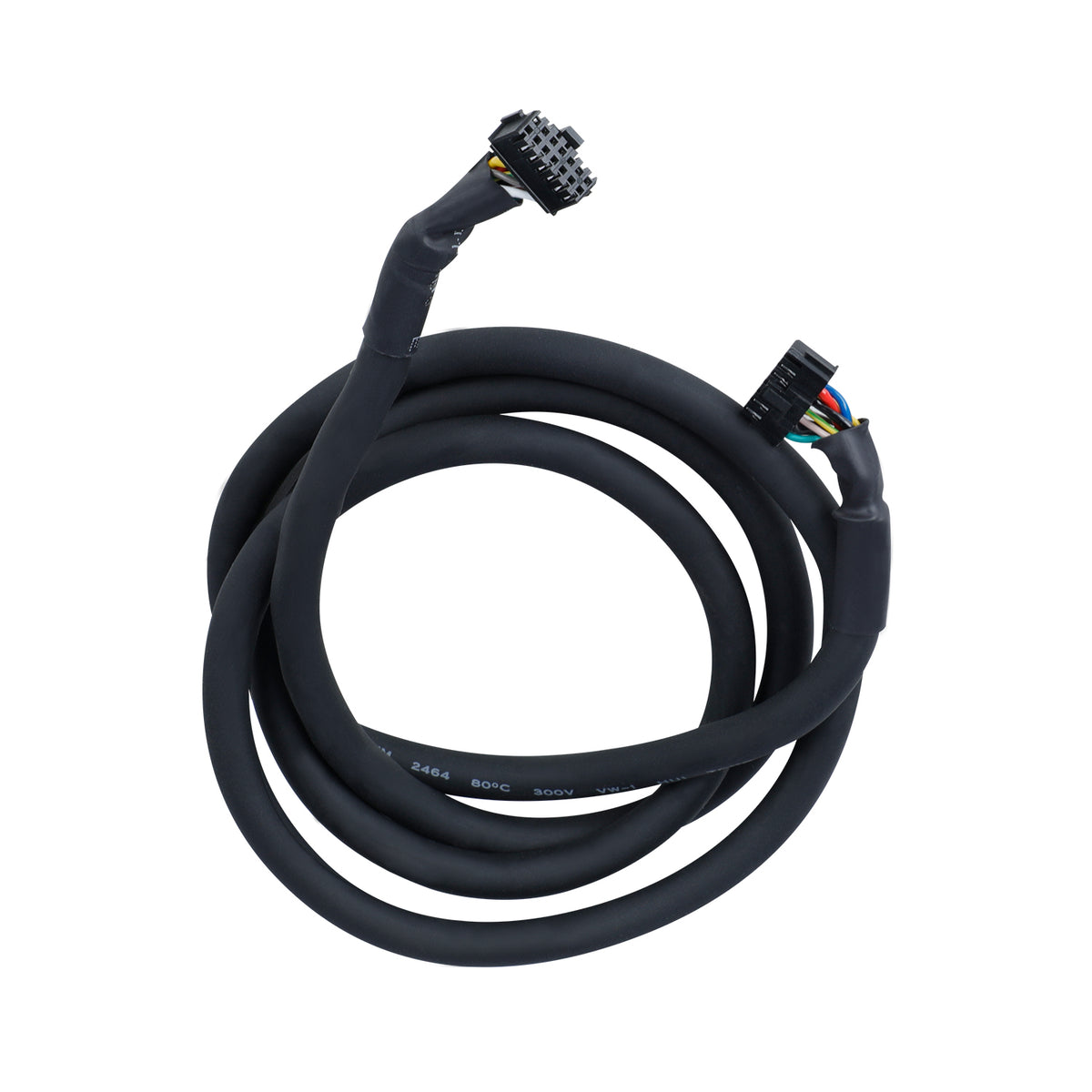

Creality K2 Pro Print Head Ribbon Cable

A Creality K2 Pro that suddenly throws a "hotend thermistor error" mid print, or a part-cooling fan that stops responding for no obvious reason, rarely means the hotend itself has failed. On a CoreXY machine, the printhead ribbon cable does thousands of flex cycles every print, running back and forth with the toolhead at up to 600 mm/s while carrying power and data for the heater, fans and probe. Over time, the copper traces inside that flexible strip fatigue and crack.

Replacing the cable is a straightforward, connector-based fix, not a full toolhead rebuild. This genuine Creality ribbon cable is built specifically for the K2 Pro's Sprite Extruder toolhead, so print quality, auto-levelling and cooling performance are restored without waiting weeks for an imported replacement part.

Genuine Creality OEM part | Direct fit for the K2 Pro toolhead | Flexible FPC ribbon rated for CoreXY flex cycles | Carries hotend, fan and CR Touch/BL Touch signals | Plug-and-play, no soldering required | Restores full print, levelling and cooling function | Ships nationwide across South Africa

Who the Creality K2 Pro Printhead Ribbon Cable is built for

Small print farm operators

In a print farm running several K2 Pro units back to back, a stalled toolhead mid-batch is lost throughput, not just an inconvenience. Because this cable bundles the heater, thermistor, fan and probe wiring into one connector-terminated assembly, a technician can isolate a "no thermistor detected" fault and swap the part between jobs instead of pulling the whole toolhead for repair. Keeping two or three spares on the shelf means an overnight batch finishes on schedule instead of a machine sitting idle for a week waiting on an import.

Prototyping engineers and power users

When a K2 Pro used for daily prototyping starts throwing intermittent heater or fan errors, the fastest diagnosis is swapping the ribbon cable before assuming the hotend or mainboard has failed, since flex fatigue is the more common cause on a high-speed CoreXY toolhead. Because this is a genuine Creality part with the correct pinout for the Sprite Extruder and CR Touch/BL Touch probe, you get back to iterating on a bracket or housing revision the same afternoon instead of waiting on a full toolhead replacement.

Schools and educational makerspaces

A shared K2 Pro in a school or makerspace clocks up more flex cycles in a single term than most home printers see in a year, and the ribbon cable is usually the first wear item to fail under that use. Because this is a low-cost, tool-free swap rather than a soldering job, a lab technician or teacher can fit it between classes without specialist electronics skills, keeping a fleet printer available for the next student's project instead of parked in a repair queue.

What sets the Creality K2 Pro Printhead Ribbon Cable apart

A direct fit that skips the guesswork

This is a genuine Creality part engineered specifically for the K2 Pro's toolhead connector layout and pinout, not a generic or resized cable pulled from a different printer family. It matches the length and routing of the original K2 Pro harness, so it seats into the drag chain and toolhead cover the way the factory cable did, without trimming, extending or re-crimping a connector. Fitting a mismatched cable from another K2-series model risks a poor connector seat or a missing signal line, exactly the kind of intermittent fault this part is meant to eliminate.

Built to survive thousands of CoreXY passes

The K2 Pro's toolhead accelerates and reverses direction constantly at speeds up to 600 mm/s, and every one of those movements flexes the cable feeding it. This is a flexible flat, printed-circuit style ribbon rather than round wire, a construction chosen because it tolerates repeated bending far better than rigid cabling without cracking its internal conductors. It is the same reason ribbon cables are the standard choice inside moving toolheads across the 3D printing industry, not just on Creality machines.

One cable, every toolhead signal

A single connector carries the heater and thermistor circuit for the hotend, power for both the hotend and part-cooling fans, and the signal line for the CR Touch or BL Touch auto-levelling probe. When the cable degrades, the symptoms rarely look like a cable problem at first, they show up as thermal runaway warnings, a fan that stalls mid-print, or a probe that fails to trigger during bed levelling. Replacing this one part resolves all three failure modes at once, because they usually share the same worn conductor.

Plug-and-play swap, no soldering

Both ends of the cable arrive pre-terminated with the correct connectors already fitted, so there is no crimping, soldering or splicing involved. The job is mechanical: open the toolhead cover, disconnect the old cable, route the replacement along the same path through the cable chain, and reconnect it. Anyone comfortable with basic hand tools can complete the swap without touching mainboard firmware or recalibrating the printer afterwards, and a worn conductor here can also present as an auto-levelling fault or inconsistent cooling, so fitting a fresh cable rules out the wiring before you chase the problem elsewhere.

Full specifications: Creality K2 Pro Printhead Ribbon Cable

How the Creality K2 Pro Printhead Ribbon Cable compares to other K2-range toolhead cables

Each K2-series printer uses its own cable length and connector layout to match its frame size, so a cable from a K2 or K2 Plus is not guaranteed to fit a K2 Pro toolhead. Confirm your printer model against SKU CRE725 before ordering, and if a screen fault rather than a print or levelling fault is the issue, you likely need the separate touchscreen cable instead.

Materials and software compatible with the Creality K2 Pro

Filaments this printer handles

• PLA, around 200 to 220°C, minimal warping, a good first print to confirm the toolhead is working correctly after fitting this cable.
• PETG, around 230 to 250°C, use a slightly slower first layer and reduced retraction to control stringing.
• ABS and ASA, around 240 to 260°C, keep the K2 Pro's heated chamber closed to prevent layer separation, ASA also holds up better outdoors.
• PC, around 260 to 300°C, needs the enclosure closed and a fully seated hotend for consistent layer adhesion.
• PLA-CF, PA-CF and PPA-CF composites, typically 260°C and above, are abrasive, so pair them with a hardened or steel-tipped hotend to protect nozzle life.

Slicers and software

The K2 Pro works with Creality Print for the most direct integration with its AI camera and calibration features, and with FDM-focused third-party slicers including Cura, OrcaSlicer, PrusaSlicer and Bambu Studio, exporting standard G-code over USB, Wi-Fi or Ethernet. Replacing this ribbon cable does not affect slicer profiles, printer settings or firmware in any way, since the fault it fixes sits entirely on the wiring side of the toolhead.

What's in the box

• 1 x Creality K2 Pro printhead ribbon cable (FPC)
• Pre-terminated, tool-free connectors fitted on both ends
• Anti-static, individually sealed packaging
• Protective end caps over the connector pins for transit
• No tools or fasteners included, the original toolhead screws are reused
• No printed manual, installation follows the standard K2 Pro toolhead service procedure

Ordering, shipping and support in South Africa

3D Printing Store ships this cable nationwide from its Centurion and Boksburg branches, typically 1 to 2 working days within Gauteng and 2 to 4 working days to the rest of South Africa. It carries a manufacturer warranty handled locally through our support team, so a faulty unit never needs to go back to China for a claim. Matching K2 Pro hot ends and the rest of our cables and connectors range are stocked alongside it, and our team is available by phone, email or WhatsApp for fitment questions.

Frequently asked questions about the Creality K2 Pro Printhead Ribbon Cable

Is the K2 Pro printhead ribbon cable the same as the K2 or K2 Plus cable?

No. Each K2-series model, the K2, K2 Pro and K2 Plus, uses its own printhead cable with a model-specific length and connector layout, so a K2 Plus cable is not guaranteed to fit a K2 Pro toolhead. Confirm your printer model and SKU before ordering, this cable (CRE725) is built specifically for the K2 Pro.

Does this cable support both CR Touch and BL Touch probes?

Yes. The K2 Pro's toolhead ships with a CR Touch or BL Touch style auto-levelling probe depending on production batch, and this ribbon cable carries the correct signal line for either, since both use the same connector standard on this toolhead. You don't need a different cable for either probe variant.

How long does it take to fit the K2 Pro printhead ribbon cable?

Most owners complete the swap in 15 to 30 minutes. It's a tool-free, connector-based replacement, open the toolhead cover, disconnect the old cable, route the new one along the same path, and reconnect it. No soldering or mainboard recalibration is required afterwards.

How often does the K2 Pro ribbon cable need replacing?

There's no fixed service interval, it depends on print volume. High-usage machines in a print farm or classroom may need a replacement after a year or two of constant CoreXY travel, while lower-usage home printers can run for several years before the cable shows flex fatigue such as intermittent thermistor or fan errors.

Is there local warranty support for this part in South Africa?

Yes. This cable is covered by a manufacturer warranty that 3D Printing Store handles directly from its Centurion and Boksburg branches, so you don't need to deal with an overseas supplier for a claim. Nationwide courier delivery and WhatsApp support are also available if you need help confirming fitment before you order.
