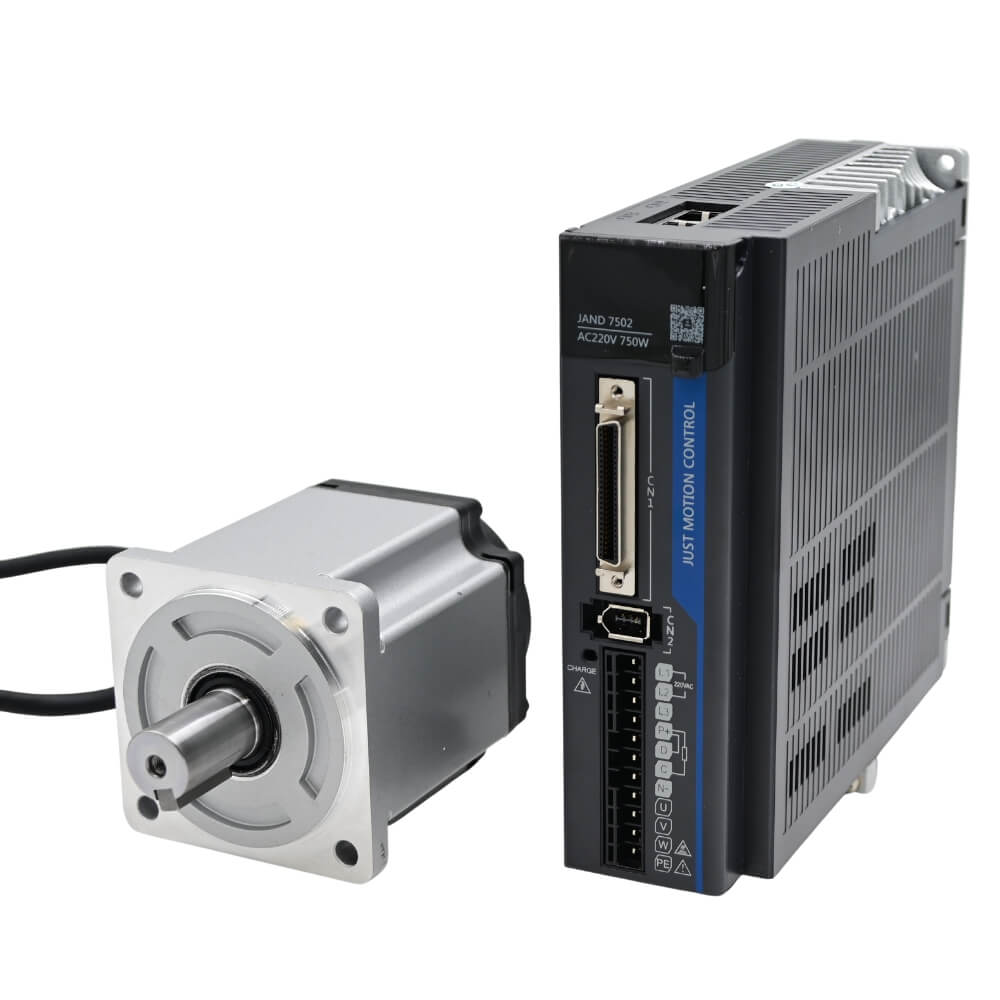

JMC AC Servo Motor and Driver, 750W
Share on social media:
Servo motors are the Rolls-Royce of presision motion control. It has the best of both worlds, high speed and high positional accuracy. Servo motors consist of a 3 phase motor and a 220V driver. The driver reads the position of the motor via an encoder at the back of the motor and use this to calculate the motor currents required to accurately control the motor. These motors are widely used in CNC machines, printing machines, packaging machines, production lines and other automation fields.
Specifications:
- Manufacturer: JMC
- Motor power: 750W
- Rated Speed: 3000RPM
- Max Speed: 5000RPM
- Rated Torque: 2.39Nm
- Max Torque: 6.0Nm
- Frame Size: 80mm
- Electricity supply: 220V AC, 50Hz
- Input control signal voltage: 5V or 24V

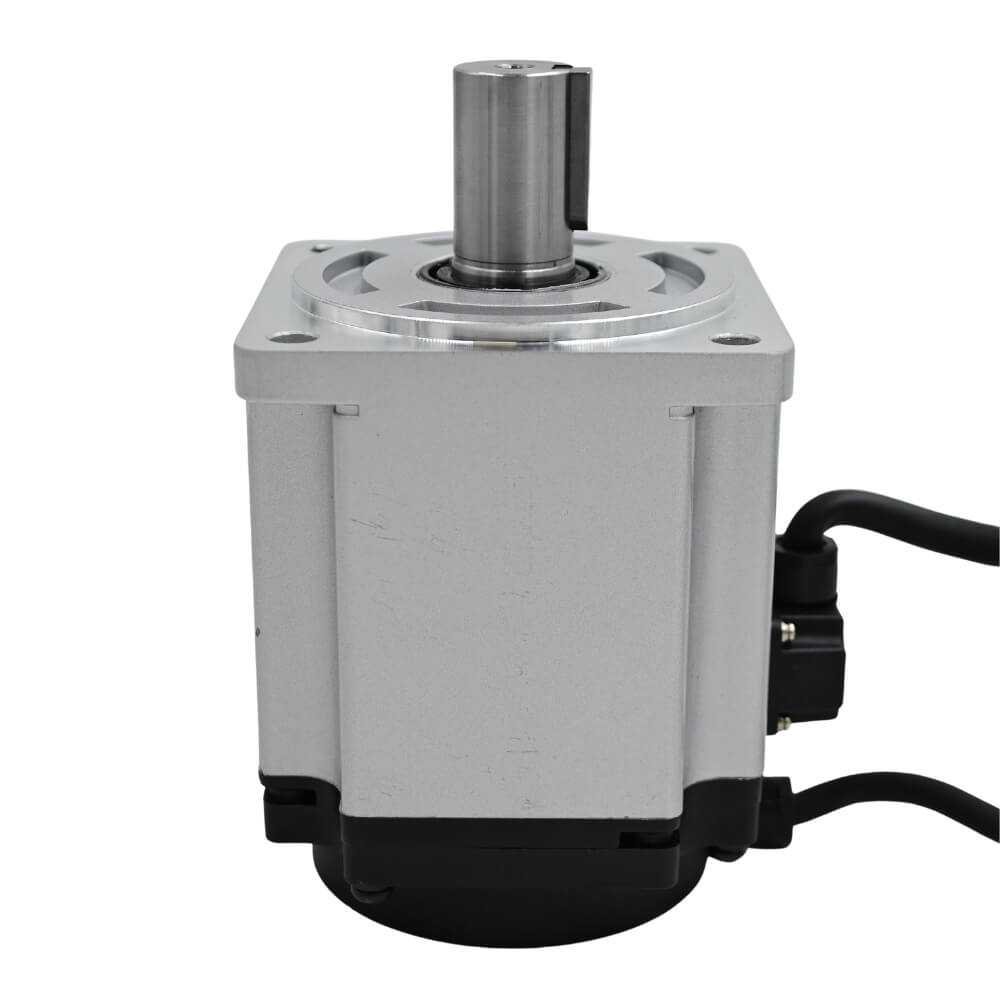

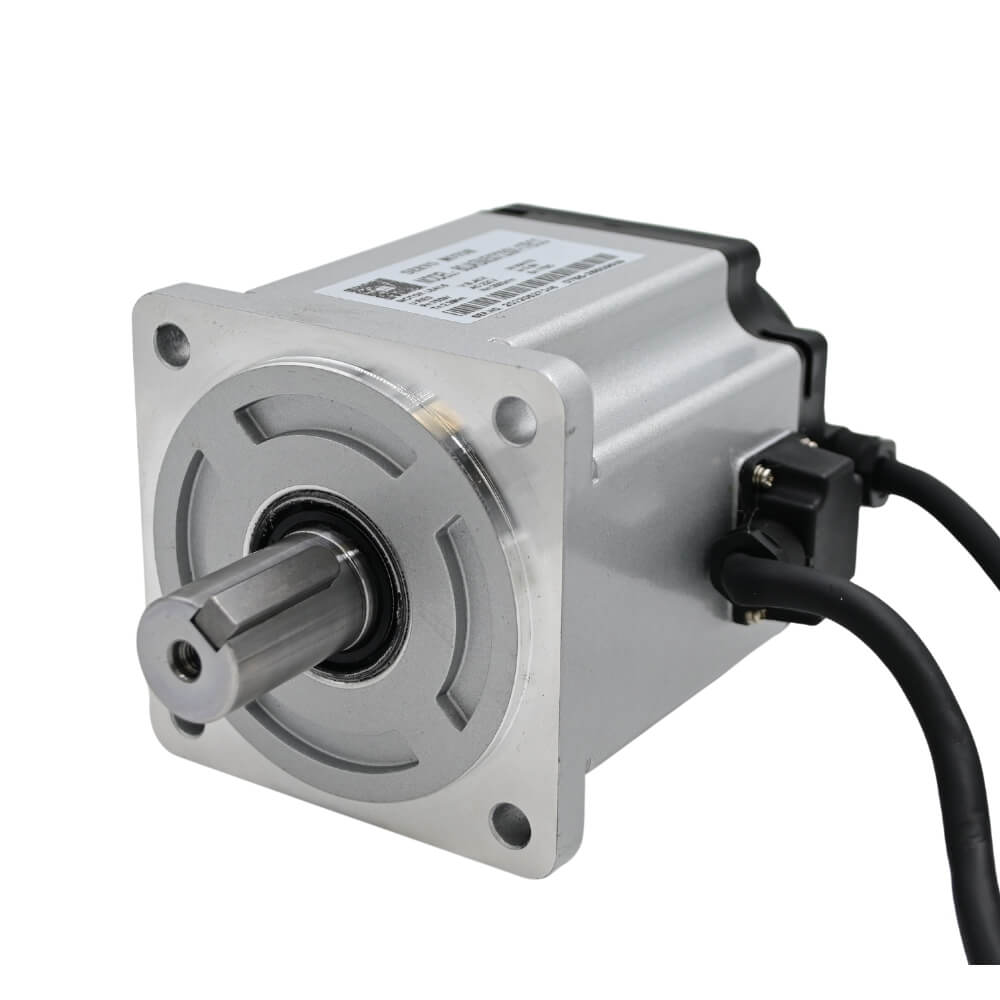

- Motor Model No.: 80JASM507230K-17BQC

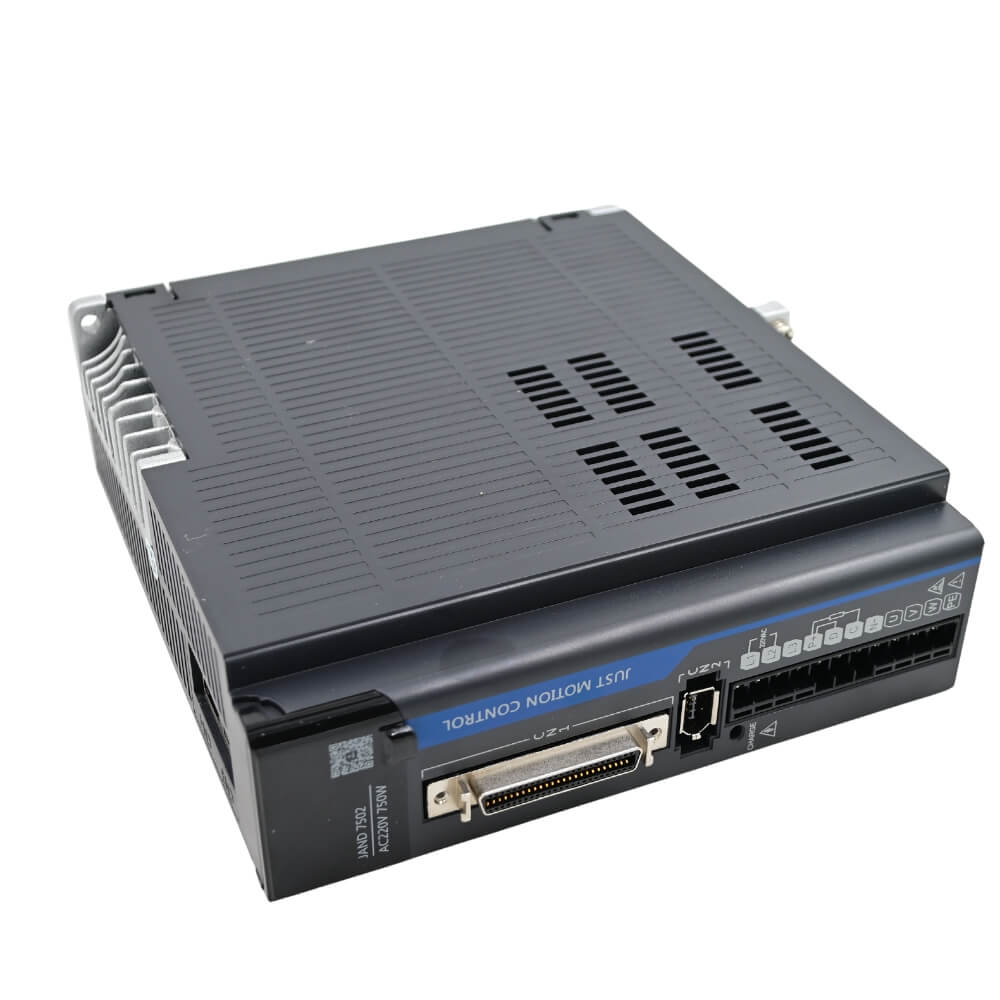

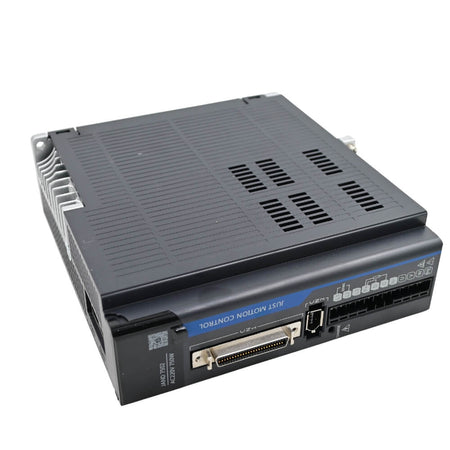

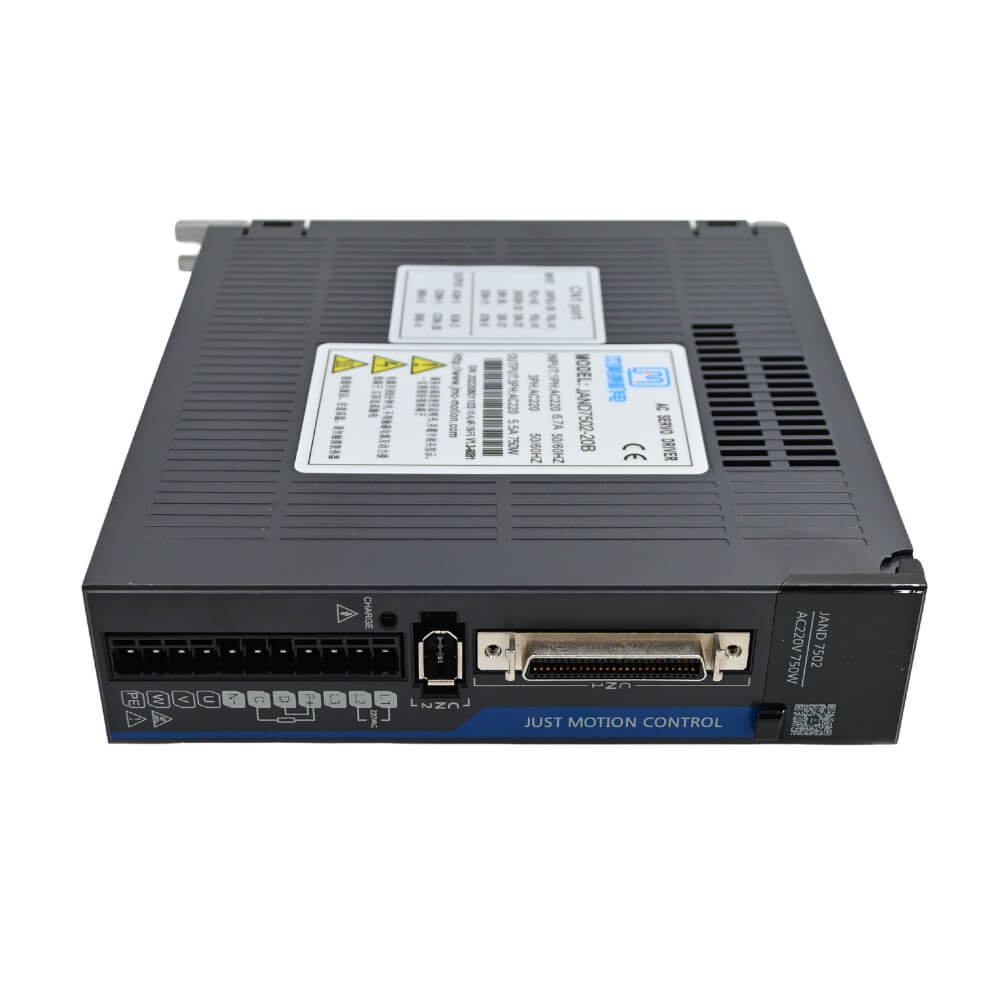

- Driver Model No.: JAND7502-20B

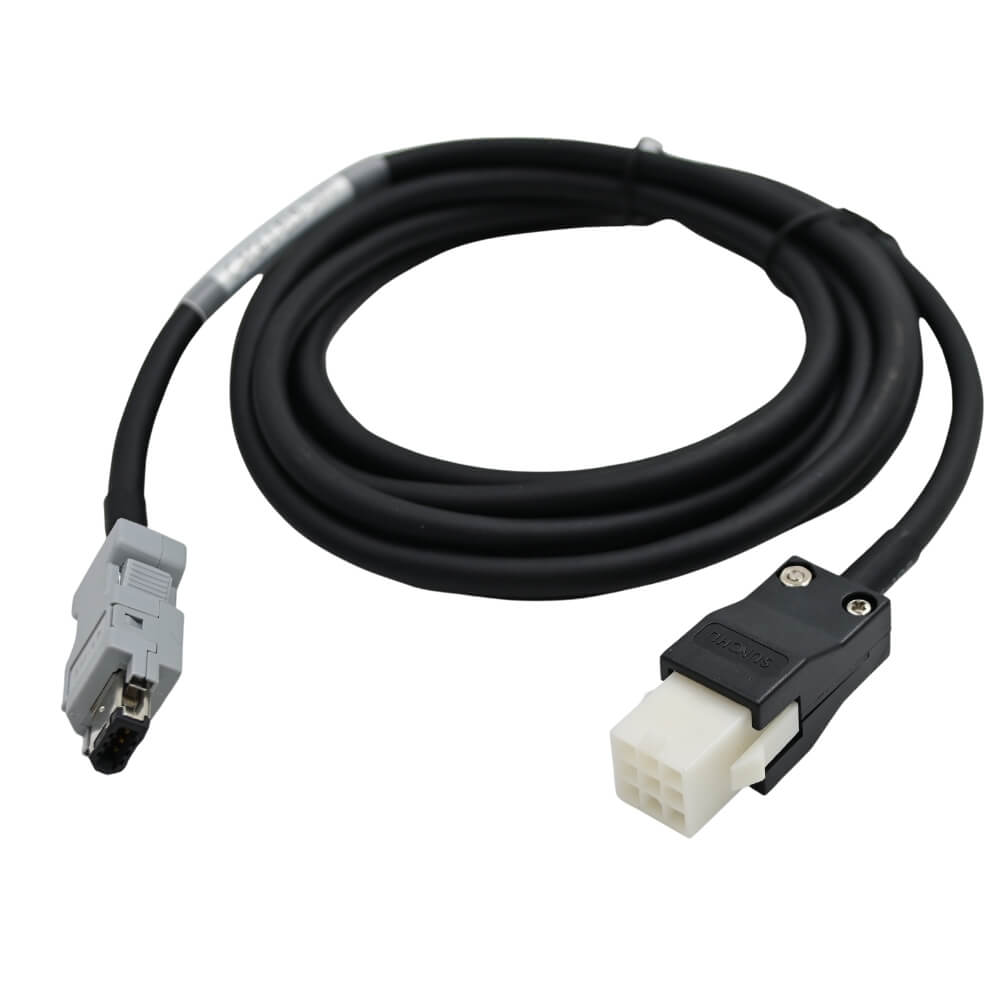

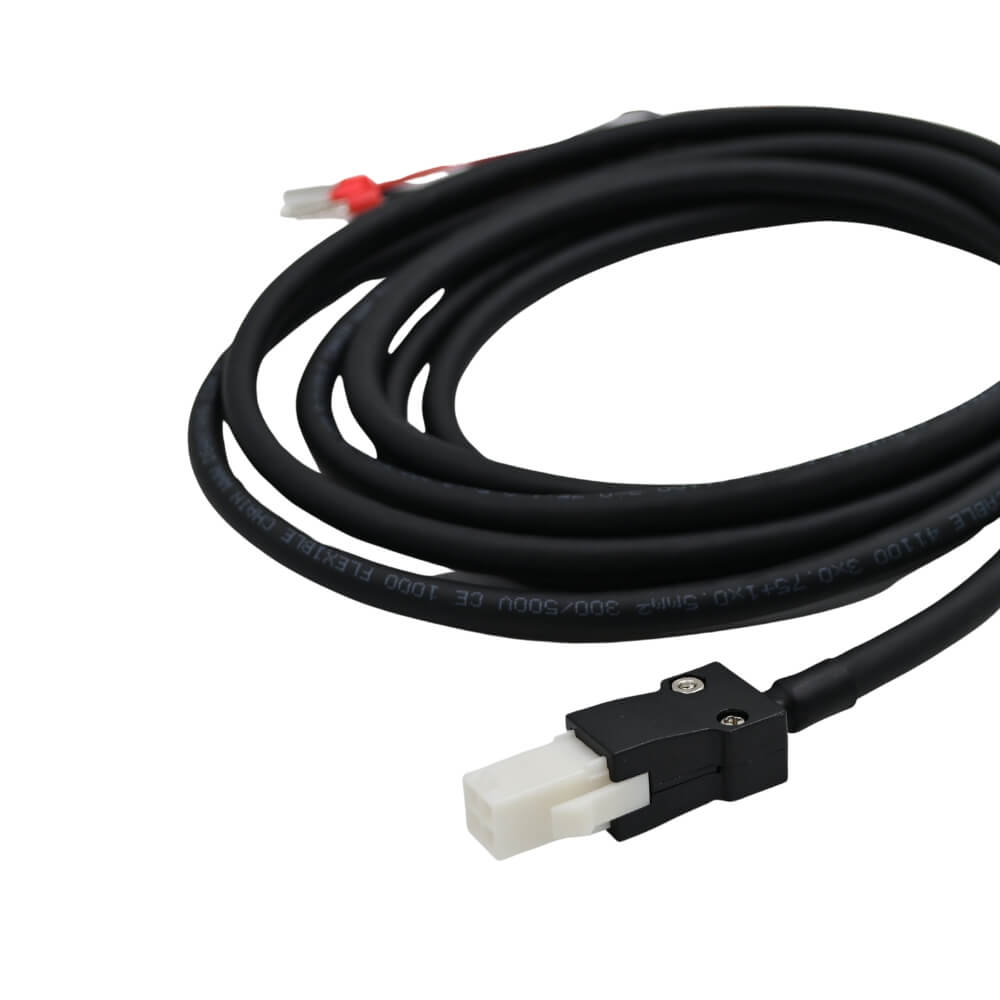

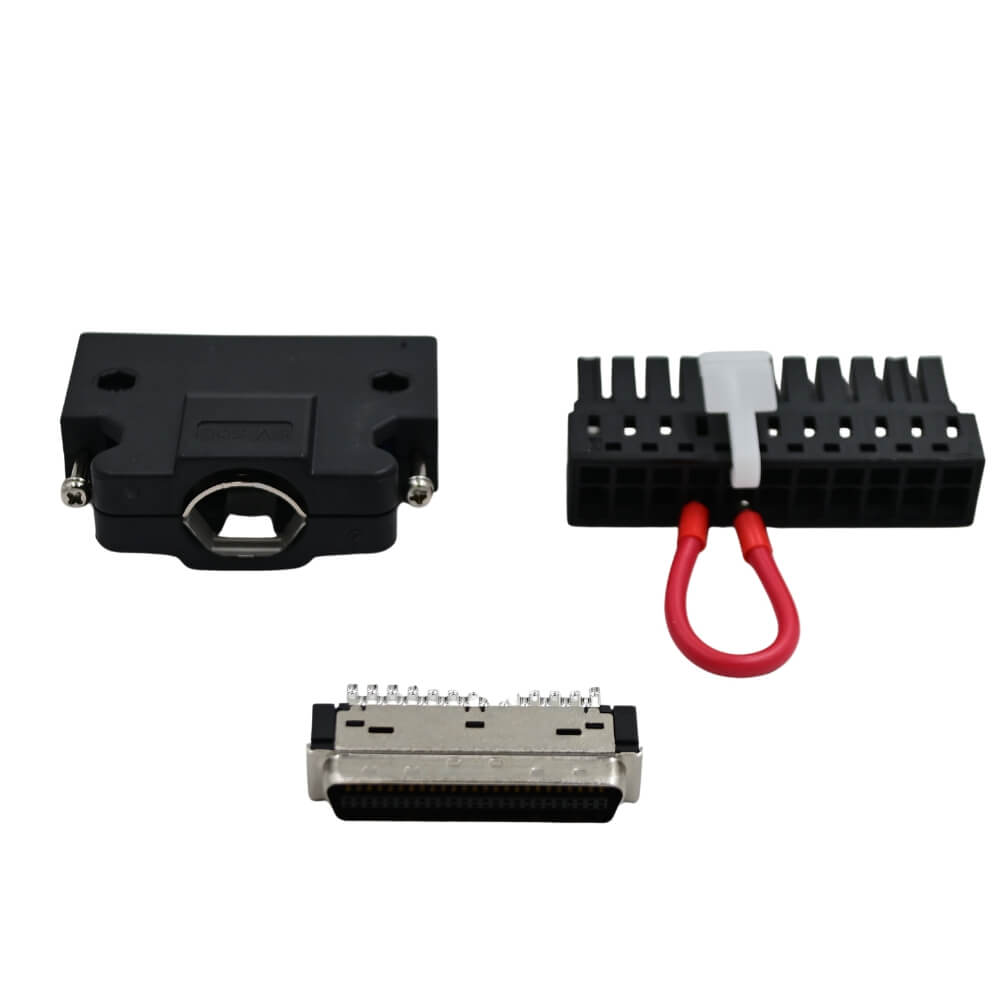

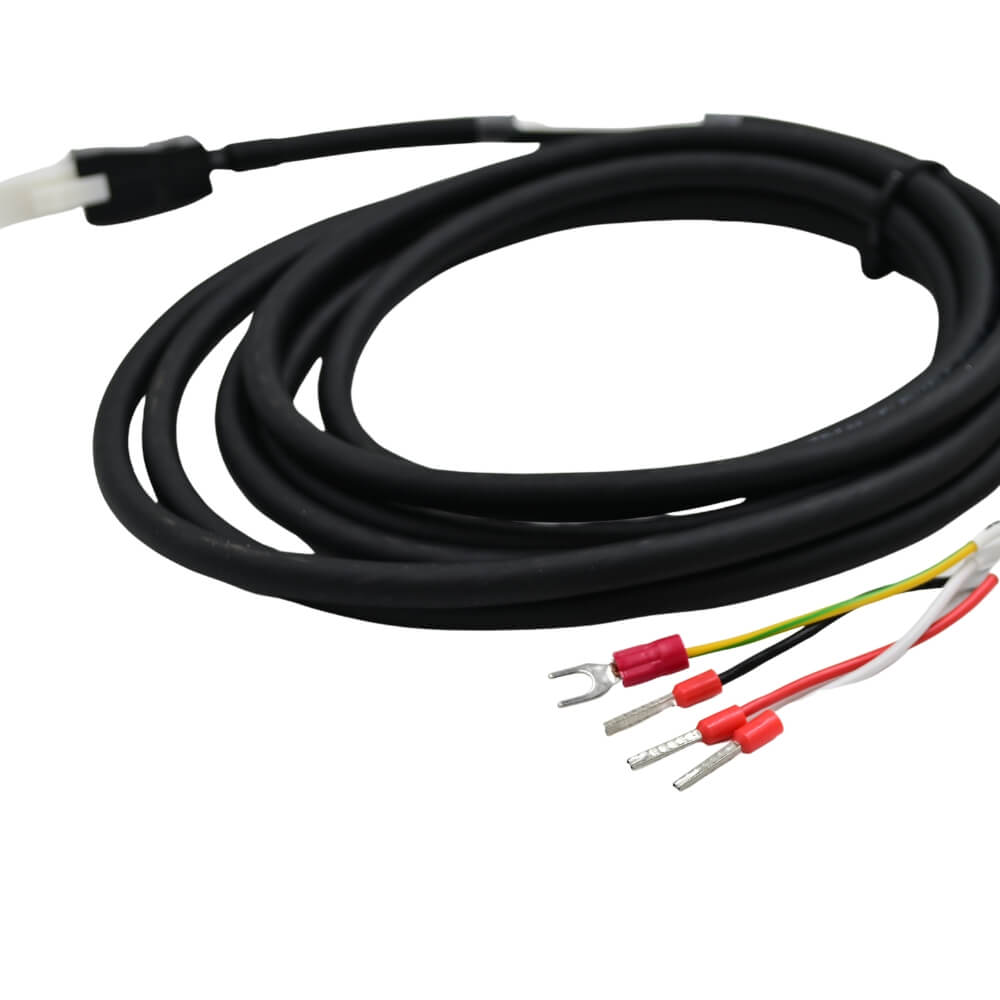

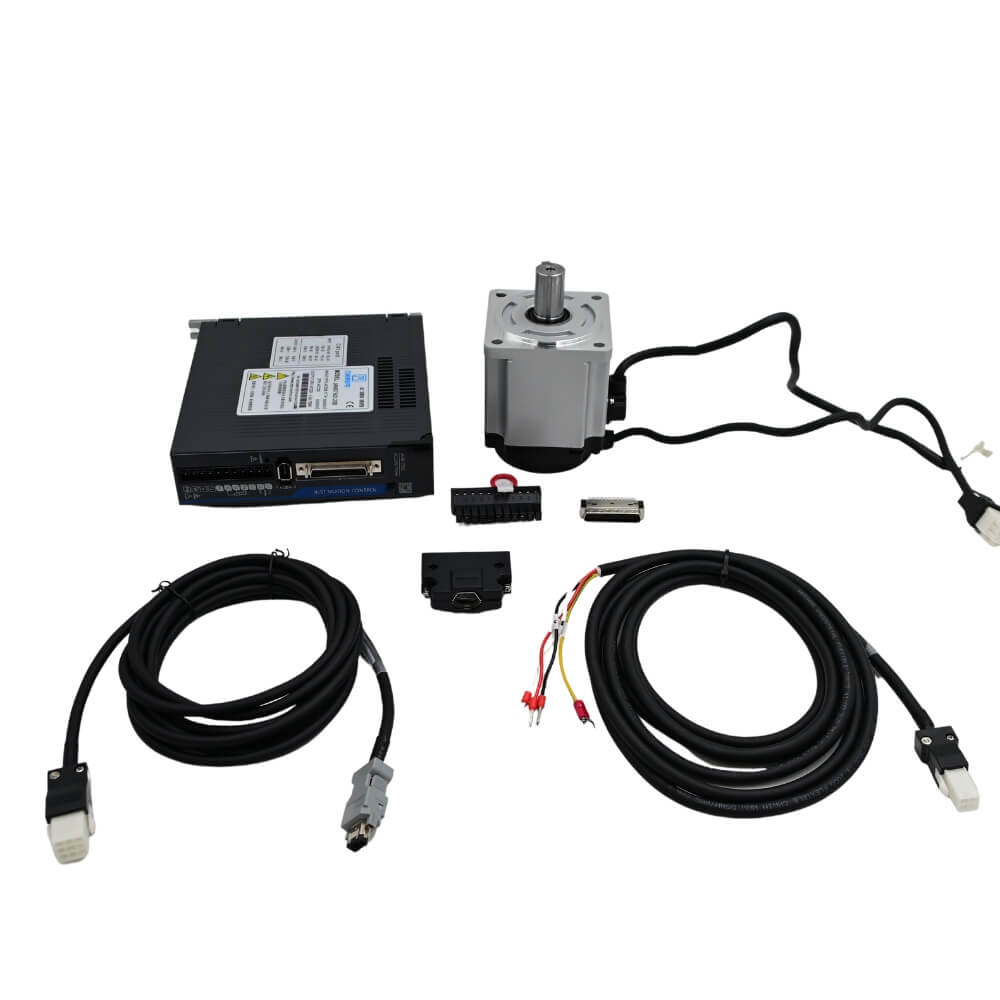

This product includes the motor, driver, cables connecting the motor and the driver and the connector required to connect your controller to the driver.
The User Manual can be downloaded here.
Debugging software can be downloaded from JMC here.

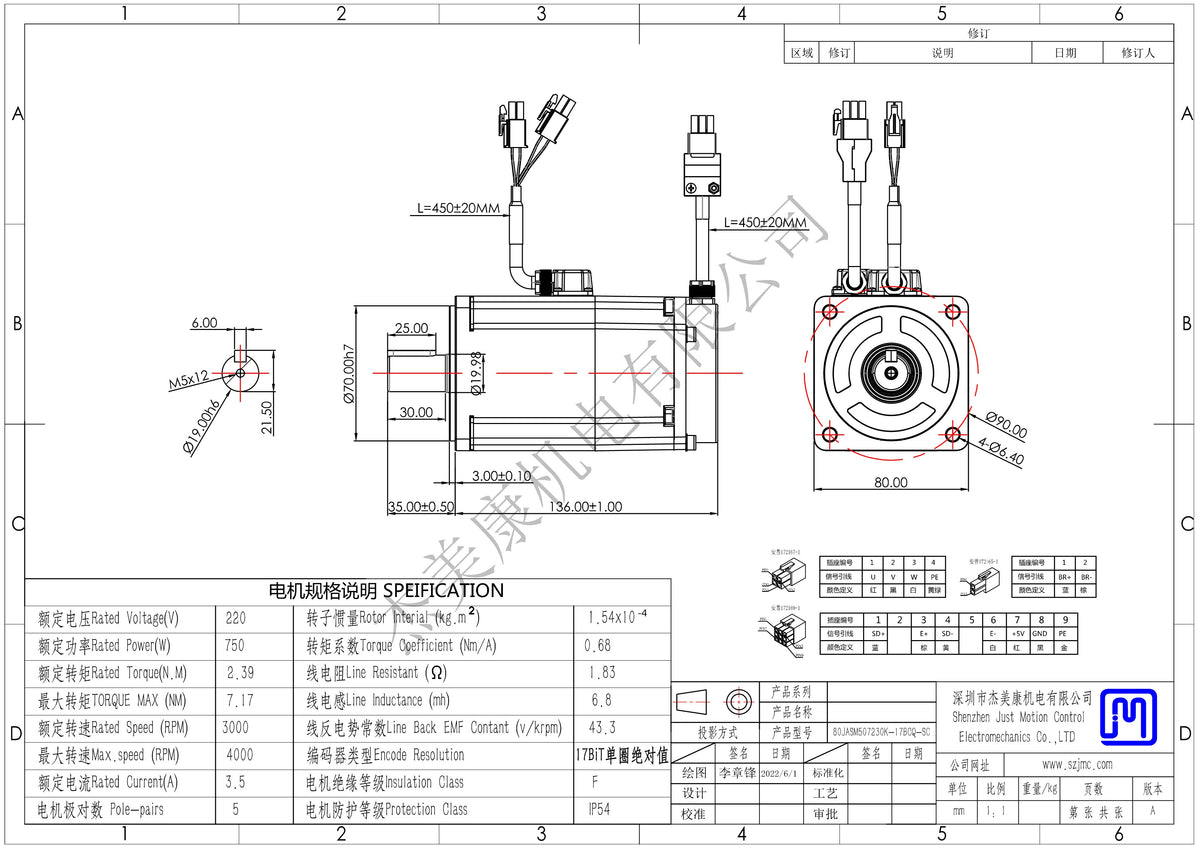

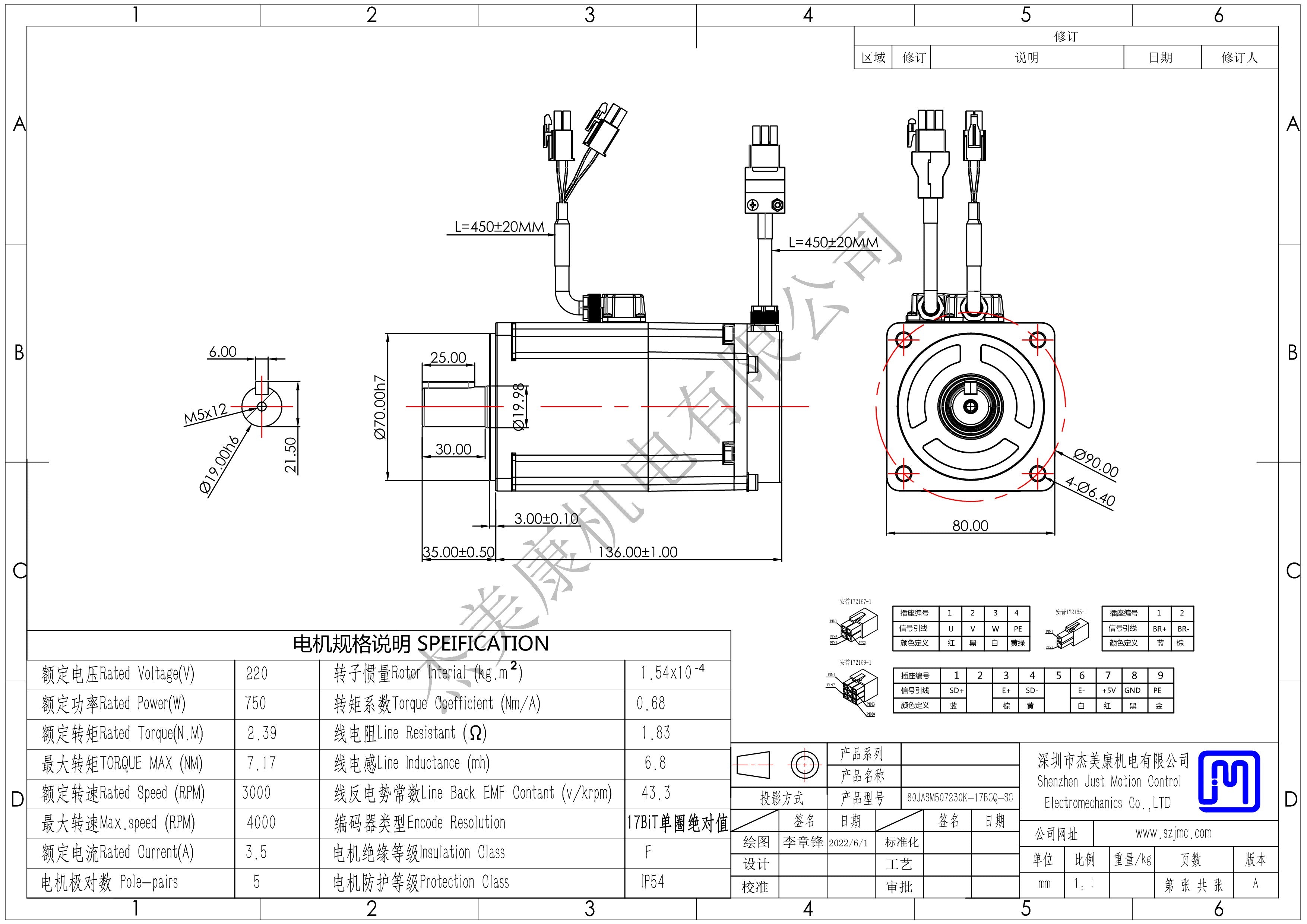

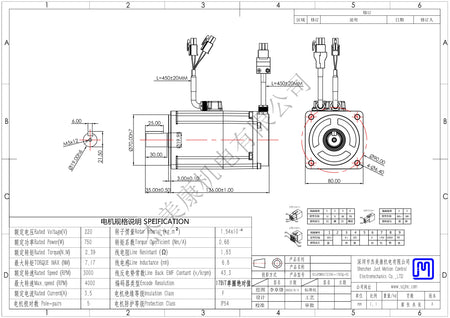

Motor drawing:
Driver drawing:
Connection Diagram:
