Servo motors are the Rolls-Royce of precision motion control. It has the best of both worlds, high speed and high positional accuracy. Servo motors consist of a 3 phase motor and a 220V driver. The driver reads the position of the motor via an encoder at the back of the motor and use this to calculate the motor currents required to accurately control the motor. These motors are widely used in CNC machines, printing machines, packaging machines, production lines and other automation fields.

Specifications:

Manufacturer: JMC
Motor power: 400W
Rated Speed: 3000RPM
Max Speed: 5000RPM
Rated Torque: 1.27Nm
Max Torque: 4.45Nm
Frame Size: 60mm
Electricity supply: 220V AC, 50Hz
Input control signal voltage: 5V or 24V

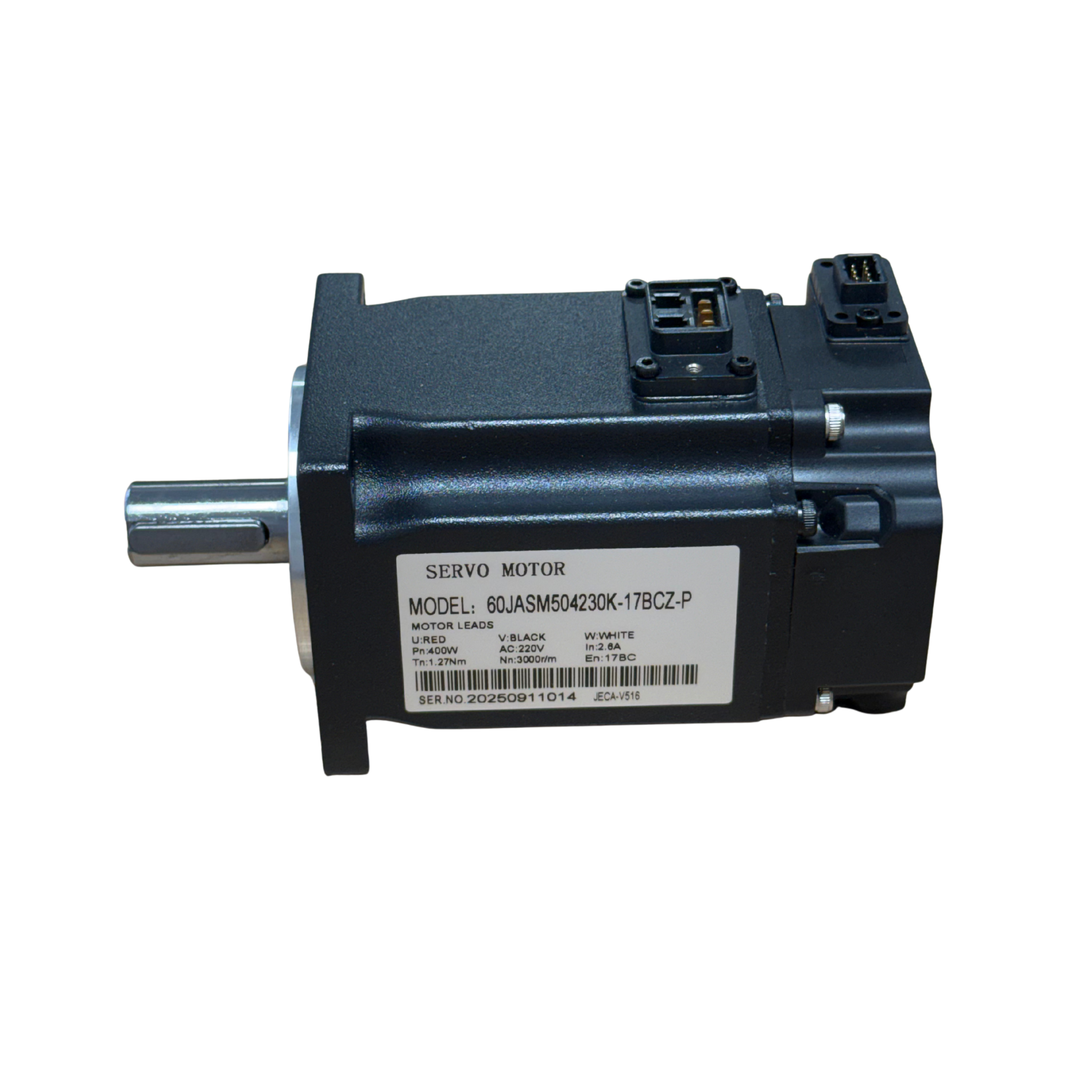

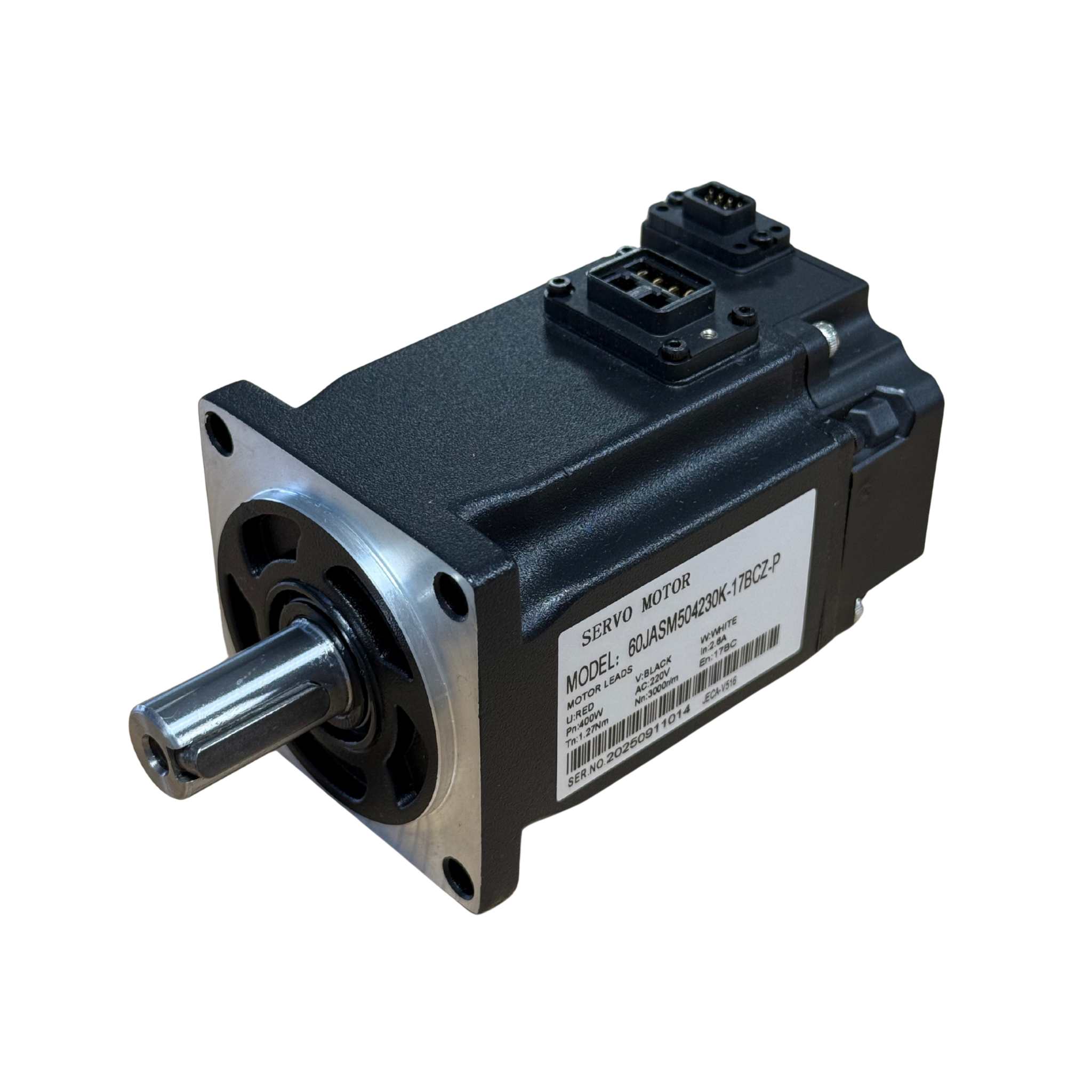

Motor Model No.: 60JASM504230K-17BCZ
Driver Model No.: JAND4002-20B

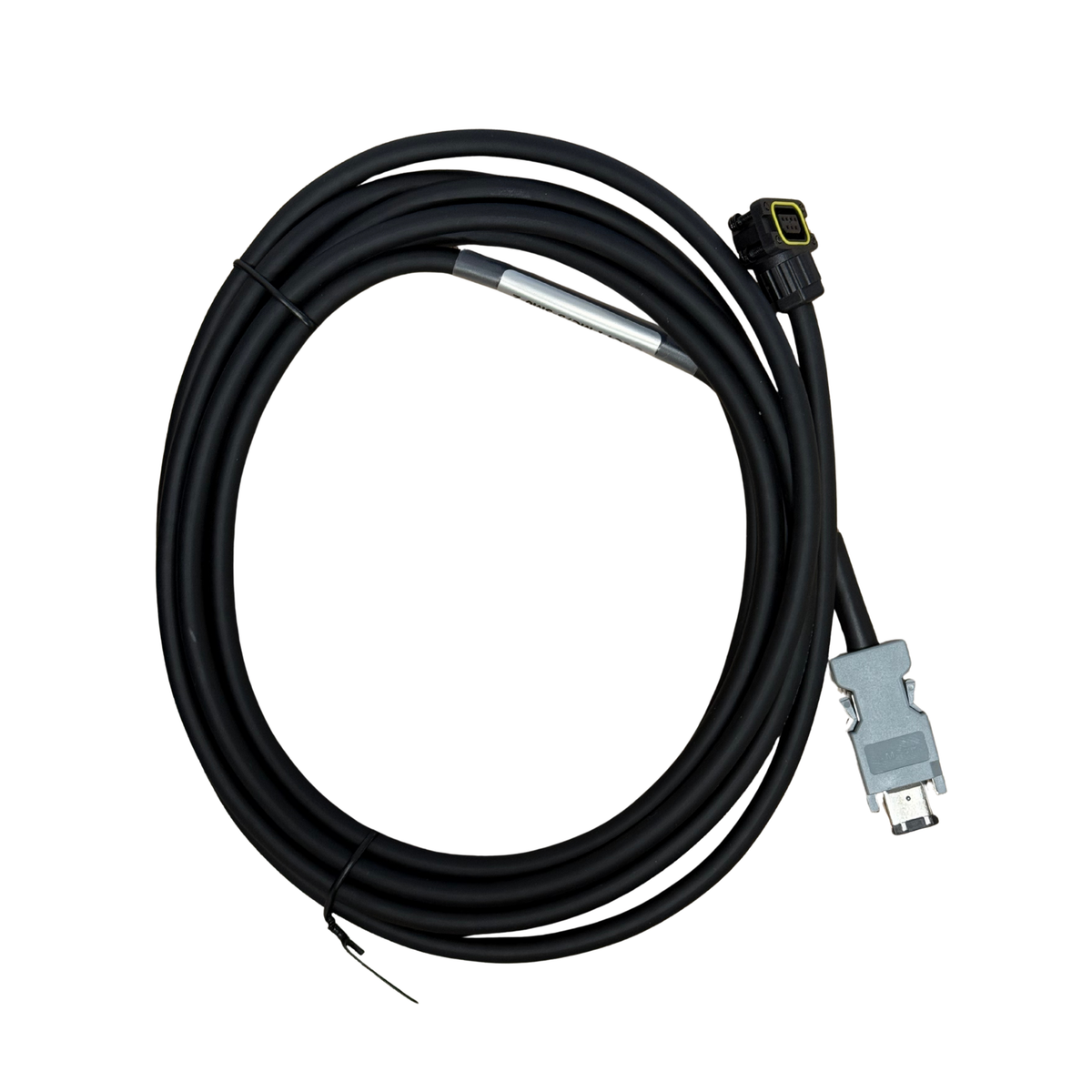

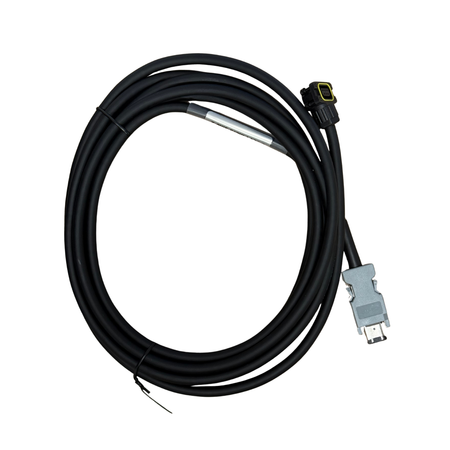

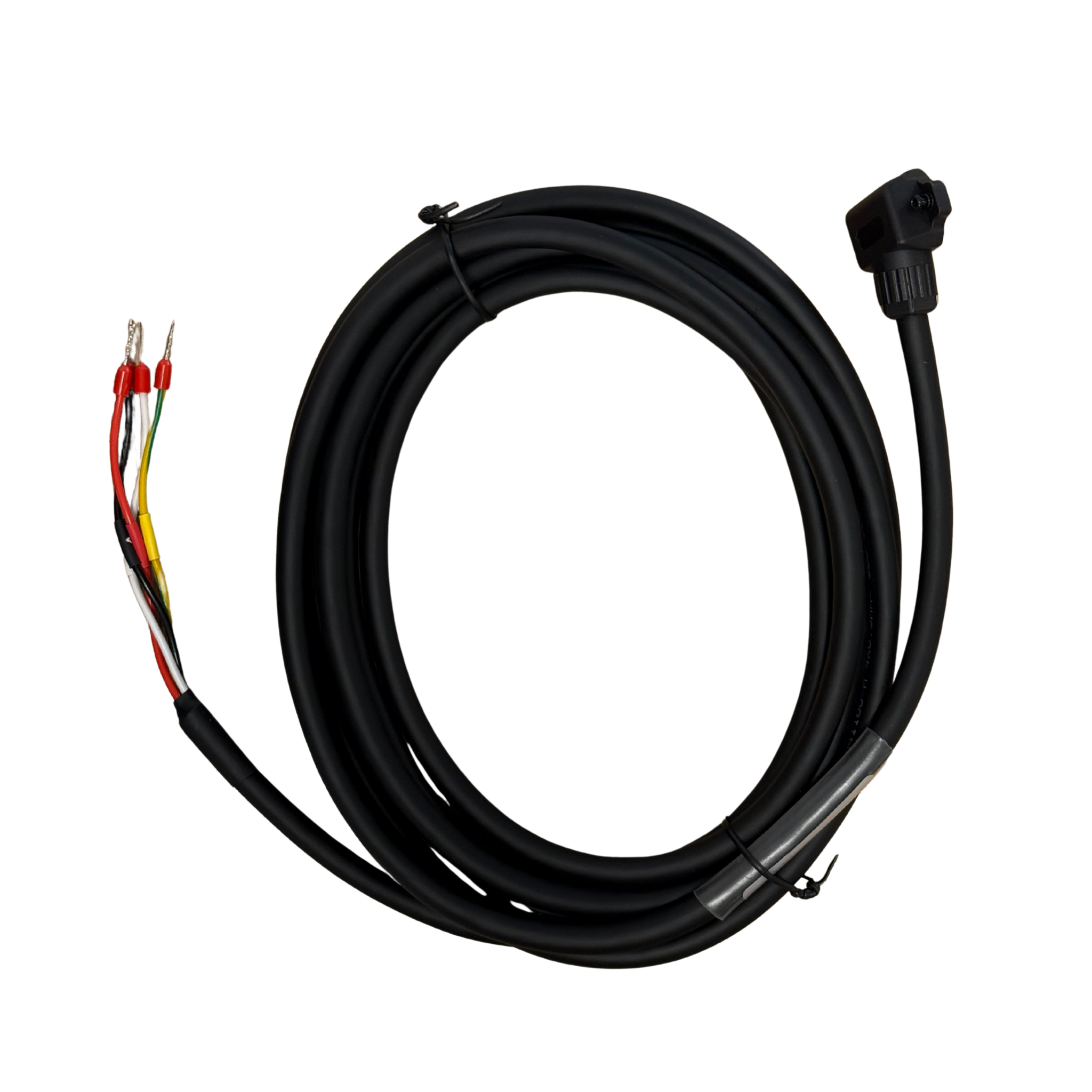

This product includes the motor, driver, cables connecting the motor and the driver and the connector required to connect your controller to the driver.

The User Manual can be downloaded here.

Debugging software can be downloaded from JMC here.

Motor drawing:

Driver drawing:

Connection Diagram:

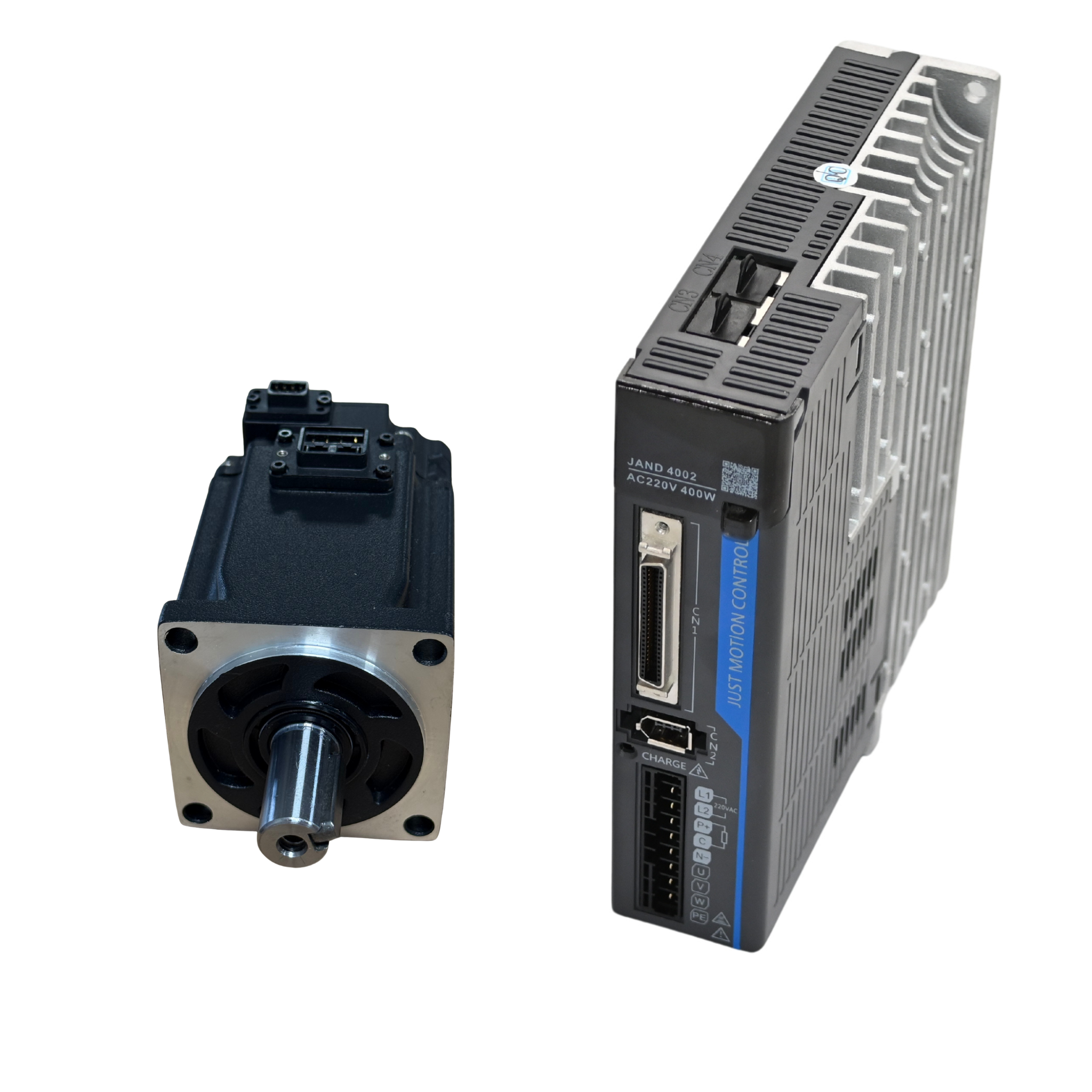

JMC AC Servo Motor and Driver, 400W
