Creality Hot End Adapter Plate for Ender-3 V3

A random thermal runaway warning, a nozzle that reads 30°C low, or a printer that heats up then stalls mid-job is rarely the hotend itself. On the Ender-3 V3, the heater cartridge and thermistor do not wire straight back to the mainboard, they connect through a small board mounted at the toolhead, and when that board develops a dry joint or a damaged trace, the symptoms look exactly like a failing hotend even though the hotend and its thermistor are both fine.

This is the genuine Creality hotend adapter board for the Ender-3 V3, the same toolhead PCBA fitted from the factory, arriving with its firmware already loaded so it drops straight into the wiring harness and starts controlling temperature correctly again.

Genuine Creality OEM | Toolhead PCBA with GD32F303CBT6 MCU | Pre-Loaded Firmware | Plug-and-Play Fit | Also Fits Ender-3 V3 Plus | Rules Out False Thermal Errors | Part 4004010253

Who the Creality Hot End Adapter Plate for Ender-3 V3 is built for

Owners troubleshooting intermittent heating errors

If a print fails with a thermal runaway or MINTEMP error that comes and goes, especially when you flex the toolhead cable, the adapter board is one of the first things worth ruling out before you spend on a full hotend. Swapping it is cheap and fast compared with guessing at a heater cartridge or thermistor that may not be the actual fault.

Makers repairing a hotend after a jam or short

A stripped filament jam, a nozzle changed with the printer still powered, or a short from stray filament residue can take the adapter board out along with the hotend itself. Replacing just the board, rather than the entire toolhead assembly, keeps a repair closer to a spare-parts budget than a full rebuild.

Repair technicians and print farm operators

Supporting several Ender-3 V3 or V3 Plus units means a toolhead fault should not mean a printer sits idle waiting on a full hotend kit. Keeping this board on the shelf lets a technician isolate and fix a wiring-related heating fault in one swap, on the same visit.

What sets the Creality Hot End Adapter Plate for Ender-3 V3 apart

It is a control board, not a mounting bracket

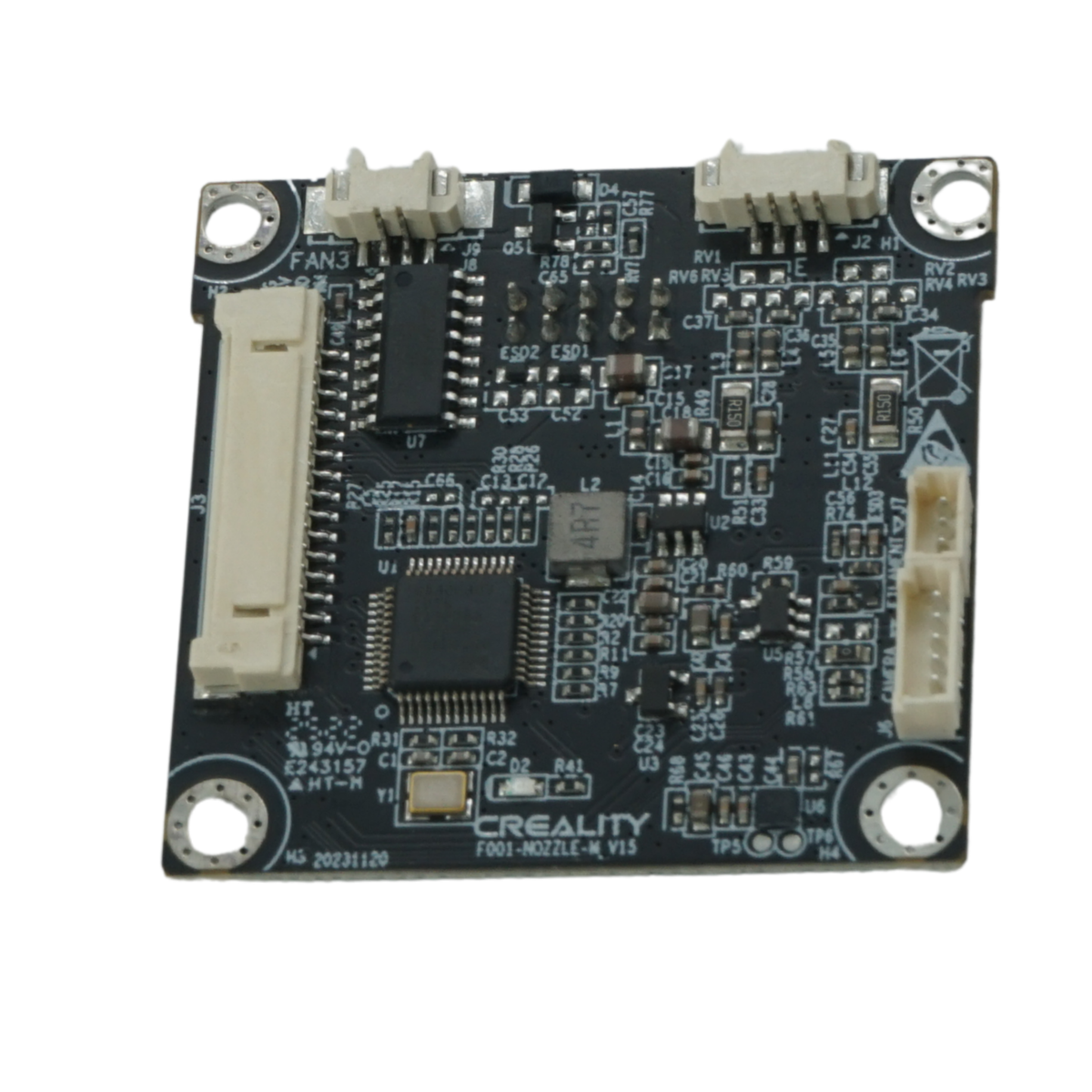

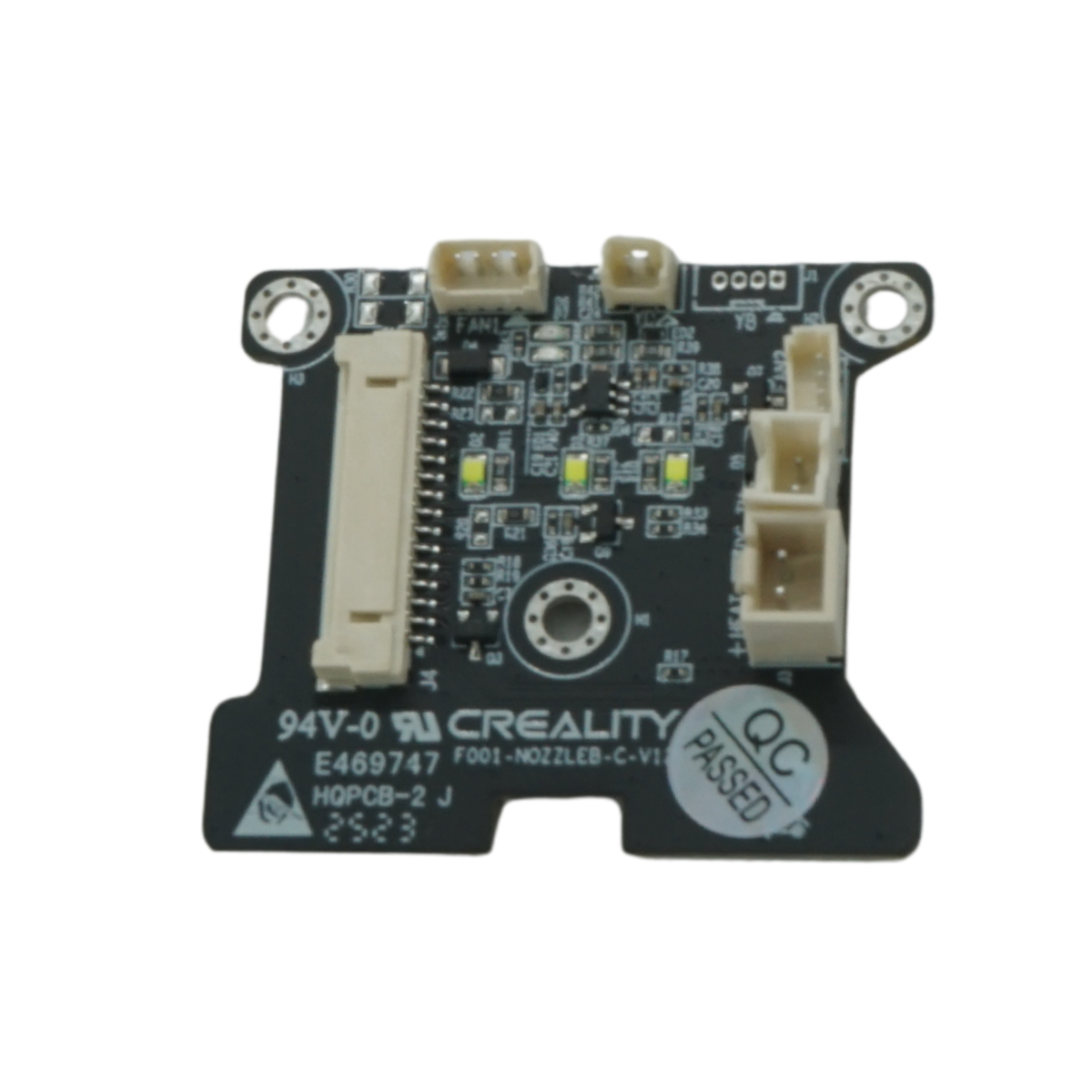

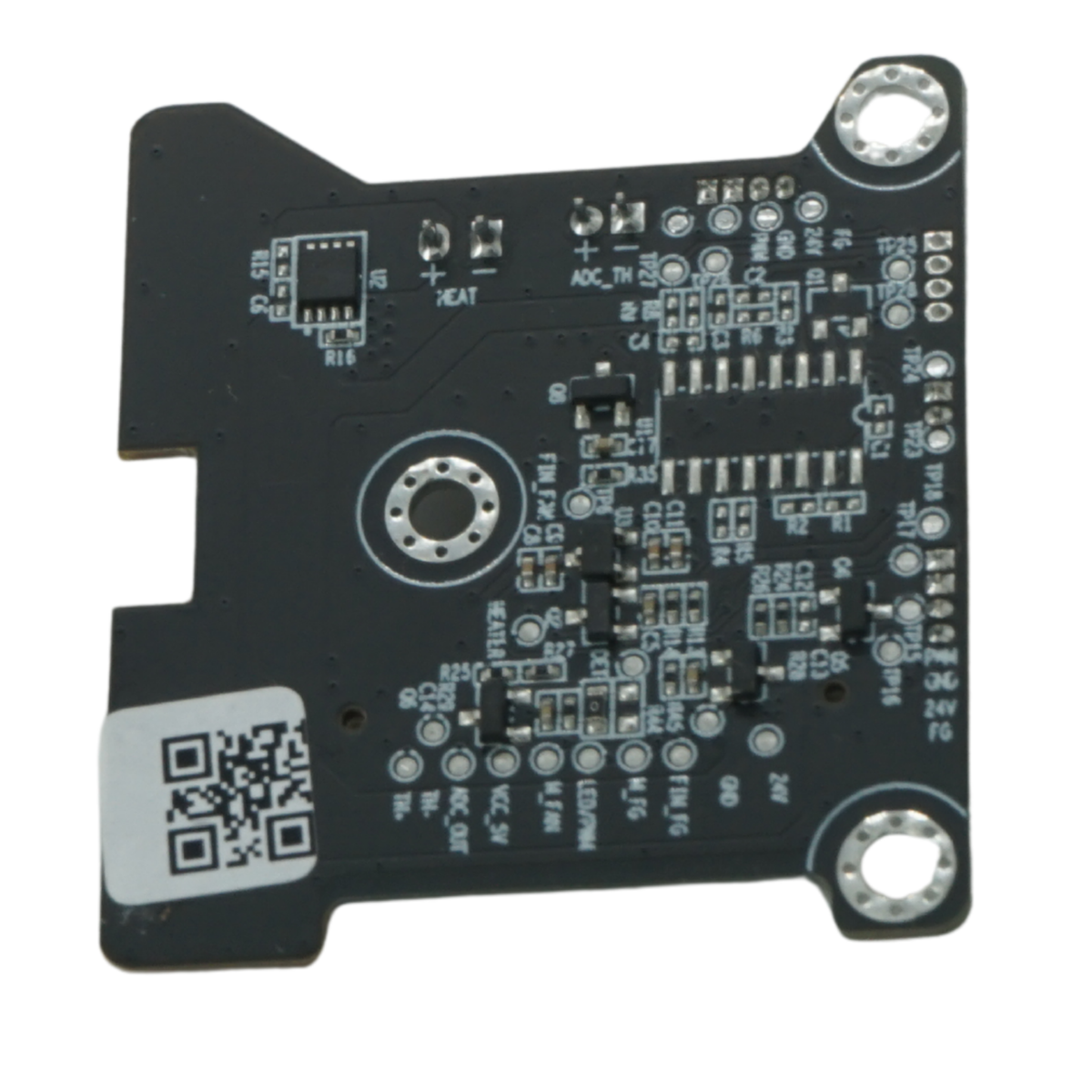

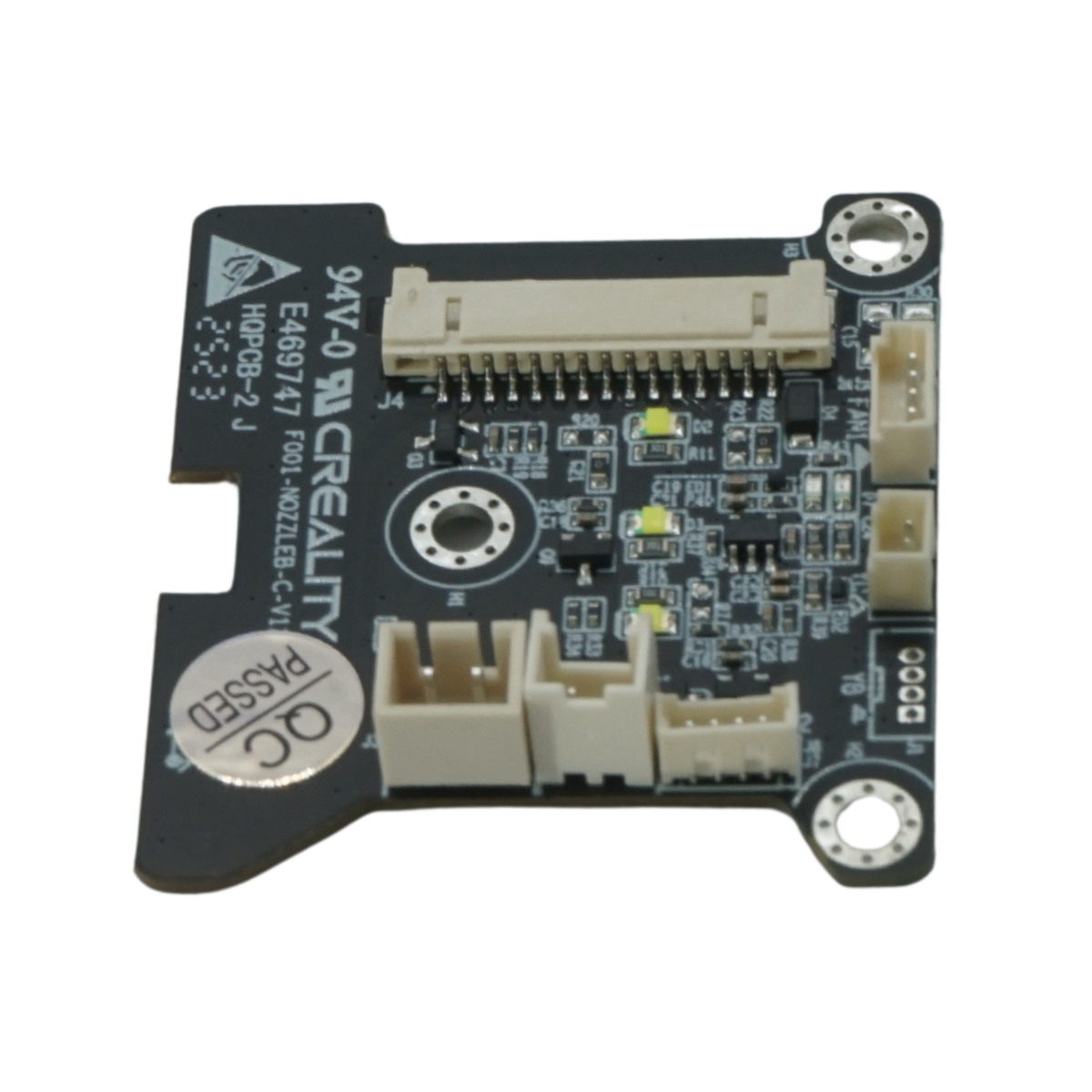

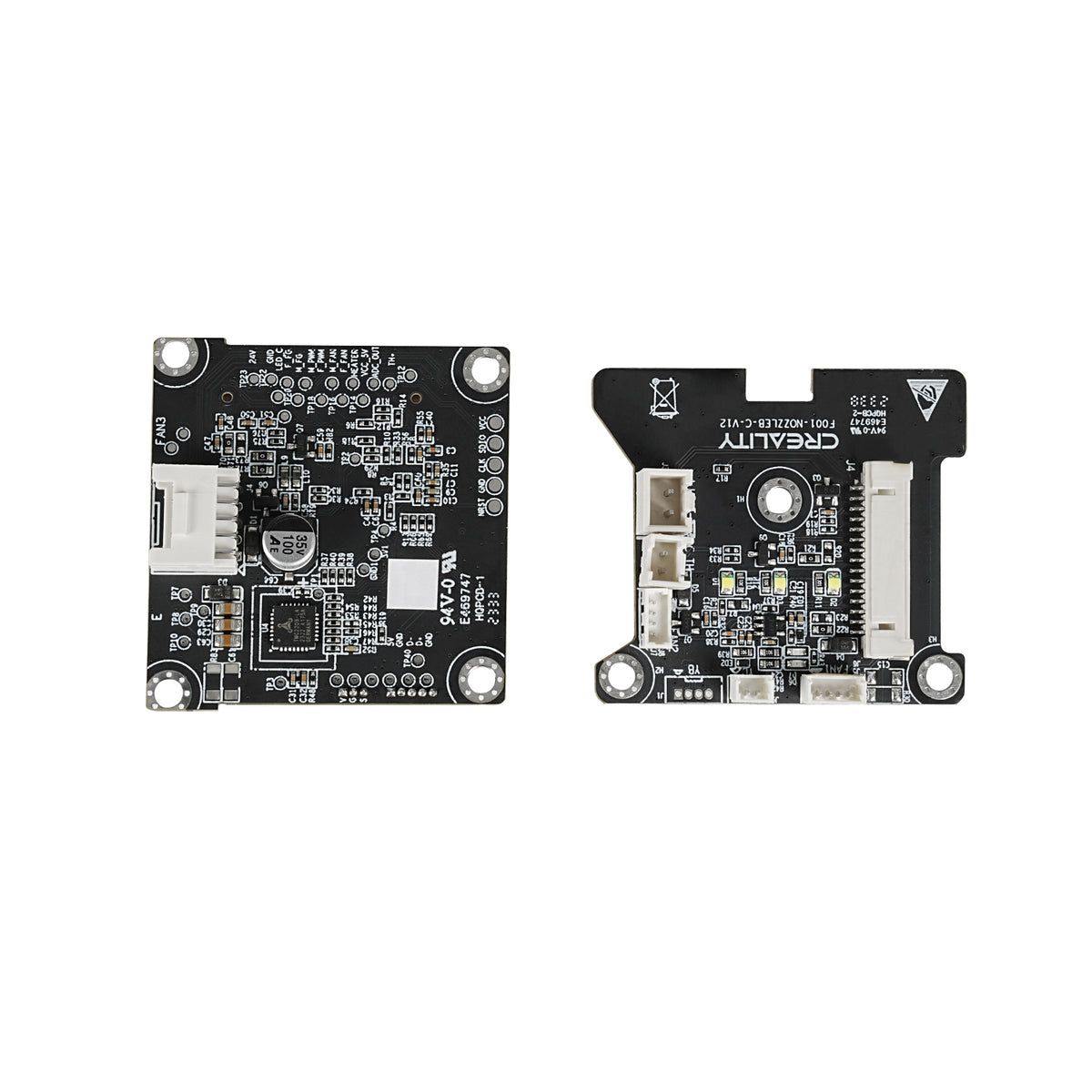

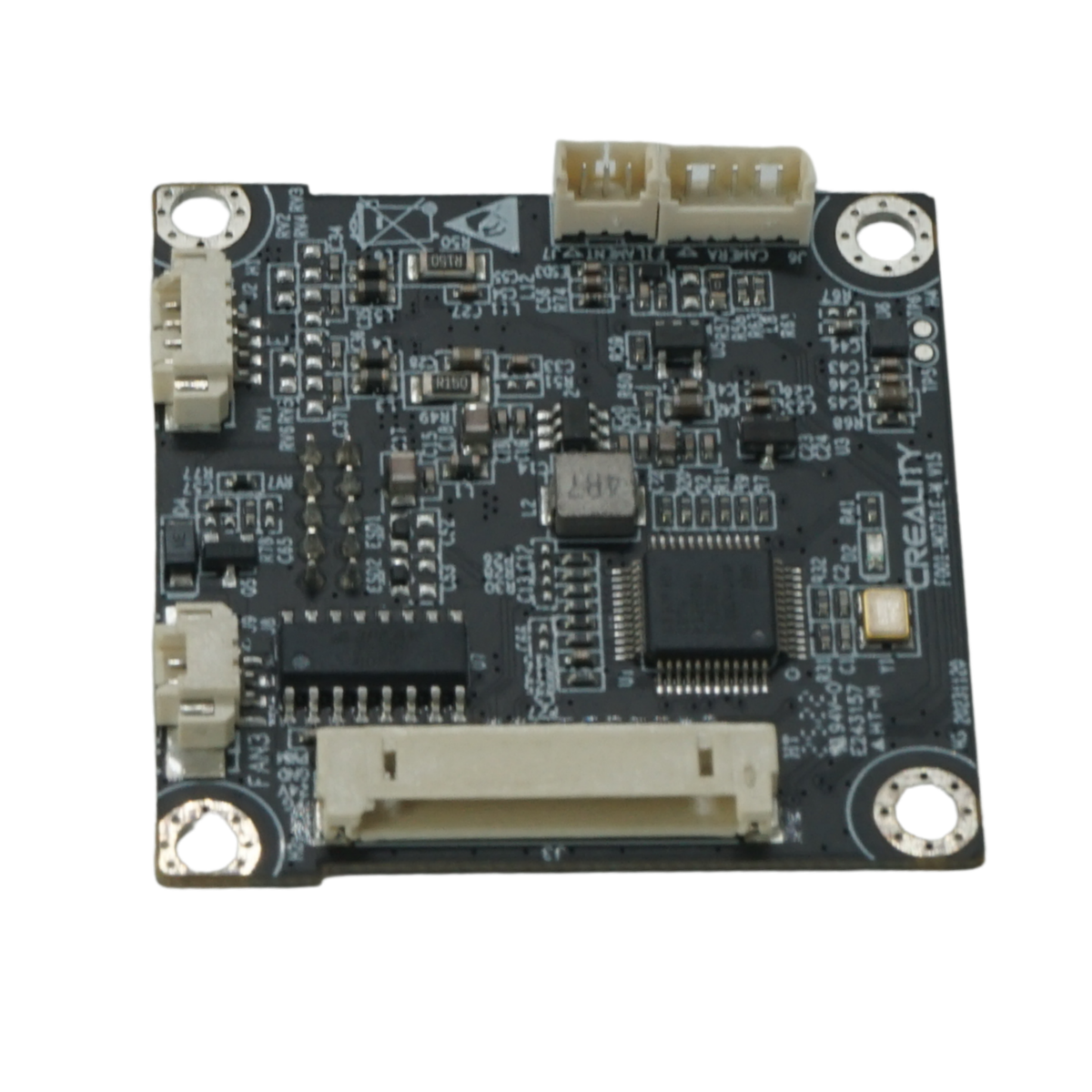

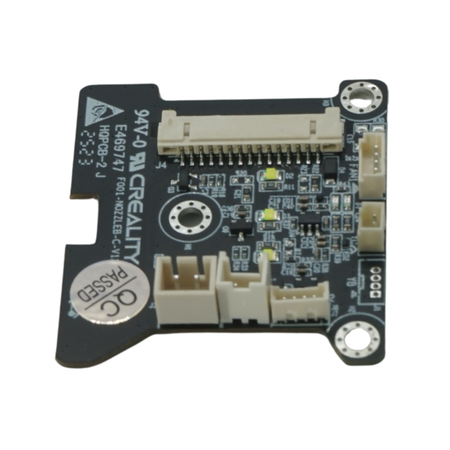

Despite the name, this is a toolhead PCBA built around a microcontroller, a GD32F303CBT6, not a metal plate. It sits between the hotend's heater cartridge and thermistor and the printer's mainboard, handling the local side of temperature regulation before the reading and control signal travel down the toolhead cable. Getting that local link wrong, whether from age, damage or a bad repair, is what produces the thermal errors that otherwise look like a hotend problem.

Firmware already loaded, nothing to configure

The board ships with its firmware pre-installed, so there is no flashing step before it works. Connect it in place of the old board and the printer reads temperature and drives the heater correctly from the first power-up.

A genuine fix for symptoms that look like a bad hotend

A cracked solder joint or a damaged trace on this board can produce exactly the same symptoms as a failing thermistor or heater cartridge, inconsistent temperature readings, thermal runaway faults, or a nozzle that will not hold its set point. Replacing the board first is the cheaper diagnostic step before assuming the hotend itself needs replacing.

Shared across the V3 platform

The same part fits both the Ender-3 V3 and the Ender-3 V3 Plus, since the two printers use the same toolhead electronics. That makes it easy to keep a single spare on hand if you run more than one V3-series printer.

Full specifications

Ordering, shipping and support

This adapter board ships by courier nationwide from our Centurion and Boksburg stores, reaching anywhere in South Africa on the same delivery network as the rest of our Creality range. As a genuine Creality part, it is covered by the standard accessory warranty, with any claim handled locally rather than through an overseas supplier. If the hotend itself also needs attention, our hot ends and extruders range and wider 3D printer spare parts collection are stocked alongside it.

Frequently asked questions

Does this also fit the Ender-3 V3 Plus?

Yes. The Ender-3 V3 and Ender-3 V3 Plus share the same toolhead electronics, so this board fits both. It is not the same part as the boards used on the Ender-3 V3 SE or Ender-3 V3 KE, which use a different toolhead design and need their own specific adapter board.

Is this just a mounting bracket, or does it actually control anything?

It is an active control board, not a passive bracket. It carries its own microcontroller and manages the interface between the hotend's heater cartridge and thermistor and the printer's mainboard, so a fault on this board can cause real heating errors rather than just a loose physical fit.

How do I know if this board is the fault rather than the hotend itself?

Intermittent thermal runaway or MINTEMP errors that change when you move or flex the toolhead cable, or a nozzle temperature reading that jumps around with no clear cause, both point to the adapter board rather than the heater cartridge or thermistor. If those components test fine individually, the board is the next likely cause.

What typically causes this board to fail?

Repeated flexing of the toolhead cable during normal printer movement, a short from stray filament debris, or damage during a hotend repair are the most common causes. It is not usually a wear item under normal use, so a failure is more often accidental damage than age.

Is this covered by local warranty and shipped from stock in South Africa?

Yes. As a genuine Creality part sold through 3D Printing Store, it carries the standard accessory warranty and any claim is handled locally rather than through an overseas supplier. It ships from our own stock in Centurion and Boksburg, so you are not waiting weeks on an international order to get a V3 back online.
