Genuine BL Touch Bed Levelling Sensor
Share on social media:
Genuine BL Touch bed levelling sensor from Antclabs. This sensor can be fitted to most 3D printers to add auto bed levelling to the printer. All you will need are 3 extra pins on your controller board to drive the sensor.
How the sensor works is it has a polycarbonate pin which extends lower than the nozzle when the sensor is required to measure the bed. Then the printer probes the bed. As soon as the pin touches the bed it retracts and sends the signal to the Z end stop switch on the controller board and the printer knows the height of the bed at that point. This sensor measures the bed mechanically, so it is not affected by the type of material used as printing surface, bed temperature or metallic / non-metallic bed.
This sensor has superior accuracy over other sensors on the market and comes in a neat small package. Don't be fooled by cheap imitation, if it does not say BL Touch, it is not a BL Touch!

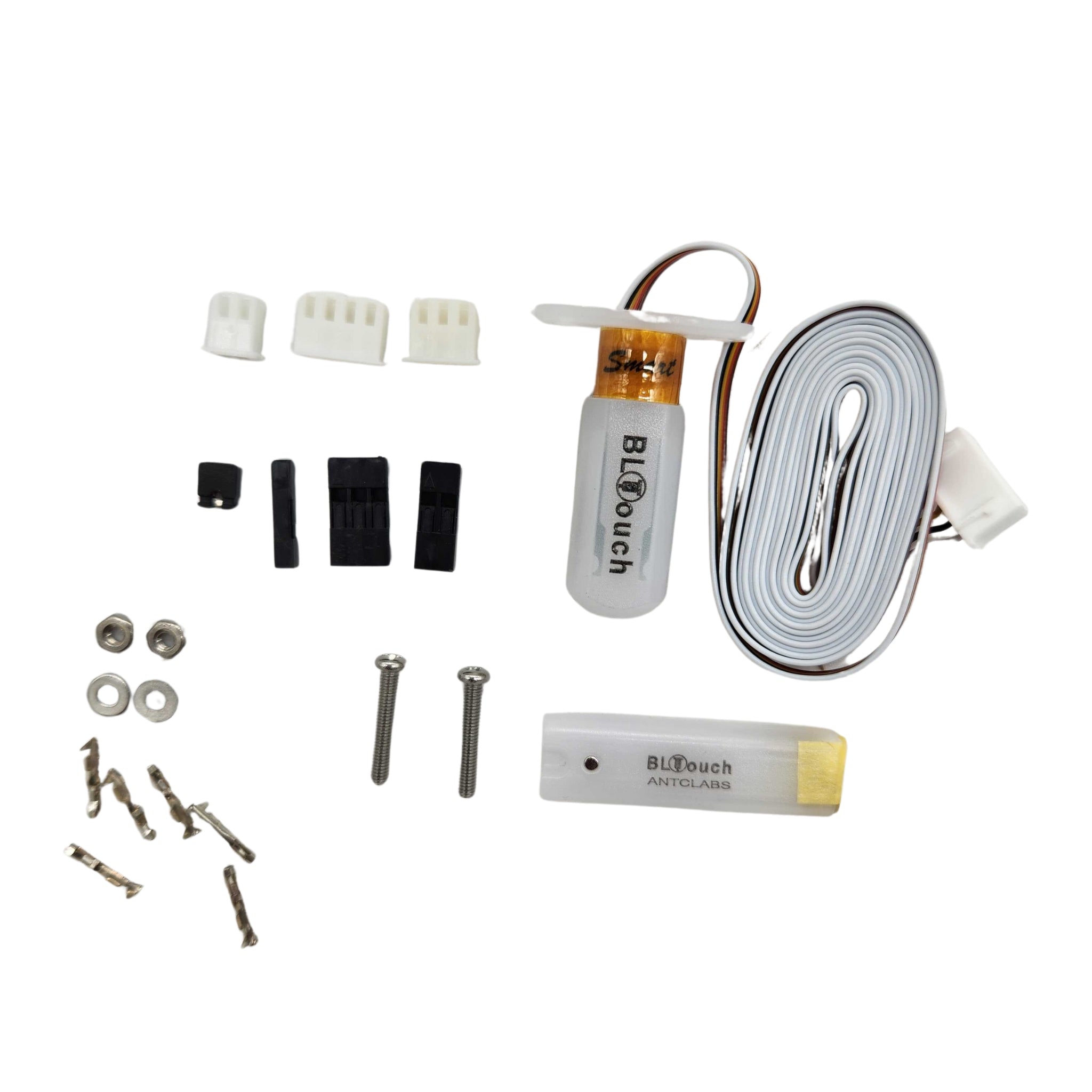

The unit includes mounting screws and springs as well as connectors and pins to extend the cables to the desired length.
For more information, please visit: https://www.antclabs.com/bltouch
- Sensing type: Mechanical contact
- Bed Material: Any material
- Accuracy: 0.01mm
- Standard deviation: <0.01mm
- Repeatability: <1%
- Voltage required: 5V
- Current during operation: 20mA
- Maximum current required: <300mA
