Something goes wrong mid-job. The material catches alight, the head crashes into a warped sheet, or someone reaches into the machine at the wrong moment. You need the laser to stop now, with one hit of your palm, not after you find the software's stop button. If the emergency stop on your Cron has cracked, jammed or stopped latching, that safety net is gone.

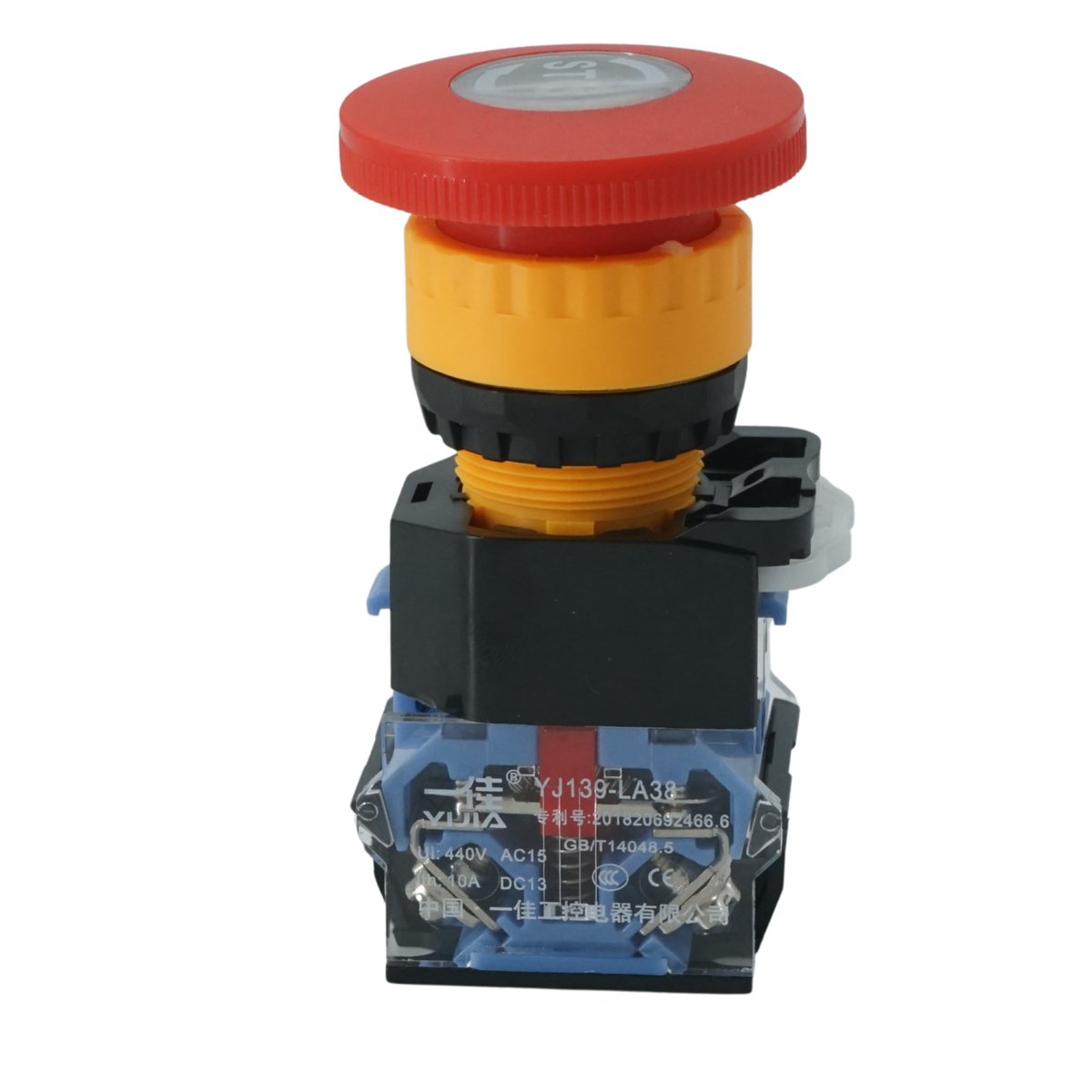

This E-stop button for Cron CO2 lasers is the Yijia YJ139-LA38 mushroom-head emergency stop. Hit it and it latches down, breaking the circuit until you deliberately twist it to release. Fit it in the existing 22mm panel hole and your machine has a working emergency stop again.
Red mushroom head | Push to latch, twist to release | 22mm panel mounting | 440V rated insulation voltage | 10A thermal current | Screw terminal contact block | Replacement for Cron CO2 lasers
Who the Cron E-stop button is built for
Laser owners with a damaged or failed emergency stop
Emergency stop buttons take hard knocks. Over time the head cracks, the latch wears so the button no longer stays down, or the contacts inside stop breaking the circuit reliably. Any of these means your machine has lost its most basic safety control. This replacement matches the standard 22mm mounting used on Cron lasers, so you transfer the wires, tighten the ring nut and test it. Twenty minutes of work restores a control you should never run without.
Schools and training workshops
Where learners use a CO2 laser, a working emergency stop is non-negotiable. The large red mushroom head is easy to find and hit under stress, even for someone who has never used the machine before. Because the button latches and needs a deliberate twist to reset, the laser cannot restart by accident while a teacher is checking what went wrong. Keep one spare in the technician's store so a damaged button never takes the machine out of use for a term.
Small production workshops
If you run a laser commercially, safety equipment is part of keeping your staff and premises protected. Your operators should know exactly where the emergency stop is and trust that it works. Test it at the start of every shift: press it, confirm the machine stops, twist to release and confirm normal operation returns. If it fails that test, replace it the same day with this unit rather than running another batch of engraved gifts without protection.
What sets this Cron laser E-stop button apart
Push to stop, twist to release

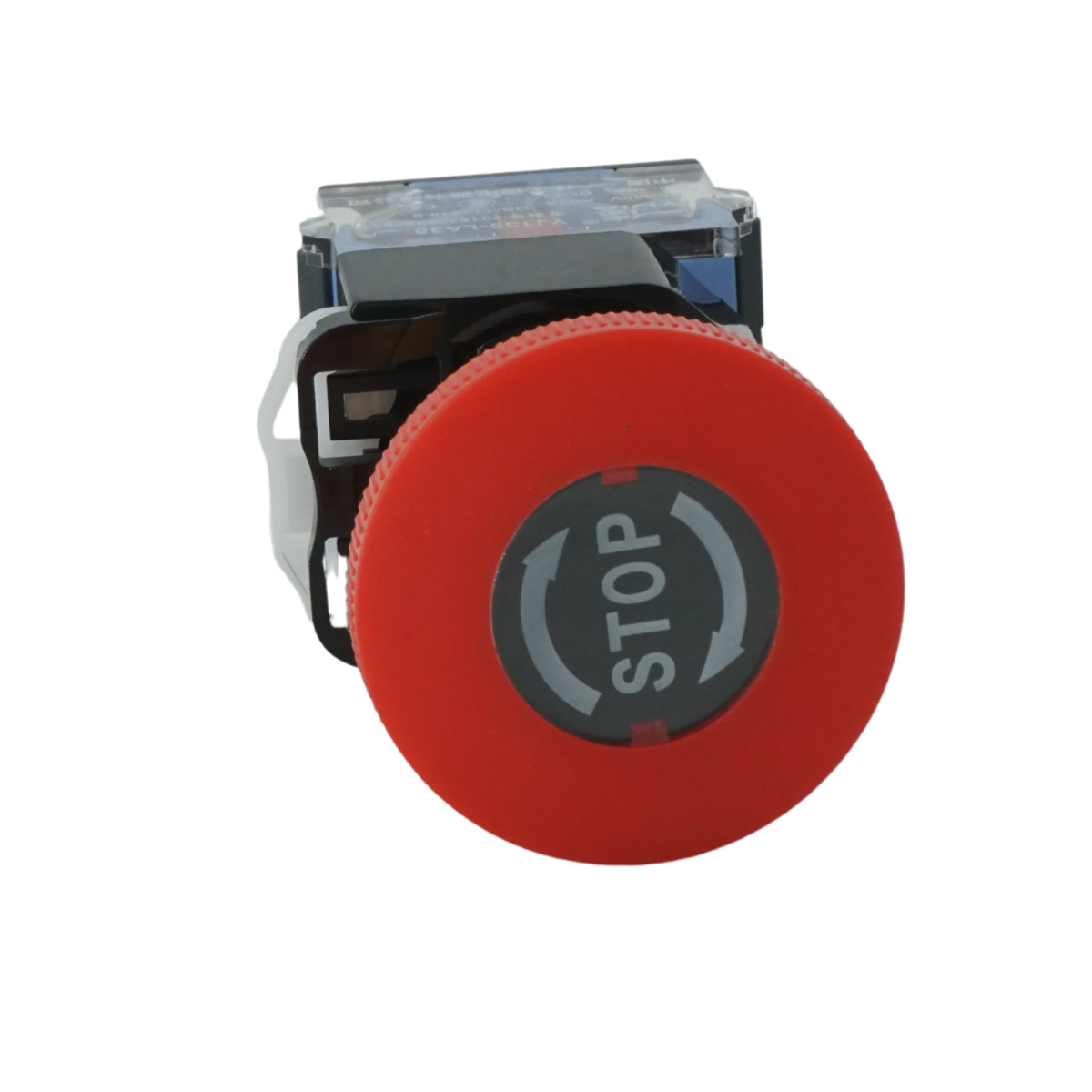

An emergency stop must stay off once pressed. This button latches mechanically as soon as you push it, and the arrows printed on the head show how to reset it: twist the head in the direction of the arrows and it springs back out. That deliberate reset action means nobody can restart your CO2 laser by brushing past the button, and whoever pressed it has time to deal with the problem first.
A mushroom head you can hit without looking

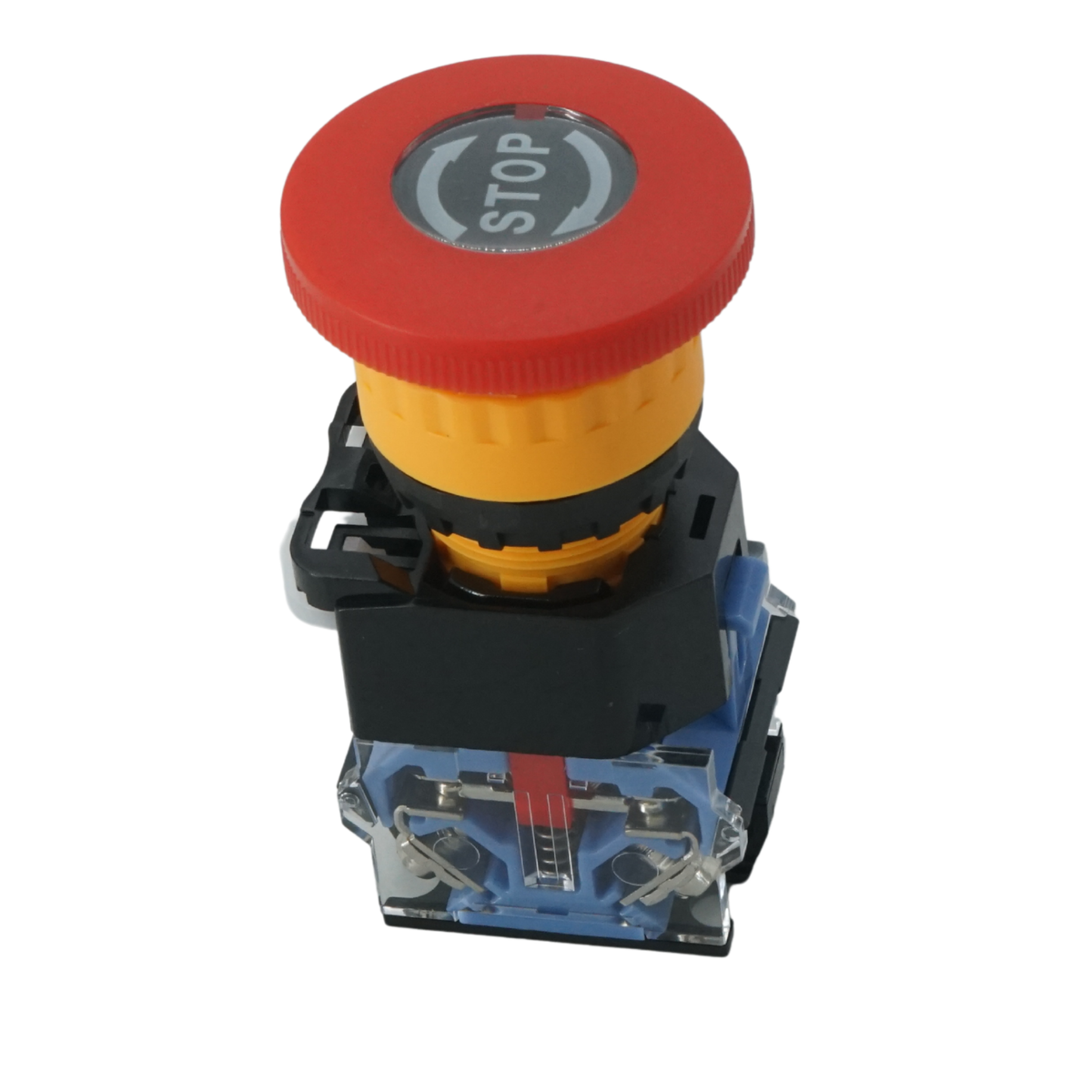

In an emergency you do not aim carefully. The wide red mushroom head, set on a yellow collar, follows the recognised colour scheme for emergency stop devices, so it stands out on the machine panel and in your peripheral vision. The large surface lets you hit it with an open palm, a fist or even a forearm. The textured edge also gives you grip when you twist it to release.
Industrial ratings well above what your laser needs
The contact block carries a rated insulation voltage of 440V and a conventional thermal current of 10A, with AC-15 and DC-13 utilisation categories for switching control circuits. It is manufactured to GB/T 14048.5, the Chinese equivalent of the IEC 60947-5-1 standard for control circuit devices, and carries CE and CCC marking. On a desktop CO2 laser running from 230V mains, those ratings leave a comfortable margin in the circuits an emergency stop typically switches.
Standard 22mm mounting and screw terminals

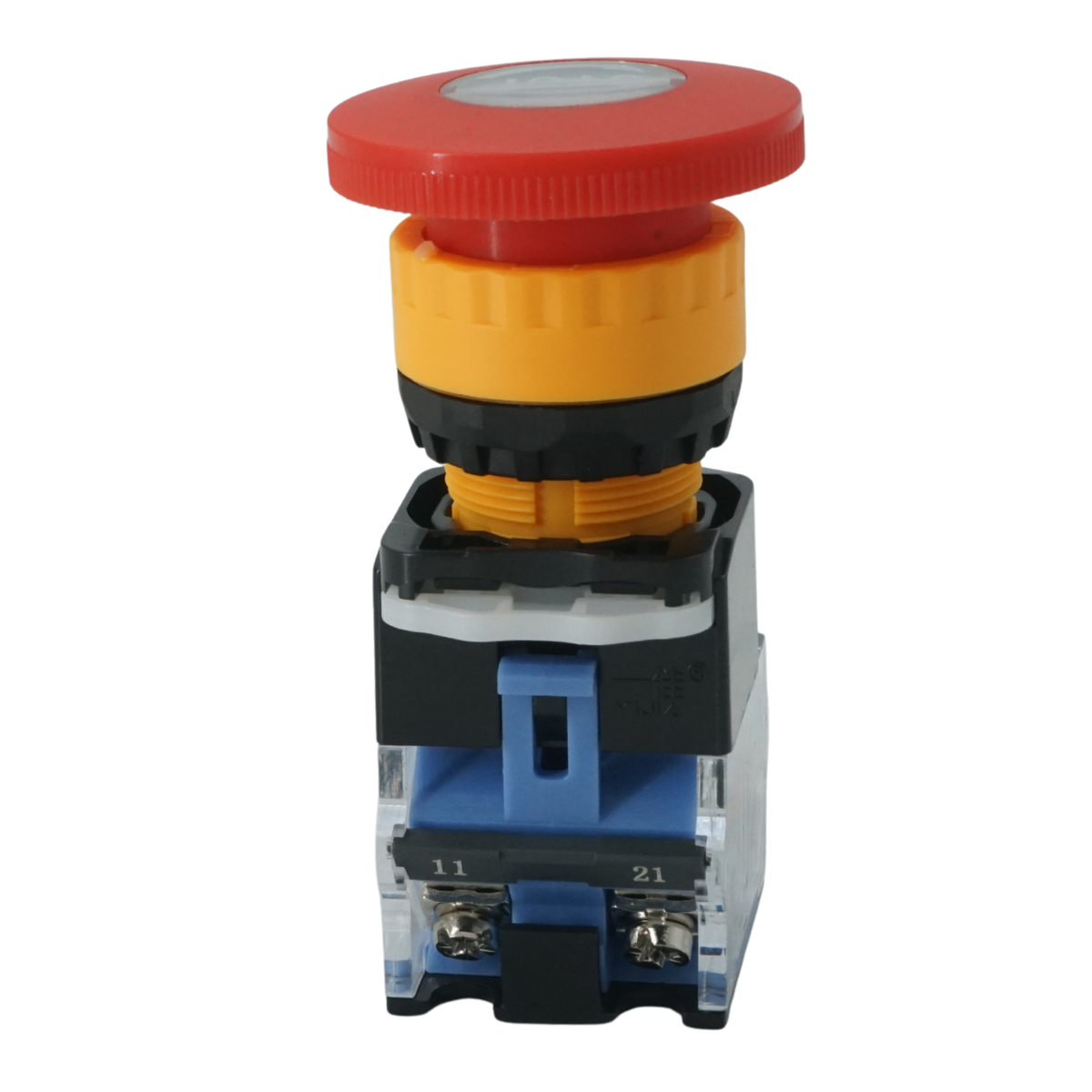

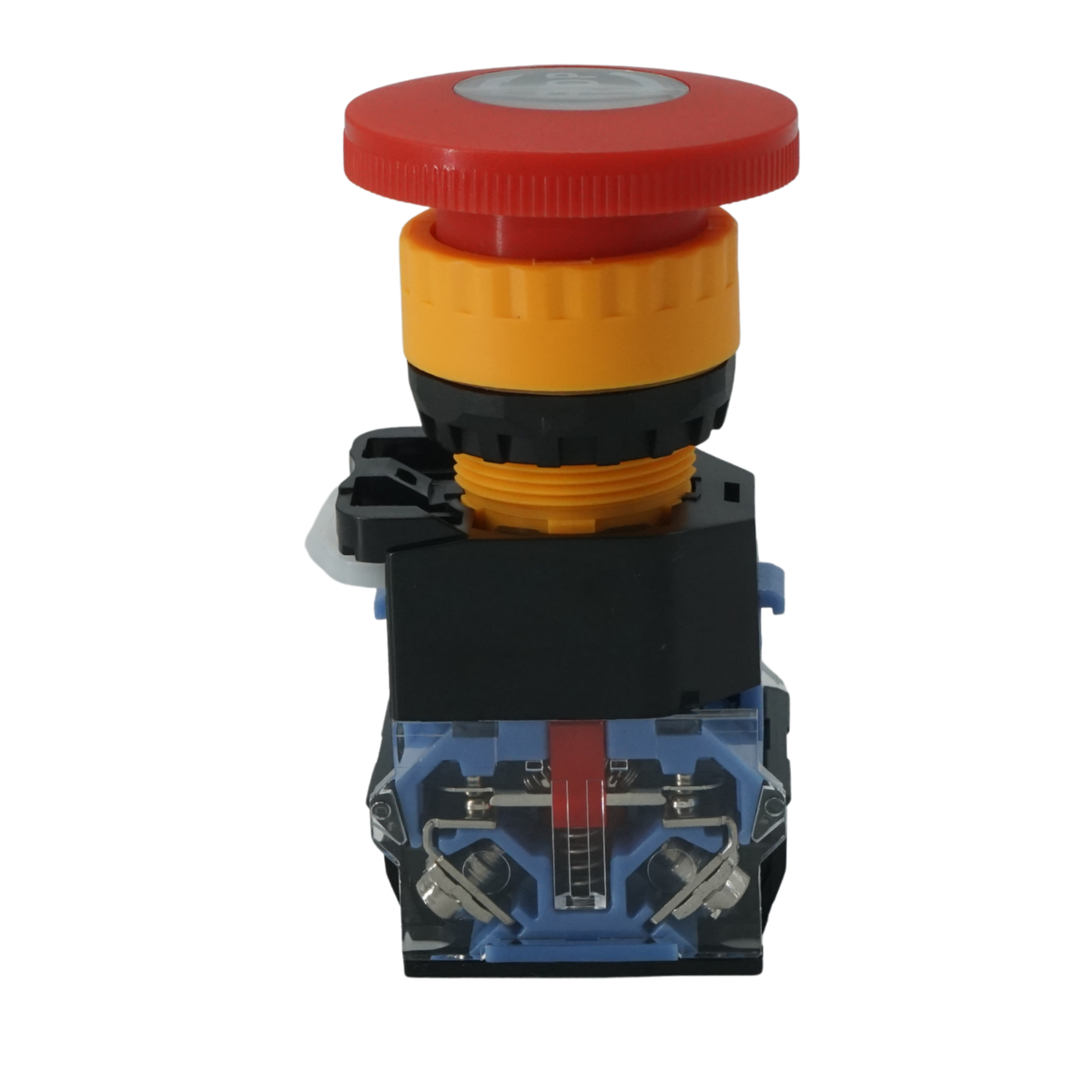

The button fits a standard 22mm round panel hole, the most common size for industrial push-buttons. The threaded body passes through the panel and a ring nut clamps it from behind, with the contact block clipped onto the rear. Wires connect with screw terminals, so no soldering is needed. Photograph the old wiring before you remove it and move each wire to the matching terminal on the new block.
Choosing the right stop control
Not every red button is an emergency stop. Match the replacement to what your machine needs.
| Option | Latches when pressed | Reset method | Suitable as an emergency stop |
|---|---|---|---|
| Yijia YJ139-LA38 E-stop (this button) | Yes | Twist to release | Yes |
| Key-release E-stop | Yes | Key required | Yes, where only authorised staff may reset |
| Momentary red push-button | No | Springs back on release | No |
Full specifications: E-stop button for Cron CO2 laser
| Spec | Value |
|---|---|
| General | |
| Brand | Yijia |
| Model | YJ139-LA38 |
| Store SKU | LAS519 |
| Type | Mushroom-head emergency stop push-button |
| Compatibility | Cron CO2 laser cutters with a 22mm E-stop |
| Operation | |
| Action | Push to latch, twist to release |
| Head | Red mushroom head with STOP marking and release arrows, yellow collar |
| Electrical | |
| Rated insulation voltage (Ui) | 440V |
| Conventional thermal current (Ith) | 10A |
| Utilisation categories | AC-15, DC-13 |
| Terminals | Screw terminals on clip-on contact block |
| Mounting | |
| Panel hole | 22mm |
| Fixing | Threaded body with rear ring nut |
| Compliance | |
| Standard | GB/T 14048.5 |
| Markings | CE, CCC |
Ordering, shipping and support for your Cron E-stop
We courier the E-stop button anywhere in South Africa, or you can collect it from our Centurion or Boksburg store. It carries our carry-in warranty against manufacturing defects, handled locally by our own technical team. If you are unsure how your machine's emergency stop is wired, log a technical support ticket before you start. We also stock CO2 laser accessories and spares for machines such as the Cron CO2 Laser Cutter, 4040.
Frequently asked questions about the Cron E-stop button
Will this E-stop fit my Cron laser?
It fits Cron CO2 lasers that use a 22mm emergency stop button, which is the standard panel size. Check your existing button: if it has the same threaded body and clip-on contact block, this is a direct replacement. If your machine uses a different style, send us a photo through a support ticket and we will confirm.
How do I reset the button after pressing it?
Twist the red head in the direction of the arrows printed on top and it springs back out. Only reset it once you have found and fixed the reason it was pressed. On most machines you will also need to restart the job from the software, since the emergency stop interrupts the power to the relevant circuits.
How do I replace the E-stop button?
Switch off and unplug the machine first. Photograph the wiring, unclip the contact block, unscrew the rear ring nut and remove the old button. Fit the new one through the panel, tighten the ring nut, clip the contact block back on and reconnect each wire to the matching terminal. Test it before running any job.
How often should I test the emergency stop?
Test it at the start of every working day or shift. Press it with the machine running idle and confirm everything stops, then twist to release and confirm the machine restarts normally. If the button does not latch, does not stop the machine, or feels loose, replace it before using the laser again.
Does an E-stop replace the lid interlock on my laser?
No, the two protect you in different ways. The lid interlock stops the laser firing when the lid opens, while the emergency stop lets you halt the machine instantly in any situation. Both should work at all times. Follow good laser safety practice and never bypass either one.
