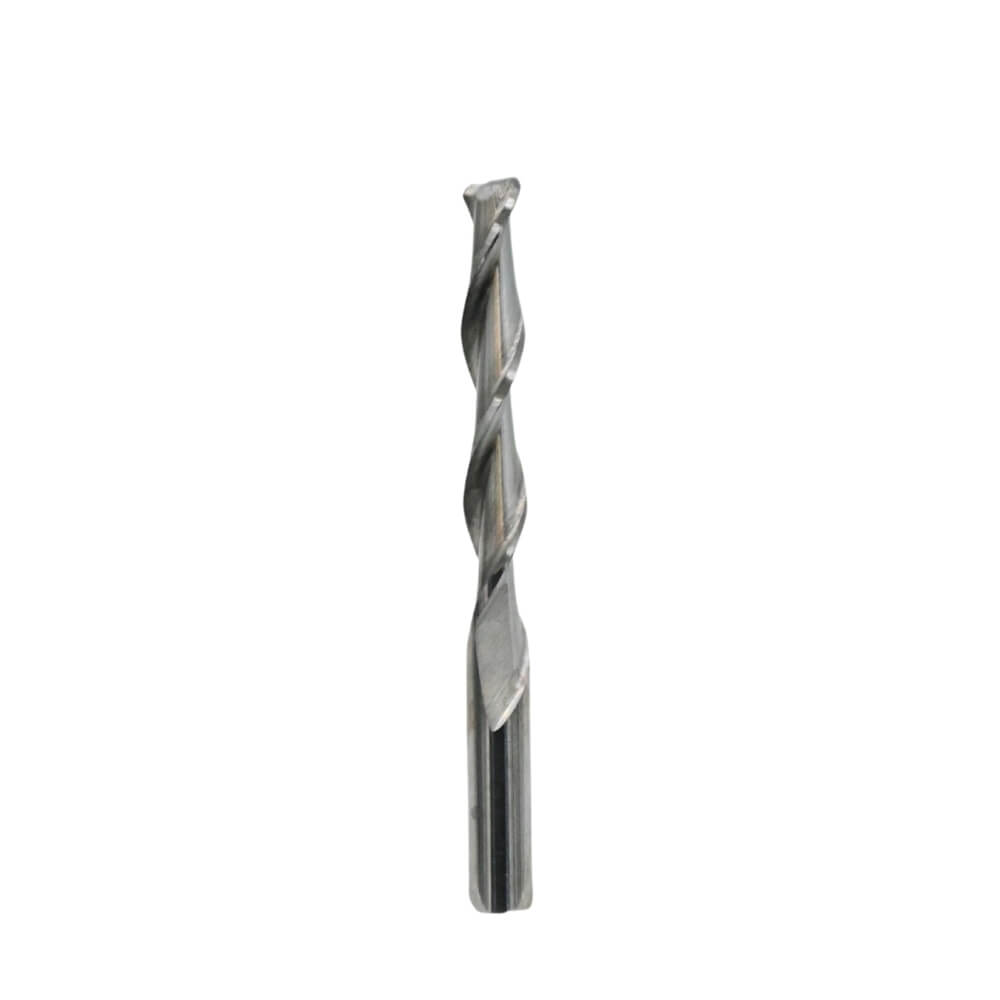

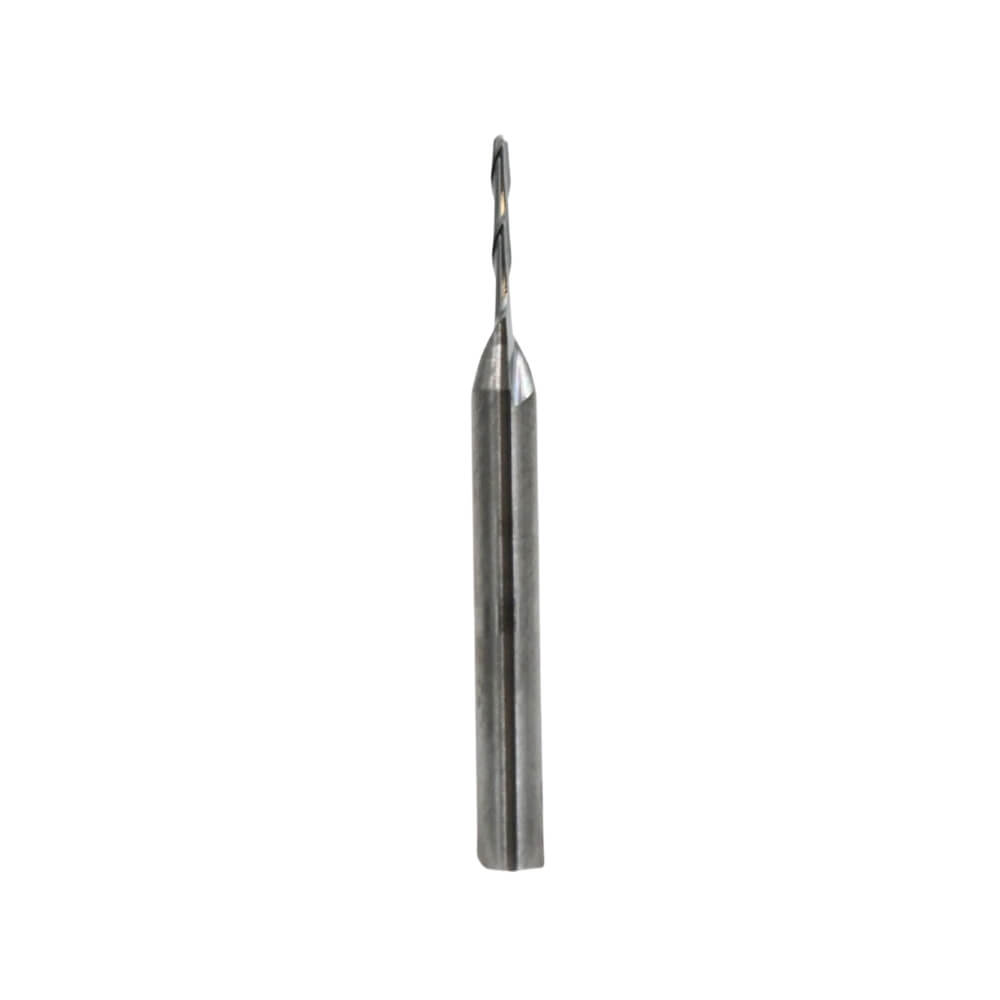

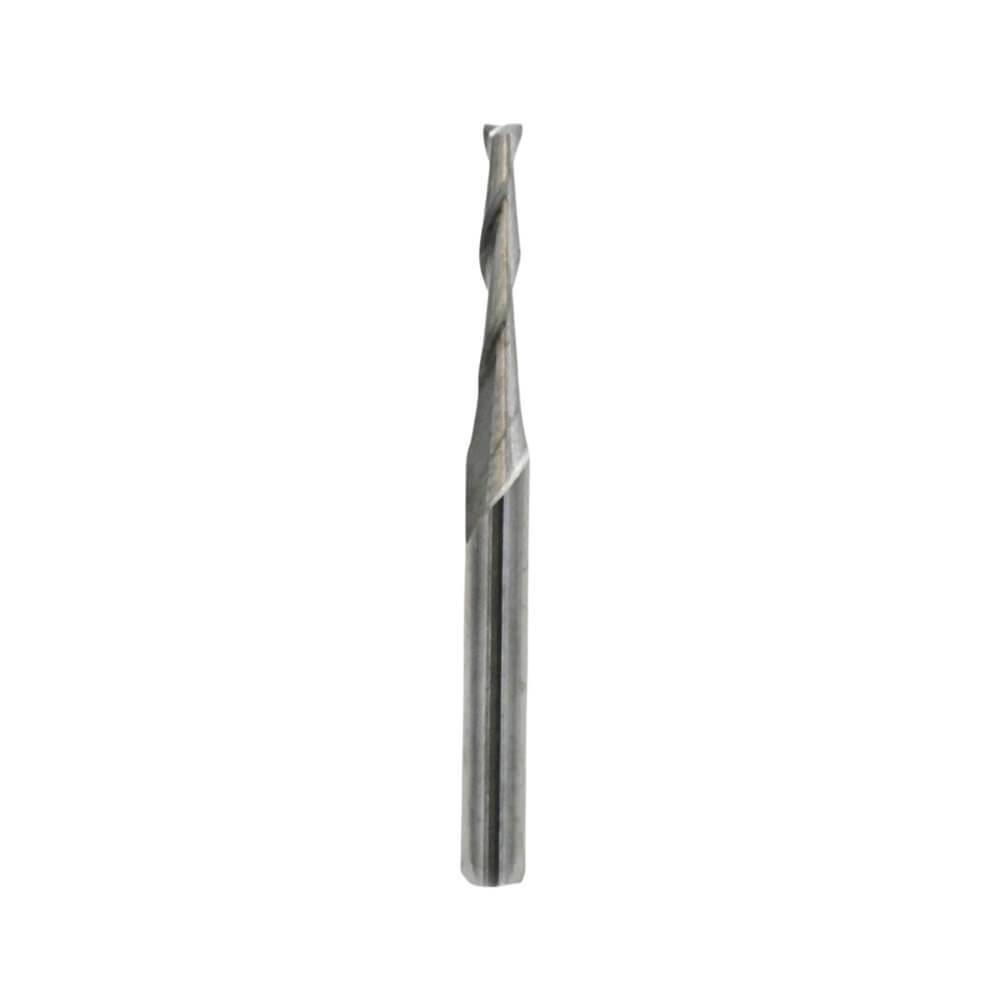

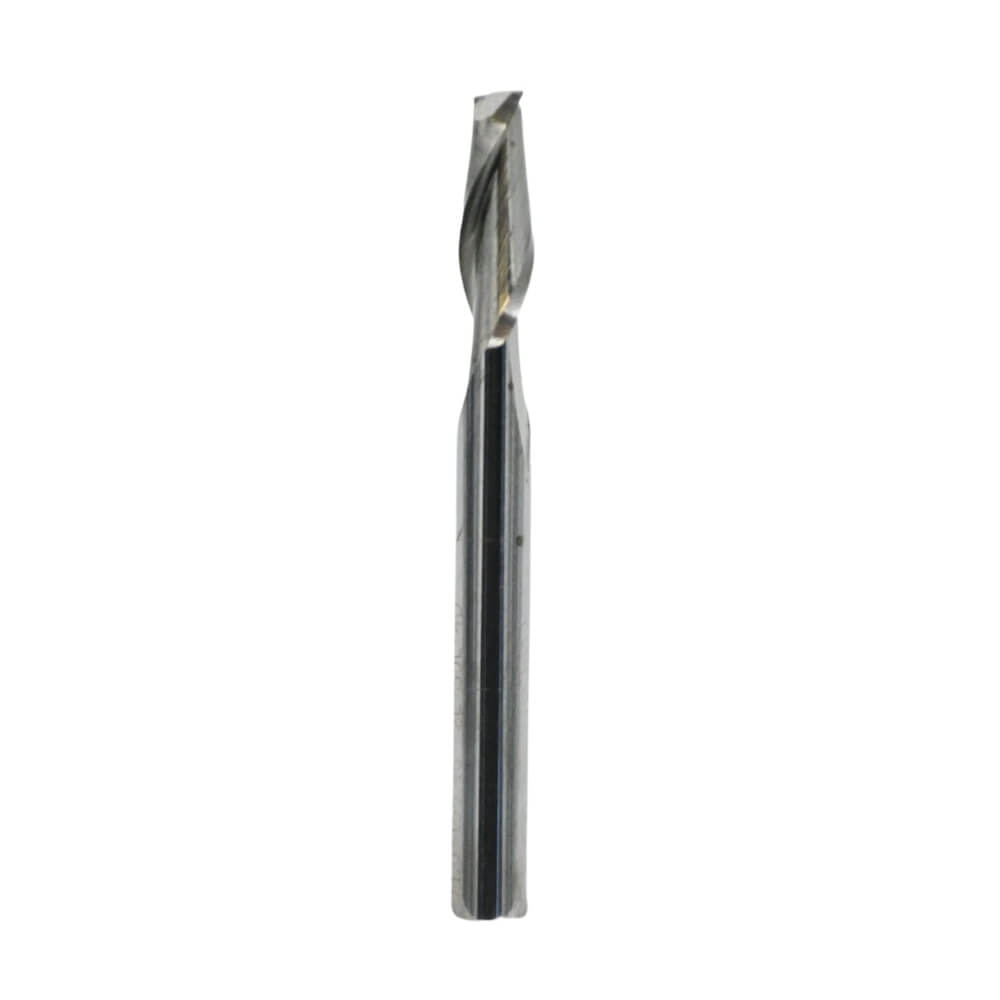

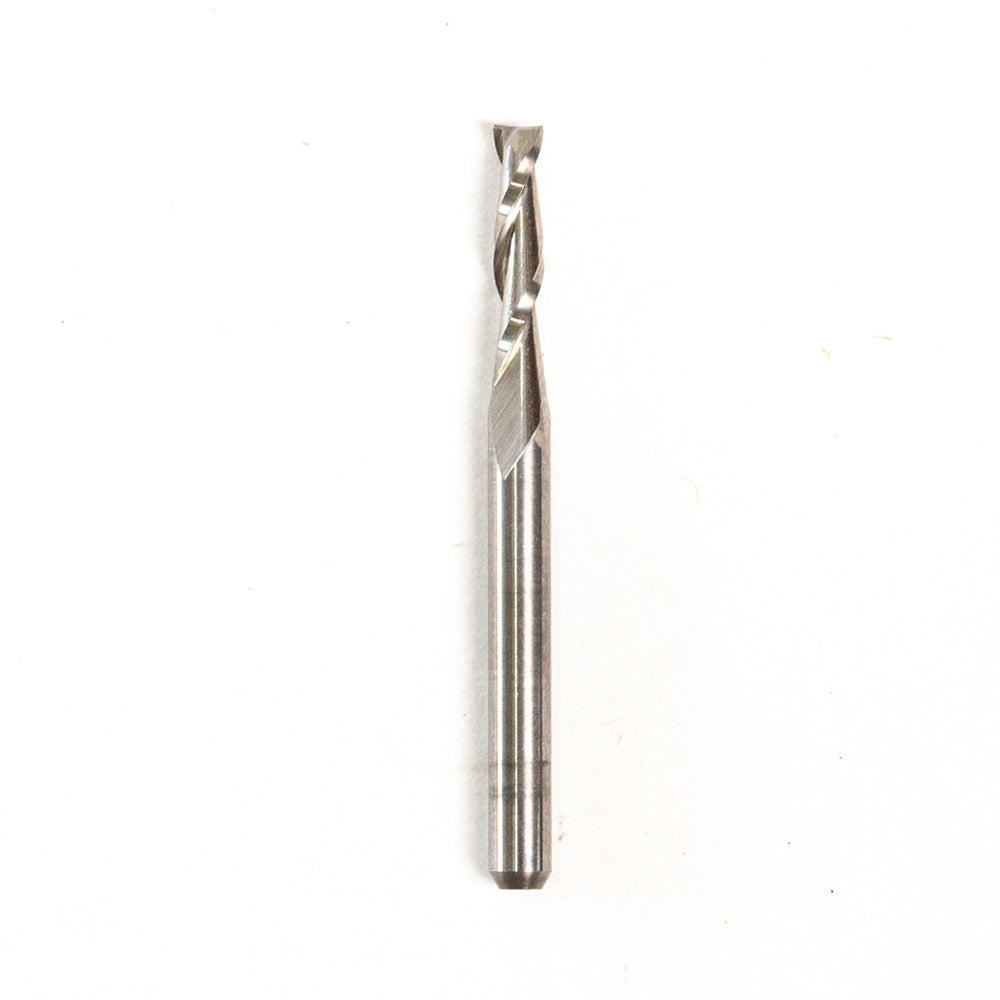

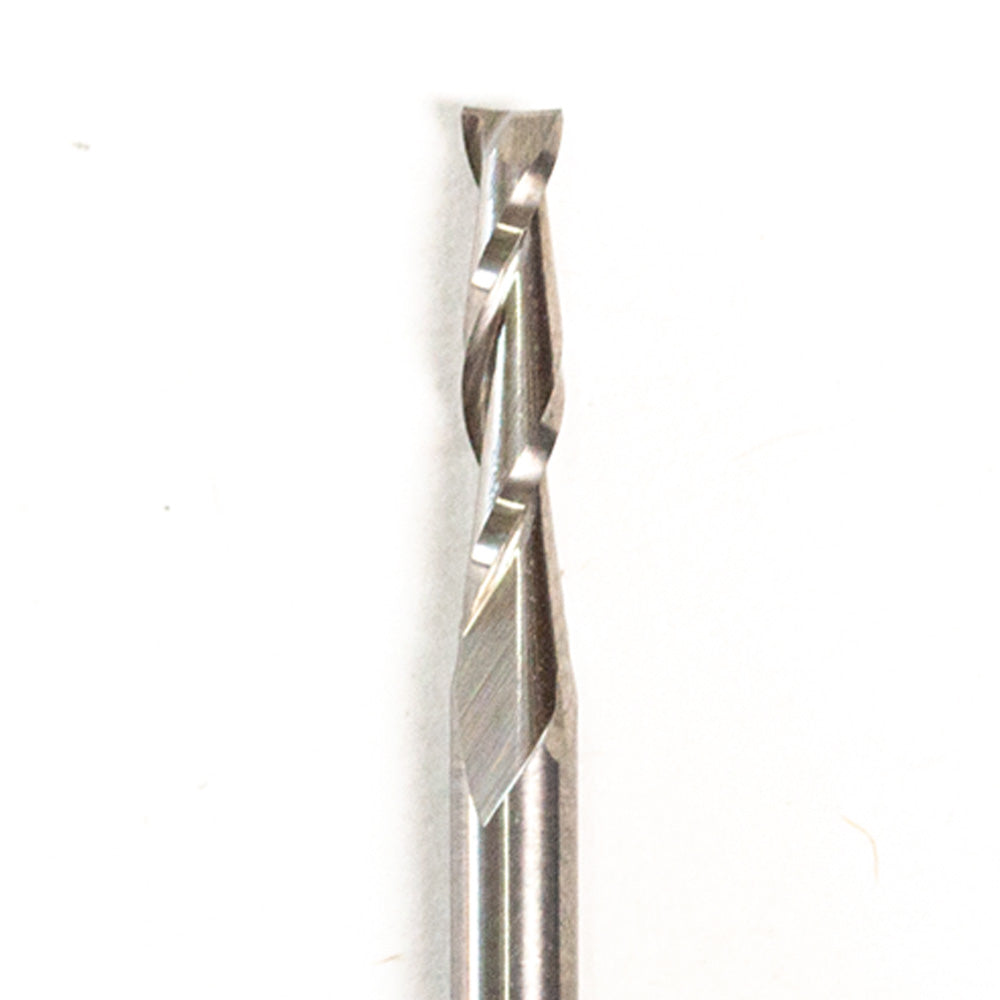

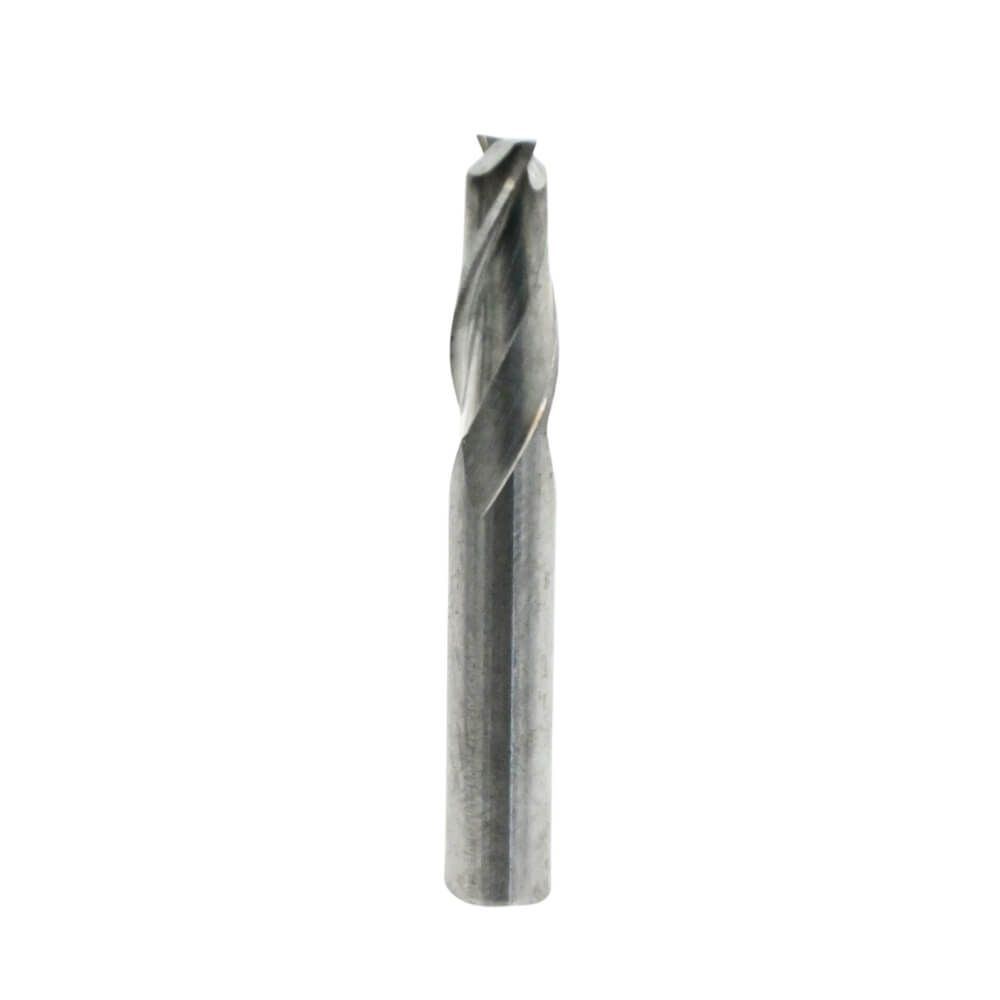

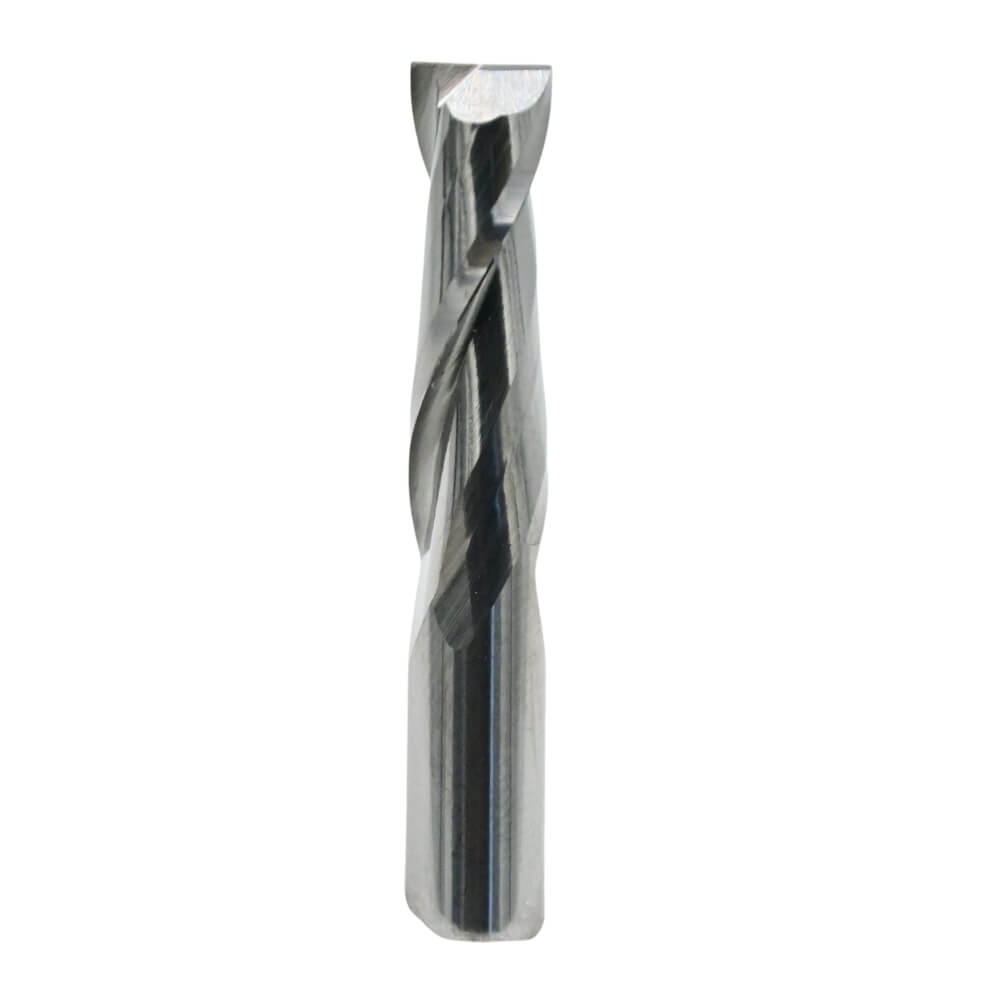

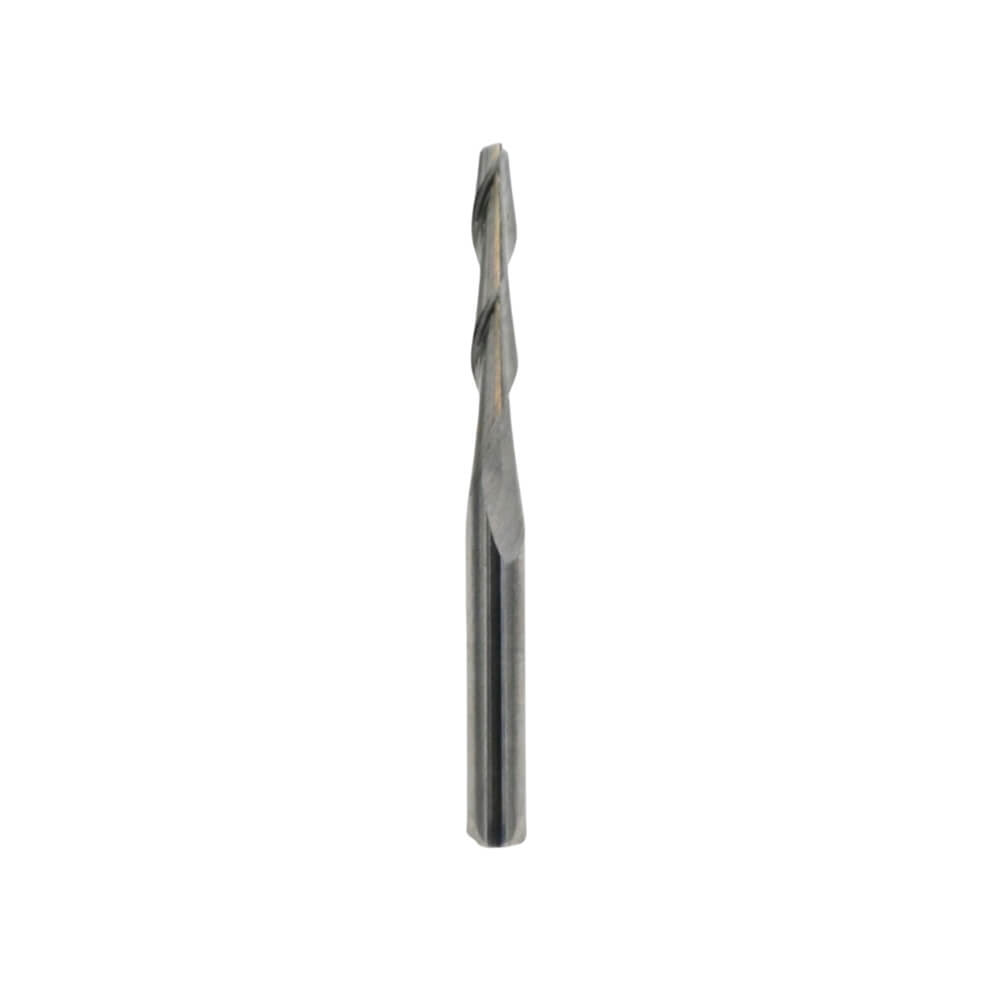

Double Flute tungsten carbide end mill to cut a wide variety of materials. A double flute cutter has a flat bottom end which creates a smooth bottom surface. The low flute count also work better with materials which is sensitive to heat generated by the cutting bit, like plastics.

Specifications:

  • Bit Type: Double flute end mill cutter
  • Material: Tungsten Carbide
  • Diameter: 1mm, 1.5mm, 2mm, 2.5mm, 3.175mm, 4mm, 6mm (Please select from the menu above)
  • Materials to cut: Wood, Plastic, Aluminium, Brass, Composites, Cardboard and Structural foam

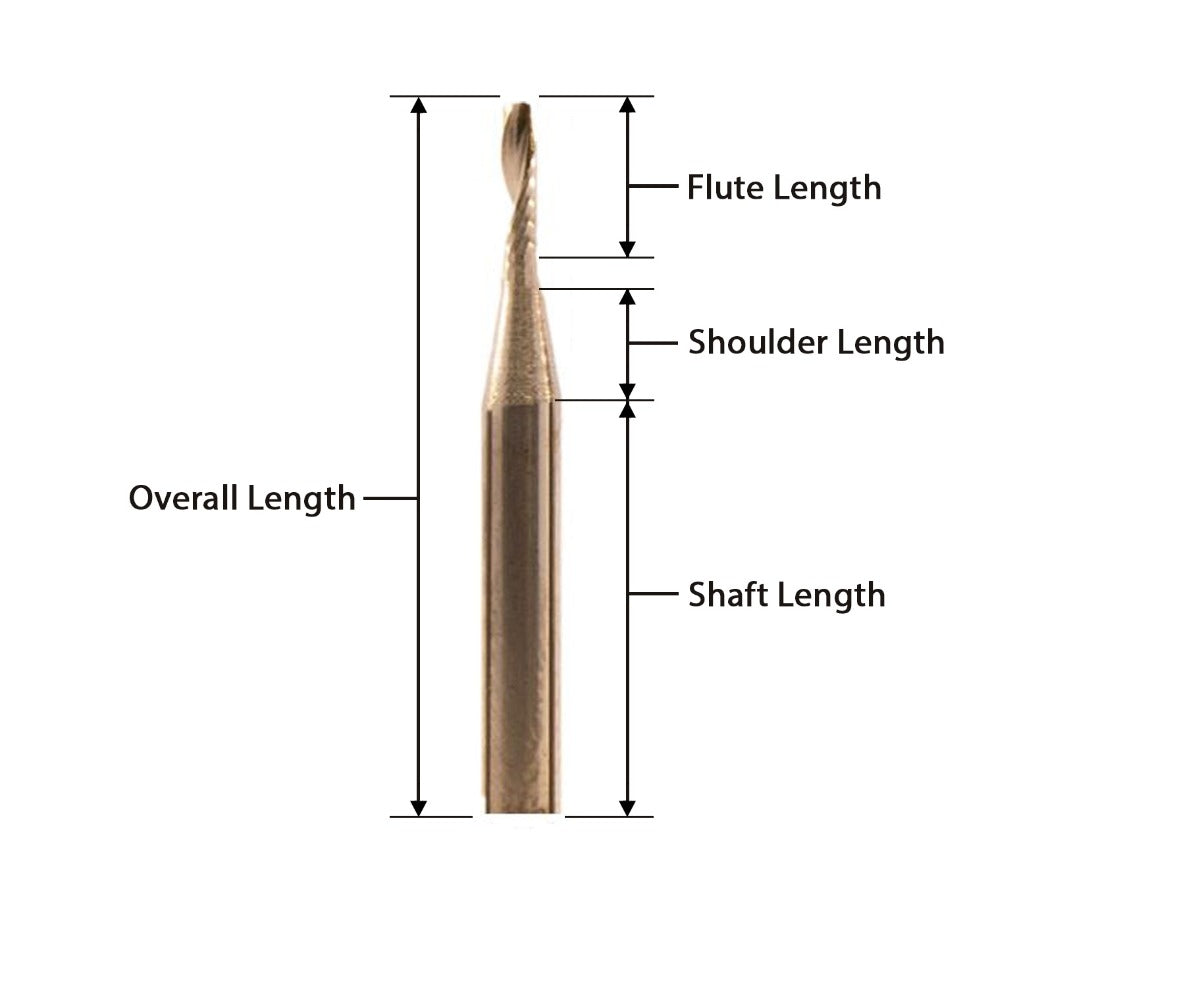

  • Cutting Edge Length:
Bit Diameter Cutting Edge Length
1mm 6mm
1.5mm 8mm
2mm 12mm
2.5mm 15mm
3.175mm 22mm
4mm 10mm
6mm 15mm
8mm 25mm
  • Shank Diameter
Bit Diameter Shank Diameter
1mm 3.175mm (1/8')
1.5mm 3.175mm (1/8')
2mm 3.175mm (1/8')
2.5mm 3.175mm (1/8')
3.175mm 3.175mm (1/8')
4mm 4mm
6mm 6mm
8mm 8mm
  • Cutting bit total length:
    • 1mm to 3.175mm: 38mm
    • 4mm & 6mm: 45mm
    • 8mm: 50mm
