Creality Silent Mainboard Kit for K1C

Your K1C powers on, the fans spin, and the screen sits on the logo. Or the bed never heats, a motor stops responding, and the printer throws an error you cannot clear with a reset or firmware reflash. When the mainboard fails, the printer is a box of good parts with nothing telling them what to do.

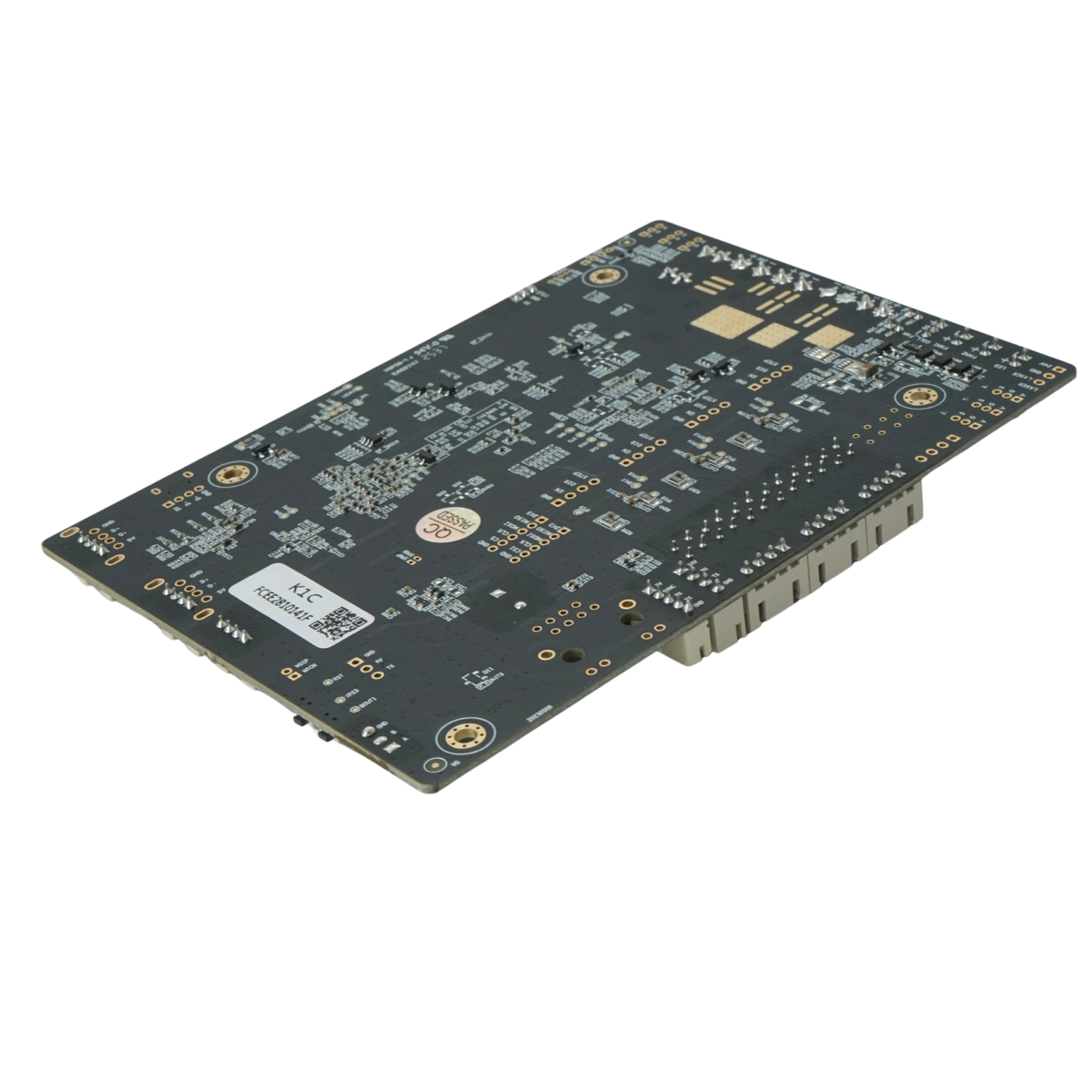

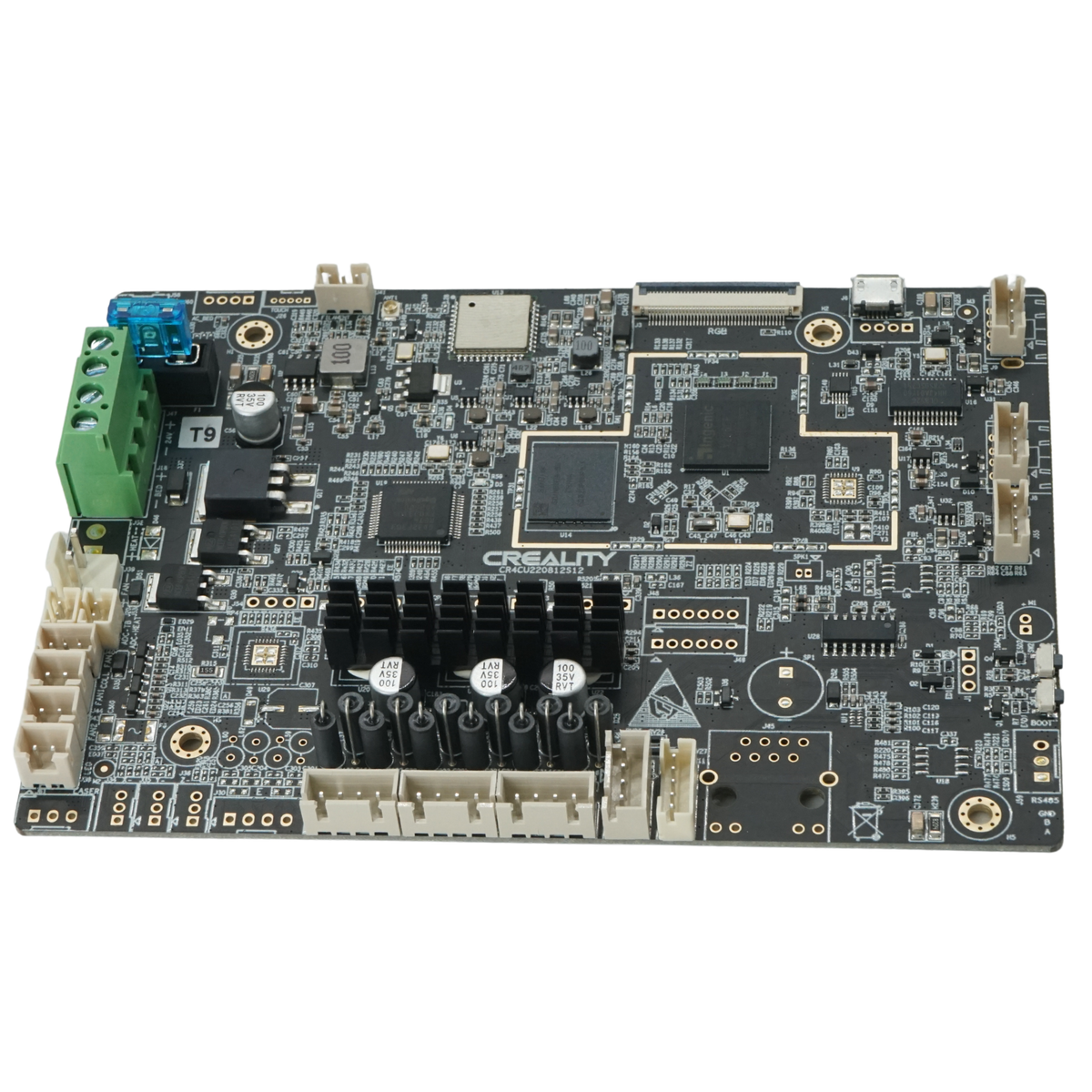

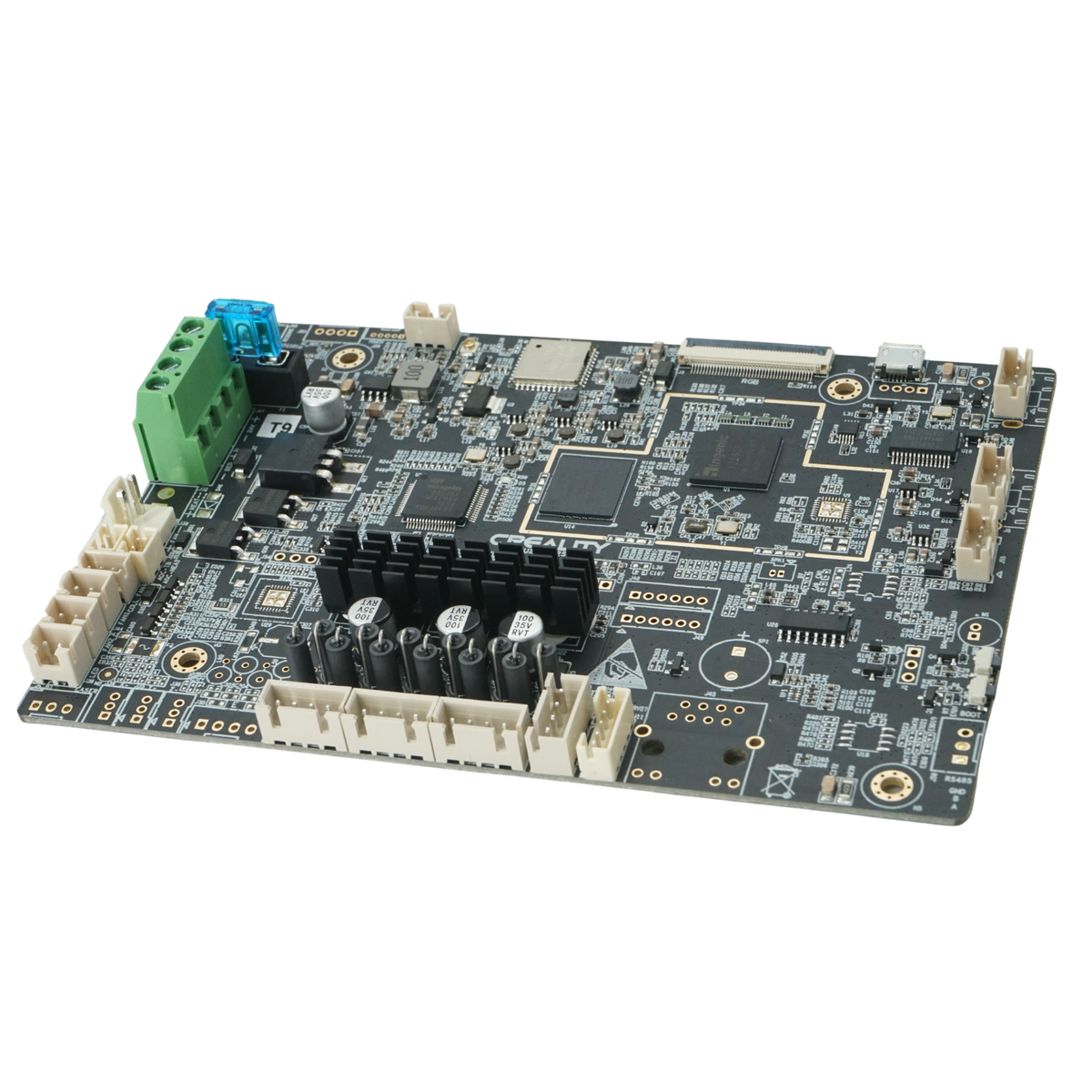

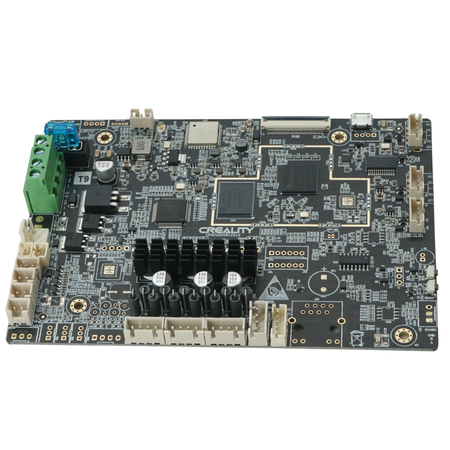

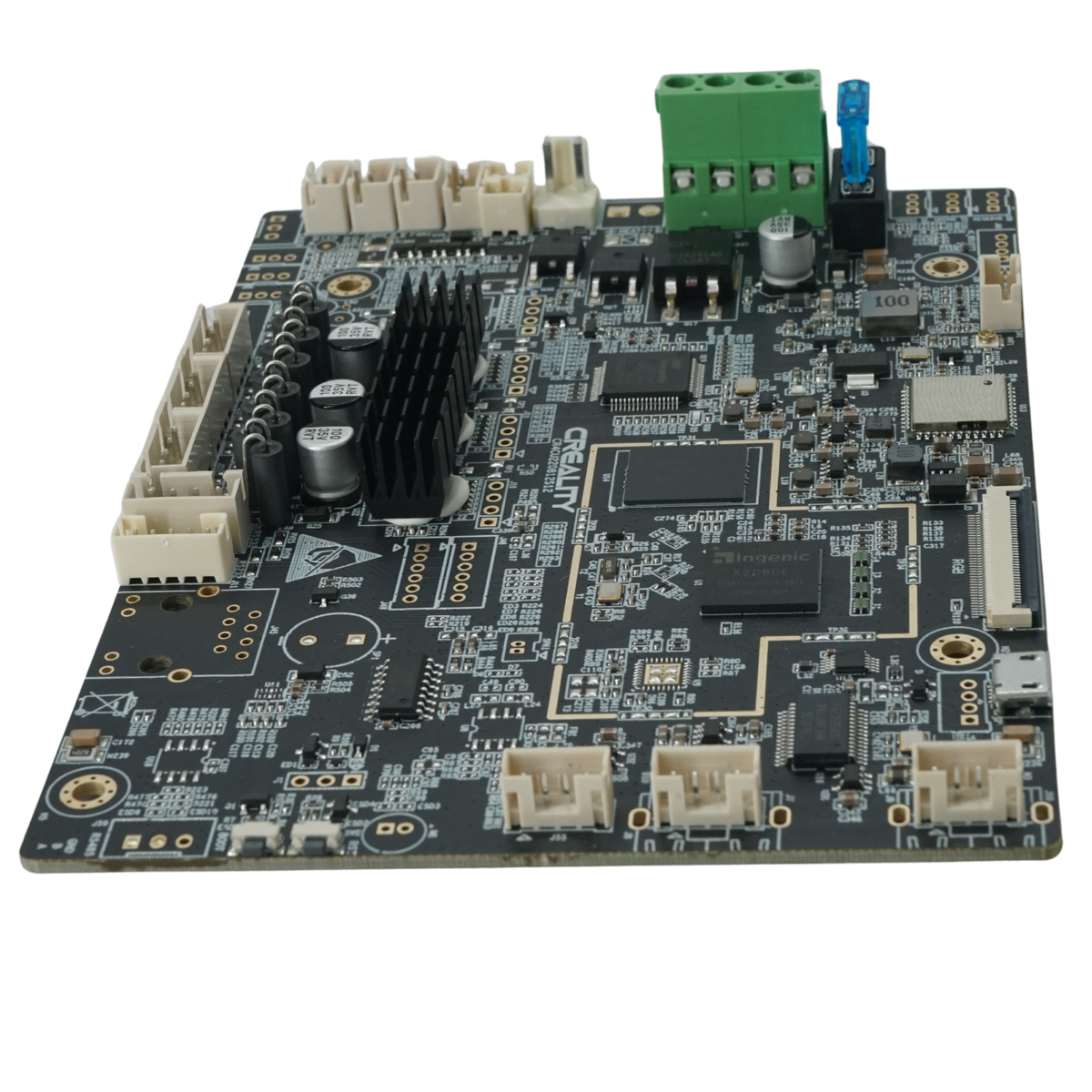

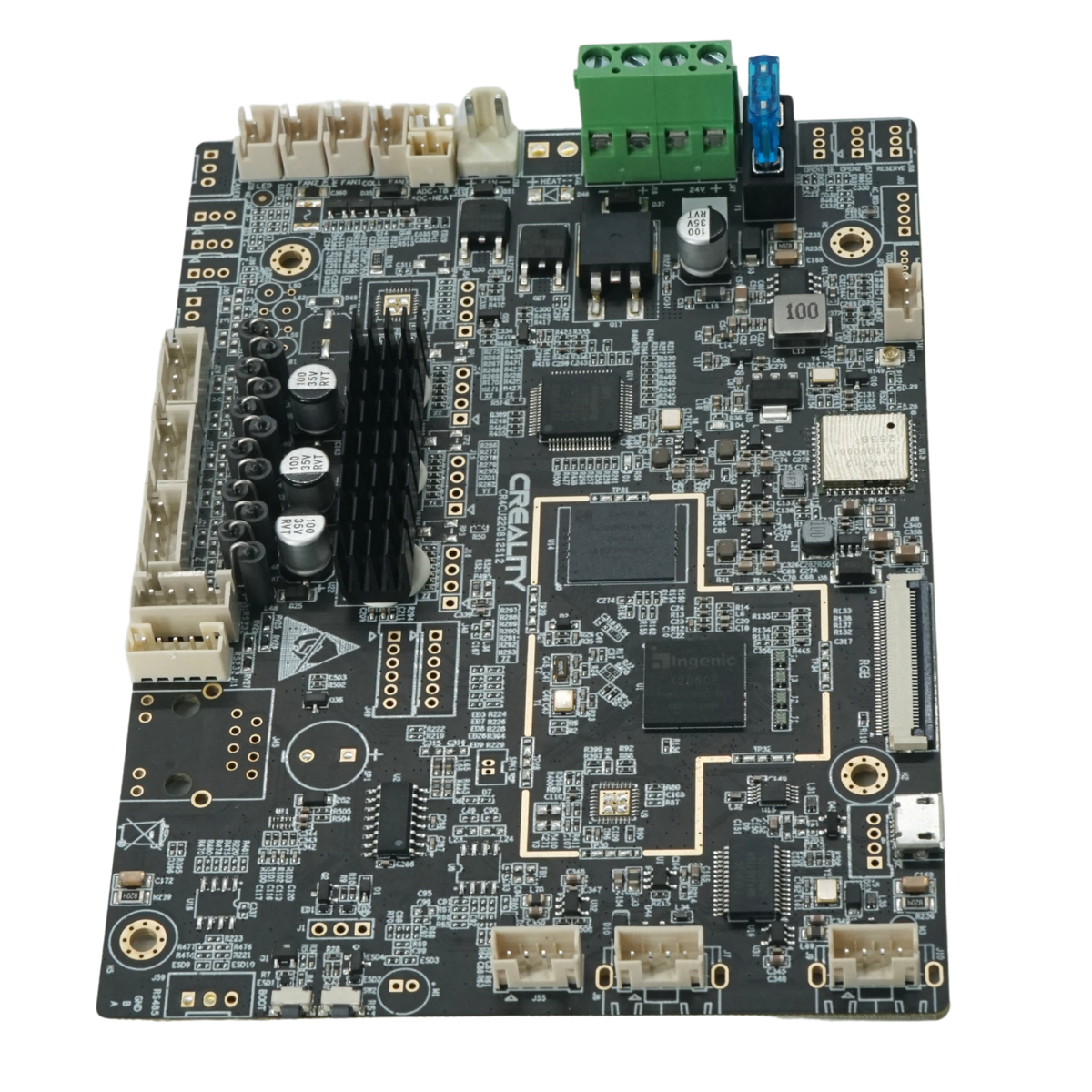

This genuine Creality Silent Mainboard Kit is the factory control board for the K1C, built with quiet stepper drivers and laid out for the K1C's own wiring and 24V heated bed.

Fit it and your K1C is back to printing at factory speed and noise levels, using the harness and peripherals already in the machine.

Genuine Creality Part 4002020069 | Made for the Creality K1C | 32-bit Control Board | TMC2209 Silent Stepper Drivers | K1C 24V Bed Heater Circuit | Plugs into Existing Harness | Mounting Screws Included

Who the Creality K1C silent mainboard kit is built for

K1C owners with a failed board

A dead mainboard usually means a printer that will not boot, heat or move, and sending it away can take weeks. This kit replaces the board directly, using the cables already in your K1C, so the repair stays on your workbench. With the new board fitted and firmware updated, you can print a full plate of functional PETG brackets the same weekend.

Small print farm operators

On a farm running several K1C printers, one failed board takes a machine out of rotation and cuts capacity. A spare mainboard on the shelf turns that into a planned repair rather than an open-ended wait. Swap the board, restore the printer's settings and it rejoins the queue, printing the same 20-part batch of engineering-grade nylon clips as the machines either side of it.

Schools and shared workshops

The K1C is a popular classroom printer because it is enclosed and fast, and noise matters when it runs during lessons. This board's silent drivers keep motor noise at the factory level, so learners can work beside a printing machine. When a board does fail, a technician can replace it in-house and keep a term's worth of design projects on schedule.

What sets the Creality K1C silent mainboard kit apart

Quiet motion, even at high speed

The K1C moves fast, and every stepper motor on it is controlled by a driver on the mainboard. This board uses TMC2209 drivers, chosen for smooth, low-noise motor control. Instead of the high-pitched whine typical of older driver chips, you get quieter moves and less vibration transmitted through the frame. Smoother motor current also reduces fine surface artefacts on walls, so the noise reduction and the print quality improvement come from the same source.

The right board for the K1C, not a lookalike

The K1C, K1 and K1 Max boards look almost identical, and some sellers have shipped K1 Max boards as K1C replacements. They are not interchangeable. The K1C heats its bed from 24V through a dedicated connector and MOSFET on the mainboard, while the K1 Max uses a mains-voltage bed switched by a separate relay. A board without that circuit cannot heat a K1C bed. This genuine Creality part, number 4002020069, is the K1C board, so the bed, heaters and sensors all connect where they should.

A 32-bit board that runs the full K1C feature set

Everything the K1C does well depends on the mainboard keeping up: input shaping, pressure advance, fast acceleration and real-time sensor feedback. This 32-bit printed circuit board is the same specification as the factory board, so your printer keeps its speed, its automatic calibration and its existing profiles. You do not trade performance for a repair, and you do not need custom firmware or third-party configuration to get the printer running again.

Drop-in fit with your existing harness

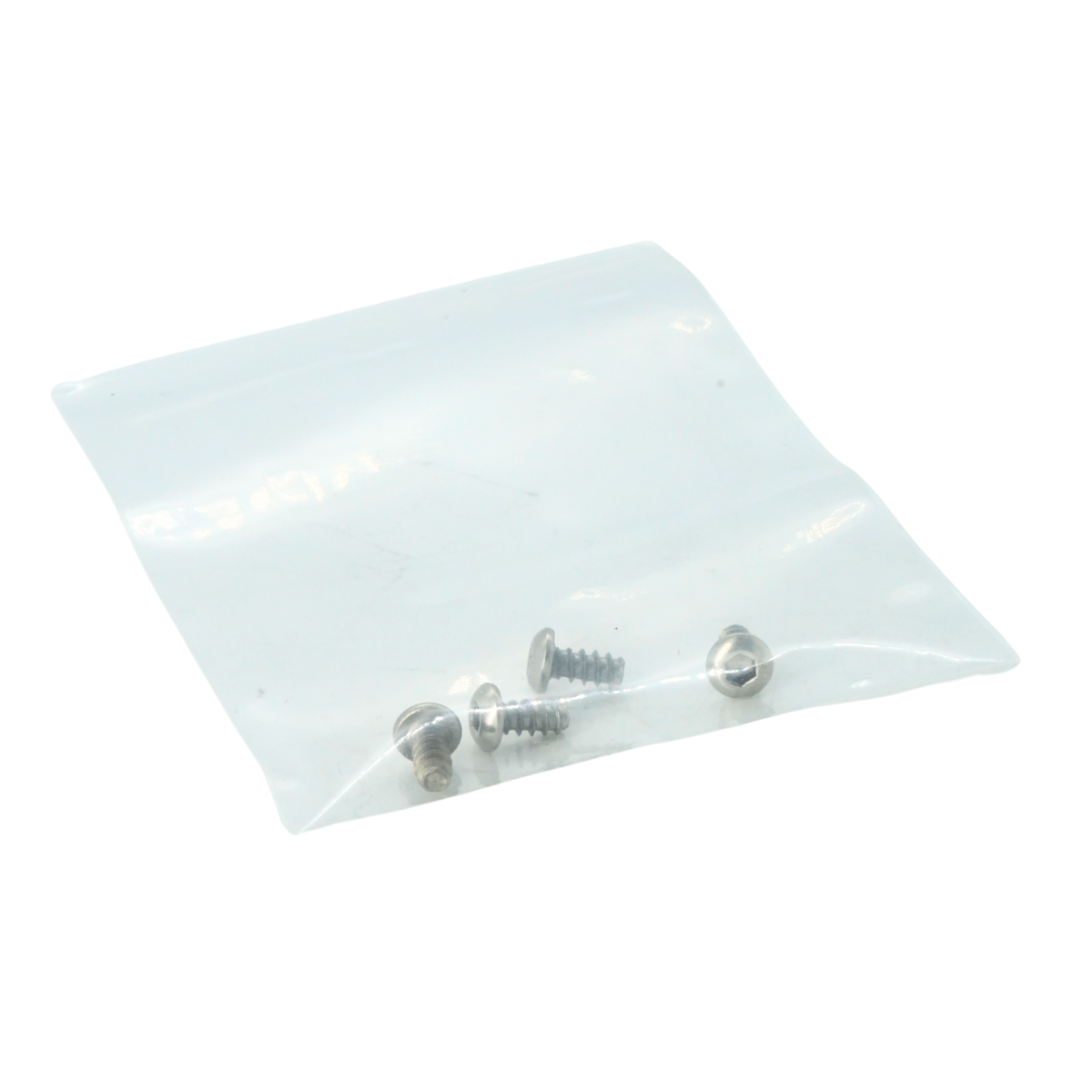

The board matches the K1C's mounting points and connector layout, so the factory wiring harness, motors, fans, screen and hotend board all plug straight back in. Creality supplies the mounting screws, and the board weighs about 96 g. Photograph every connector before you unplug the old board and the job becomes a careful, methodical swap rather than a rewiring project. Afterwards, update to the latest K1C firmware and run the printer's self-check to confirm every axis and heater responds.

Full specifications: Creality K1C silent mainboard kit

Ordering, shipping and support for K1C mainboards

We courier the K1C silent mainboard kit to any address in South Africa, or you can collect it from our Centurion or Boksburg store. Genuine Creality parts carry the manufacturer's warranty, with claims handled locally by our technical support team. Hotend boards, levelling boards and other K1 series spares are in our Creality spare parts range, alongside Creality PLA filament.

Frequently asked questions about the Creality K1C silent mainboard kit

Will this board fit my K1C 2025?

Contact us before ordering for a K1C 2025. This part is listed for the original K1C, and Creality sells a separate mainboard kit labelled for the K1C 2025. If you are unsure which version you own, send us your printer's serial number and a photo of the current board, and we will confirm the correct part.

Can I use this board in a K1 or K1 Max?

No, it is designed for the K1C only. The K1 Max heats its bed from mains voltage through a relay, while the K1C board drives a 24V bed directly. Creality forum users have reported K1 Max boards sold as K1C replacements failing to heat the bed, so always match the part number to your printer.

How do I know the mainboard is the problem?

Rule out cheaper causes first. Reflash the latest firmware, check every connector for damage or looseness, and test individual parts such as the Creality Hot End PCB A for K1C, K1 Max & K1 SE. If several unrelated functions fail together, or the board shows burn marks, the mainboard is the likely fault.

How difficult is the replacement?

It is a moderate job that needs a screwdriver and patience. Power off and unplug the printer, remove the base cover, photograph every connector, then transfer them one by one to the new board. Secure it with the supplied screws, update the firmware and run the self-check before your first print.

Is local warranty and support available?

Yes, genuine Creality boards carry the manufacturer's warranty, handled locally by our South African support team. Log a technical support ticket with your printer model, error messages and photos, and our technicians will help you confirm the fault before you buy.
