Creality Falcon AP1 Mini Air Purifier

You finish a batch of engraved coasters, lift the lid, and within minutes the whole house smells of burnt wood. Cut acrylic or MDF and it gets worse, a sharp chemical odour that clings to curtains long after the job is done. Open a window and you trade smoke for dust, wind and a cold workshop.

The Creality Falcon AP1 Mini sits beside your enclosed laser engraver or 3D printer, draws the exhaust through a sealed HEPA and activated carbon cartridge, and returns clean air to the room. No hole in the wall, no ducting taped to a window frame.

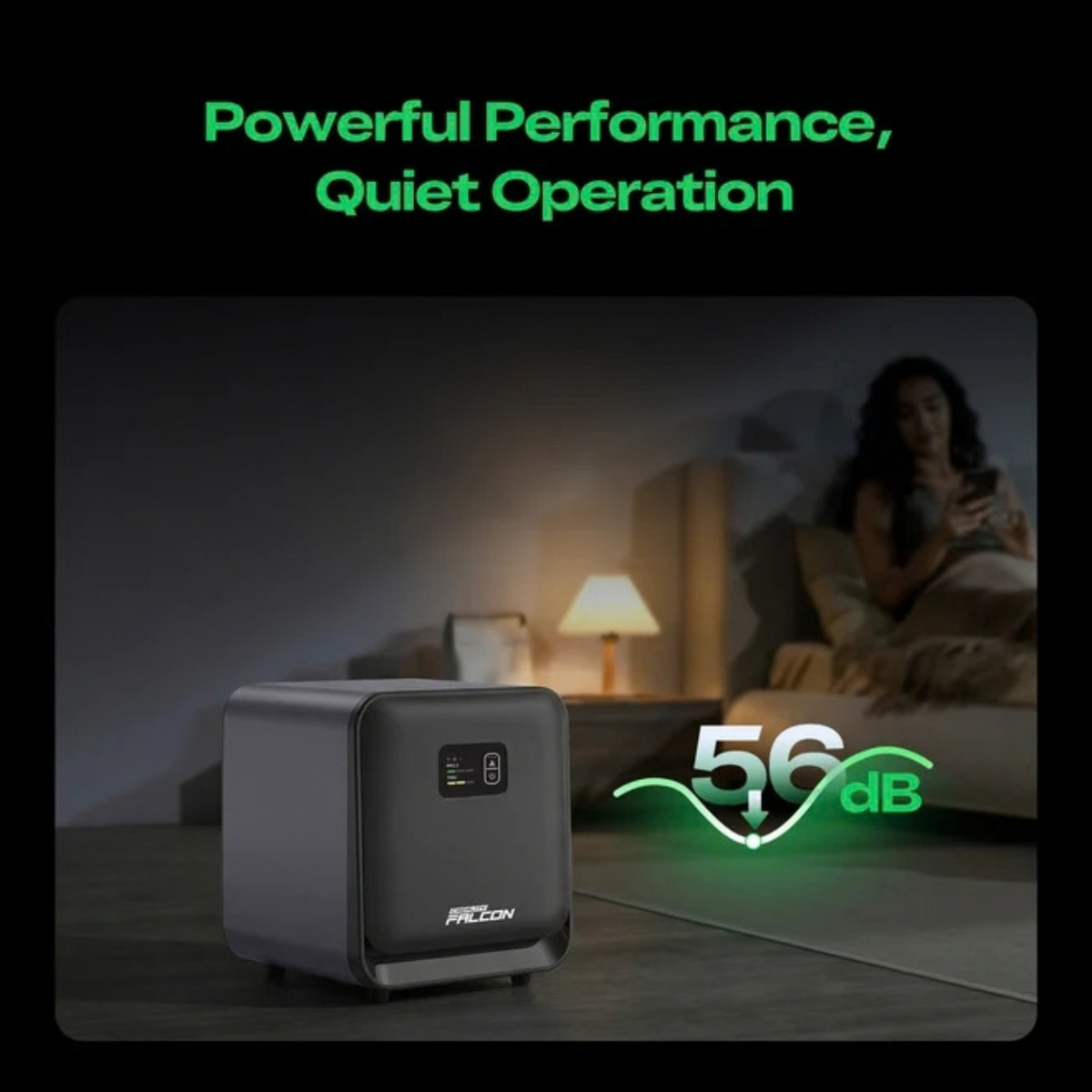

What you get is a compact laser engraver air purifier that lets you work indoors, for hours, at a conversational 56 dB.

174 m³/h airflow | 1300 Pa suction | HEPA + activated carbon | 2.1 m² filter area | Auto-sync with Falcon lasers | Live PM2.5 display | 55 W, 110-230 V input

Who the Falcon AP1 Mini air purifier is built for

Home crafters engraving in a spare room or garage

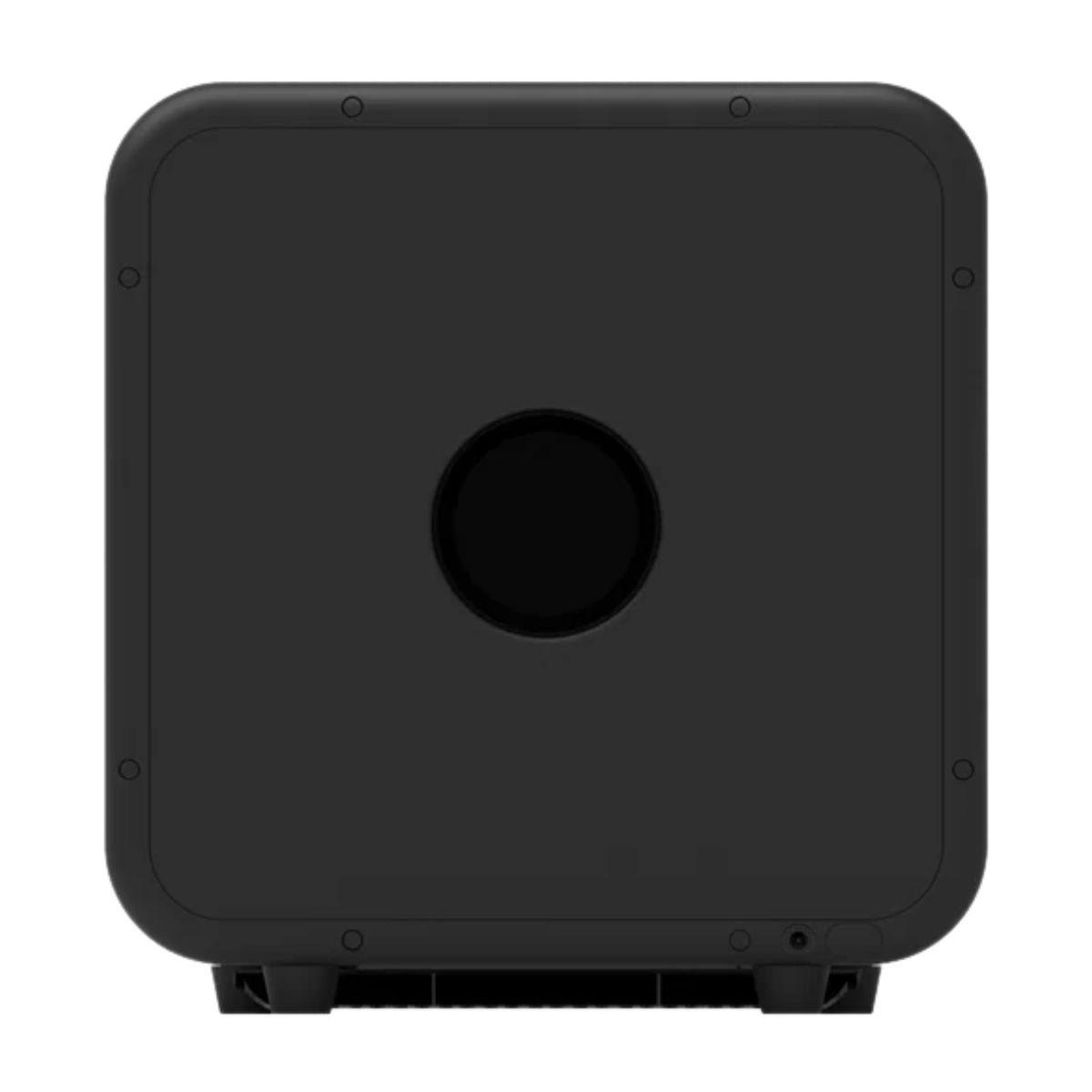

Your laser shares walls with a family, so smoke and smell have to stay in the machine. The AP1 Mini connects to your enclosure's exhaust with the 65 mm duct connector and filters everything that comes out, so nothing needs to be vented outside. At 280 x 270 x 285 mm it fits on the same bench as a Creality Falcon A1. Run a two-hour batch of 20 plywood name tags in the study and the lounge next door stays odour-free.

Small engraving businesses running daily batches

Market stalls and corporate orders mean the laser runs most of the day, and filter cost becomes an operating expense you track. The 2.1 m² pleated filter holds more dust before it clogs, and the app shows remaining filter life so you order replacements before they run out. Paired with a Falcon A1 Pro 20W, the purifier starts and stops with each job, so a full day of acrylic keyring cutting needs no extra button presses.

Schools, makerspaces and training rooms

Teachers need clean air they can prove, low noise, and no building alterations. The front-panel PM2.5 reading shows learners and visitors that the system is working, and 56 dB is quieter than a busy classroom. Filter changes are tool-free, so a technician is not needed. A technology class can cut cardboard bridge models on an enclosed Falcon laser, or print ABS on an enclosed FDM printer, while the teacher watches the air quality number stay low.

What sets the Falcon AP1 Mini laser air purifier apart

Suction that catches smoke before it spreads

Airflow figures on a box mean little if the fan cannot push through a hose, an enclosure and a loaded filter. The AP1 Mini pairs a 174 m³/h maximum airflow (about 102 CFM) with 1300 Pa of static pressure from a brushless motor, so flow holds up as resistance builds. Air leaves at 21 m/s through a 360° intake and distribution path that spreads the load evenly across the filter. In practice, smoke is pulled out of the enclosure while it is still thin, before it condenses as residue on your lens, rails and workpiece.

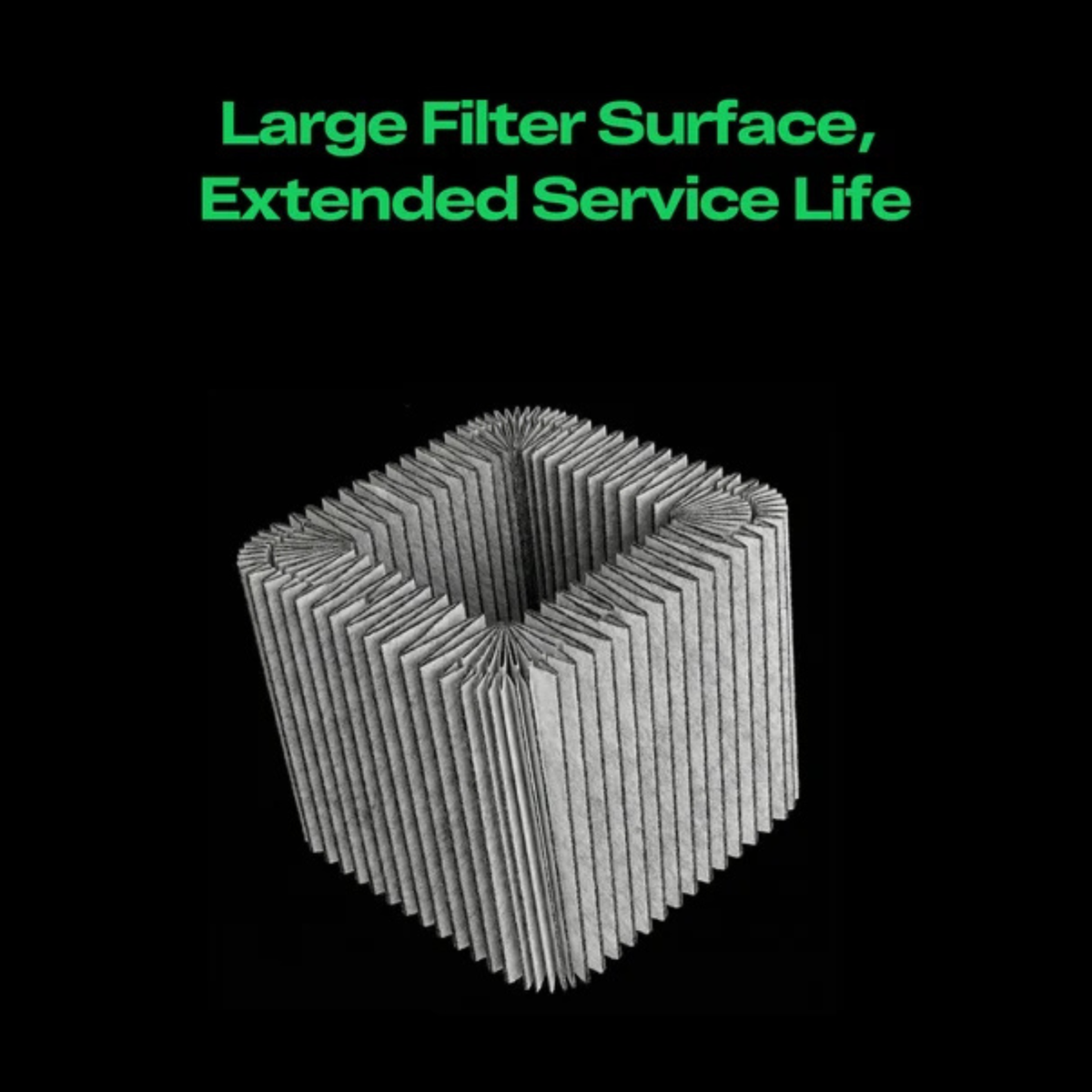

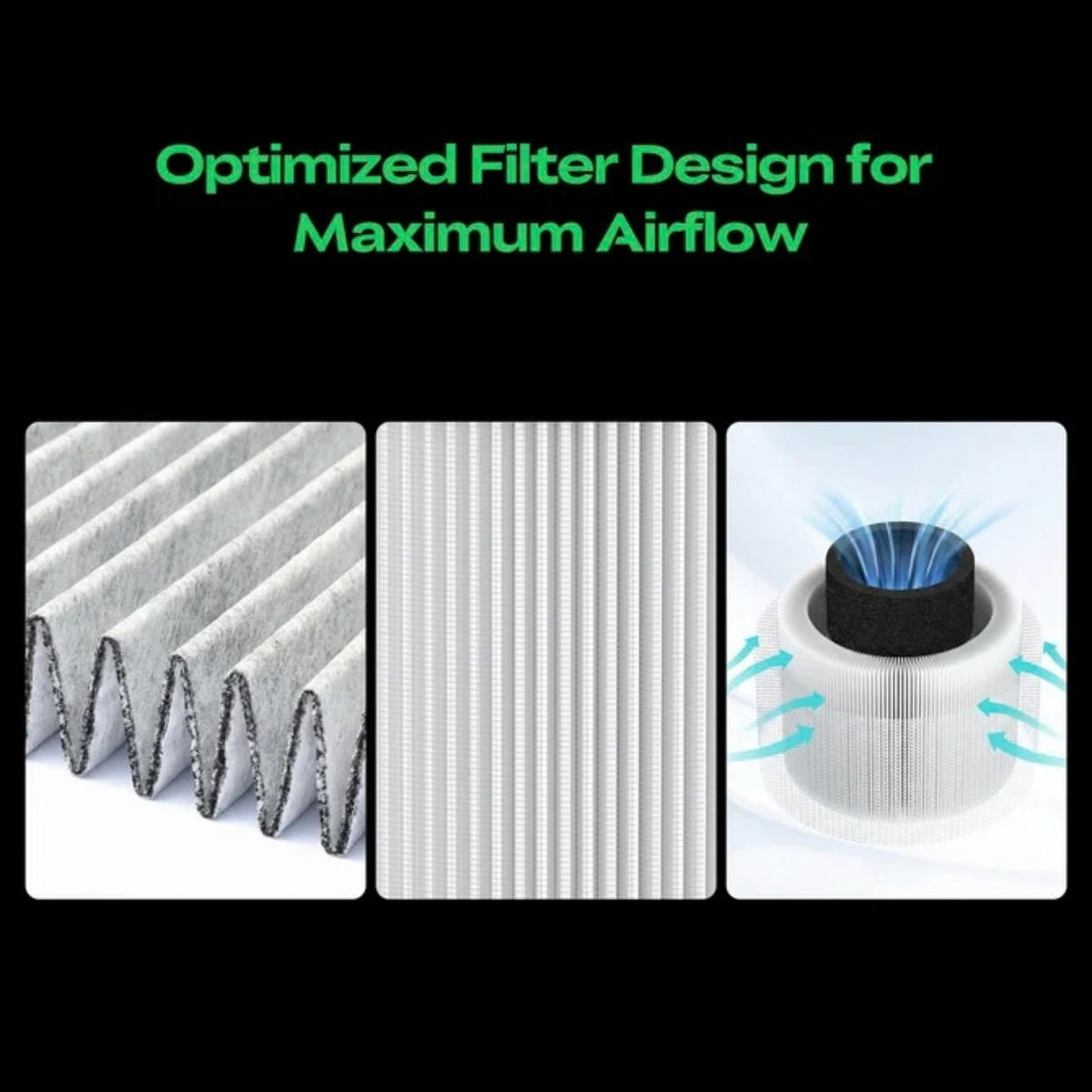

A filter that lasts longer because it is bigger, not thicker

Filter life is set by how much surface area the dust can spread across. Creality compresses and pleats the media into a 2.1 m² filtration area, roughly twice that of a typical tower-style cartridge of similar size. Air passes a pre-filter, a HEPA composite layer for fine smoke particles, and an activated carbon stage that adsorbs odours and volatile organic compounds. The cartridge is glue-sealed to its housing, so no air bypasses the media, and nothing unfiltered leaks back into the room.

Starts when your laser starts, stops when it stops

Forgetting to switch the purifier on is the most common way smoke escapes. Over WiFi, the AP1 Mini links with supported Falcon machines (Creality lists the Falcon A1 Pro, A1C, T1 and T1C) and turns itself on and off with the job. You can also control it from the Falcon app on your phone. Without a linked machine, choose one of three fan speeds or auto mode from the front panel, which makes it usable with any laser or enclosed printer that has a compatible exhaust.

Air quality you can see instead of guess

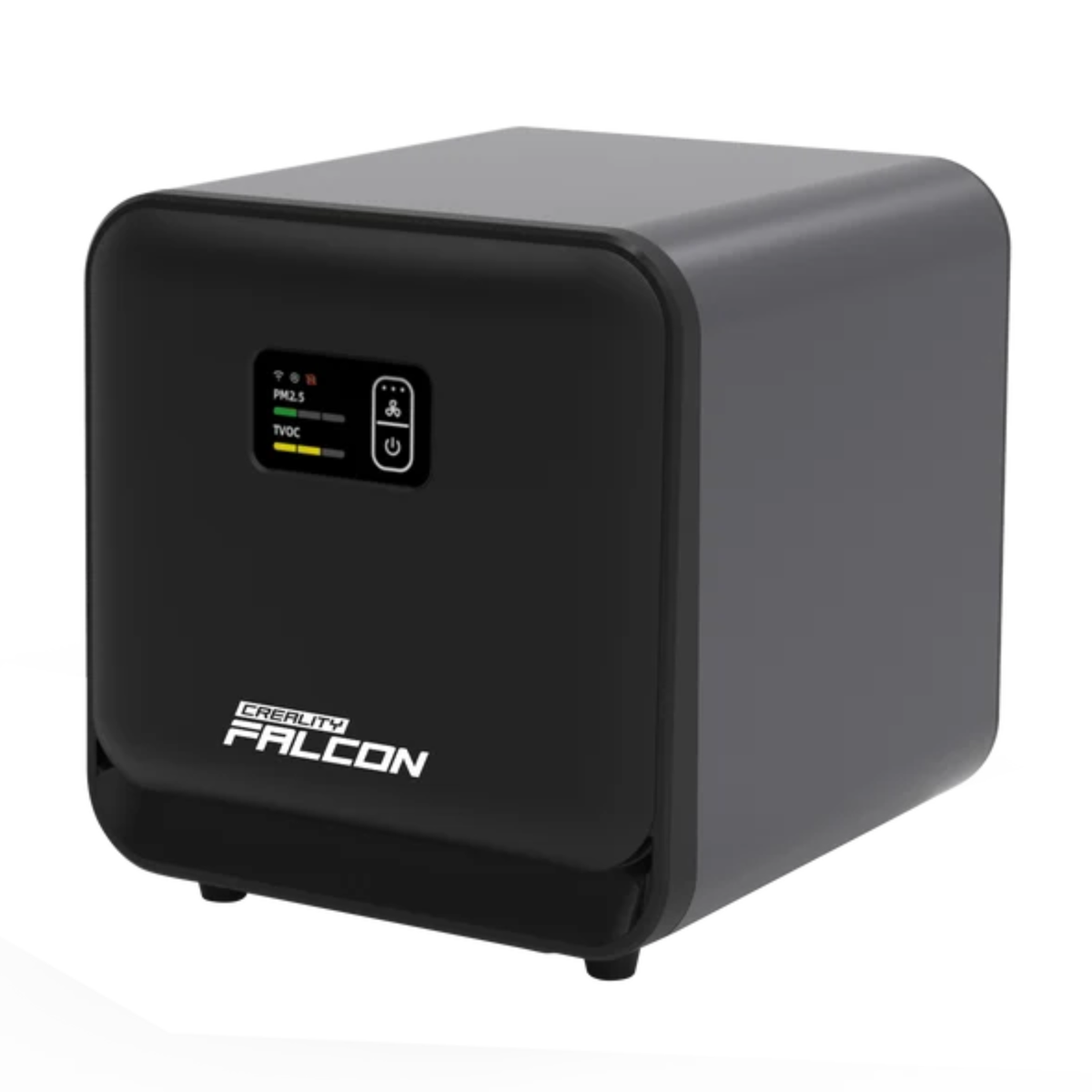

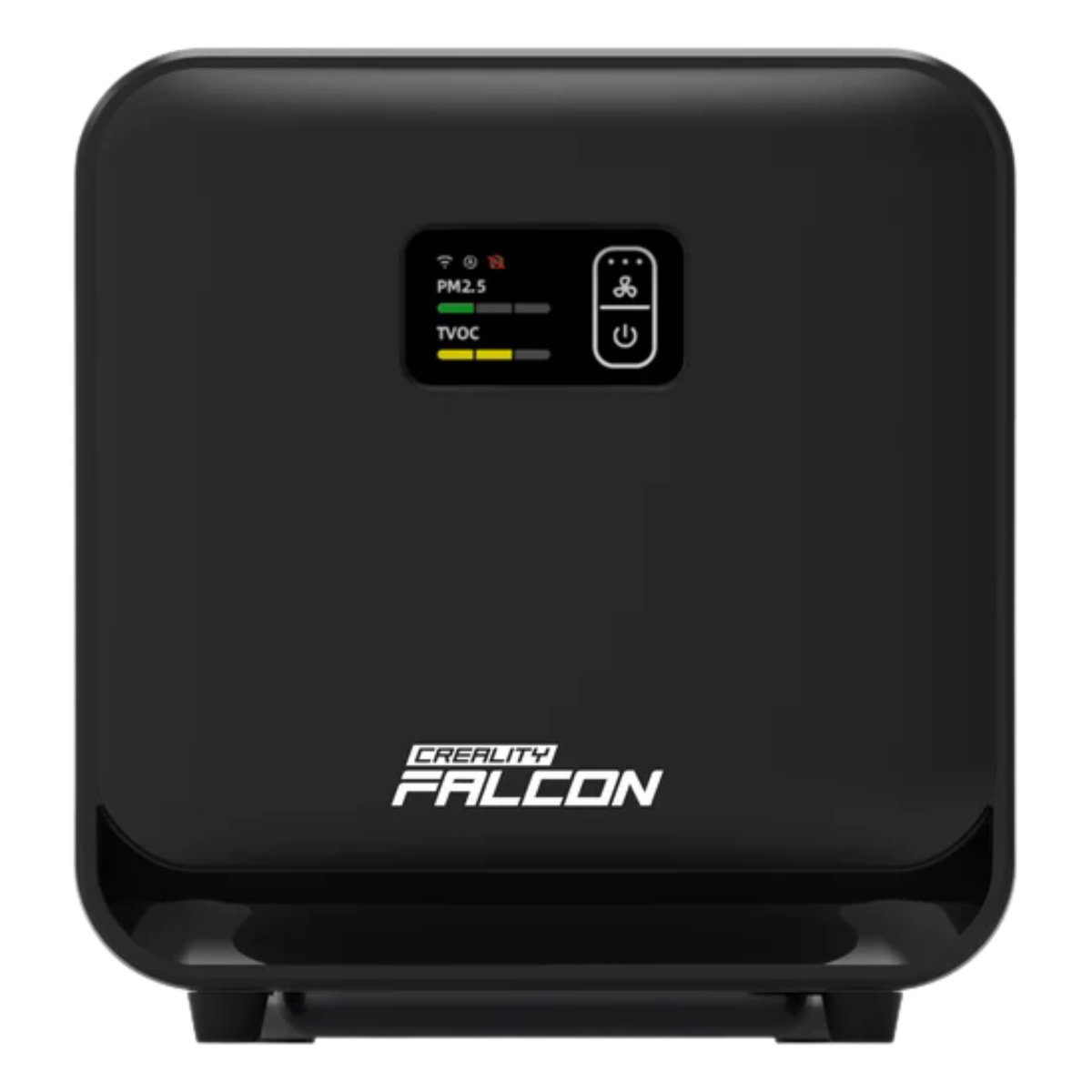

Smell is a poor sensor, because you stop noticing it after a few minutes. The built-in display shows a live PM2.5 reading, so you know when the room air is back to baseline before you open the lid. The same screen, and the app, track filter life and prompt you when the cartridge needs replacing. A reset function restarts the count after each filter change, keeping the reminder accurate.

Filter changes in three seconds, without tools

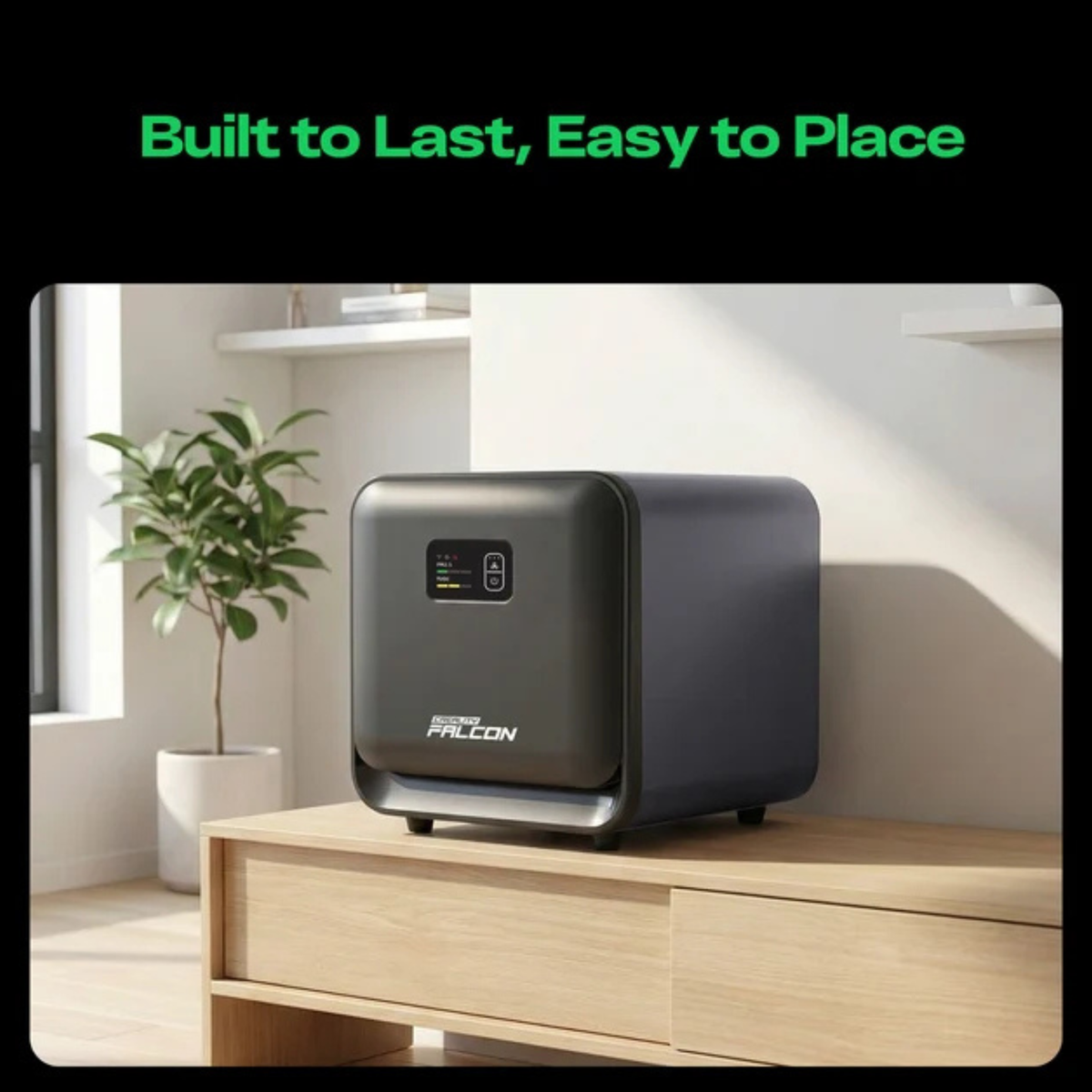

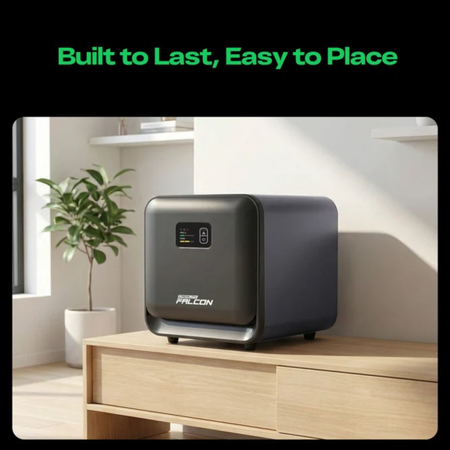

Maintenance that takes effort gets postponed. The cartridge slides out and the new one slides in, no screws or clips, in about three seconds. The housing is a one-piece injection moulding, which keeps it rigid and airtight over years of use. At 4.5 kg you can lift it onto a shelf or move it between machines, which suits workshops where one purifier serves a laser in the morning and a printer in the afternoon.

Built for South African power conditions

The external adapter accepts 110 to 230 V at 50 or 60 Hz and feeds the unit 24 V DC, so it runs comfortably on our 220 V grid. Maximum draw is 55 W, a small load for an inverter or UPS during loadshedding. If the power cuts mid-job, laser and purifier both stop. Keep the enclosure closed, and let the purifier clear the smoke once power returns before you lift the lid.

Full specifications: Falcon AP1 Mini air purifier

How the Falcon AP1 Mini compares to the rest of the laser air purifier range

Materials and software for your laser air purifier

Materials the AP1 Mini is built to filter

• Basswood and plywood: heavy visible smoke and resin. Run the high fan speed on thick cuts, and keep air assist on to reduce charring.
• MDF: the binder releases more VOCs than solid wood, so the carbon stage works hardest. Check filter life more often if MDF is your main material.
• Cast acrylic: little smoke but a strong monomer odour. The carbon stage handles the smell, so keep the lid closed until the PM2.5 reading settles.
• Vegetable-tanned leather: dense, pungent smoke. Avoid chrome-tanned leather, which releases chromium compounds.
• Cardboard and paper: light ash that the pre-filter traps before it reaches the HEPA layer.
• ABS and ASA in enclosed FDM printers: styrene odour and ultrafine particles. Connect the purifier to the enclosure exhaust and run it for the full print. Stock up on Creality ABS filament knowing the fumes are handled.
• Never laser PVC, vinyl or PTFE: they release corrosive chlorine or fluorine gases that damage your machine and lungs. No purifier makes these materials safe.

Apps and machine sync

• Falcon mobile app: connects over WiFi for remote on/off, fan speed and filter status.
• Supported Falcon lasers (A1 Pro, A1C, T1, T1C): link once and the purifier starts and stops with every job.
• Falcon A1 10W, Falcon2 Pro and other brands: use the front-panel speeds or auto mode, fitting the 65 mm connector to your exhaust.
• Slicers such as Creality Print, OrcaSlicer and Bambu Studio: these do not control the purifier. Start it before the print and let auto mode manage the fan.

What's in the box with the AP1 Mini air purifier

• Creality Falcon AP1 Mini air purifier unit
• HEPA composite filter cartridge (installed)
• 24 V DC power adapter with European Type C plug
• Flexible exhaust hose
• 65 mm duct connector
• Hose clamps
• User manual

Ordering, shipping and support for your laser air purifier

We courier the AP1 Mini to any address in South Africa, or you can collect from our Centurion and Boksburg stores. It carries a 12-month Creality warranty, handled locally through either branch, so you never ship a unit overseas. The supplied adapter has a European Type C plug, which fits newer SANS 164-2 sockets, use a standard adapter for older three-pin sockets. Replacement filters and laser accessories are available from us, and our technical support team can help with setup.

Frequently asked questions about the AP1 Mini air purifier

Is the Falcon AP1 Mini better than the full-size Falcon AP1?

For desktop diode lasers and enclosed printers, the AP1 Mini is the better value, while the full AP1 suits heavier cutting. The AP1 moves 250 m³/h at 1700 Pa through a 5-stage filter, against the Mini's 174 m³/h at 1300 Pa. If you cut thick MDF or acrylic for hours daily on a 20 W or higher laser, the extra capacity helps. For engraving and occasional cutting, the Mini is quieter and more compact.

Can the AP1 Mini filter acrylic, MDF and ABS fumes?

Yes, its HEPA layer captures fine smoke particles and its activated carbon stage adsorbs the odours and VOCs from acrylic, MDF and ABS. MDF and ABS load the carbon faster than wood, so expect shorter filter intervals if they are your main materials. It will not make PVC, vinyl or PTFE safe to process, and those should never go into a laser.

How long does it take to set up out of the box?

Most users are running within ten minutes. Fit the duct connector, clamp the hose to your enclosure's exhaust, and plug in the adapter. Linking to a supported Falcon laser through the Falcon app takes a few extra minutes the first time, after which start and stop are automatic.

How often does the filter need replacing?

Replace it when the filter-life indicator on the display or app prompts you, as the interval depends on material and hours of use. Creality does not publish a fixed hour rating for the Mini. Wood engraving loads the filter slowly, while daily MDF or acrylic cutting shortens its life. The 2.1 m² filter area extends intervals, and each change takes about three seconds without tools.

Does it come with a South African plug, and is warranty handled locally?

No, the adapter ships with a European Type C plug, but warranty is handled locally in South Africa. The Type C plug fits newer SANS 164-2 wall sockets, and a standard adapter covers older three-pin sockets. The adapter accepts 110 to 230 V, so it runs safely on our grid. Warranty claims go through our Centurion or Boksburg branch, with no need to deal with Creality overseas.
