Creality CR-6 SE Heater Block

You started a long print, came back in the morning, and found the CR-6 SE hotend buried in a solid lump of filament. Once that blob has cooked onto the heater block, wrapped the thermistor wires and crept into the threads, cleaning it rarely restores the part to how it left the factory. The heater cartridge bore is coated, the threads are suspect, and the temperature readings drift.

This genuine Creality CR-6 SE Heater Block gives you a clean starting point for rebuilding the hotend. It accepts the original nozzle, heat break, heater cartridge and thermistor, so you replace only the part that is beyond saving and get the printer back to stable temperatures.

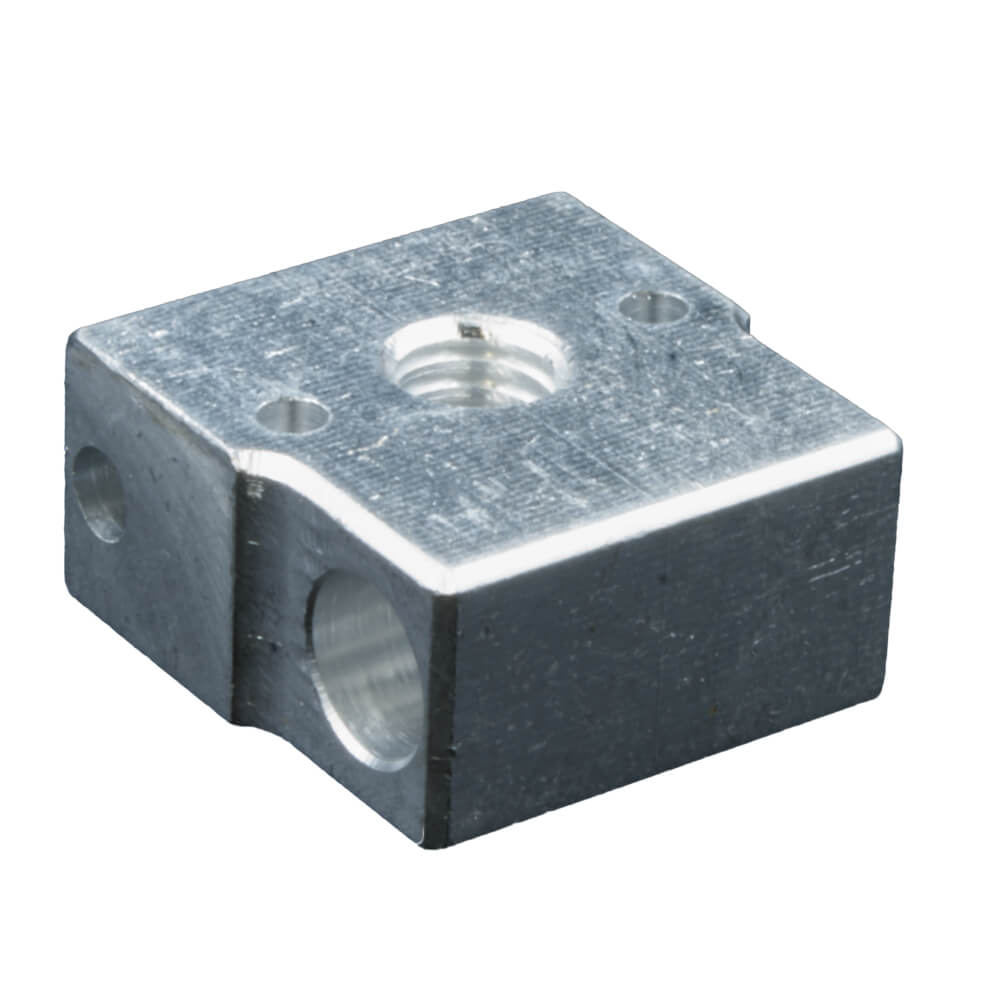

Genuine Creality part | Fits CR-6 SE, CR-6 Max and CR-10 Smart | Aluminium body | 20 x 20 x 10mm | M6 threaded nozzle and heat break bores | Reuses your existing cartridge and thermistor | Sold individually

Who the Creality CR-6 SE heater block is built for

The hobbyist Maker recovering from a blob of death

A loose nozzle or a failed first layer can leave the hotend encased in plastic overnight. If the CR-6 SE heater block came out of the clean-up with burnt residue in the cartridge bore or damaged threads, rebuilding around a new block is quicker and more reliable than chasing intermittent thermal errors. With the original components moved across, you can be printing a calibration cube again the same afternoon.

Schools and makerspaces maintaining CR-6 SE fleets

Classroom printers suffer more hotend accidents than any other machine, usually from unattended prints and loose nozzles. A technician who keeps a genuine heater block on the shelf can rebuild a damaged hotend between lessons rather than taking a printer out of service for weeks. The factory geometry means the silicone sock, nozzle and probing behaviour match every other CR-6 SE in the room.

Repair technicians and small print farms

If you service CR-6 SE, CR-6 Max or CR-10 Smart printers for clients or run several on production work, a heater block is the core part of almost every hotend rebuild. Keeping genuine stock means each repair returns the machine to factory specification, so your sliced profiles, temperature settings and first-layer calibration carry over without retuning on every unit.

What sets the CR-6 SE heater block apart

A clean rebuild after a hotend disaster

Molten filament that leaks over a heater block does more than make a mess. It insulates the block unevenly, fills the grub screw holes and coats the cartridge bore, which reduces heat transfer and makes the temperature swing. Heating and peeling the old block often leaves damaged threads behind. A new aluminium block removes those variables in one step. You transfer the heater cartridge, thermistor, heat break and nozzle, tighten everything correctly, and you are back to a hotend that holds a set temperature the way it did on day one.

Factory geometry for the CR-6 hotend

The CR-6 SE hotend is not a standard Ender-3 assembly. Its silicone sock latches onto a grooved nozzle, and the bed levelling relies on a strain gauge that senses the nozzle touching the bed. This genuine block keeps the original 20 x 20 x 10mm footprint and bore positions, so the latching sock, the Creality CR-6 MK Nozzle, 0.4mm and the levelling probe all sit exactly where the firmware expects them.

Aluminium that heats quickly and evenly

Aluminium conducts heat well and has low thermal mass at this size, so the block reaches printing temperature quickly and responds fast when the cartridge switches on and off. That suits everyday PLA, PETG and ABS printing on the CR-6 SE, which is rated to a nozzle temperature of 260°C. After fitting, run a hotend PID autotune, such as M303 E0 S220 C8 followed by M500 in Marlin, so the firmware learns the new block's thermal response and holds temperature tightly.

The moment to upgrade the rest of the hotend

With the hotend apart, it is the cheapest point to replace other worn parts. A fresh nozzle is worth fitting at the same time, since the old one has probably been through the same blob. If you want to print hotter or reduce heat creep, the Copper and Titanium Heat Break for Creality CR-6 SE fits this block's M6 heat break bore and replaces the stock PTFE-lined throat.

Reassembly that does not leak

Most heater block leaks come from assembly order, not the part. Thread the heat break in fully first, then screw the nozzle in until it seats against the heat break with a small gap left between the nozzle hex and the block. Final-tighten the nozzle at around 240°C while you hold the block with a spanner, so you do not load the strain gauge. Secure the cartridge and thermistor gently, since overtightening the grub screws can crush the thin thermistor leads.

Full specifications: Creality CR-6 SE heater block

Ordering your CR-6 SE heater block: shipping and support

The heater block ships by courier anywhere in South Africa, or you can collect it from our Centurion or Boksburg stores. As a genuine Creality part it is covered against manufacturing defects under our standard warranty, handled locally by our own team. While you are rebuilding, the Creality CR-6 SE Silicone Sock, Creality CR-6 SE Heat Break and other Creality spare parts are available from the same store.

CR-6 SE heater block: frequently asked questions

Should I fit this stock block or the Micro Swiss all-metal hot end?

Fit the stock block if you mainly print PLA, PETG and ABS and want a factory-spec repair. The Micro Swiss All Metal Hot End for Creality CR-6 SE & CR-10 Smart replaces the whole assembly and suits higher temperatures, but costs more and needs firmware temperature limits checked.

Can I print ABS or TPU after rebuilding with this block?

Yes, both print well with a correctly assembled stock hotend. ABS runs comfortably below the CR-6 SE's 260°C nozzle rating, and TPU works at slow speeds through the Bowden extruder. For sustained printing above about 240°C, fit an all-metal heat break, because the stock throat is PTFE-lined.

How long does it take to swap the heater block?

Allow 30 to 45 minutes, including a PID autotune and re-levelling. You remove the hotend cover, release the cartridge and thermistor, unscrew the heat break and nozzle, then reassemble on the new block. Final-tighten the nozzle hot, then run the PID autotune and the auto-levelling routine before printing.

Why is filament leaking from my new heater block?

Leaks almost always mean the nozzle is not seated against the heat break inside the block. Heat the hotend to around 240°C, back the nozzle out slightly, screw the heat break down fully, then tighten the nozzle against it, leaving a small visible gap between the nozzle hex and the block.

Is local warranty support available in South Africa?

Yes, any manufacturing defect is handled locally by 3D Printing Store's support team, not through an overseas claims process. The block has no wiring or plug, so there are no 220V compatibility concerns. Our technicians in Centurion and Boksburg can help if you run into thermal errors after a rebuild.
