CO2 Laser Machine Toolkit for Cron Laser Cutter
Share on social media:
The toolkit that came with your Cron laser cutter disappears over time. A hex key goes home with a technician, the spanner ends up in the workshop drawer, and the spare fuses get used during a power trip and never replaced. Then the day comes when you need to adjust a mirror mount or reset the focus height, and you are hunting for a tool that fits.

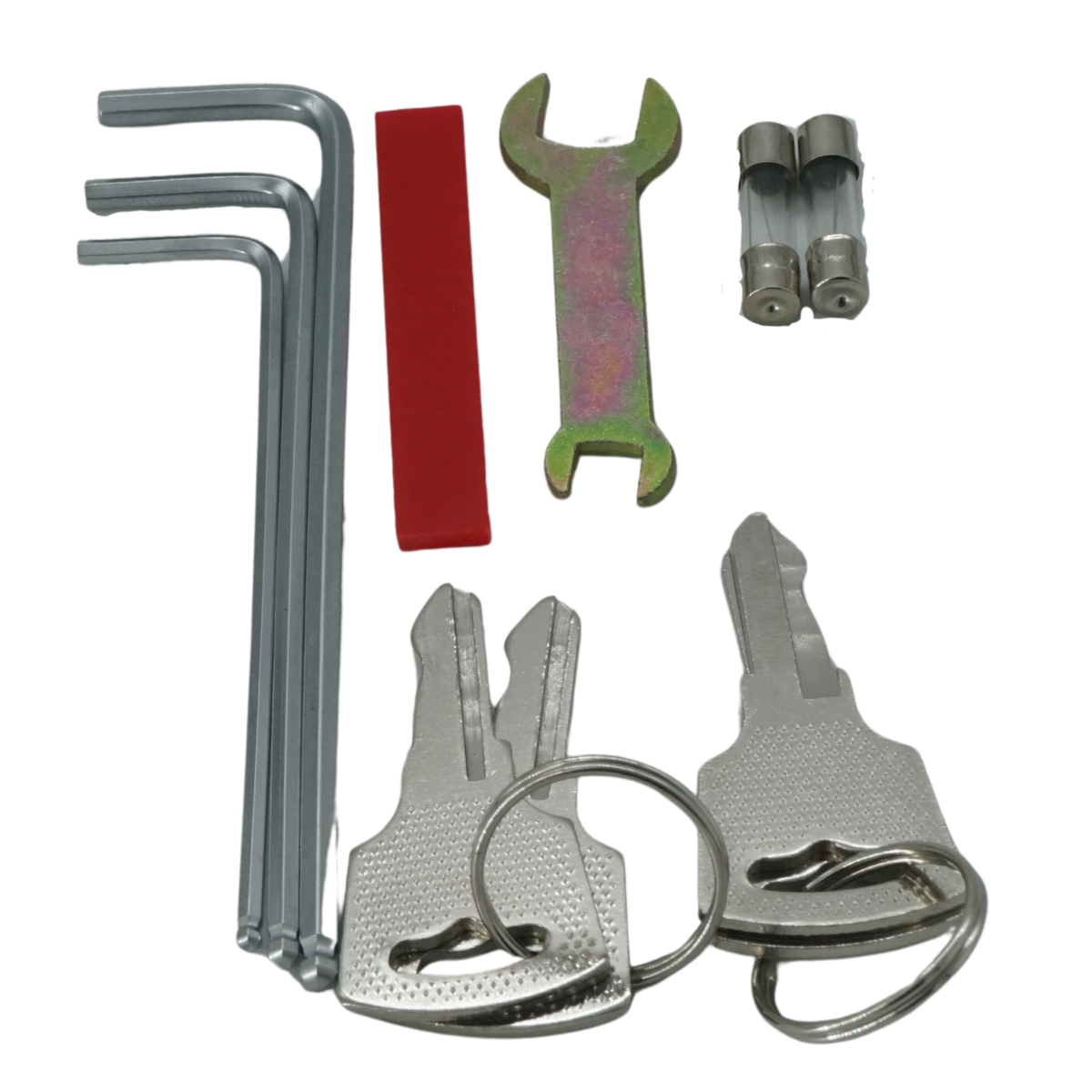

This CO2 laser machine toolkit puts the everyday service tools for your Cron laser cutter back in one place: ball-end hex keys, a flat spanner, a focus gauge block, spare glass fuses and machine keys. Keep it next to the machine and routine adjustments stay routine.
3 ball-end hex keys | Double-ended flat spanner | Red focus gauge block | 2 spare glass cartridge fuses | 3 machine keys on split rings | Suits Cron CO2 laser cutters | Replaces the factory accessory kit
Who the CO2 laser machine toolkit is built for
Owners who have lost the original tools
If you bought a used Cron laser cutter, or your original kit has thinned out over the years, this toolkit restores what you need for day-to-day care. The hex keys handle the cap screws on mirror mounts and the laser head, the spanner fits the flat-sided parts that need holding, and the spare keys get you back into a machine you would otherwise be locked out of. Fifteen minutes with the right tools beats a lost afternoon improvising with pliers.
Laser businesses with more than one operator
When several staff share one laser, tools go missing and nobody knows where. A second, dedicated toolkit kept at the machine means your operators can refocus, swap a blown fuse or tighten a loose screw without waiting for the one person who knows where the original is. On a busy day running name badges or wedding table numbers, that is the difference between a five-minute pause and a stalled order.
Schools and makerspaces
A shared laser cutter needs tools that stay with the machine, not in a technician's bag. Keep this kit locked in the cabinet beside the laser so staff can carry out approved adjustments, while the spare machine keys let the responsible teacher control who can power the machine up. The focus gauge also helps learners set the correct height consistently, which means fewer ruined sheets of MDF and acrylic.
What sets this Cron laser cutter toolkit apart
Ball-end hex keys for awkward angles

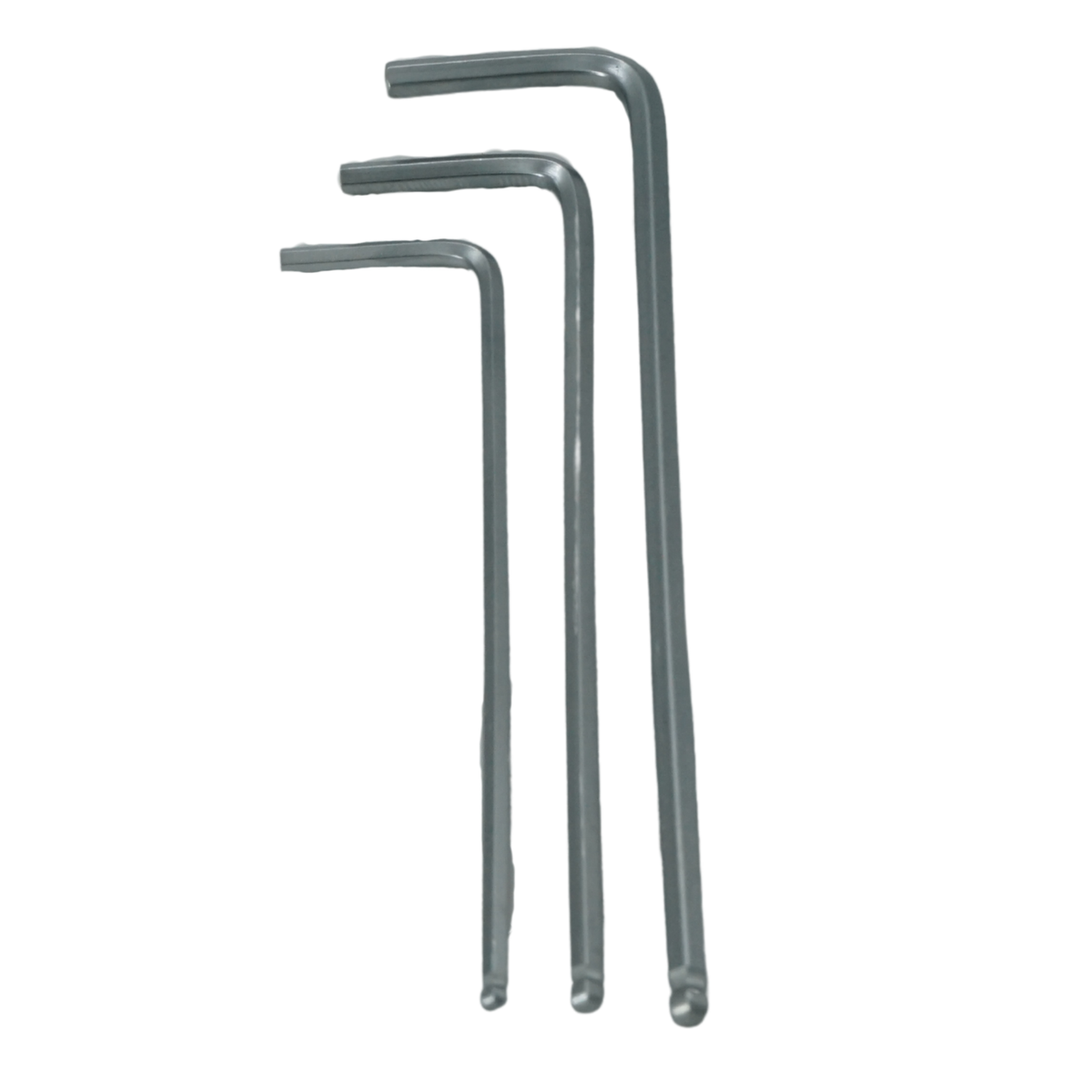

The three hex keys have a ball end on the long arm, so you can turn a cap screw at an angle when you cannot get square to it. That matters inside a CO2 laser, where mirror mounts and the laser head sit in tight spaces behind the gantry. Use the short arm for final tightening and the ball end for fast spinning. The graduated set covers the common cap screw sizes found on desktop laser cutters.
A flat spanner that reaches where a socket cannot

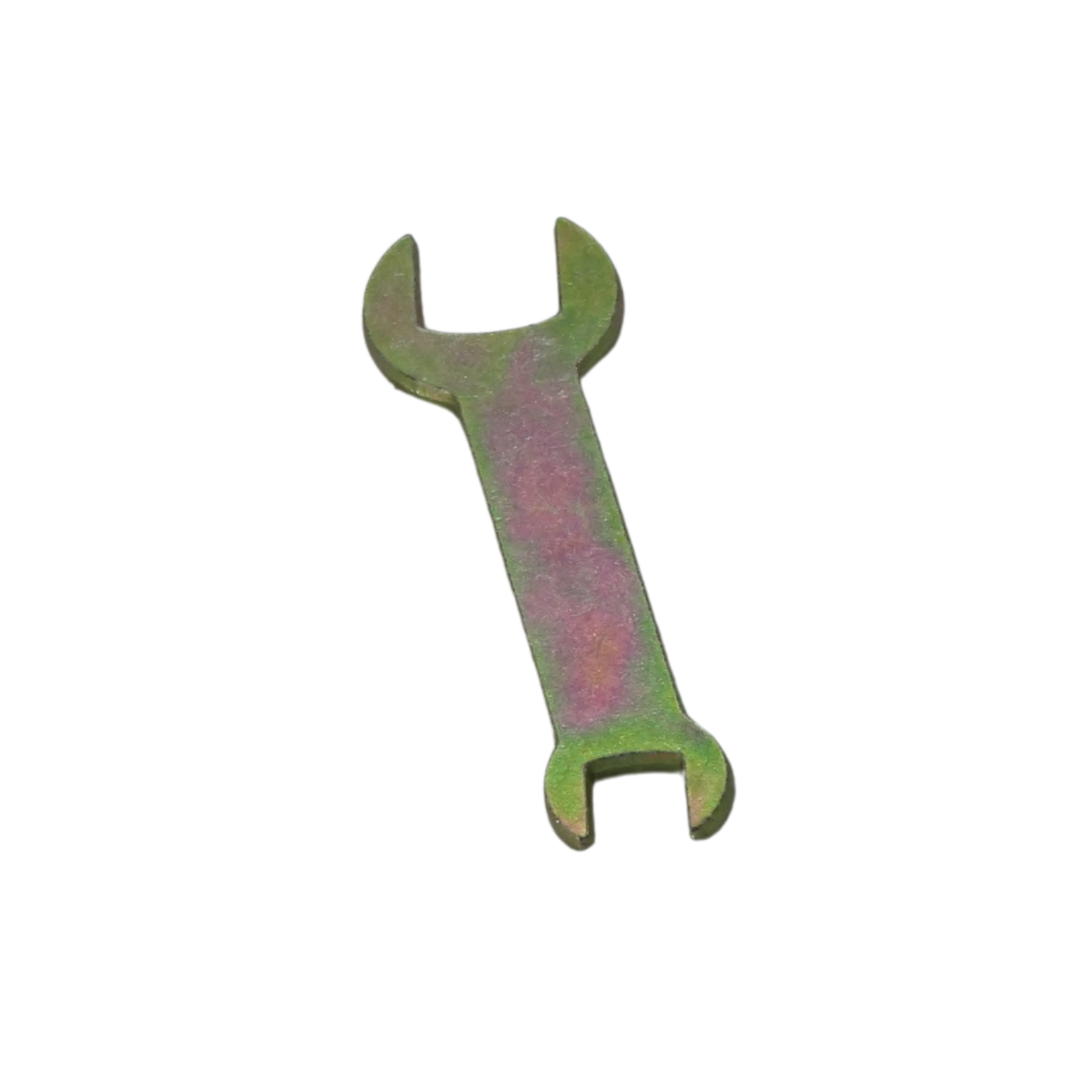

The double-ended stamped spanner is thin enough to slide into the narrow gaps around the laser head, the lens tube and the air assist fitting. Use it to hold a part steady while you tighten against it with a hex key, or to loosen a lock nut after an adjustment. Being flat and light, it also stores easily in the machine's side compartment, so it is there when you need it.
Set focus height the same way every time

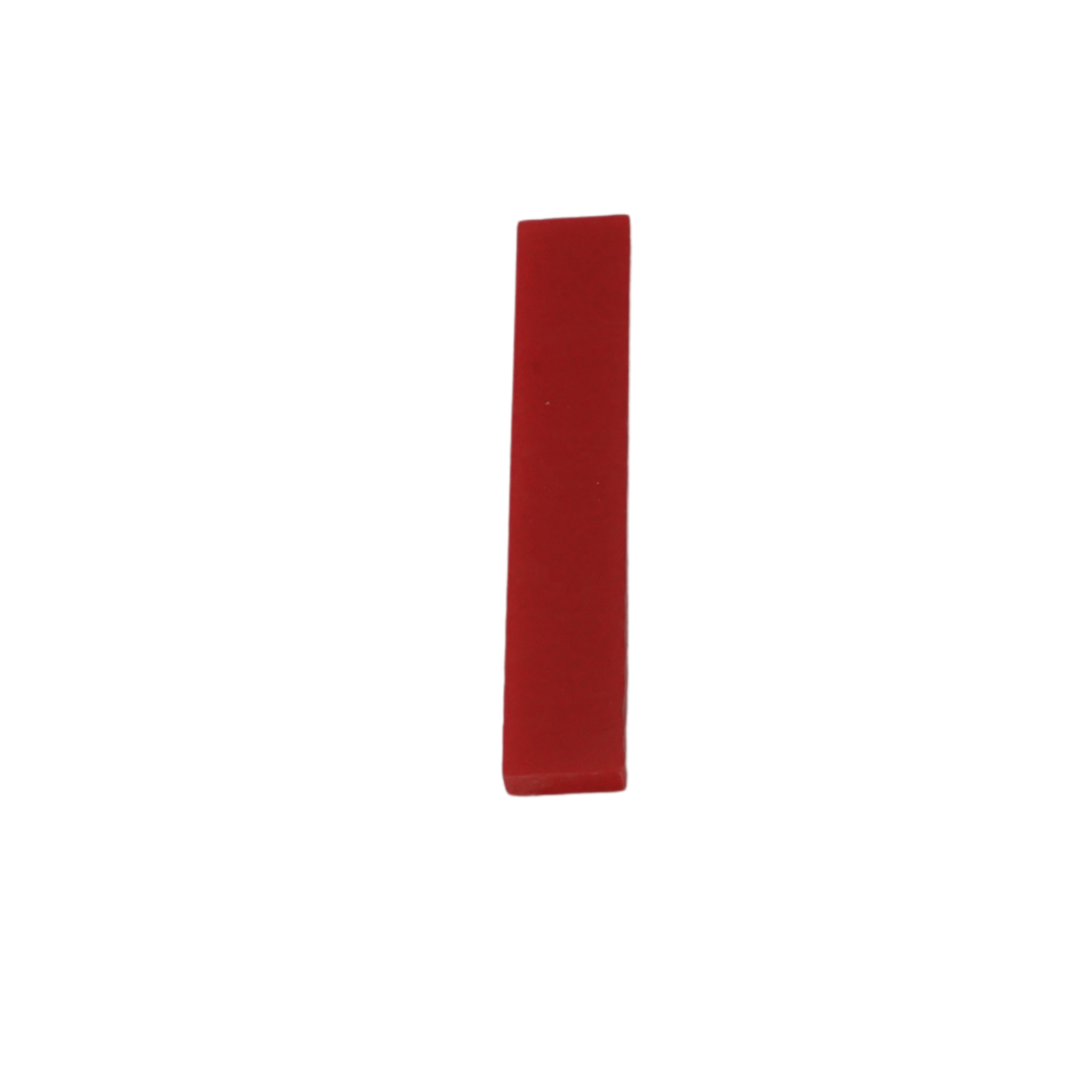

Your CO2 laser only cuts and engraves cleanly when the material sits at the lens's focal length. The red focus gauge block gives you a fixed reference: rest it on the material, lower the head until it just touches, then lock the height. Using the same block every time removes guesswork, so a setting that cut 3mm plywood cleanly last week gives the same result this week. Change materials and you reset the height in under a minute.
Spare fuses for when the power trips

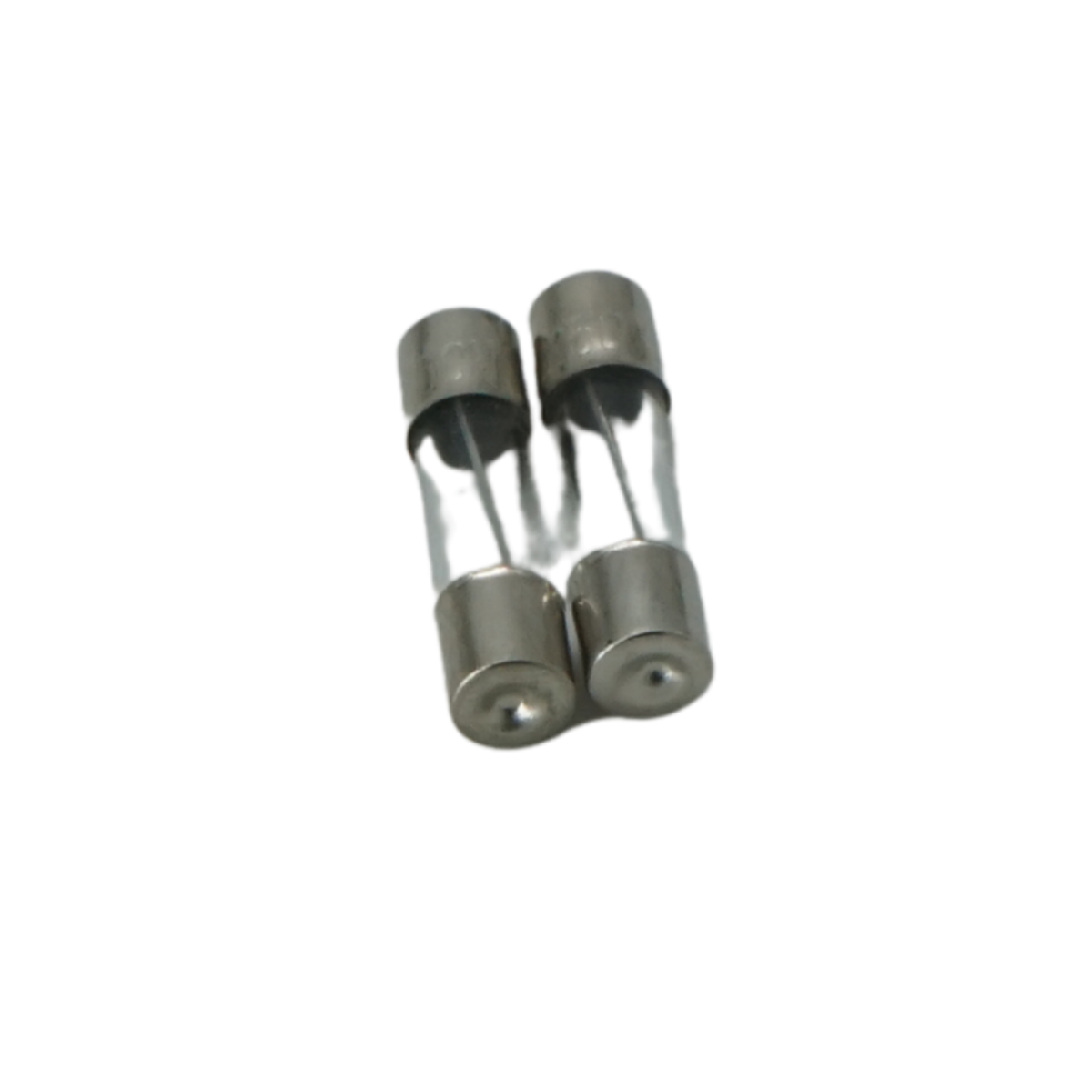

A blown fuse stops the whole machine, and it often happens at the worst time, such as when power returns after load shedding. The two spare glass cartridge fuses let you get running again immediately rather than driving out to find the right rating. Always match the rating printed on the fuse you remove, and if a new fuse blows straight away, stop and find the cause before replacing it again.
Spare keys that keep control of the machine
The kit includes three machine keys on two split rings: a matching pair on one ring and a single key on the other. Keys control who can open and operate a CO2 laser, which is an important safety measure in schools, shared workshops and busy production spaces. Keep one set with the responsible person and store the spare set securely, so a lost key never stops production.
| Option | Laser-specific items | Machine keys | Best suited to |
|---|---|---|---|
| CO2 laser machine toolkit (this kit) | Focus gauge and spare fuses included | Yes | Replacing a lost factory kit or adding a second kit |
| General hardware store tool set | No | No | General workshop use, not laser setup |
| Sourcing items one by one | Only if you know each size and rating | Hard to source | Replacing a single known item |
Full specifications: CO2 laser machine toolkit
| Spec | Value |
|---|---|
| General | |
| Product type | CO2 laser machine service toolkit |
| Store SKU | LAS518 |
| Compatibility | Cron CO2 laser cutters |
| Contents | |
| Hex keys | 3 x L-shaped ball-end hex keys, graduated sizes |
| Spanner | 1 x double-ended flat stamped spanner, zinc plated |
| Focus gauge | 1 x red focus gauge block |
| Fuses | 2 x glass cartridge fuses |
| Machine keys | 3 keys on 2 split rings (matching pair plus single key) |
Ordering, shipping and support for your CO2 laser toolkit
We courier the CO2 laser machine toolkit anywhere in South Africa, or you can collect it from our Centurion or Boksburg store. It carries our carry-in warranty against manufacturing defects, handled locally by our own technical team. For adjustments you are unsure about, log a technical support ticket before you start. We also stock CO2 laser accessories, CO2 laser tubes and spare parts for machines such as the Cron CO2 Laser Cutter, 4040.
Frequently asked questions about the CO2 laser machine toolkit
Is this the same toolkit that ships with a new Cron laser cutter?
It is a replacement for the accessory kit supplied with Cron CO2 laser cutters, containing the tools used for routine setup and maintenance. Buy it when the original kit has gone missing, when you buy a used machine, or when you want a second kit so several operators each have access to the right tools.
Will the spare keys fit my machine?
The keys are intended for Cron CO2 laser cutters. Because locks can change between production batches, compare the key profile with your existing key or lock before relying on them. If you have lost every key and cannot compare, log a support ticket with your machine model and a photo of the lock.
How do I use the focus gauge block?
Place your material on the bed, stand the gauge block on it under the nozzle, then lower the laser head until it just touches the block. Lock the head, remove the block and run your job. Repeat whenever you change material thickness, and run a short test on an offcut if the cut edge looks wide.
What should I do if a replacement fuse blows immediately?
Stop and find the fault before fitting another fuse. A fuse that blows straight away points to a short circuit or a failing component such as a power supply. Switch off and isolate the machine, then check for damaged wiring, and contact our technical team if you cannot trace the cause.
Do I need other tools to maintain my CO2 laser?
This kit covers routine adjustments, but full maintenance needs a few extras. Keep lens cleaning fluid and lint-free swabs for the mirrors and focus lens, a multimeter for electrical checks, and masking tape for mirror alignment tests. You can find cleaning and replacement parts in our CO2 laser accessories range.
