BT30 Handle with pull stud for ATC Spindle, ER20

In stock - 9 items available
SKU: ATC011
Regular price R 849.95 incl. VAT

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

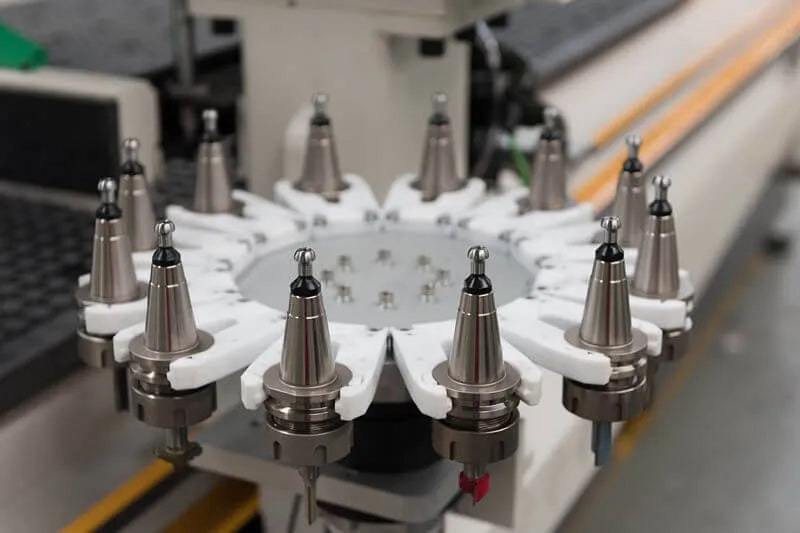

These are additional BT30 Handles to be used with ATC spindles for example the 3kW ATC spindle we sell.  As you can see in the pictures, the machining is of a very high standard and the runout is <0.003mm.  The collet interface is ER20 which ranges from a 1mm collet to a 13mm collet size.

The handle come with a 45° pull stud and will require a ER20 collet to use it.

Specifications:

  • Handle model: BT30
  • Length: 70mm
  • Angle of included pull stud: 45°
  • Collet interface: ER20
  • Material: 40CR Steel
  • Runout: <0.003mm
  • Maximum speed rating: 8000RPM
