Home » Wanhao Castable Resin, 1kg, Green

Wanhao Castable Resin, 1kg, Green

Only 2 left
SKU: WAN642
(0)
R 2,399.95 incl. VAT

Share on social media:

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Wanhao Castable resin is designed for lost wax castings used for jewellery and dental castings. The printed part offers 100% ash-free burnout for direct casting.

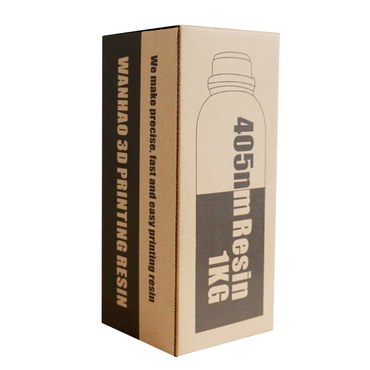

The resin comes in a strong metal bottle which keeps all light away from the resin and is very well packaged.

Specifications:

  • Colour: Green
  • Amount: 1kg
  • Curing frequency: 395-420nm
  • Operating Temperature: 25℃ - 35℃
  • Shelf life: 12 Months
  • Hardness: 75 Shore D
  • Liquid Density: 1.0-1.11 g/cm³
  • Viscosity (@25℃): 250-350cP

Technical Data
Recommended printing thickness: 0.025 ~ 0.1mm（ 25 ~ 100μm）
Suitable wavelength: 395 ~ 420nm
Operating temperature: 30 +-5℃
Surface hardness: 75D
Density: 1.0-1.11 g/cm³
Viscosity: 250-350CPS（25℃）
Color : Green
First layer exposure time: 5 ~15S
Single layer exposure time: 30 ~60S
Shelf life: 12 Month
Fluidity: Moderate



Storage instructions:

  1. Keep away from light. (Sunshine contains a lot of UV light, it will solidify photosensitive resin).
  2. It is recommended to store at 15℃ - 35℃ ambient temperature, the lower the temperature, the higher the viscosity of the resin. Keep resin sealed during storage. Excessive dust or moisture can affect print quality.

Usage instructions:

  1. Shake well before use, some resins do contain sediment which will sag to the bottom of the container.
  2. Wear gloves during use to avoid direct contact with skin and keep the room well ventilated.
  3. In an event of contact with skin, rinse with running water. If you feel unwell, seek medical attention.
  4. Printed models need to be cleaned with a high-concentration alcohol (IPA) to clean the printed part for about 30s (recommended concentration of 95% or more, the higher the better). Water washable resins can be washed off with water.
  5. Do not pour the resin into the resin vat which contains unused resin. The resin in the vat can be dirty and pollute the new resin.
  6. Do not leave the resin in the resin vat for a long period of time without use to avoid resin pollution affecting the printing quality. Rather pour the clean unused resin into a light blocking container. Resin has a shelf life of up to 18 months
