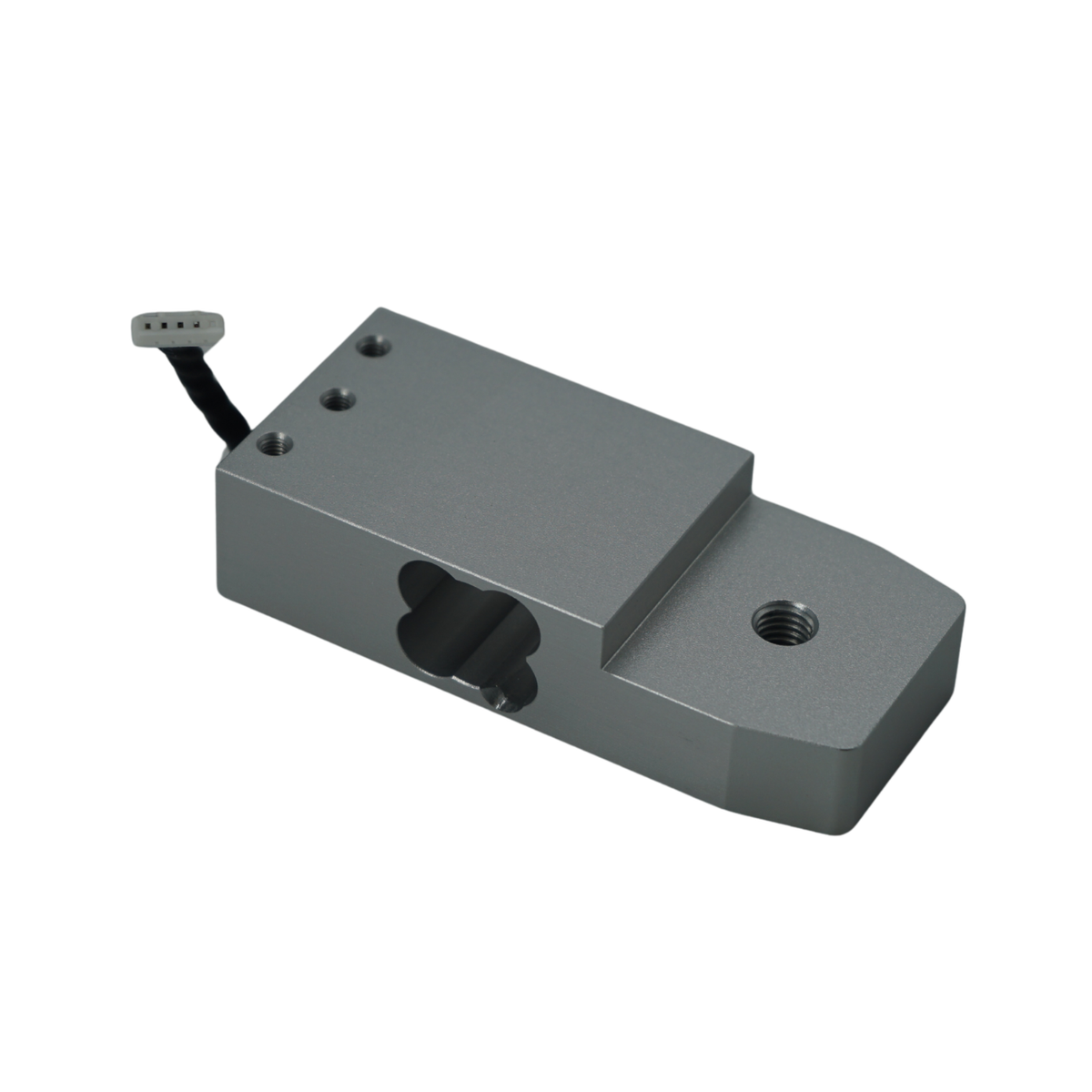

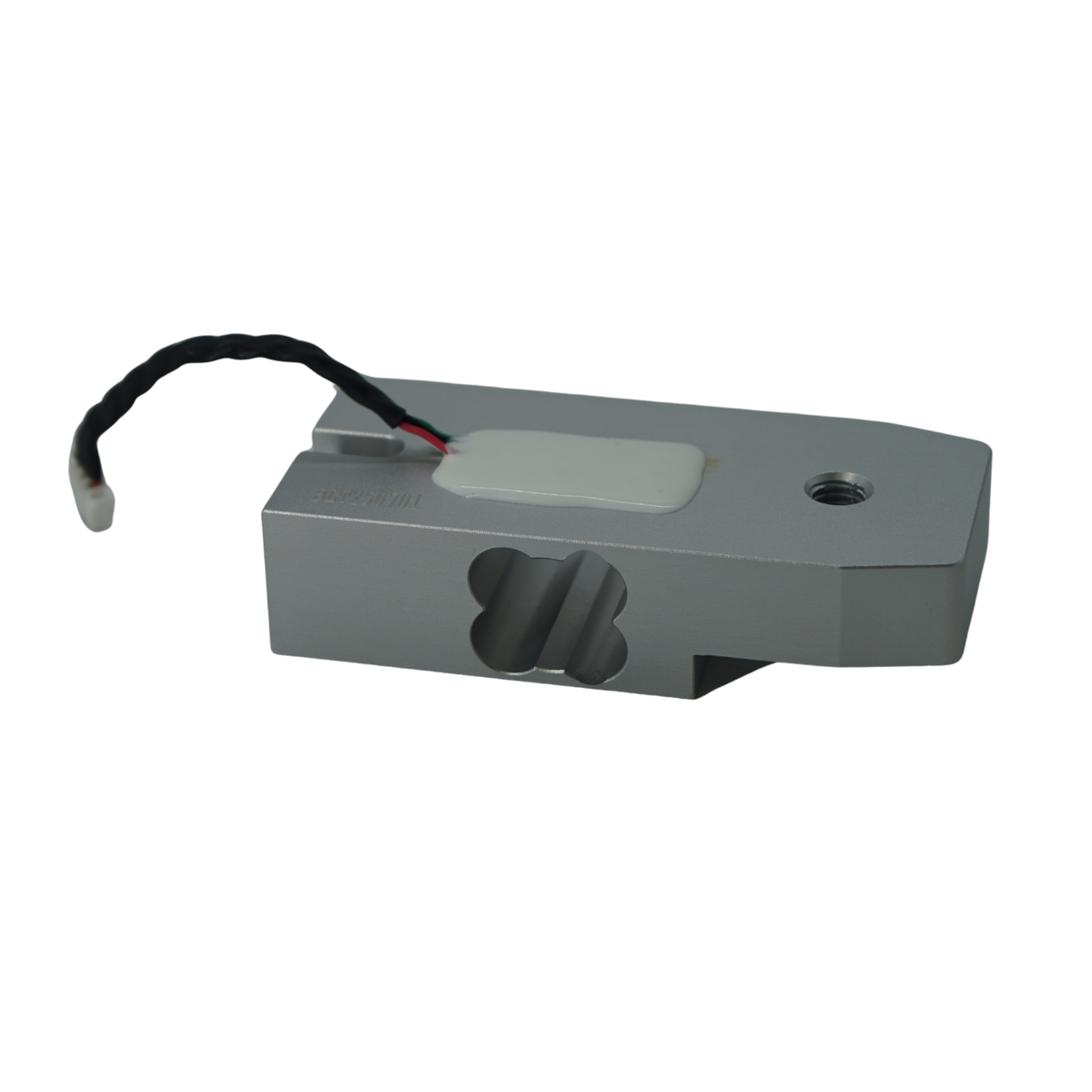

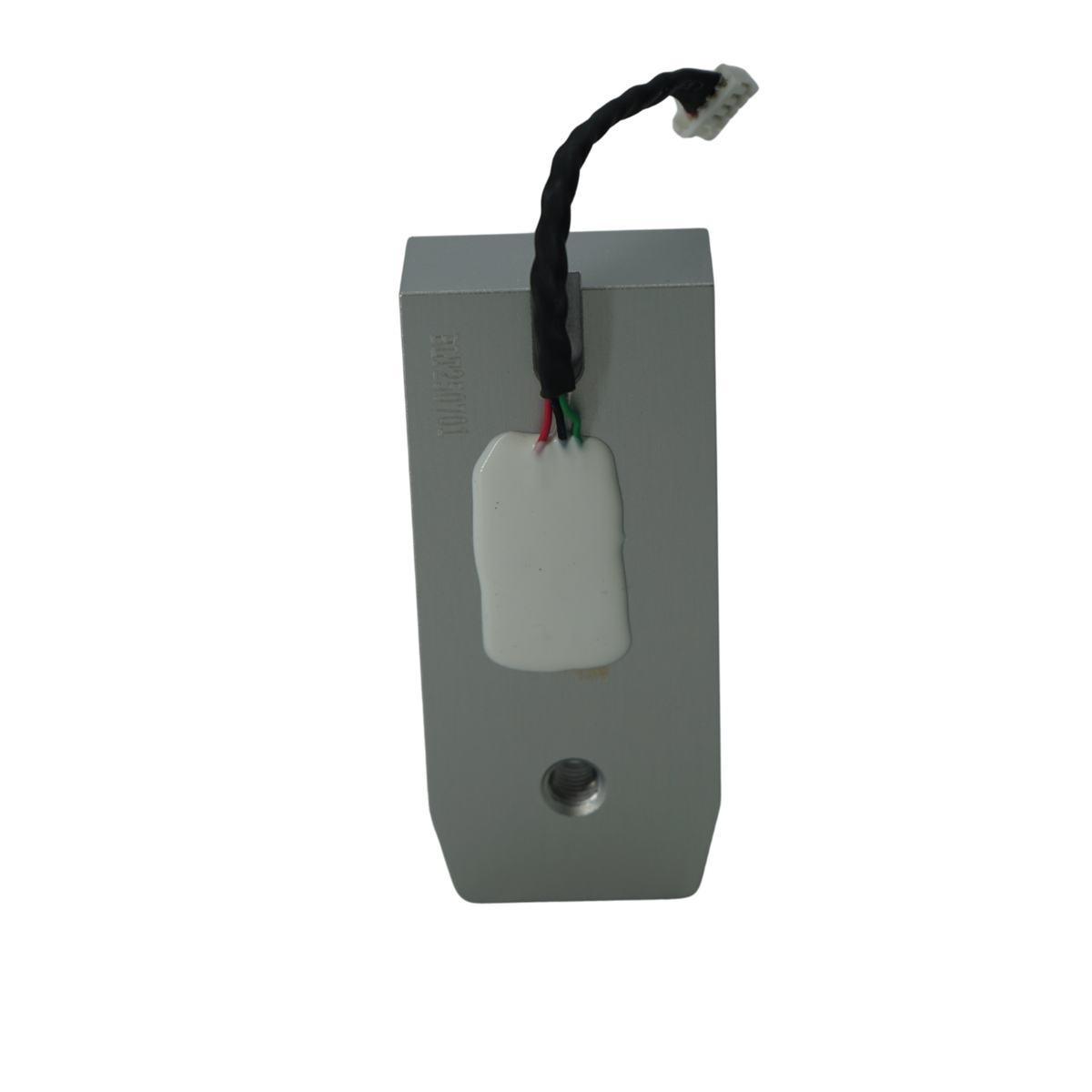

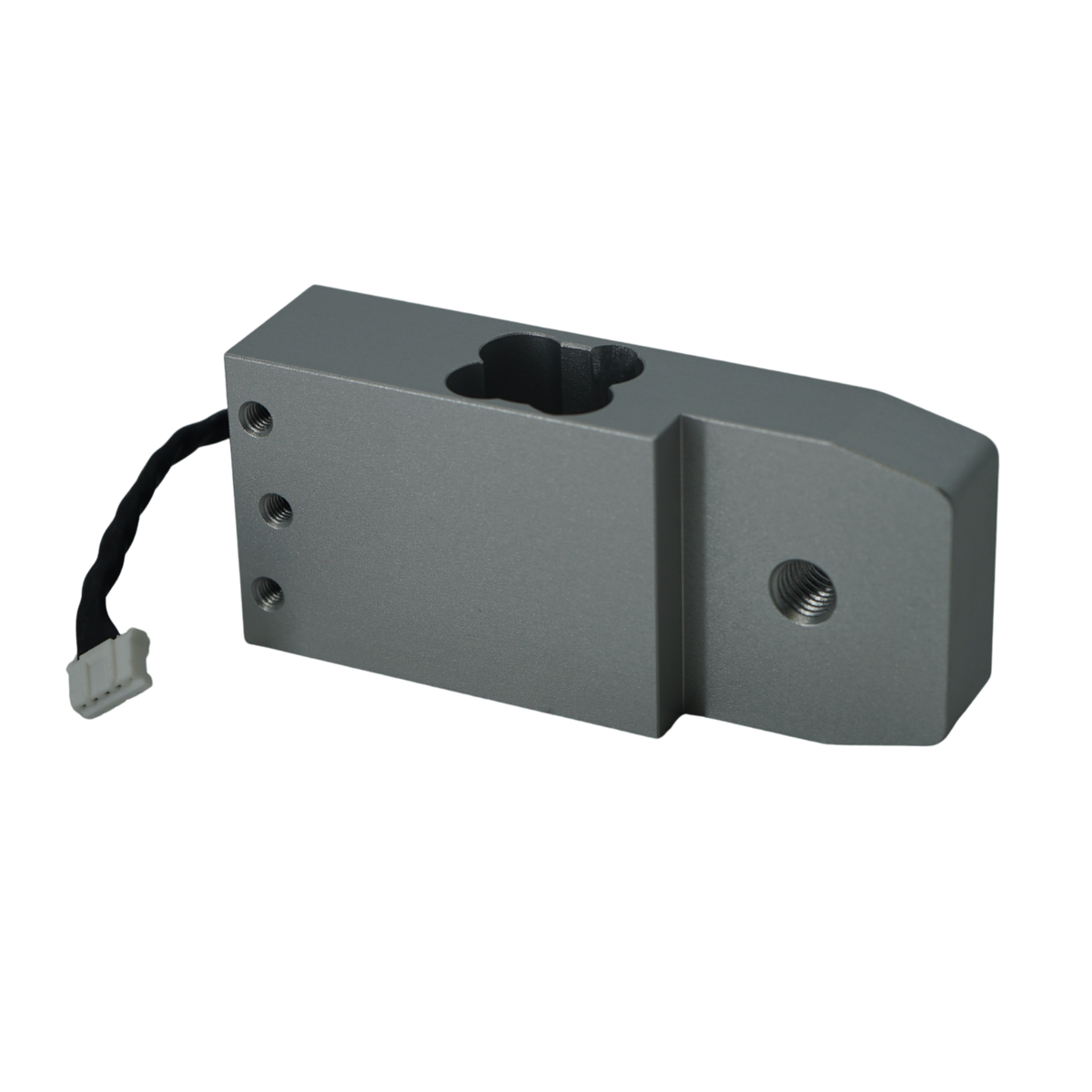

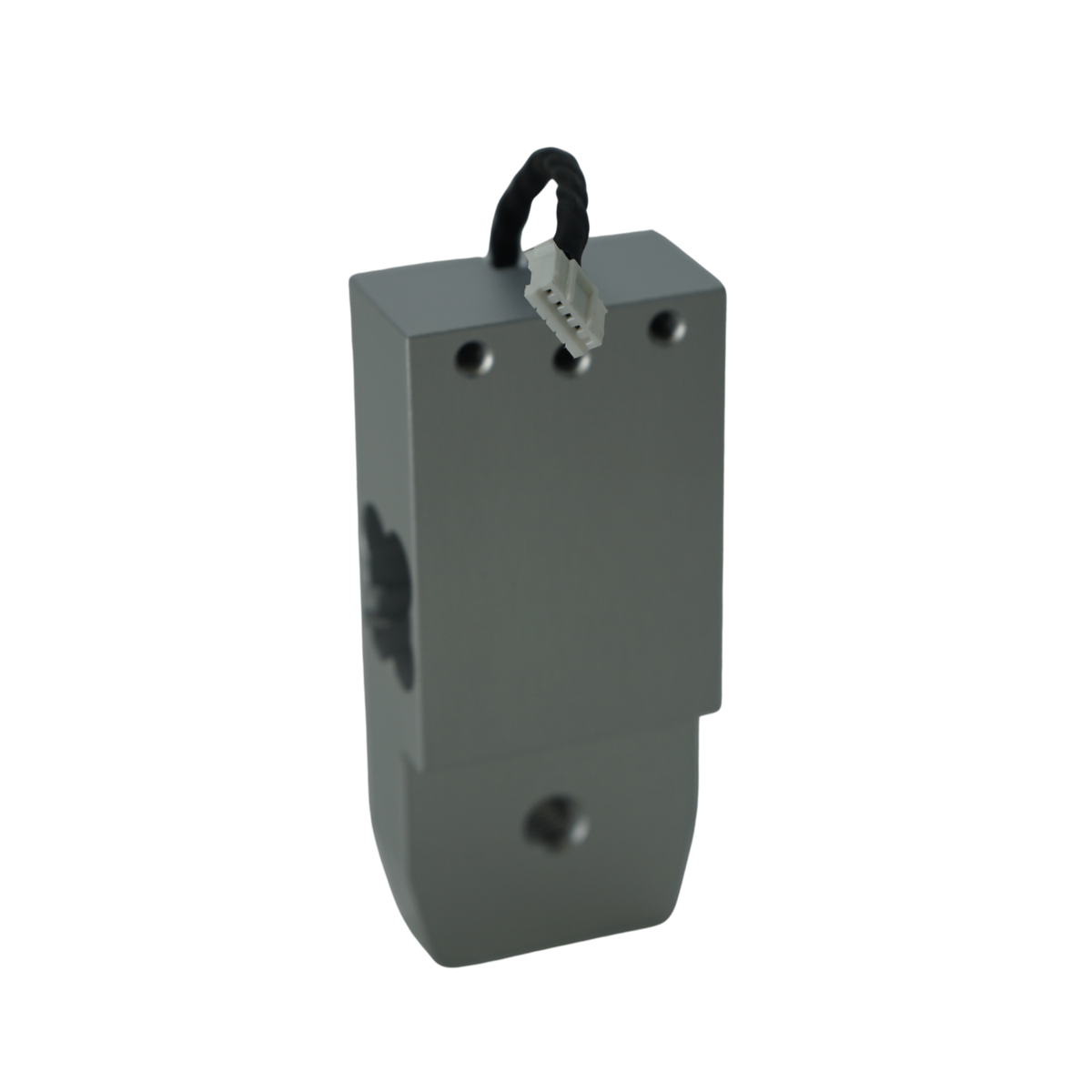

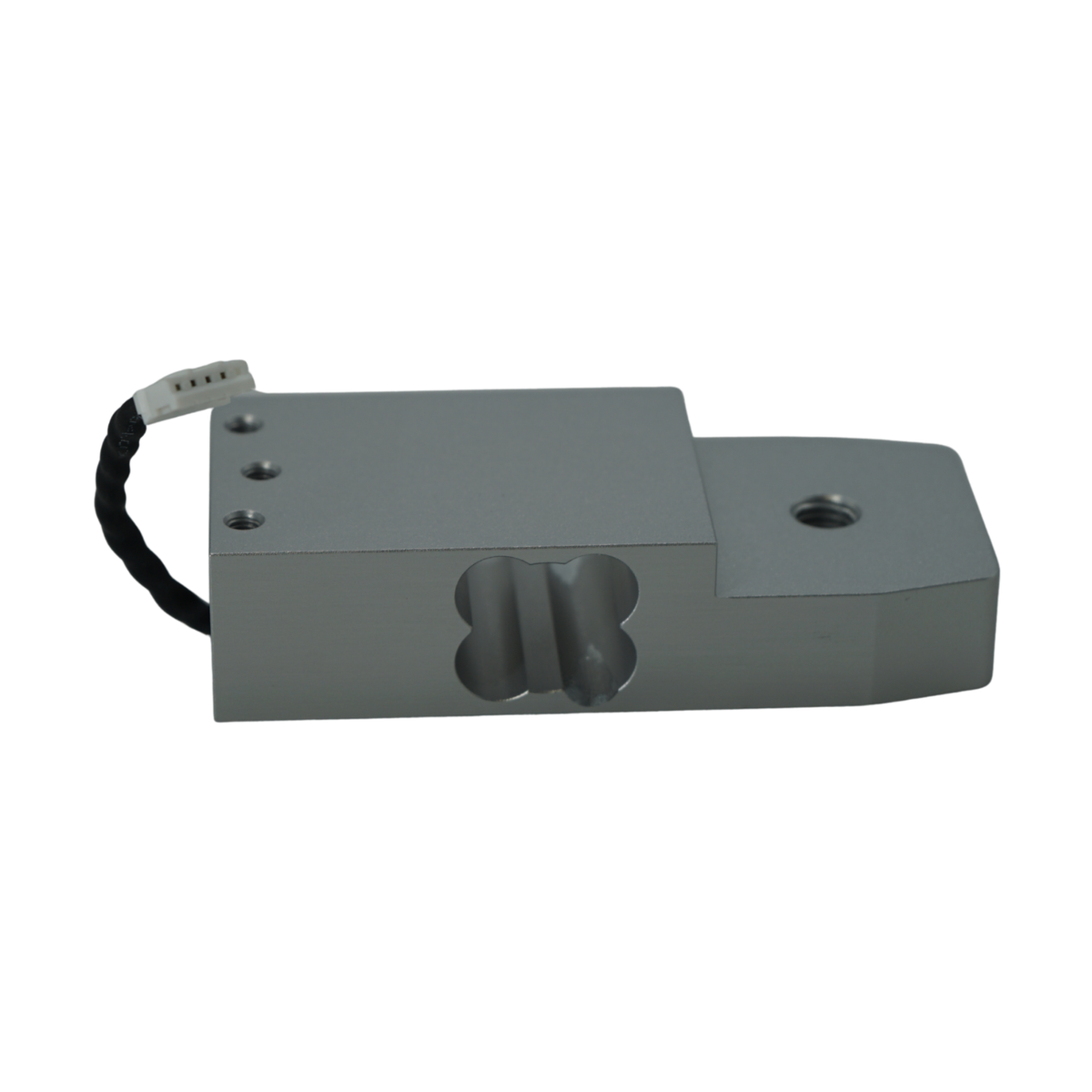

Anycubic Resistance Strain Gauge for Photon Mono M7/M7 Pro

A Photon Mono M7 or M7 Pro that suddenly starts printing its first layer in mid-air, or that grinds and clicks harder than usual during its homing routine, is not always a sign of a worn Z motor. More often the fault sits in one small sensor buried inside the Z-axis carriage, the resistance strain gauge that tells the printer exactly when the build plate has touched the screen.

The Anycubic Resistance Strain Gauge for M7 and M7 Pro is the genuine sensor Anycubic fits at the factory to run that auto-levelling routine. Replace a worn or drifting unit with this part and the printer goes back to setting its own Z-zero accurately, print after print, without you touching a levelling screw.

Genuine Anycubic OEM sensor | Fits Photon Mono M7 and M7 Pro | Drives one-touch auto-levelling and Z-zero calibration | Resistance strain gauge, converts contact force to an electrical signal | Plug-and-play harness connector | Prevents over-force damage to the LCD screen | Ships nationwide across South Africa

Who the Anycubic M7 Pro strain gauge is built for

Small print farm operators

When one printer in a bank of Photon Mono M7 Pro units starts producing floating first layers or failed casts, the fault usually traces back to this sensor rather than the whole motherboard. Because it is the same part fitted at the factory, you can swap it into the failing unit and have it back in rotation for the next overnight batch, instead of pulling the machine out of service for a full board replacement.

Hobbyist and DIY makers

If your printer's auto-levelling routine keeps reporting a level plate that clearly is not level, or you hear an unusually hard knock when the build plate comes down to home, a drifting strain gauge is a common cause. Anycubic documents the swap as a straightforward job with a single connector to unplug, so you do not need to buy a whole new gauge assembly or send the printer in for a service callout.

Dental and jewellery professionals

Casting patterns and dental models depend on the build plate finding true zero on every print, since even a fraction of a millimetre of error at the first layer throws off fit. A sensor that has started drifting from age or heat exposure introduces exactly that kind of inconsistency. Fitting a genuine replacement restores the tight, repeatable Z-zero the M7 Pro was designed to hold.

What sets the Anycubic M7 Pro strain gauge apart

The part that tells your printer where zero actually is

A strain gauge works by changing its electrical resistance very slightly as it flexes, the same principle used in load cells and industrial force sensors. Anycubic mounts this one inside the Z-axis carriage, where it picks up the small amount of force transmitted through the carriage arm the instant the build plate touches the LCD screen. That single signal is what the firmware uses to set Z-zero before every print, instead of you levelling the plate by hand.

Genuine fit, no recalibration guesswork

Because this sensor is manufactured to the same resistance characteristics as the original, the printer's homing routine reads it correctly without needing a custom force-threshold adjustment in the firmware. You fit it, run the built-in auto-levelling check, and the M7 Pro re-establishes Z-zero the same way it did when the printer was new.

One sensor, three printers in the range

Anycubic uses this same resistance strain gauge across the Photon Mono M7, M7 Pro, and Mono 4 Ultra. If you run more than one of these printers, or a workshop has a mixed fleet, that means one spare part number covers the lot rather than hunting down a slightly different sensor for each model.

Catches a problem before it becomes an expensive one

A strain gauge that has started reading incorrectly does not just cause a floating first layer. In the other direction, it can let the build plate drive down with far more force than intended before the printer registers contact, which is a common way M7 series owners end up cracking the LCD screen or masking film underneath. Replacing a sensor that is already showing symptoms is considerably cheaper than replacing the screen it eventually damages.

A repair that stays on your own bench

The swap does not involve any soldering or firmware reflashing. You access the Z-axis carriage, disconnect the factory harness connector from the old gauge, fit the replacement, and reconnect the same plug before closing the carriage back up. Anycubic's own wiki walks through the sequence, and most owners have it done well within an hour.

Full specifications for the Anycubic M7 Pro strain gauge

Ordering, shipping and support for your Anycubic strain gauge

3D Printing Store ships this sensor nationwide across South Africa by courier, with stock held locally at our Centurion and Boksburg branches. If a replacement proves faulty, warranty handling is done in-house at either branch rather than routed back to Anycubic overseas. We also stock the Z motor, LCD screen, and build plate for the M7 and M7 Pro if the levelling fault has caused damage elsewhere in the assembly.

Frequently asked questions about the Anycubic M7 Pro strain gauge

Is the strain gauge for the M7 different from the one for the M7 Pro?

No, Anycubic fits the same resistance strain gauge across the Photon Mono M7, M7 Pro, and Mono 4 Ultra. You order the same part regardless of which of these printers you own.

Will replacing the strain gauge fix my printer's auto-levelling errors?

Yes, in most cases where the plate reports a false level, floats above the screen on the first layer, or homes with excessive force, a worn or drifting strain gauge is the cause. Replacing it restores accurate Z-zero detection, though it will not fix errors caused by resin build-up on the guide rails, which just needs cleaning.

How long does it take to replace the strain gauge?

Most owners complete the swap within an hour, following Anycubic's published guide. It involves opening the Z-axis carriage, unplugging one connector, fitting the new sensor, and reassembling, with no soldering involved.

How do I know when the strain gauge needs replacing?

Watch for a build plate that homes with a noticeably harder knock than before, first layers that print without touching the screen, or an auto-levelling check that repeatedly fails or gives inconsistent results. Any of these point to the sensor drifting out of specification.

Does this part come with local warranty support in South Africa?

Yes, any manufacturing fault is handled through 3D Printing Store's own technicians at our Centurion and Boksburg branches, so you are not left waiting on an overseas return.
