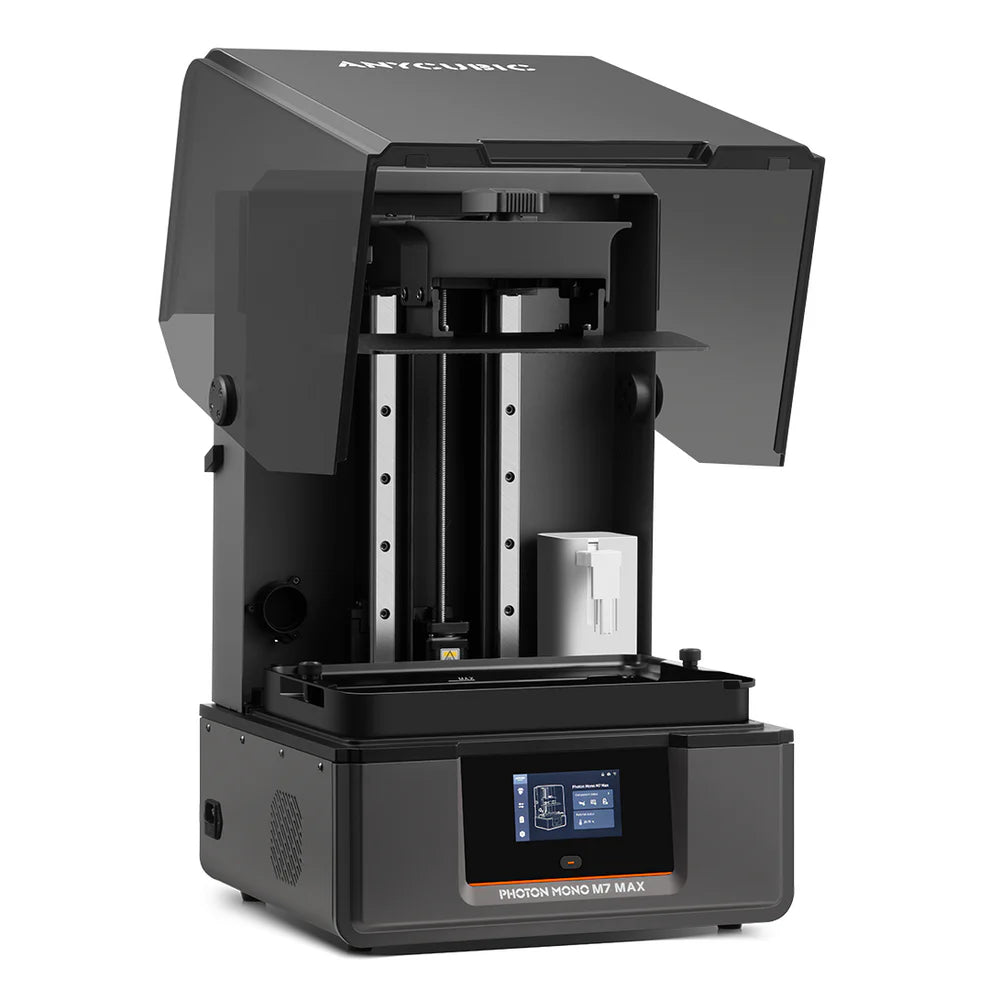

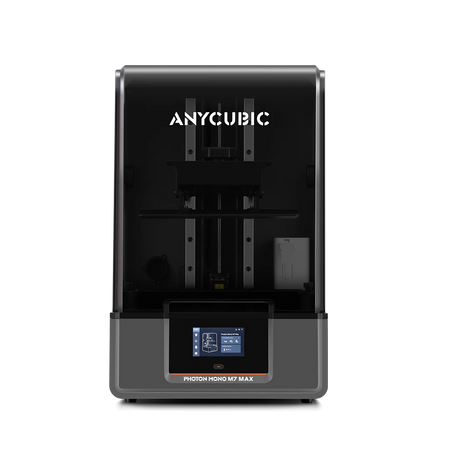

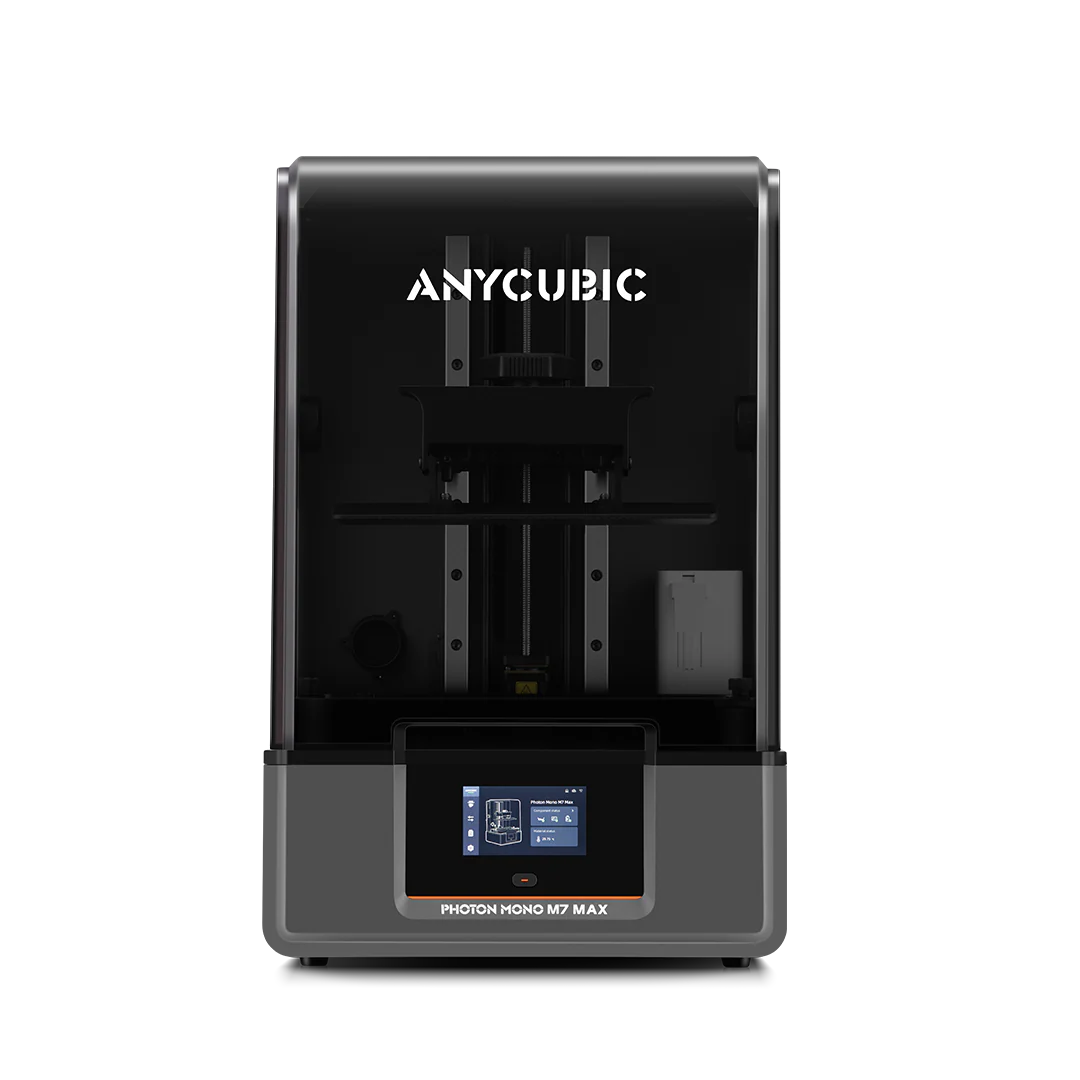

Anycubic Photon Mono M7 Max

Only 5 left
SKU: ANY033
(0)
R 21,999.99 incl. VAT

Share on social media:

The Anycubic Photon Mono M7 Max is a high-performance resin 3D printer designed for creators seeking precision and efficiency. It features a substantial build volume of 298 x 164 x 300 mm, accommodating large-scale projects or multiple models simultaneously. Equipped with a 13.6-inch monochrome 7K LCD screen (6480 x 3600 pixels), the M7 Max delivers an impressive XY resolution of 46 x 46 microns, capturing intricate details with exceptional clarity.

The printer utilizes the LightTurbo 3.0 lighting system, combining a COB light source with a Fresnel lens to ensure uniform light distribution with ≥90% uniformity, enhancing print accuracy and consistency.
With a maximum printing speed of up to 63 mm/h and a minimum layer thickness of 0.01 mm, the M7 Max efficiently produces high-quality prints.
The Intelligent Release 2.0 feature dynamically adjusts the lifting height of the printing platform for each layer, reducing the risk of print failures and improving overall success rates.
An innovative temperature control system automatically preheats the resin to an optimal 25°C, ensuring consistent viscosity and reliable printing conditions.
The M7 Max supports popular slicing software such as Photon Workshop, Chitubox, and Lychee Slicer, offering flexibility and compatibility with various workflows.
Incorporating advanced technology and user-friendly features, the Anycubic Photon Mono M7 Max is a versatile tool for professionals and enthusiasts aiming to elevate their 3D printing projects.

Product Features

  • Build Volume: 298mm x 164mm x 300mm
  • Printing Speed:
    • Standard Resin 0.05mm layer Height ≥31mm/h peek speed
    • Standard Resin 0.1mm layer Height ≥63mm/h peek speed
    • High Speed Resin 0.1mm layer Height ≥86mm/h peek speed
    • Layer Height: 0.01mm - 0.15mm
  • LCD Screen: 13.6 - Inch Mono LCD
  • LCD Resolution: 7K
  • X/Y Axis Resolution: 46*46µm
  • Light Source: COB Light source + Fresnel lens + Light uniformity algorithm
  • Light Uniformity: ≥90%
  • Light intensity: 4500 ± 10%µW/ cm²
  • Release Film: Improved ACF Film
  • Intelligence Assisted Printing System: Yes
  • Air vent: Yes
  • Dynamic temperature control resin vat: Yes
  • Resin Auto-Fill Unit: Yes
  • Display Screen: 4.3-inch color Screen
  • Anycubic App: Yes
  • Machine leveling: 4 Point Manual Leveling
  • Slicing Software:
    • Photon Workshop
    • Chitubox
    • Lycheeslicer
  • File Transfer:
    • USB & WiFi
    • LAN MODE
  • Product Dimensions: 425*362*652mm
  • 785*520*490mm: 620*395*395mm
  • Net Weight: 24KG
