Anycubic LCD Printing Screen for M7 and M7 Pro

A print that fails three hours before it's due, a fleet of jobs stalling because one panel has gone patchy under UV, a dead pixel eating a line of detail off a jewellery mould, these are the moments that send Makers looking for a replacement screen rather than a new printer. The exposure panel is the part of an Anycubic Photon Mono M7 or M7 Pro that does the actual curing work, and it is also the part that wears out first.

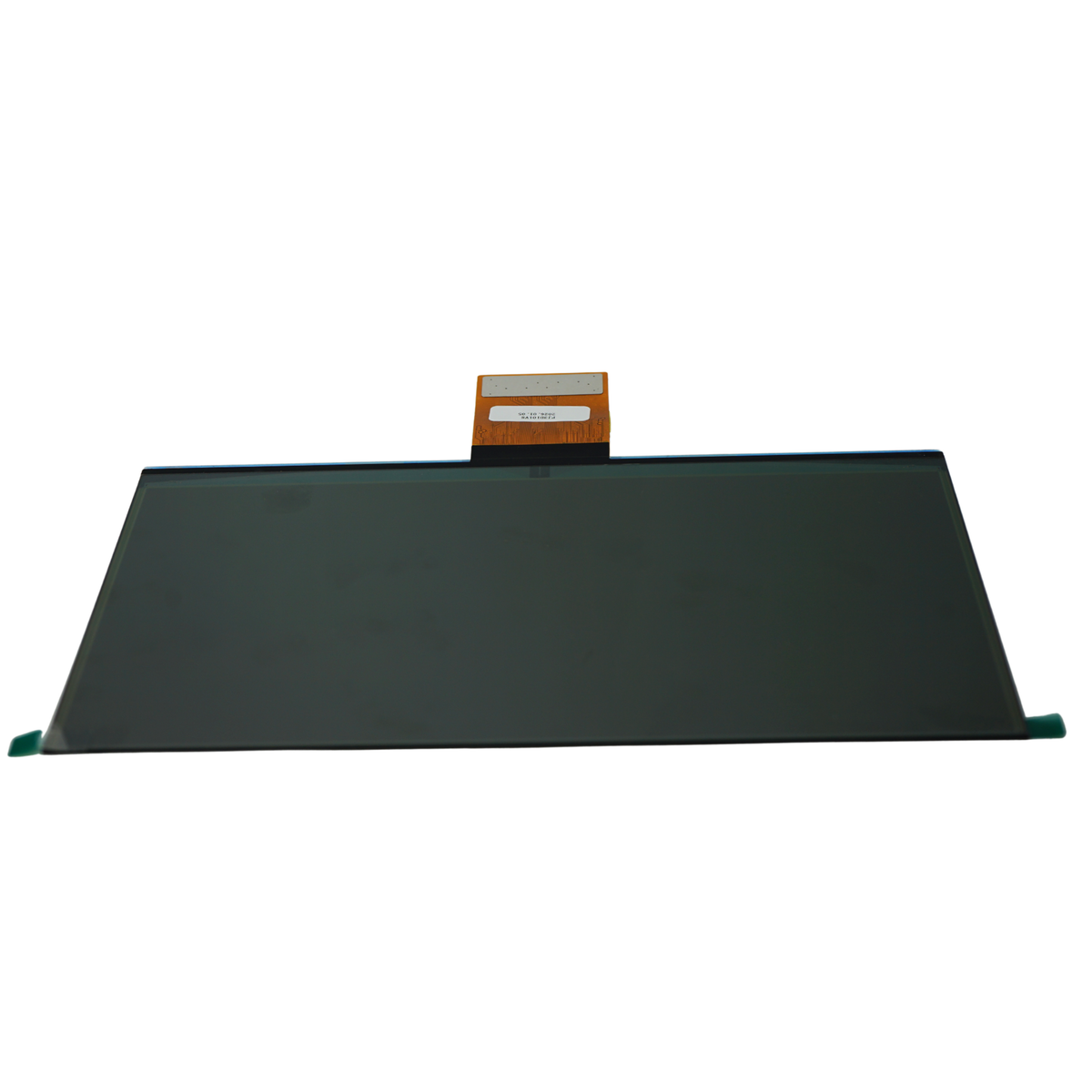

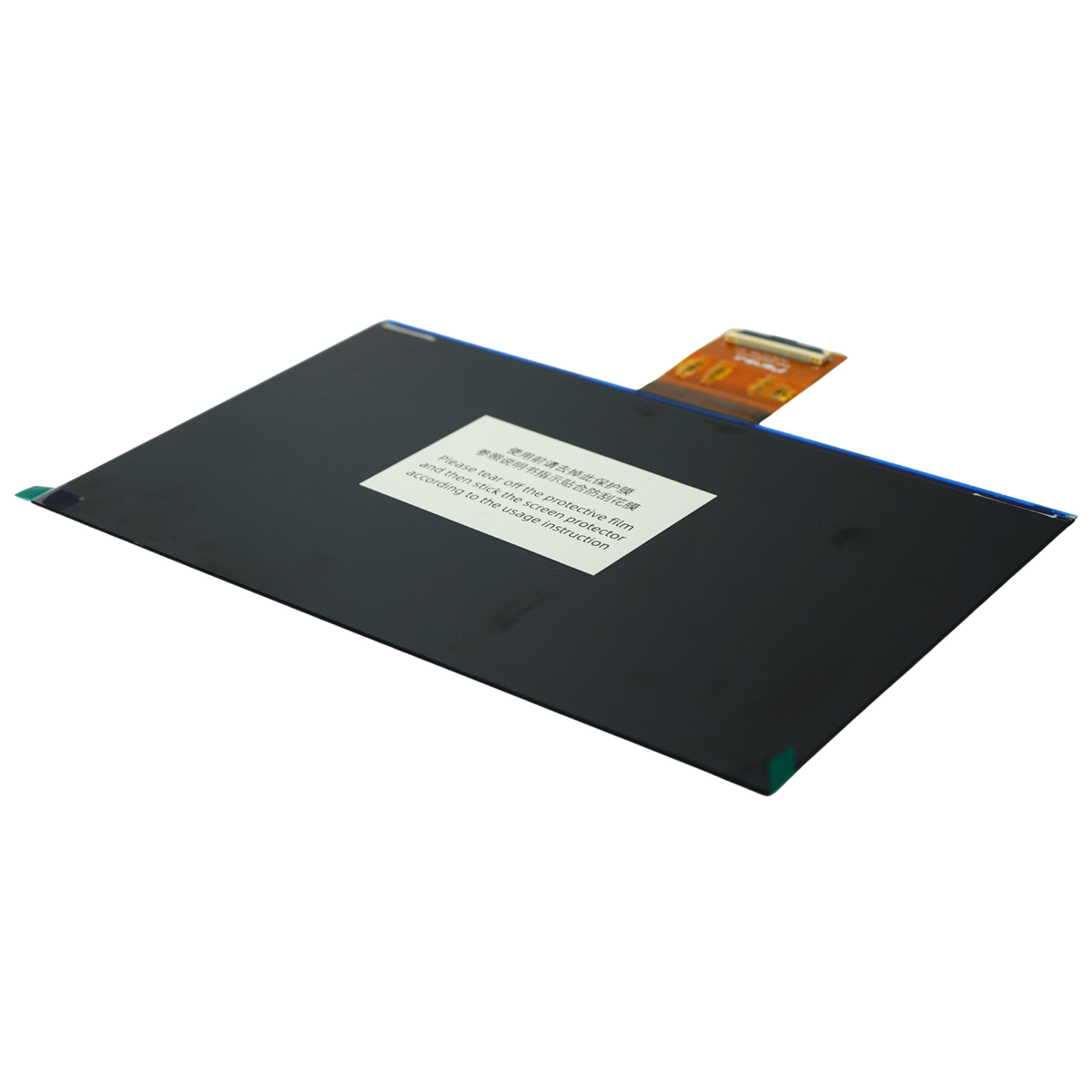

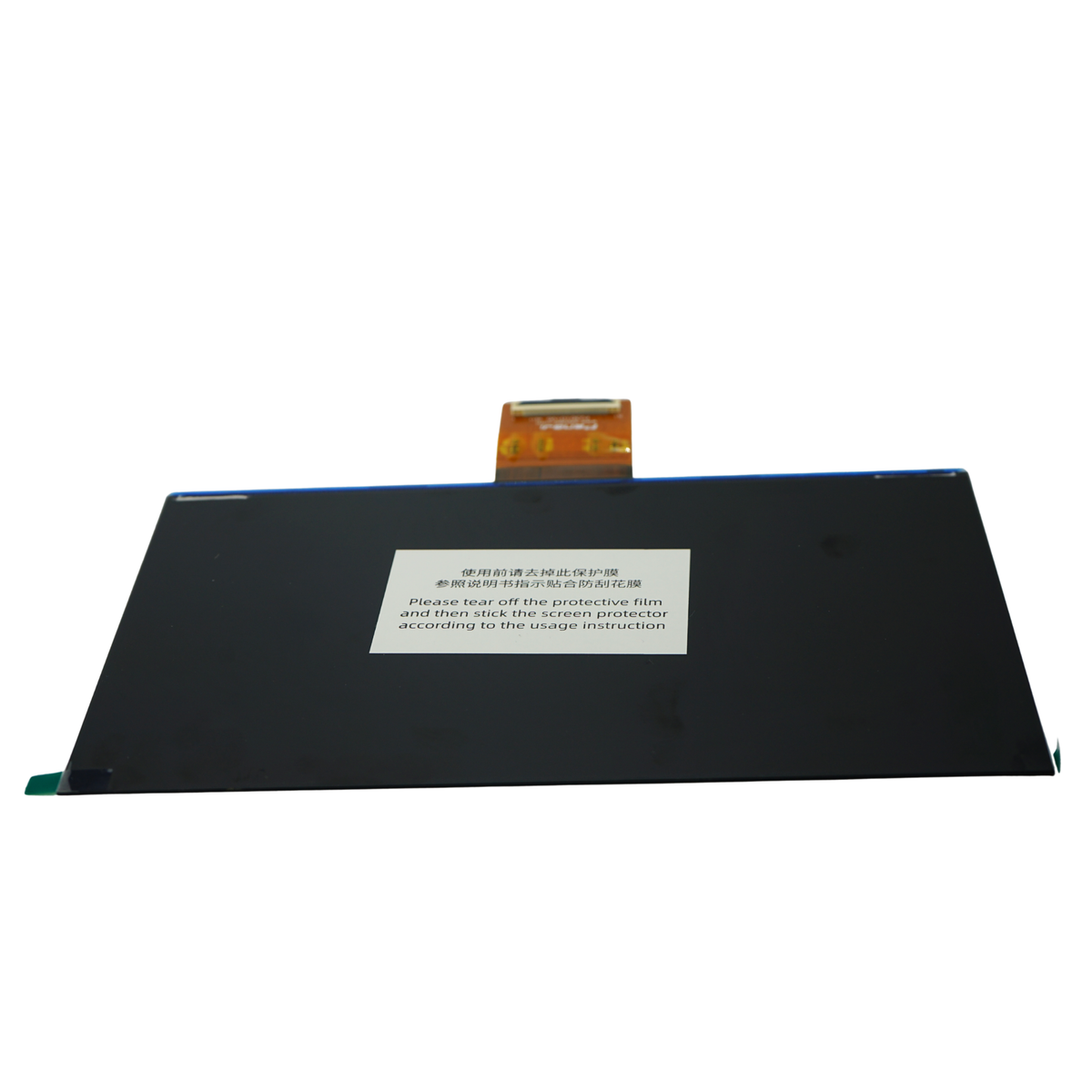

This is the genuine Anycubic replacement LCD, supplier part S020227, built to the same 14K specification as the panel your printer shipped with. Swap it in and you get back the full resolution and even cure the M7 series was designed around, without waiting on a new machine or guessing at a generic aftermarket panel.

10.1" 14K Monochrome LCD | 13,320 × 5,120 Resolution | Fits Photon Mono M7 & M7 Pro | Anti-Scratch Film & Levelling Paper Included | Direct Ribbon Cable Swap | Genuine Anycubic Part (S020227) | Nationwide Delivery Across South Africa

Who the Anycubic LCD Printing Screen for M7 and M7 Pro is built for

The home Maker doing their own repair

You've noticed streaky layers or a patch that never fully cures, and a quick check under the vat has shown burn marks or dead pixels on the old LCD. This part is the exact panel your Photon Mono M7 or M7 Pro left the factory with, so there is no resolution mismatch to work around. Fit it, reconnect the ribbon cable, and you're back to printing a full-detail miniature or a clean prototype overnight instead of shopping for a replacement printer.

The small print farm operator

Every hour a machine sits idle waiting on a part is an hour of production lost. Keeping a genuine S020227 screen on the shelf means a failing panel becomes a twenty-minute changeover between batches, not a support ticket and a week's delay. Because it matches the M7 and M7 Pro's native 14K resolution exactly, you're not re-tuning exposure times across a mixed fleet of machines.

The dental or jewellery professional

Micro-detail work, a crown margin or a ring's filigree, has no tolerance for a screen with uneven light transmission or degraded pixels. A genuine replacement panel restores the exact pixel pitch your calibrated exposure settings were built around, so a case you've already proven in resin keeps printing to the same tolerance after the swap as it did before the old screen wore out.

What sets the Anycubic LCD Printing Screen for M7 and M7 Pro apart

Full 14K detail restored, not a downgraded clone

A worn or generic aftermarket panel is the single biggest cause of a resin print looking softer than it used to. This screen carries the same 13,320 × 5,120 pixel array as the factory original, giving you the full 14K class resolution the M7 and M7 Pro were designed to exploit. Fine photopolymer detail, the kind that separates a crisp miniature or dental model from a mushy one, comes back exactly as it was on day one, not at a reduced pixel count that quietly caps what the printer can actually resolve.

A pixel pitch matched to the M7's optics

The panel's native X/Y pixel pitch of 16.8 × 24.8 micron isn't a generic figure, it's specific to how Anycubic's light engine and lens array project onto this exact screen size. A mismatched aftermarket panel with a different pitch can introduce moire patterns or uneven exposure at the edges of the build plate. Because this is the same part number the printer was designed around, exposure remains even from the centre of the vat to the corners.

Everything you need in one box, not a bare panel

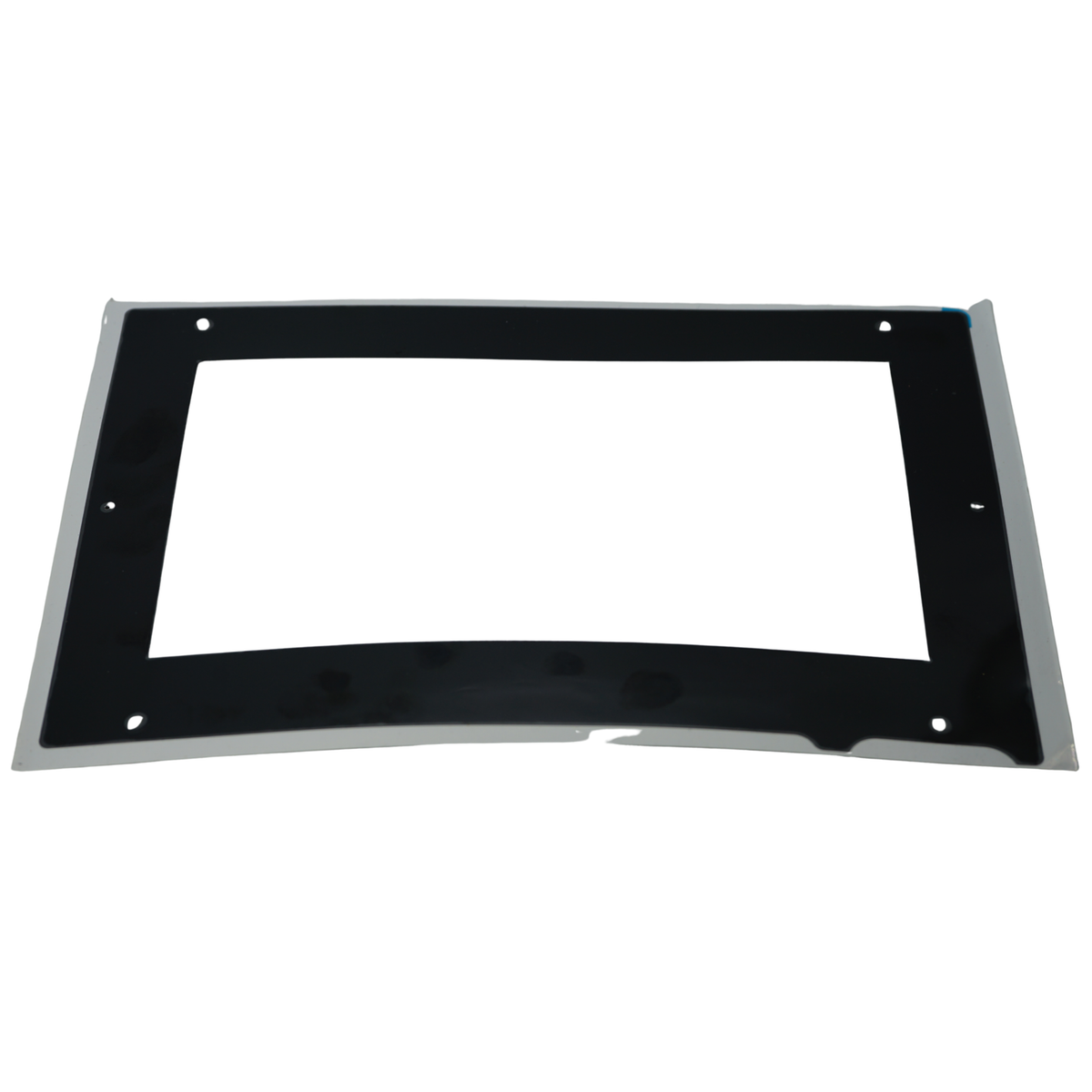

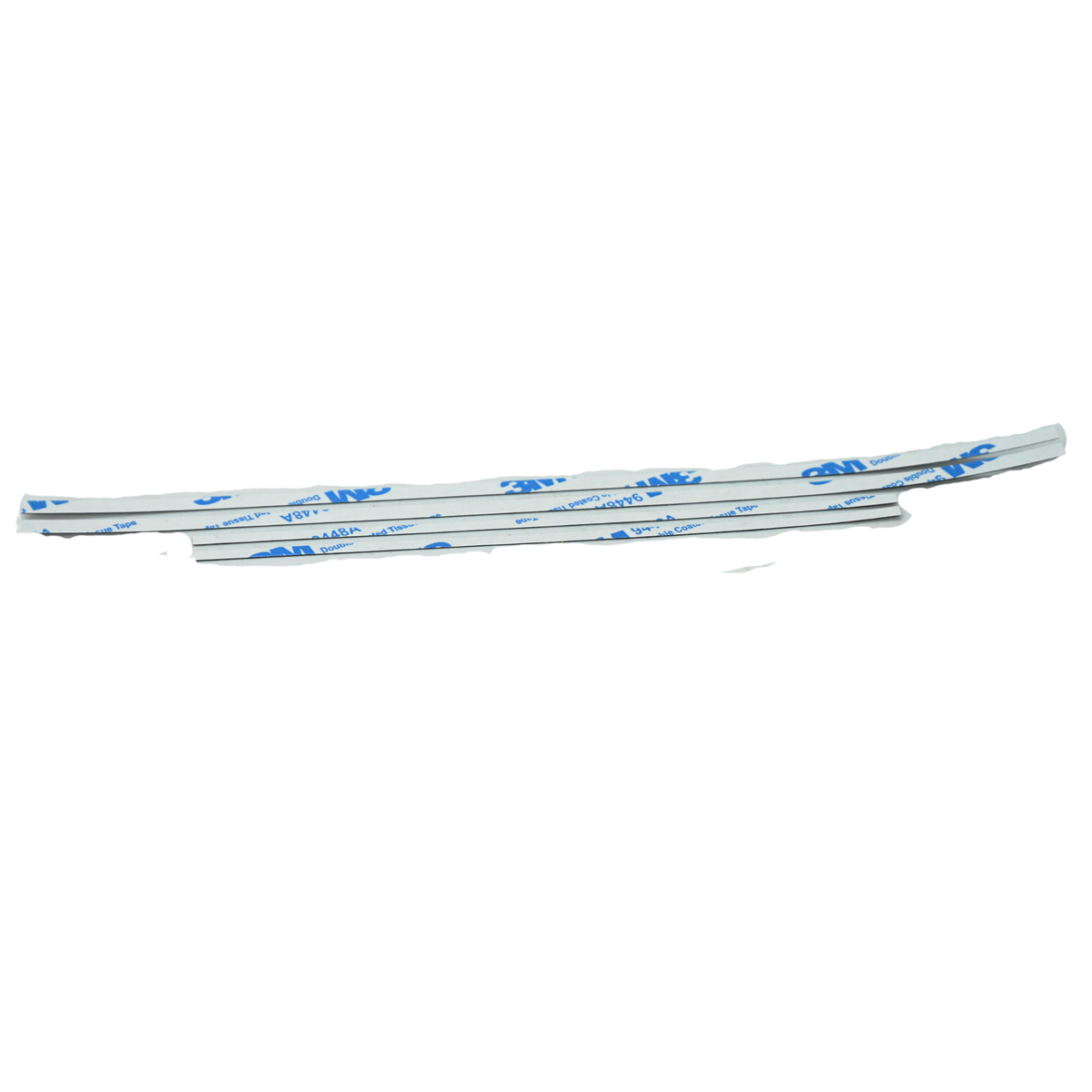

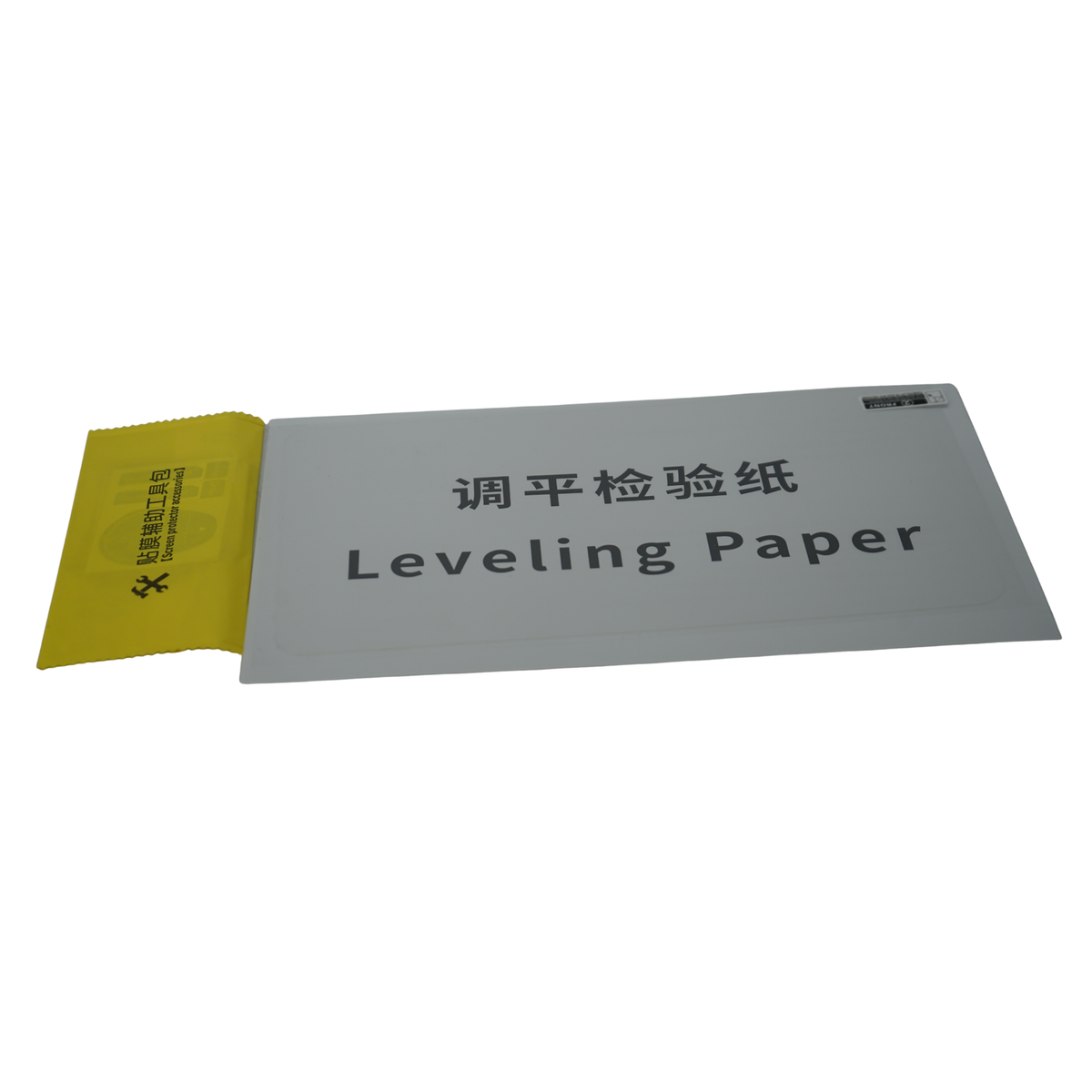

Ordering a bare LCD only to discover you're missing the anti-scratch film or levelling paper turns a twenty-minute job into a delayed one. This kit ships with the screen, a full anti-scratch film set, levelling paper, a shading sticker and double-sided tape, so the whole swap, screen, protective film and reseating the vat, happens in a single sitting with nothing to source separately.

A straightforward ribbon-cable swap

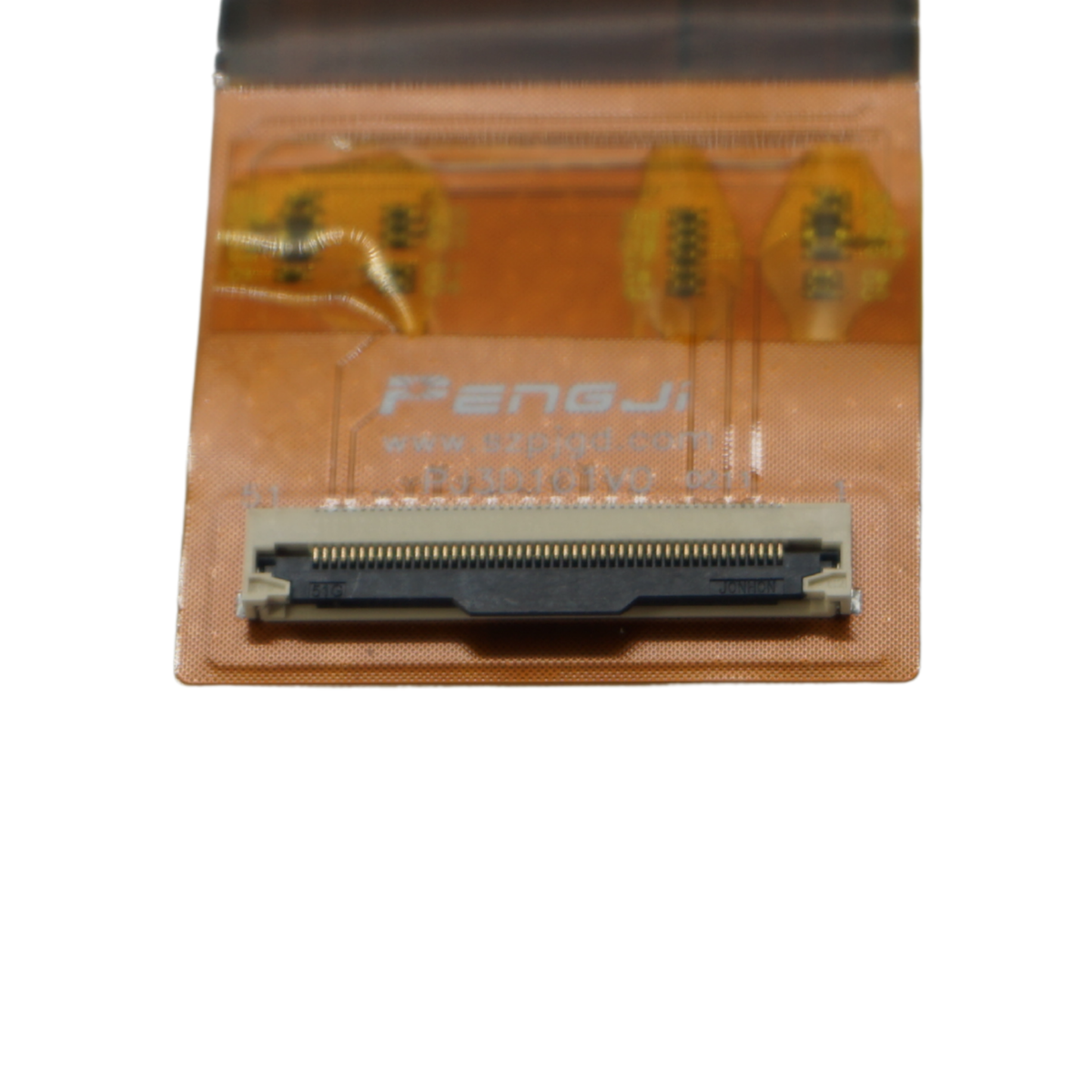

Anycubic's M7 series was designed for field-replaceable screens rather than a sealed unit that needs a workshop visit. The panel connects to the mainboard by a single ribbon cable behind a few captive screws, with no soldering and no need to recalibrate the printer's UV exposure settings once it's reseated. It's a repair most Makers can do at their own bench with a screwdriver and Anycubic's official replacement guide open on a phone.

One screen, two printers

Because the base Photon Mono M7 and the M7 Pro share the same optical deck, this single part number, S020227, covers both machines. If your workshop or print farm runs a mix of the two, you only need to stock one spare screen rather than tracking down model-specific panels for each. It's a small detail that simplifies spares management once you're running more than one M7-series machine.

Full specifications

Ordering, shipping and support

This screen ships by courier to anywhere in South Africa from 3D Printing Store's Centurion and Boksburg branches, with warranty claims and replacement handled locally rather than through an overseas returns process. If you're stocking spares for a print farm or workshop, replacement FEP vat film and the M7 series' other wear parts are worth ordering alongside the screen so a single courier trip covers the full service.

Frequently asked questions

Is this the same screen used in the Anycubic Photon Mono M7 Max?

No. The M7 Max is a larger-format printer with its own 13.6 inch, 7K panel, so its screen is a different part number and won't fit the M7 or M7 Pro's build plate. S020227 is specific to the base M7 and M7 Pro, which share the same 10.1 inch, 14K optical deck.

Will this screen work with any resin, or only Anycubic's own?

Yes, it works with any standard UV-curing photopolymer resin rated for 405nm LCD printers, not just Anycubic-branded resin. The screen only projects the UV image, so exposure times remain a function of your slicer profile and the resin you choose rather than the panel itself.

How long does it take to fit this LCD screen?

Most Makers complete the swap in twenty to thirty minutes with a screwdriver and no soldering. It's a case of removing the vat, disconnecting the old panel's ribbon cable, unscrewing the captive mounts, and reversing the process with the new screen, following Anycubic's official replacement guide.

How do I know when the LCD screen needs replacing?

Watch for patchy or uneven cures across the build plate, visible dead pixels or dark lines in a print's cross-section, and prints that fail to release cleanly from one area of the vat. Mono LCDs degrade gradually with cumulative UV exposure, so a screen that's been in heavy use for a long stretch is the first thing worth checking when print quality drops without any other change to your settings.

Is there local warranty support for this part in South Africa?

Yes, this part is sold and supported through 3D Printing Store's Centurion and Boksburg branches, so any warranty claim is handled locally rather than through an overseas RMA process. Keep your proof of purchase on hand, as with any spare part.
