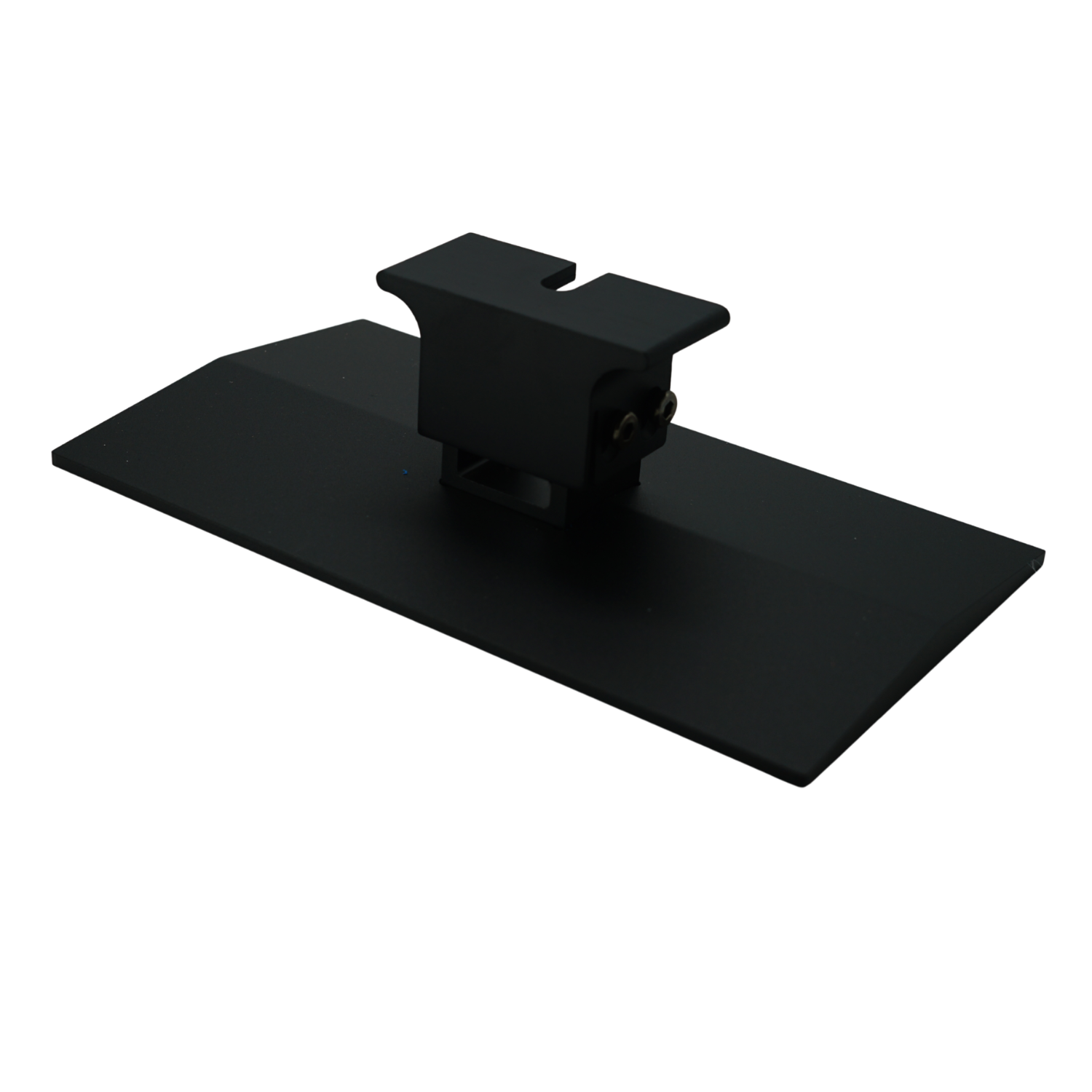

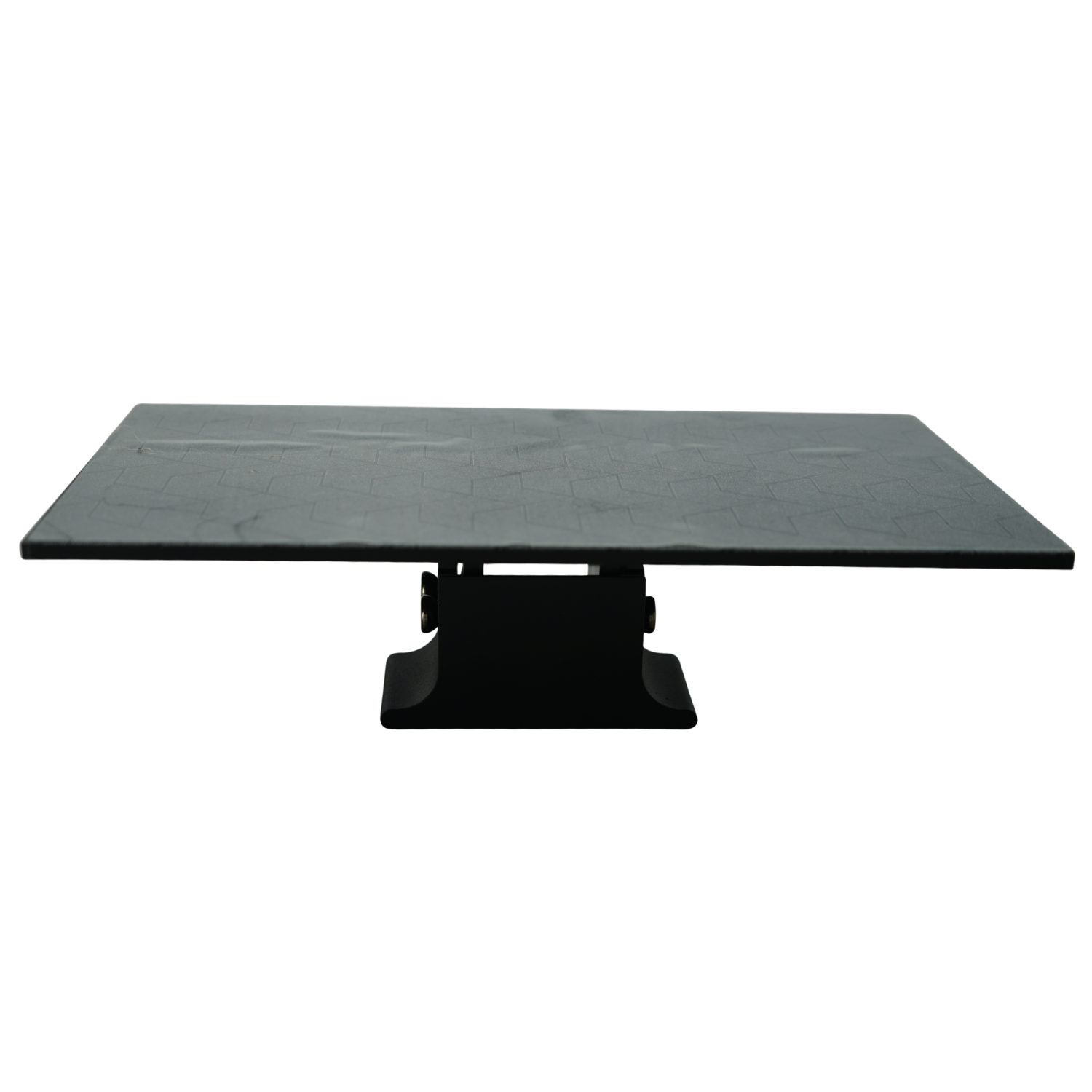

Anycubic Build Plate for M7 and M7 Pro

A pitted or warped build plate shows up in exactly the wrong place: the first layer. Prints that lifted at the corners, minis that would not stick no matter how many times you re-levelled, or a plate scarred from one too many scraper slips, all of it traces back to the metal surface the resin cures onto. On the Anycubic Photon Mono M7 and M7 Pro, that surface also carries the printer's automatic levelling system, so a worn plate does not just hurt adhesion, it throws off the zero point the printer relies on.

A genuine replacement build plate resets both problems at once. It bolts on with the original hex socket screws, works straight away with the M7 Pro's levelling-free calibration, and gives you back a flat, laser-etched surface for reliable first layers.

Laser-Etched Steel Surface | Automatic Levelling & Zeroing Compatible | Anti-Slip Hex Socket Mounting | 223 x 126 x 230 mm Build Volume | Fits M7 and M7 Pro | Genuine Anycubic Spare Part | No Recalibration Firmware Needed

Who the Anycubic Build Plate for M7 and M7 Pro is built for

Prototyping engineers and small business owners

Adhesion failures on functional parts usually come down to a plate that has lost its texture or picked up a warp from a scraper. A fresh laser-etched plate restores the grip needed for tall, flat-bottomed prototypes and jigs, for example a batch of engineering brackets that need to hold dimensional accuracy from the first layer up, without you second-guessing whether the plate or the resin caused the last failed print.

Small print farm operators

Running several M7 or M7 Pro units back to back wears plates unevenly, some see heavier use than others. Keeping spare plates on hand means a scratched or corroded one gets swapped out in minutes rather than pulling a whole machine offline. Since the plate mounts with the same anti-slip hex socket screws as the original, there is no extra calibration step slowing down the changeover.

Hobbyist makers and miniature printers

Detailed miniatures need every bit of first-layer grip a plate can offer, and a plate that has been scraped clean hundreds of times gradually loses that texture. Swapping in a new laser-etched plate brings back crisp adhesion for fine supports and small footprints, useful before a big batch print of tabletop figures where you cannot afford a failed first layer partway through an overnight run.

What sets the Anycubic Build Plate for M7 and M7 Pro apart

A textured surface that grips your first layer

The plate's laser-etched finish gives cured resin a rougher surface to key into than a smooth metal sheet would, which is what keeps large flat bases and fine miniature supports from lifting during the early layers of a print. This matters most on the M7 Pro's high-speed print profiles, where a weak first layer has less time to fully cure before the next layer starts pulling on it.

Levelling that stays out of your way

The M7 Pro popularised a levelling-free workflow for consumer resin printers, and this plate is built to work directly with that automatic levelling and zeroing system. You are not manually adjusting screws against paper or chasing a level reading before every print, the printer handles it once the plate is correctly seated.

A mount that will not shift mid-print

Anti-slip hexagon socket screws hold the plate firmly against the Z-axis carriage, which keeps the plate from creeping out of position across a long print. A plate that shifts even slightly changes the zero point the printer calibrated, so a stable, correctly torqued mount is what keeps repeat prints dimensionally consistent from one job to the next.

Sized for the M7 Pro's full print height

The plate is matched to the M7 and M7 Pro's 223 x 126 x 230 mm build volume, so it supports the printer's full print height without an undersized platform limiting taller models. That covers everything from full-height cosplay props printed in sections to batches of smaller parts nested across the plate's full width.

Steel built to outlast resin and repeated cleaning

The plate is a precision steel component, chosen over lighter alternatives for its resistance to warping under repeated exposure to uncured resin, isopropyl alcohol washdowns, and scraper contact. That durability is what keeps the etched surface performing consistently over hundreds of print cycles rather than smoothing out after a few months of daily use.

Full specifications

How the Anycubic Build Plate for M7 and M7 Pro compares to the rest of the Photon range

Materials and software

Resins this build plate handles

• Anycubic Fast Resin: the plate's etched texture is built to hold fast-curing layers in place at the M7 Pro's higher print speeds, where weak first-layer adhesion shows up quickly.
• Standard UV resin: prints reliably at default settings, no special plate preparation needed beyond a normal isopropyl alcohol wipe-down before use.
• Tough and ABS-like resin: benefits from the plate's grip on wider, flatter bases, which are more prone to lifting with rigid, higher-shrinkage resins.
• Flexible or TPU-like resin: works fine on this plate, though flexible parts benefit from slightly thicker rafts to compensate for the resin's lower stiffness during separation.

Slicers and software

The Photon Mono M7 and M7 Pro use Photon Workshop as the primary slicer, with support profiles and print settings tuned to the plate's levelling-free workflow. The plate also works with third-party slicers such as Chitubox and Lychee Slicer, though you should still run the printer's built-in zero-point check after fitting a new plate to confirm the exposure profile matches the fresh surface.

What's in the box

• 1 x Anycubic Build Plate for M7 and M7 Pro, laser-etched steel
• Anti-slip hexagon socket mounting screws
• Hex key for installation
• Fitment and care instructions

Ordering, shipping and support

We ship this build plate nationwide by courier from our Centurion and Boksburg stores, with local warranty handling if a fitment or manufacturing issue turns up, so you are not stuck shipping a part overseas for a claim. If you also need Anycubic resin or other Anycubic spare parts, both are stocked locally alongside this plate.

Frequently asked questions

Is this build plate different from the Photon P1's build plate?

Yes. Both use a steel surface matched to a 223 x 126 x 230 mm build volume, but they mount differently, the P1 uses quick-release levers shared with its vat system, while the M7 and M7 Pro plate is secured with anti-slip hex socket screws. The two are not interchangeable between printers.

Can this build plate handle Anycubic Fast Resin and other high-speed resins?

Yes. The laser-etched surface is designed to hold first-layer adhesion at the higher print speeds the M7 Pro runs with Anycubic Fast Resin, as well as standard, tough, and flexible resin types at normal print speeds.

How long does it take to fit and level this plate?

A few minutes. Remove the old plate's hex socket screws, seat the new plate, tighten it back down, then run the printer's automatic levelling and zeroing check before your next print. No manual paper-shim levelling is required.

How do I know when to replace the M7 Pro build plate?

Watch for prints lifting at the corners, a first layer that will not adhere even with fresh resin, or visible scratches and pitting deep enough to catch a fingernail. Any of these signal the etched texture has worn down and a replacement plate will restore consistent adhesion.

Is this a genuine Anycubic part with local warranty support?

Yes. It is sold as a genuine Anycubic spare part through our Centurion and Boksburg stores, with local warranty handling for manufacturing faults rather than an overseas return process.
