3-Core shielded cable for CNC Spindle, 1 Meter

In stock - 10 items available
SKU: CAB004
Regular price R 99.95 incl. VAT

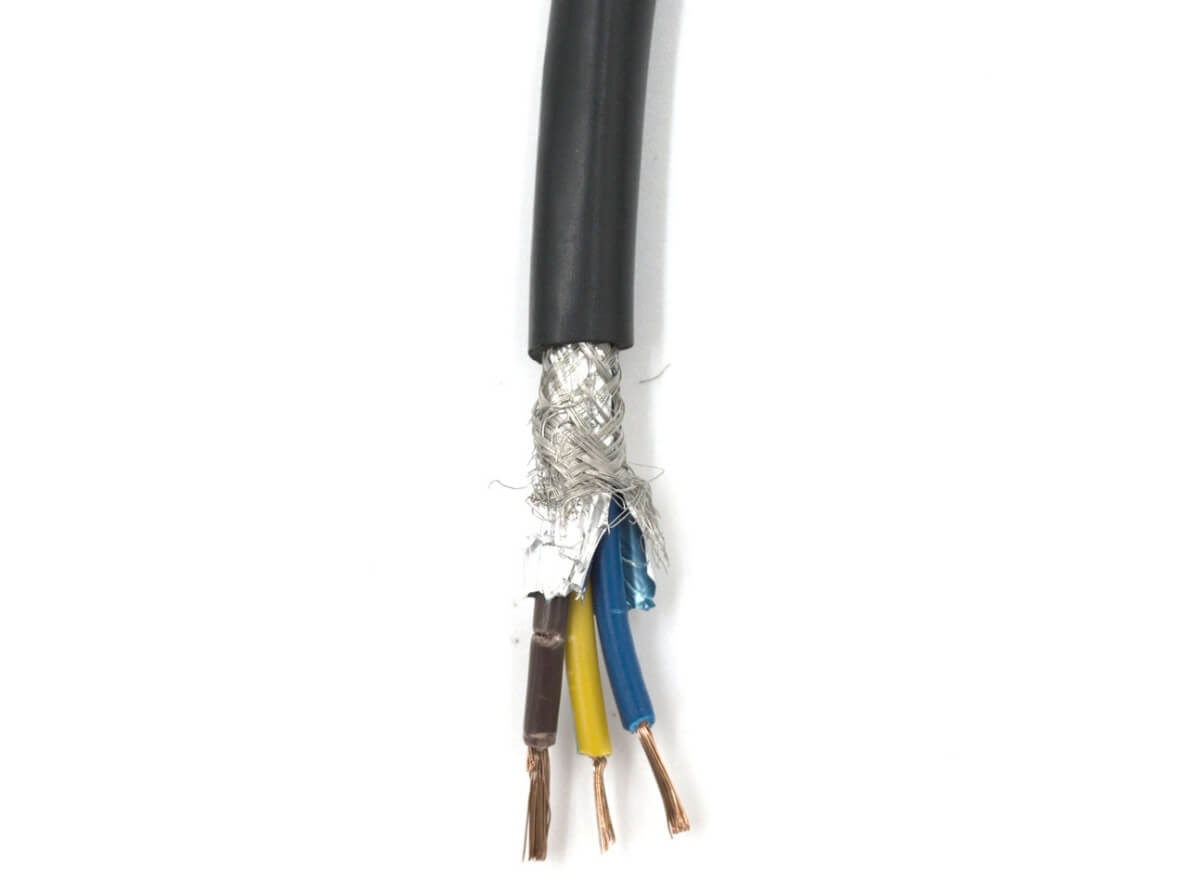

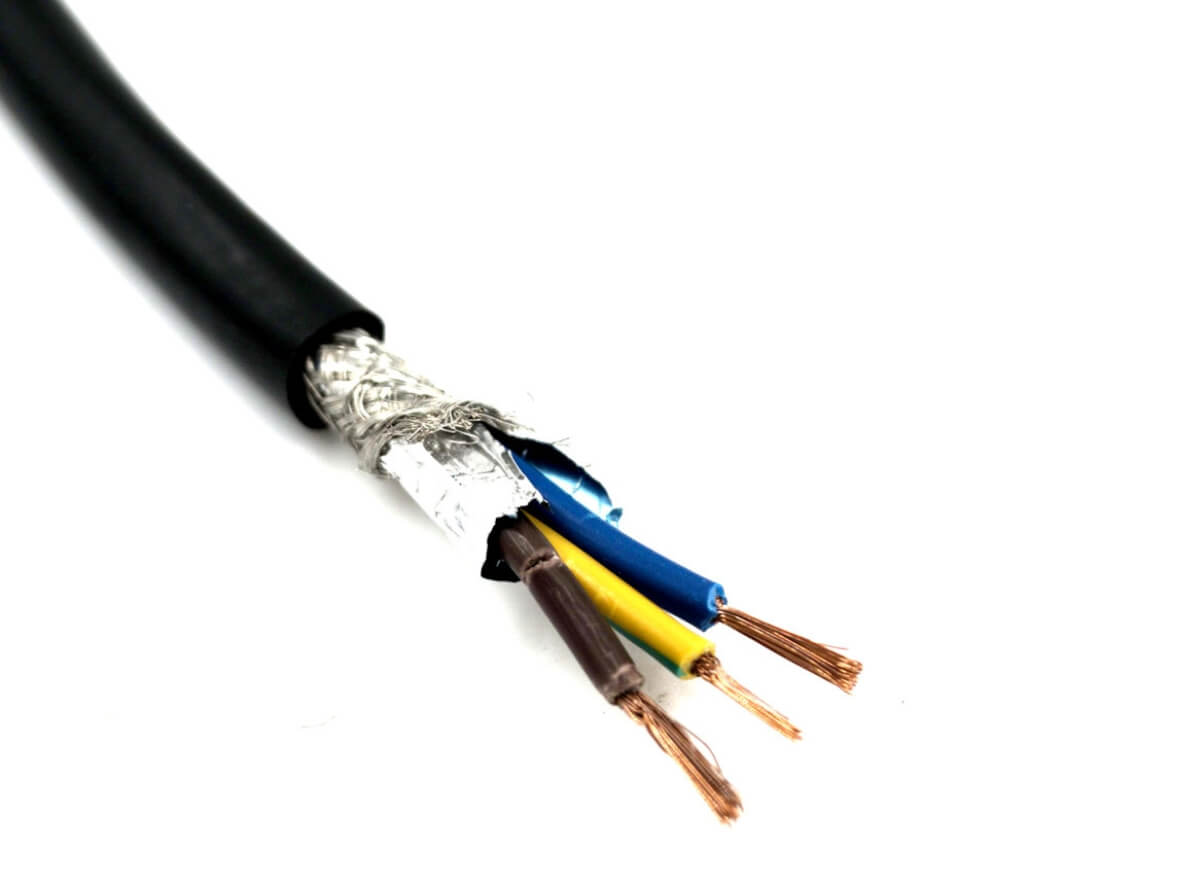

3-Core shielded multi strand cable for CNC spindles. This cable is designed to be used with 1.5kW, 2.2kW and 3kW CNC spindles. It is extra flexible to have minimal effect on the CNC machine. The shielding consist of foil film and braiding to assist with reducing the noise generated by the switching voltage running though the spindle when the braiding is connected to ground.

Please note: This cable is sold per meter. If you order 2 meters, then we wil send you one 2 meter length.

Specifications:

  • Core count: 3
  • Wire cross sectional area: 1.5mm^2
  • Outside diameter: 8.0mm - 8.5mm
  • Shielding: Foil & braiding
  • Cable type: Multistrand
  • Voltage rating: 300V
  • Current rating: 20A over short distances
