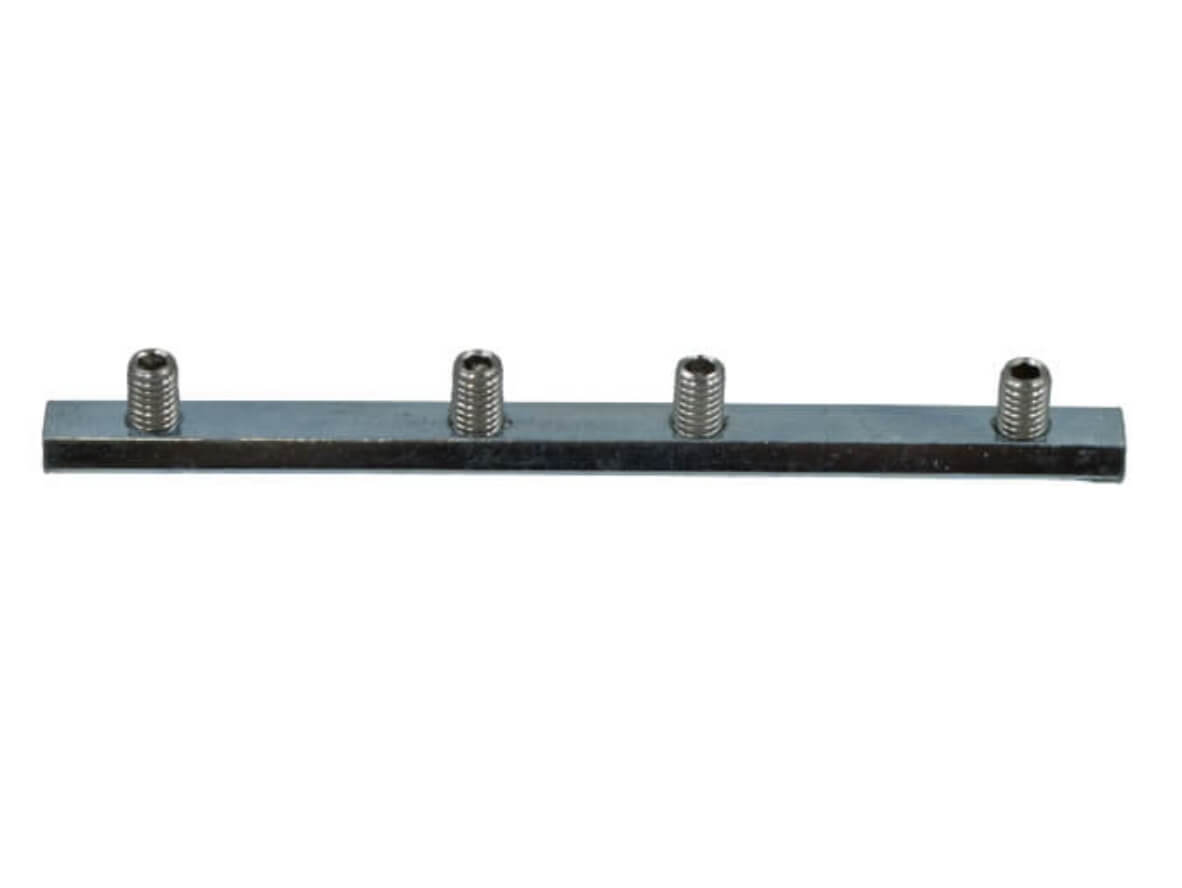

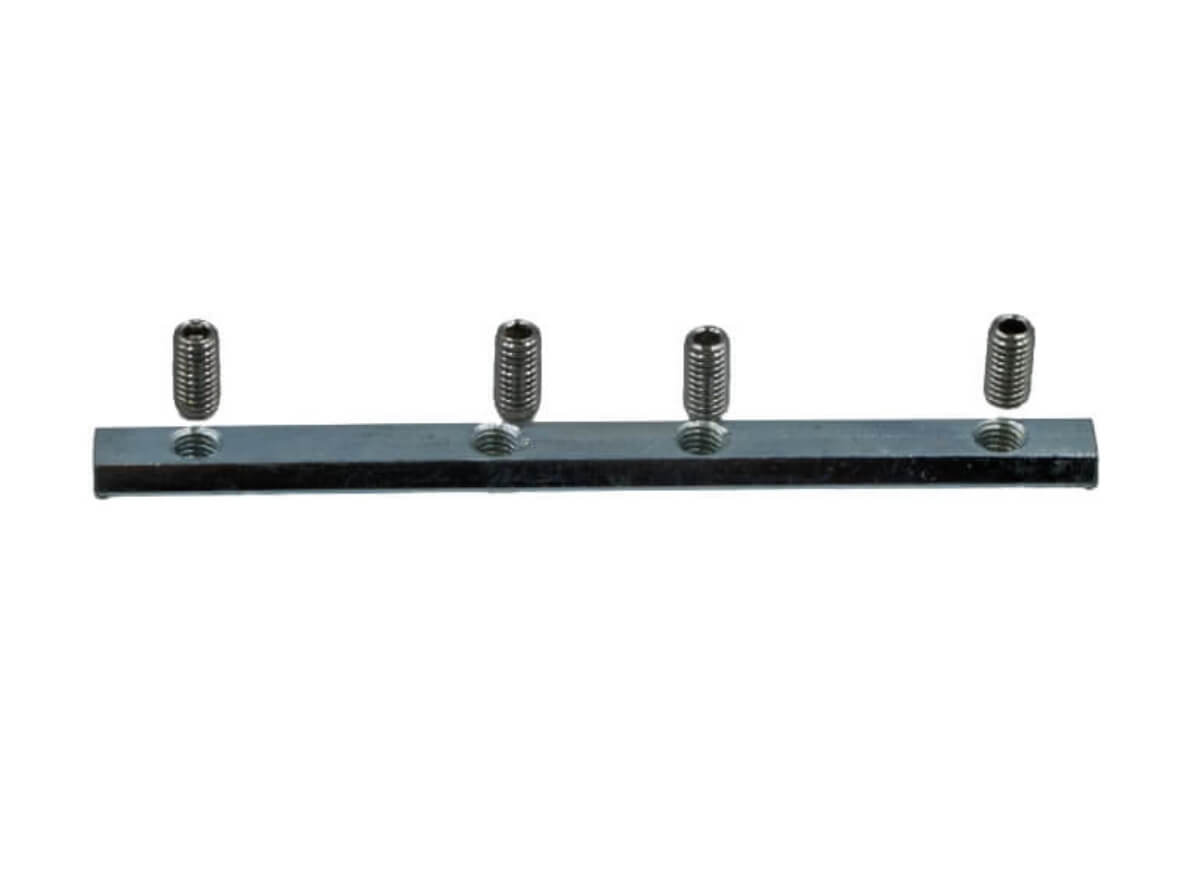

This Joining Slide Nut is used to join 2 ends of the same aluminium profile.  It consists of a bar that slides into the slot of the aluminium profile and fastens to each profile with 2 grub screws.  It is available for the 20, 30 and 40 series aluminium profiles.

Specifications:

20-series Jointing Slide Nut:

• Length: 100mm
• Width: 10mm
• Screw Size: M5
• Thickness: 5mm

30-series Jointing Slide Nut:

• Length: 180mm
• Width: 16mm
• Screw Size: M6
• Thickness: 6mm

40-series Jointing Slide Nut:

• Length: 180mm
• Width: 19mm
• Screw Size: M6
• Thickness: 9mm
