Please note: These T-nuts are sold in a pack of 5

20 series half round T-nut. These T-nuts are used to clamp brackets or other fittings to T-slot extrusions. The half round T-nuts can be inserted after the structure has been assembled and it has a spring loaded ball bearing on the back to keep it from sliding around during assembly.

This is for the 20 x 20, 20 x 40, 20 x 60 and 20 x 80mm profiles.

Specifications:

• For profiles series: 20-Series
• T-nut type: Half Round T-nut
• Thread size: M4
• Weight: 2.1g (each)
• Material: Galvanised steel
• Packaged: Pack of 5

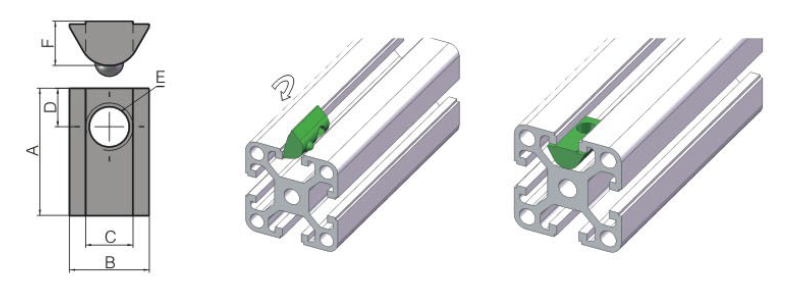

Dimensions:

• A = 14mm
• B = 8mm
• C = 6mm
• D = 4mm
• E = M4
• F = 4mm
