3D scanning converts physical objects into precise digital models by capturing surface geometry with sub-millimetre accuracy, giving South African engineers, designers, and makers a direct bridge between the real world and their CAD environment. The Creality CR-Scan Raptor X leads a scanner range built specifically to bring metrology-grade 3D scanning within reach of small workshops, product designers, and reverse engineering specialists. 3D Printing Store stocks the complete Creality 3D scanner range for South African buyers, with local delivery from Boksburg and Centurion.
Key Takeaways
- The CR-Scan Raptor X is the world's first wireless hybrid blue laser and NIR 3D scanner, achieving 0.02 mm accuracy on objects that previously required spray coating to scan.
- Laser triangulation scanners like the Raptor family outperform structured light on dark, reflective, and complex-geometry objects common in engineering and automotive work.
- Accuracy and resolution are different metrics — accuracy determines dimensional correctness for engineering fits; resolution determines how much fine surface detail is captured for art and heritage work.
- Object size drives scanner selection: the Otter Lite suits small items from jewellery to figurines, while the Raptor X handles car panels, industrial components, and architectural elements.
- Software workflow matters: Creality scanners use Creality Scan software, which exports standard mesh formats (OBJ, STL, PLY) compatible with any CAD or 3D printing workflow.
| Model | Technology | Accuracy | Best Use | Wireless |
|---|---|---|---|---|
| CR-Scan Otter Lite | Structured Light | 0.05 mm | Hobby, small objects, figurines | No |
| CR-Scan Raptor | Laser Triangulation | 0.02 mm | Medium to large objects, engineering | No |
| CR-Scan Raptor Pro | Blue Light + NIR Multi-Spectral | 0.02 mm | Reflective surfaces, industrial inspection | No |
| CR-Scan Raptor X | Hybrid Blue Laser + NIR (Wireless) | 0.02 mm | All materials, large objects, fieldwork | Yes (Wi-Fi 6) |
How 3D Scanning Works
3D scanning works by projecting light or laser beams onto a surface and recording how that light bounces back to one or more sensors. The scanner samples thousands of points per second, each with an X, Y, and Z coordinate relative to the device. These points accumulate into a point cloud, which the software then stitches and meshes into a solid 3D model exportable to STL or OBJ format for 3D printing, CNC machining, or design refinement.
The Raptor family uses laser triangulation, where two laser lines strike the object at a known angle and a camera measures the distortion in those lines. The precise geometry of the distortion reveals the exact surface position of each scanned point. This approach is especially effective on complex curved surfaces like automotive body panels, orthotic casts, and sculptural forms where structured light scanners can struggle with depth discontinuities.
Accuracy in this context means the scanner's data matches real-world dimensions within a stated tolerance. A 0.02 mm accuracy figure means a 100 mm component scanned with the Raptor X will measure between 99.98 mm and 100.02 mm in the resulting mesh. That level of fidelity is sufficient for engineering fits, bracket fabrication, and quality inspection work across South African manufacturing.
Types of 3D Scanners Available at 3D Printing Store
Structured Light 3D Scanners
Structured light 3D scanning projects a known pattern, typically a grid or fringe pattern, onto the object surface. Cameras capture how the pattern deforms across the geometry, and software reconstructs the surface from that deformation data. The CR-Scan Otter Lite uses this approach, making it well-suited for smooth, lighter-coloured objects like consumer products, props, and organic sculptures where the controlled light pattern produces crisp, high-resolution mesh data.
Structured light scanners are sensitive to ambient lighting conditions. Bright sunlight or strong workshop lamps can wash out the projected pattern and degrade scan quality. For South African workshops in Germiston or Midrand that have large windows or skylights, controlled lighting or a scan tent delivers more consistent results with structured light systems.
Laser Triangulation 3D Scanners
Laser triangulation scanners project one or more laser lines across the object and measure distortion through a camera positioned at a known angle. The Creality CR-Scan Raptor fires two laser lines at 60 frames per second, capturing geometry with 0.02 mm accuracy across medium to large objects. Laser triangulation is less affected by ambient light and handles darker surfaces better than structured light systems.
For engineering tasks common in South Africa's automotive aftermarket and mining equipment sectors, laser triangulation provides the combination of speed, accuracy, and surface-type flexibility that professional workflows demand. The Raptor's anti-shake algorithm compensates for minor hand movement during scanning, which reduces the setup time needed compared with tripod-only systems.
Hybrid Blue Laser and NIR 3D Scanning
The CR-Scan Raptor X combines a blue laser with near-infrared (NIR) light in a single hybrid pass. Blue laser handles fine geometric detail and surface texture, while NIR penetrates darker pigments and handles materials that absorb visible light. Together they eliminate the need for scanning sprays, chalk coatings, or reference stickers on the vast majority of real-world objects, including car bumpers, black rubber components, and brushed aluminium fittings.
Wi-Fi 6 connectivity on the Raptor X removes the USB tether from the scanning workflow entirely. Moving freely around a large object like a motorcycle frame or a piece of Gauteng mining equipment without dragging a cable significantly improves scan coverage and reduces the chance of positional errors caused by cable tension.
Creality 3D Scanners at 3D Printing Store
Creality CR-Scan Raptor X 3D Scanner
The world's first wireless hybrid blue laser and NIR 3D scanner. Achieves 0.02 mm accuracy with Wi-Fi 6 connectivity, full-colour scanning, and an anti-shake algorithm that handles hand tremor. Scans black surfaces, metals, and complex geometries without spray coating. Built for engineers, product designers, and serious makers who need professional-grade scan data without a fixed workstation.
View Product
Creality CR-Scan Raptor Pro 3D Scanner
Professional multi-spectral 3D scanner combining blue light and NIR technology for 0.02 mm accuracy across both small components and large industrial parts. Handles reflective surfaces and dark colours without marker points on most objects. Purpose-built for rapid prototyping, reverse engineering, and quality inspection in demanding South African manufacturing environments.
View Product

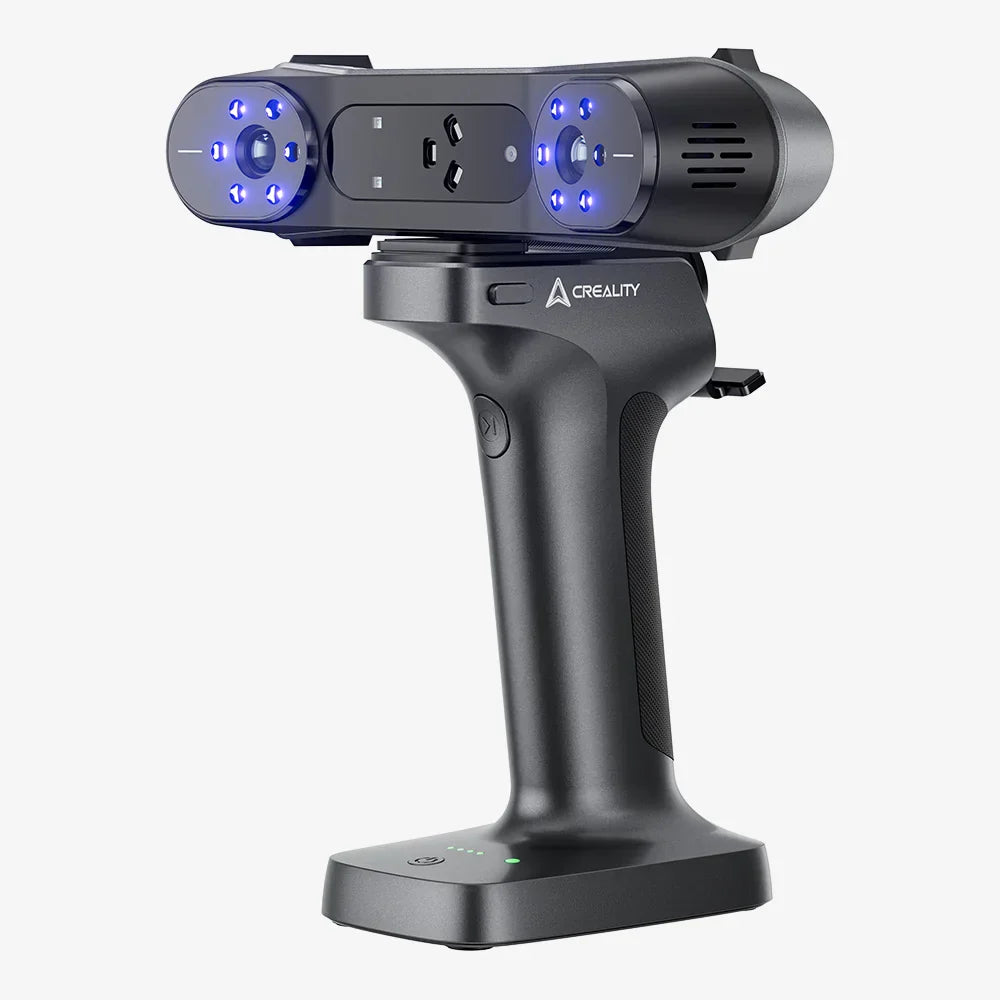

Creality CR-Scan Raptor 3D Scanner
The scanner that brought metrology-grade accuracy to the consumer 3D scanning market. Features 0.02 mm accuracy, 60 fps frame rate, and an anti-shake algorithm for handheld use. Scans black and metallic objects without surface preparation and captures full-colour mesh data. An excellent entry point into professional laser triangulation scanning for Gauteng engineering workshops.
View Product
Creality CR-Scan Otter Lite 3D Scanner
Compact structured light scanner designed for hobbyists, students, and makers scanning smaller objects like figurines, jewellery, and consumer product prototypes. Dual-camera system captures full-colour scans and handles objects up to 0.05 mm accuracy. Pairs with a turntable for automated desktop scanning and connects via USB to Creality Scan software on Windows or Mac.
View ProductChoosing the Right 3D Scanner for Your Workflow
Accuracy Versus Resolution in 3D Scanning
Accuracy and resolution are related but distinct metrics that mean different things depending on the application. Accuracy describes how closely the scanned dimensions match real-world measurements. A bracket that must fit a specific shaft needs a scanner accurate to within 0.05 mm or better. The Raptor family's 0.02 mm accuracy covers most precision engineering work encountered in South African fabrication shops.
Resolution refers to the minimum distance between adjacent scan points, which determines how much fine surface detail the scanner captures. High resolution matters most for artistic applications like figurine reproduction, dental or medical scanning, and heritage documentation where surface texture and delicate feature geometry must be preserved. The Otter Lite's structured light system captures fine surface detail that suits this kind of work, while the Raptor range prioritises accuracy and material handling versatility.
Object Size and Scan Volume
Every 3D scanner is optimised for a particular object size range. The Otter Lite scans small items efficiently, from rings and coins up to objects the size of a shoe. The Raptor, Raptor Pro, and Raptor X handle medium to large objects, from automotive components to full car panels and large machinery parts found on Gauteng's East Rand industrial estates.
Very large objects, like the bodywork of a vehicle or a piece of mine infrastructure, require multiple scan passes stitched together by the software. The Raptor X's wireless operation makes capturing multiple passes around a large object practical in the field without a trailing cable and laptop trolley. For fixed-workshop scanning in Centurion or Boksburg, the tethered Raptor Pro delivers equivalent accuracy with a simpler hardware setup.
3D Scanning Software and Export Workflow
Creality scanners ship with Creality Scan, a dedicated processing application that handles point cloud stitching, mesh generation, and noise removal. The output can be exported as STL, OBJ, or PLY files. STL feeds directly into slicers like Creality Print or PrusaSlicer for Creality 3D printer output. OBJ carries colour data for visualisation and artistic workflows. PLY is preferred when downstream processing in engineering software like Geomagic or SOLIDWORKS is needed.
Scan data from the Raptor X transfers wirelessly to a Windows PC or Android device via Wi-Fi 6, reducing processing latency compared with older Wi-Fi standards. Tethered models connect via USB 3.0 for real-time data transfer and live preview during the scanning pass.
3D Scanning Applications in South Africa
Reverse Engineering and Replacement Parts
South Africa's manufacturing sector, from mining equipment suppliers in Springs to automotive component manufacturers in the Eastern Cape, relies heavily on reverse engineering to extend the life of legacy machinery. When an OEM part is discontinued or too expensive to import, scanning the worn component with a Raptor X produces a precise mesh that a CAD engineer can use to produce a replacement in 3D printer filament, CNC-machined aluminium, or cast tooling.
The ability to scan dark rubber gaskets, painted steel housings, and brushed aluminium fittings without spray coating saves time and avoids contaminating food-grade or pharmaceutical parts that cannot accept marking compounds.
Quality Inspection and Dimensional Verification
The 0.02 mm accuracy of the Raptor range puts it within reach of inspection tasks that traditionally required dedicated coordinate measuring machines (CMMs). Scanning a finished component and comparing the mesh against the original CAD model in software like Geomagic Control X produces a colour deviation map showing where manufacturing tolerances were exceeded. Small batch manufacturers near Alrode and Alberton use this workflow to catch tooling wear before it produces a full batch of out-of-spec parts.
Art, Heritage Documentation, and Education
South Africa holds extraordinary cultural and geological heritage, from the Vredefort Dome crater structures in the North West to fossil specimens in the Cradle of Humankind. 3D scanning preserves precise digital records of fragile artefacts and geological features that physical handling would damage over time. University design and engineering programmes in Johannesburg and Pretoria use desktop 3D scanners alongside 3D Printing Store machines to teach the full digital fabrication cycle from physical object to scan, CAD refinement, and 3D-printed output.
Preparing Objects for 3D Scanning
Most objects scan well without preparation when using the Raptor X or Raptor Pro. Highly reflective surfaces like mirrors, chrome trim, and polished stainless steel can still cause issues, and a light coat of temporary scan spray restores diffuse surface properties in seconds. Matte chalk spray or dedicated scan sprays wash off with water and leave no permanent residue.
Very dark or matte-black objects benefit from the NIR mode on the Raptor X and Raptor Pro, which effectively illuminates them with invisible light the camera system can read even when visible-spectrum lasers scatter. Transparent objects, like clear acrylic or glass, require either scan spray or a switch to a different approach entirely, since both visible and NIR wavelengths pass through the material rather than reflecting from the surface.
Breaking a large object into sections and stitching scan passes improves accuracy on complex geometries. The software's automatic point cloud alignment works on shared geometry between adjacent passes, but placing a small number of reference markers at key positions speeds up alignment and reduces stitching error on large featureless surfaces.
Once a clean mesh is generated, typical post-processing steps include hole filling, smoothing minor scan artefacts, and decimating the mesh to a manageable polygon count for the downstream workflow. Objects destined for 3D printing filament-based output need watertight meshes, so running the file through a repair tool or the slicer's built-in mesh fixer before slicing avoids print failures caused by non-manifold geometry.
Frequently Asked Questions
What is the difference between the CR-Scan Raptor and the CR-Scan Raptor X?
Both achieve 0.02 mm accuracy, but the Raptor X adds wireless Wi-Fi 6 connectivity, a hybrid blue laser and NIR scanning mode, and an improved anti-shake algorithm. The NIR mode on the Raptor X handles dark and challenging materials more effectively than the standard Raptor, which relies solely on laser triangulation. The Raptor X is the better choice for fieldwork and large-object scanning; the Raptor suits fixed workshop use where USB tethering is not a limitation.
Can Creality 3D scanners capture dark or reflective objects?
The Raptor, Raptor Pro, and Raptor X all include anti-reflective and dark-surface scanning capability without requiring spray coating on most objects. The Raptor X and Raptor Pro go furthest here, using NIR wavelengths to illuminate materials that absorb or reflect visible laser light. Highly polished chrome or transparent materials like clear acrylic still benefit from temporary scan spray, but the majority of industrial and everyday objects scan cleanly without surface preparation.
What software do Creality 3D scanners use, and what file formats do they export?
Creality scanners use Creality Scan software, available free for Windows and Android. It handles live scanning, point cloud stitching, mesh generation, and noise removal. Finished scans export as STL for 3D printing, OBJ for colour-mapped visualisation work, and PLY for downstream engineering software. STL files drop directly into any slicer for FDM or resin printing without additional conversion.
