3D print layer adhesion problems are among the most common failures in FDM printing, covering everything from a first layer that refuses to stick to the build plate through to delaminating walls and splitting layers mid-print. The root causes fall into a handful of repeatable categories: incorrect temperatures, poor bed preparation, filament moisture, mechanical issues, and slicer settings that work against the material rather than with it. Identifying which category applies to a specific failure makes the fix straightforward in most cases.
Key Takeaways
- First layer adhesion depends on bed levelling, nozzle height, bed surface cleanliness, and correct bed temperature for the filament in use.
- Layer separation mid-print is almost always caused by printing too fast, too cool, or both at once.
- PLA adhesion failures most often trace back to a dirty or unlevelled build plate, nozzle too far from the bed, or moisture-damaged filament.
- Bed temperature does help adhesion for most materials, but excessive temperature causes warping on materials like PLA.
- A clean PEI spring steel build plate, correct Z-offset, and dry filament resolve the majority of 3D print layer adhesion problems without further intervention.
| Adhesion Problem | Most Likely Cause | Fix |
|---|---|---|
| First layer not sticking | Nozzle too far from bed, dirty surface, or cold bed | Adjust Z-offset, clean with IPA, raise bed temperature |
| PLA lifting at corners | Bed too cold, drafts, or inadequate surface prep | Set bed to 55–60°C, use enclosure or draft shield |
| Layers separating | Print speed too high, temperature too low, or wet filament | Reduce speed, raise nozzle temp, dry filament |
| ABS or ASA warping | No enclosure, cold ambient temperature | Print in enclosed machine, raise bed to 100–110°C |
| PETG stringing and poor bonding | Temperature too high causing excess flow, or too low for fusion | Calibrate temperature tower, adjust retraction settings |
What Causes 3D Print Layer Adhesion Problems
Incorrect Nozzle Temperature
Temperature is the single most influential variable in 3D printing layer adhesion. Every filament has a melt temperature range. Print inside that range and successive layers fuse properly. Print below it and the filament exits the nozzle partially solidified, landing on the previous layer without enough thermal energy to bond. The result is visible layer lines that split apart under minimal force.
Printing too hot creates its own problems: excess material sags and smears, reducing dimensional accuracy. PLA typically prints between 190°C and 220°C. PETG runs hotter at 230°C to 250°C. ABS and ASA require 240°C to 260°C and demand an enclosed print environment to prevent warping caused by the thermal differential between the hot print and cooler ambient air.
Bed Levelling and Z-Offset Errors
A first layer printed at the wrong height fails regardless of how well the temperature is dialled in. Too far from the bed and the filament does not squish against the surface, leaving a rounded bead with minimal contact area. Too close and the nozzle drags through previously deposited material, causing blockages and surface gouging.
Most modern 3D printers include automatic bed levelling via probe systems like CR Touch, which measure the build plate at multiple points and compensate for any unevenness in firmware. Even with auto-levelling, Z-offset, the precise gap between the nozzle tip and the bed surface at the home position, still requires manual fine-tuning. A value 0.1 mm too high is enough to cause adhesion failures on the first layer.
Dirty or Worn Build Plate Surface
Skin oils transferred from hands, residue from previous prints, and dust accumulation all degrade adhesion. PEI-coated spring steel plates, standard on current Creality 3D printers, provide excellent first-layer grip when clean. A wipe with isopropyl alcohol (IPA) before each print session restores the surface energy that filament needs to grip.
PEI plates wear over time. A surface printed on for hundreds of hours eventually loses its texture. When IPA cleaning no longer restores adhesion on PLA or PETG, replacing the spring steel sheet is the correct fix, not compensating with excessive bed temperature or adhesives.
Wet or Moisture-Damaged Filament
3D printing filament, particularly PLA, PETG, nylon, and TPU, absorbs moisture from ambient air. Wet filament pops and hisses during printing. It produces brittle layers with visible bubbles and poor inter-layer bonding. Johannesburg's Highveld summers are humid enough to degrade an open spool of PLA over a weekend. Nylon and TPU absorb moisture significantly faster and require sealed, desiccant-stored containers or filament dryers even in dry Highveld winters.
Drying filament at the correct temperature before printing restores adhesion in most cases. PLA dries at 45–50°C for four to six hours. PETG requires 65°C for the same duration. Nylon needs 70–80°C for up to twelve hours. A dedicated filament dryer produces more consistent results than an oven.
How to Fix First Layer Not Sticking
Step-by-Step First Layer Adhesion Fixes
Start with the build plate. Remove it, clean both sides with IPA, and let it dry. Reinstall and run a full bed levelling routine, including a live Z-offset adjustment with the first layer printing. Watch the first layer: the filament bead should be slightly flattened against the surface with no gaps between adjacent lines and no lifting at the edges.
If the plate is clean and levelled and adhesion still fails, raise the bed temperature incrementally. For PLA, start at 55°C and work up to 65°C maximum. Above 65°C, PLA softens during printing and corners begin to warp upward rather than stay flat. For filament types like PETG, 70°C to 80°C is the target bed temperature range.
Reduce first layer print speed. Slowing the first layer to 20–25 mm/s gives the filament more time to spread and bond. Increase the first layer line width to 120% in the slicer. The wider bead creates more contact surface between filament and build plate, which compensates for minor Z-offset inaccuracies.
Using Adhesion Aids Correctly
PVA glue stick applied in a thin, even layer to a clean PEI surface significantly improves adhesion for ABS, ASA, and high-temperature filaments. It also makes removing prints easier once the bed cools, particularly on materials that bond very aggressively to bare PEI. Apply a light coat, let it dry fully before printing, and wipe clean with warm water between sessions.
Hairspray works similarly and has a long history in South African maker communities, where dedicated adhesion products are sometimes harder to source locally. Apply a light, even coat from 30 cm distance and let it dry. Avoid heavy coats that accumulate over multiple sessions and create an uneven surface that itself causes inconsistency.
Why 3D Print Layers Separate Mid-Print
Print Speed and Layer Height Relationships
Layer separation above the first layer points to insufficient inter-layer bonding. The nozzle deposits molten filament on a previously solidified layer. For that new layer to fuse properly, the heat from the fresh extrusion must partially re-melt the top surface of the layer below. At high print speeds, the nozzle moves too fast for this thermal transfer to occur adequately, leaving layers that look intact but snap apart with very little force.
Reduce print speed by 20–30% and raise nozzle temperature by 5°C to address this. On machines printing above 300 mm/s, layer adhesion on standard PLA becomes a tangible concern. The Creality K1C handles high-speed printing well due to its high-flow hotend, but even on fast printers, functional structural parts benefit from a lower speed profile than display models.
Layer Height vs Nozzle Diameter
Layer height should not exceed 75–80% of the nozzle diameter. A standard 0.4 mm nozzle caps effective layer adhesion at around 0.32 mm layer height. Pushing to 0.4 mm or higher reduces the overlap between the new layer and the one below, cutting the contact area and weakening the bond. Reducing layer height to 0.2 mm on a 0.4 mm nozzle produces meaningfully stronger inter-layer adhesion at the cost of longer print times.
For functional parts requiring maximum Z-axis strength, lowering layer height to 0.15 mm is practical. Decorative and display models tolerate taller layers without structural consequence.
Cooling Fan Settings and Layer Adhesion
Cooling fans solidify each layer quickly to maintain dimensional accuracy and prevent drooping on overhangs. The trade-off is that rapid cooling reduces the time window during which layers can thermally bond. For materials like ABS and ASA, cooling fans are typically disabled entirely to preserve layer adhesion in an enclosed printing environment. For PLA, moderate fan speeds of 50–70% balance surface quality against inter-layer bond strength better than running fans at 100% from layer one.
PETG occupies a middle ground: too much cooling causes layer delamination, while too little causes stringing. Starting at 30–40% fan speed on PETG and adjusting from there gives better outcomes than applying PLA fan profiles to PETG jobs.
3D Printers and Parts at 3D Printing Store
Creality Ender-3 V3 KE 3D Printer
High-speed FDM printer on Klipper-based firmware with built-in input shaping and pressure advance. CR Touch auto-levelling and a 300°C hotend remove two common sources of layer adhesion problems: an inconsistent bed mesh and insufficient melt temperature for engineering filaments. Prints up to 500 mm/s with a 220x220x240 mm build volume.
View Product
Creality K1C 3D Printer
Fully enclosed CoreXY printer designed for carbon fibre and high-temperature filaments that require a stable chamber to prevent layer delamination. The enclosure eliminates ambient temperature fluctuations that cause ABS and ASA to warp and split. Ships with a hardened tri-metal nozzle and an AI camera that detects adhesion failures before they waste hours of print time.
View Product
Creality Cordless Rotary Tool Kit
Versatile 24-accessory rotary tool for post-processing 3D prints: sanding layer lines, cleaning up support scars, and deburring edges on parts that suffer minor surface imperfections from adhesion or layer bonding issues. Cordless design makes it practical for desktop workshop use without managing cables around a printing setup.
View Product

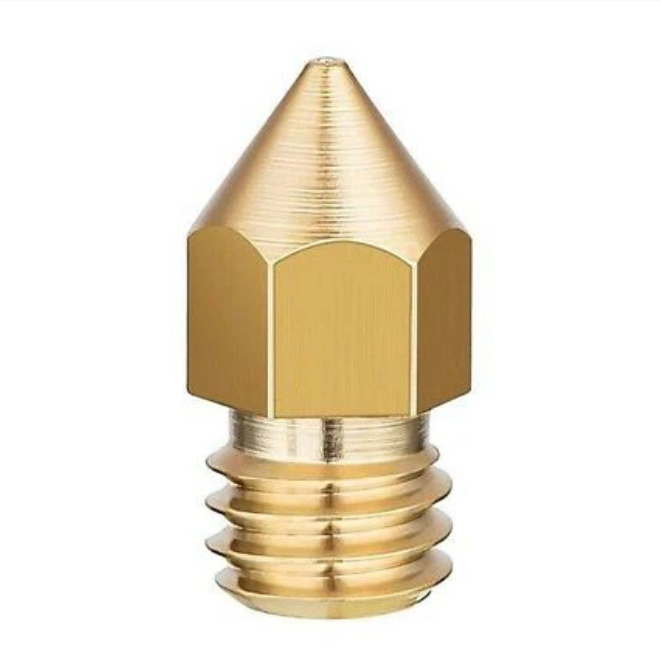

MK8 Nozzle for Creality, 1.75mm Filament
Brass MK8 replacement nozzle machined with a smooth bore to ensure consistent filament flow and even extrusion. A worn or partially clogged nozzle is a frequently overlooked cause of uneven layer adhesion and under-extrusion gaps. Swapping to a fresh nozzle costs little but restores the consistent melt flow that strong inter-layer bonding depends on.
View ProductDoes Higher Bed Temperature Help 3D Print Layer Adhesion?
A warmer bed keeps the first layer slightly soft for longer, giving the material more time to conform to the build surface and increasing contact area. For PLA, the sweet spot sits between 55°C and 65°C. Below 50°C and corner lifting becomes common on anything larger than a 50x50 mm footprint. Above 65°C, the base of a PLA print softens and the part develops an elephant foot, where the first few layers spread wider than the model requires.
ABS and ASA require bed temperatures of 100–110°C specifically to manage the warping caused by internal stress from rapid cooling. Without that bed heat, ABS prints delaminate at the base and curl aggressively. PETG runs at 70–80°C bed temperature, higher than PLA but lower than ABS. These values are starting points: specific filament brands from the 3D printer filament range at 3D Printing Store include manufacturer-recommended temperature profiles that narrow the calibration range considerably.
Raising bed temperature beyond a material's ideal range does not improve adhesion, it introduces new problems. Match bed temperature to the filament specification and focus remaining adhesion efforts on surface cleanliness, Z-offset accuracy, and first layer speed.
Common 3D Print Layer Adhesion Problems by Filament Type
PLA Layer Adhesion Issues
PLA is the most forgiving filament for adhesion on most surfaces, which makes its failures particularly useful as diagnostic signals. When PLA fails to stick, the cause is almost always one of three things: the build plate surface is contaminated with oils or residue, the nozzle-to-bed gap is too large, or the filament has absorbed moisture. Solving those three issues resolves PLA adhesion problems in the vast majority of cases without changing any slicer settings.
Warping at corners on PLA prints in Gauteng workshops during summer is frequently a ventilation issue. Air conditioning vents, desk fans, and open windows introduce airflow across the build plate. Even a gentle draft at 25°C is enough to cool PLA unevenly and lift corners. Repositioning the printer away from airflow sources, or adding a basic enclosure panel, eliminates the problem reliably.
PETG and ABS Adhesion Differences
PETG bonds aggressively to bare PEI surfaces, sometimes so aggressively that removing a print damages the spring steel sheet. A thin application of PVA glue stick acts as a release agent between PETG and PEI while still providing adequate adhesion. This is the standard approach for PETG on PEI-coated beds across the Creality printer range.
ABS demands an enclosed print environment to manage the thermal gradient between the hot first layers and the cooling upper layers. Without enclosure, the print contracts as it cools and internal stress exceeds the adhesive force between layers, causing delamination. Makerspaces at the University of the Witwatersrand and the Innovation Hub in Pretoria run enclosed machines for this reason, keeping ABS and ASA viable for structural engineering applications. 3D Printing Store's 3D printer training covers material-specific adhesion settings for PLA, PETG, ABS, and TPU in hands-on sessions at both the Boksburg and Centurion branches.
Maintenance Checks That Prevent Layer Adhesion Problems
Check nozzle condition every 300–500 print hours. Brass nozzles wear gradually, and a worn bore produces inconsistent extrusion diameter that causes variable layer bonding across a single print. Replace the nozzle proactively rather than waiting for a visible failure.
Inspect the extruder drive gear for filament debris and wear. A worn gear loses grip, producing under-extrusion that looks identical to a temperature problem on the surface of a print. Clean the teeth with a stiff brush and replace the gear if wear is visible.
Calibrate extruder e-steps when changing nozzles, switching filament brands, or after any extruder hardware change. An e-steps value producing 100 mm of feed on one nozzle may deliver 96 mm on a replacement nozzle with slightly different internal volume. That 4% under-extrusion shows up as weak layer adhesion and visible gaps in wall lines. The 3D Printing Store team at Boksburg and Centurion can assist with calibration for any machine purchased in-store.
Frequently Asked Questions
How do you fix adhesion problems in 3D printing?
Clean the build plate with isopropyl alcohol and run a fresh bed levelling routine, including a live Z-offset adjustment while the first layer prints. Match bed temperature to the filament: 55–60°C for PLA, 70–80°C for PETG, and 100–110°C for ABS. Reduce first layer print speed to 20–25 mm/s and increase first layer line width to 120% in the slicer. If problems persist, dry the filament for four to six hours at the correct temperature, as moisture causes poor adhesion that neither temperature nor levelling adjustments can compensate for. Replace the build plate surface if IPA cleaning no longer restores grip on an otherwise well-configured machine.
What causes PLA to not stick to the bed?
PLA fails to stick for three main reasons: the nozzle-to-bed gap is too large (Z-offset needs adjusting), the build plate is contaminated with skin oils or dust, or the filament has absorbed moisture and is printing with inconsistent flow. A secondary cause specific to open-frame printers in South African workshops is airflow from air conditioning or desk fans, which cools PLA unevenly and causes corner lifting even when all other settings are correct. Wipe the PEI surface with IPA before every print session, run a Z-offset calibration check, and position the printer away from direct airflow. These steps resolve the overwhelming majority of PLA bed adhesion failures.
Why are my 3D print layers separating?
Layer separation is almost always caused by printing too fast, too cool, or with wet filament. When the nozzle moves faster than the thermal energy from fresh extrusion can re-melt the layer below, the new layer lands without bonding. Reduce print speed by 20–30%, raise nozzle temperature by 5°C, and dry the filament before retrying. A layer height set above 75% of the nozzle diameter also weakens inter-layer bonds by reducing contact area. On open-frame printers running ABS or ASA without an enclosure, thermal contraction from ambient air is the dominant cause of layer splitting, and speed or temperature adjustments alone cannot compensate for the missing enclosure.
