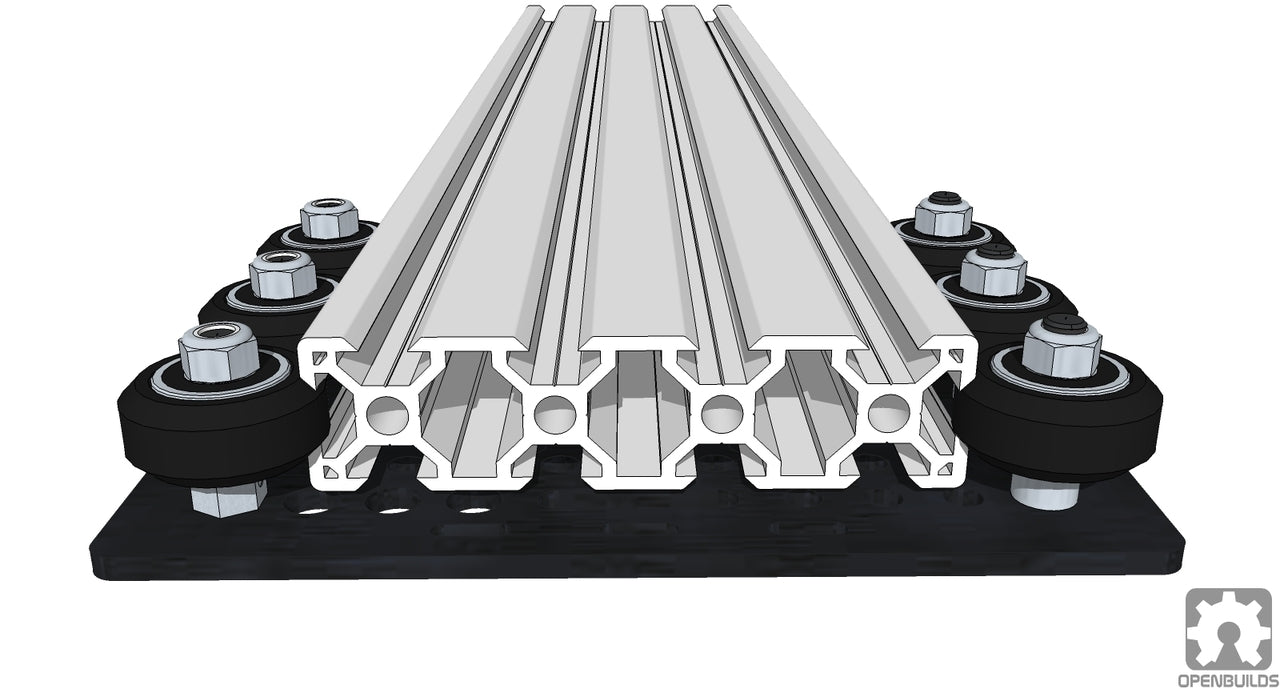

V-Slot Wheel kit to run on V-Slot aluminium profiles. Accurately machined, durable and reliable. These wheels are used in 3D printers, laser cutters, CNC machines and other linear motion machines. It is a cost effective, durable and accurate solution for these applications.

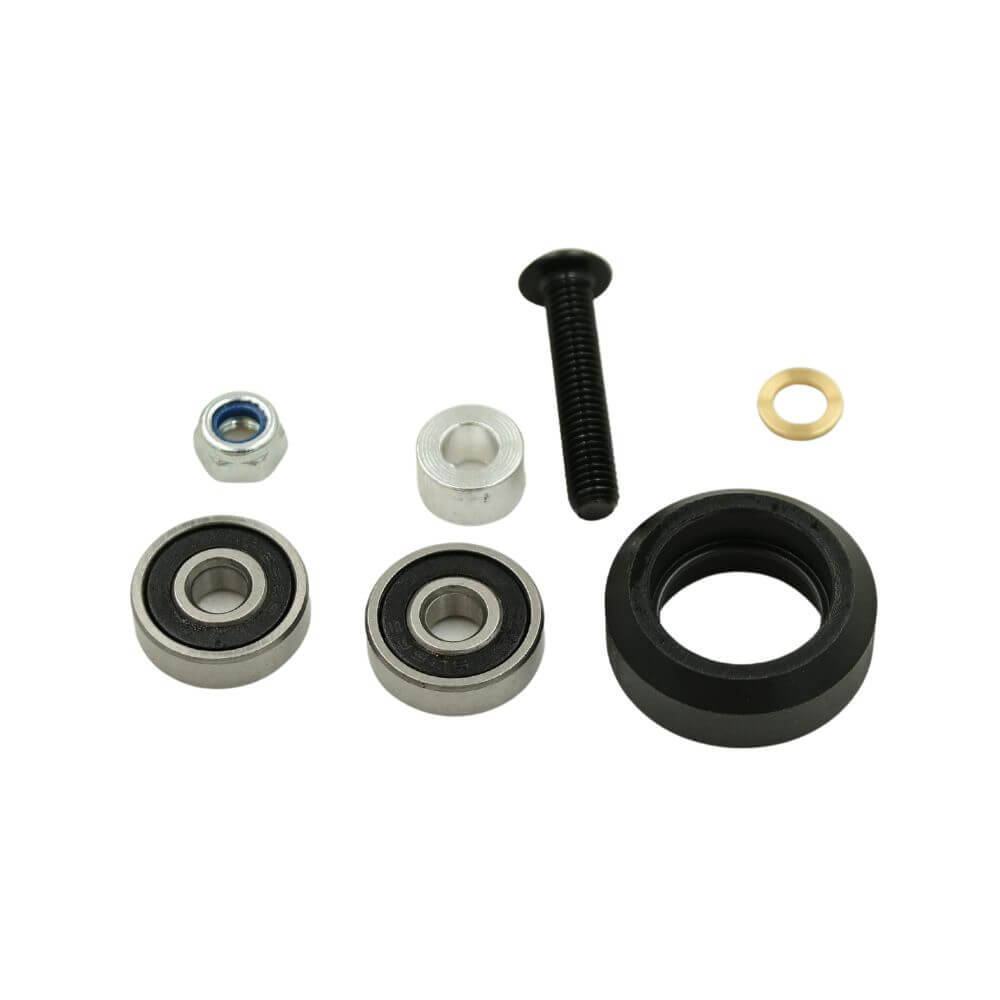

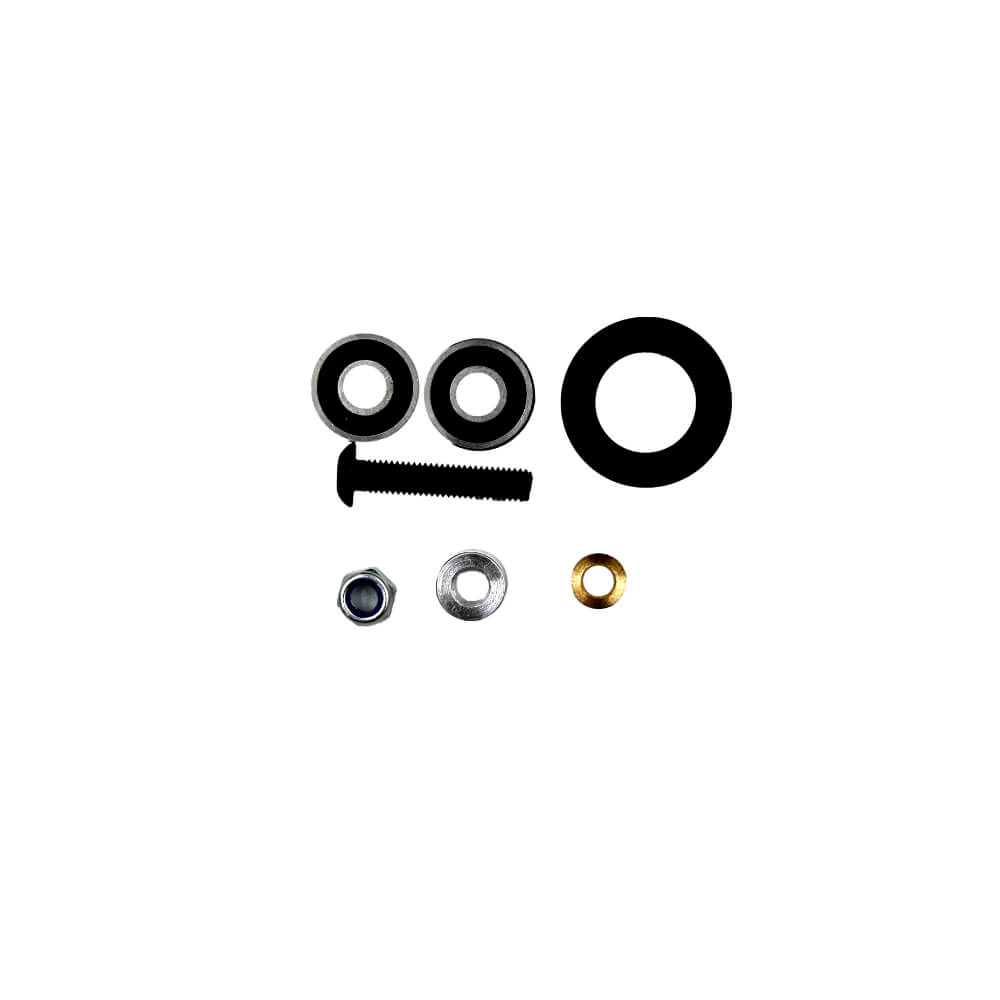

This includes everything you need to mount the wheel to a plate. The kit consists of:

• Delrin V-Wheel
• 2 x 625 sealed bearings
• Precision shim
• Aluminium mounting spacer
• Bolt: M5 x 25
• Lock Nut: M5

This kit is designed to be mounter to a plate up to 3mm thickness. If you want to mount it to a thicker plate, you will need a longer screw.

To be able to set the pre-load between the wheels, eccentric nuts are used for this purpose. The eccentric nuts are not included in this kit, but is sold separately: https://www.3dprintingstore.co.za/aluminium-t-slot-extrusions/v-slot-wheels/eccentric-nut-for-v-wheels/

Specifications:

• Wheel size: OD = 24mm, Width = 10mm
• Wheel material: Delrin
• Wheel hardness: M80
• Wheel compressive strength: 63 MPa
• Bolt size: M5 x 25
• Bearing size: 625 bearing
• Mounting Spacer Size: OD = 10mm, ID = 5.7mm, Length = 6.3mm

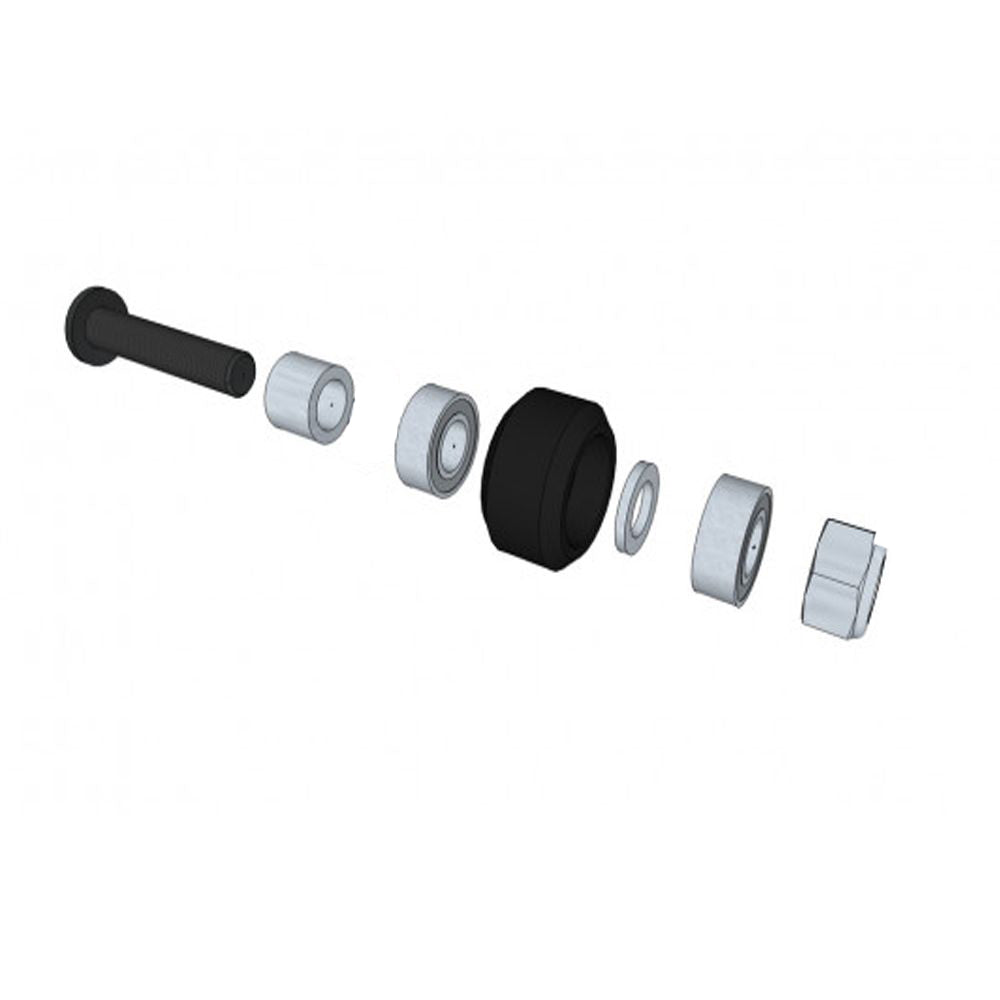

For instructions on how to assemble the V-Wheel assembly, please view this video: https://www.youtube.com/watch?v=pMtHy7sDNG4
