Creality Dual Gear Aluminium Extruder Kit

In stock - 19 items available
SKU: EXT006
(1)
R 599.95 incl. VAT

Share on social media:

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Tony Marreiros
3 D printing store

I really like to order from this store. they are fast with they shipments and very helpful if you call and have any queries regarding a product. I just feel that some times the items are out of stock for long time, but i guess it has to do with the import delays.

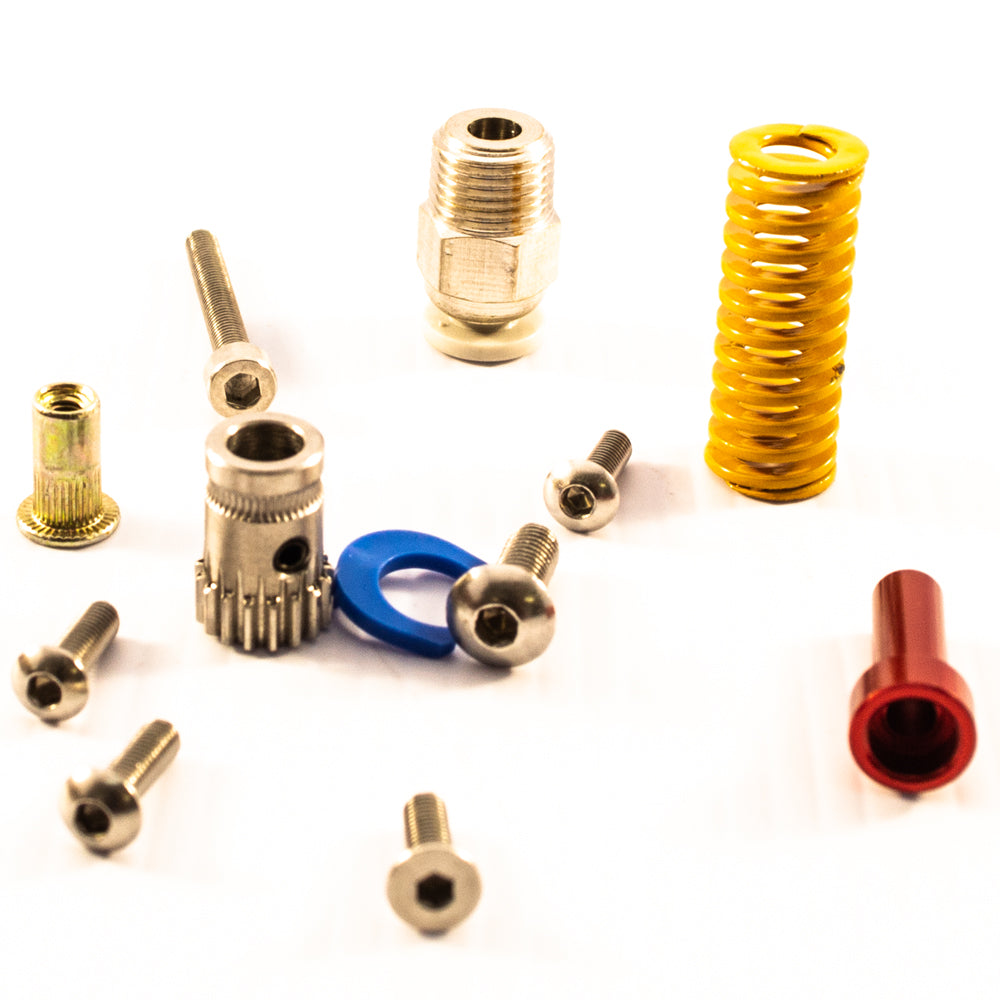

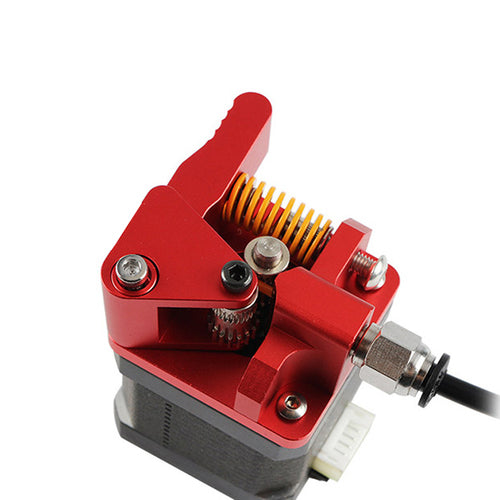

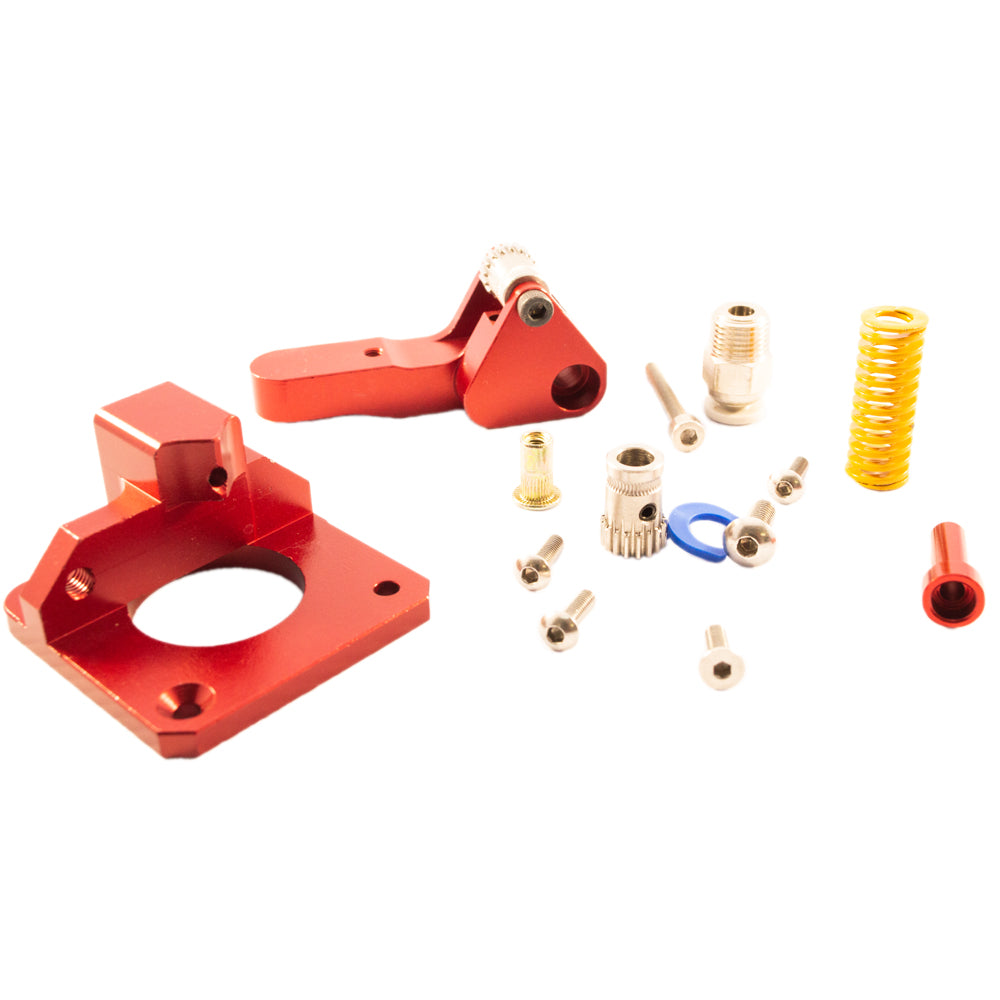

The latest extruder from Creality with the dual extruder drive gear based on the Bond-Tech extruder gears. This extruder is featured in the Creality CR-10s Pro and Max printers. It uses a NEMA 17 stepper motor (sold separately) to drive the extruder and is designed to drive a Bowden hot end. The dual gears have an increased contact area driving the filament over a single extruder gear, which result in an increase driving force delivered by the extruder. This makes it a very versatile setup to be used on various printers.
Please note:
  • The extruder is designed to be mounted with a 3mm plate between the motor and the extruder. This is the frame of the printer on the Creality printers
  • The grub screw fixing the extruder gear onto the motor shaft is designed for a D-shape motor shaft with a 3.5mm flat. If the motor used has a smaller flat the grub screw will need to be filed down.
  • Performance Specifications:
  • Works with 1.75mm filament
  • Suitable for ABS, PLA, Nylon, Flexible, T-Glase, Wood filament, PVA and PC filament.
  • Adjustable spring preload on filament
  • Compact design
  • Firmware configuration: 142 steps/mm if used with a 1.8deg/step motor and 1/16th micro stepping
  • Please note: This kit does not include a stepper motor which will be required for operation.
