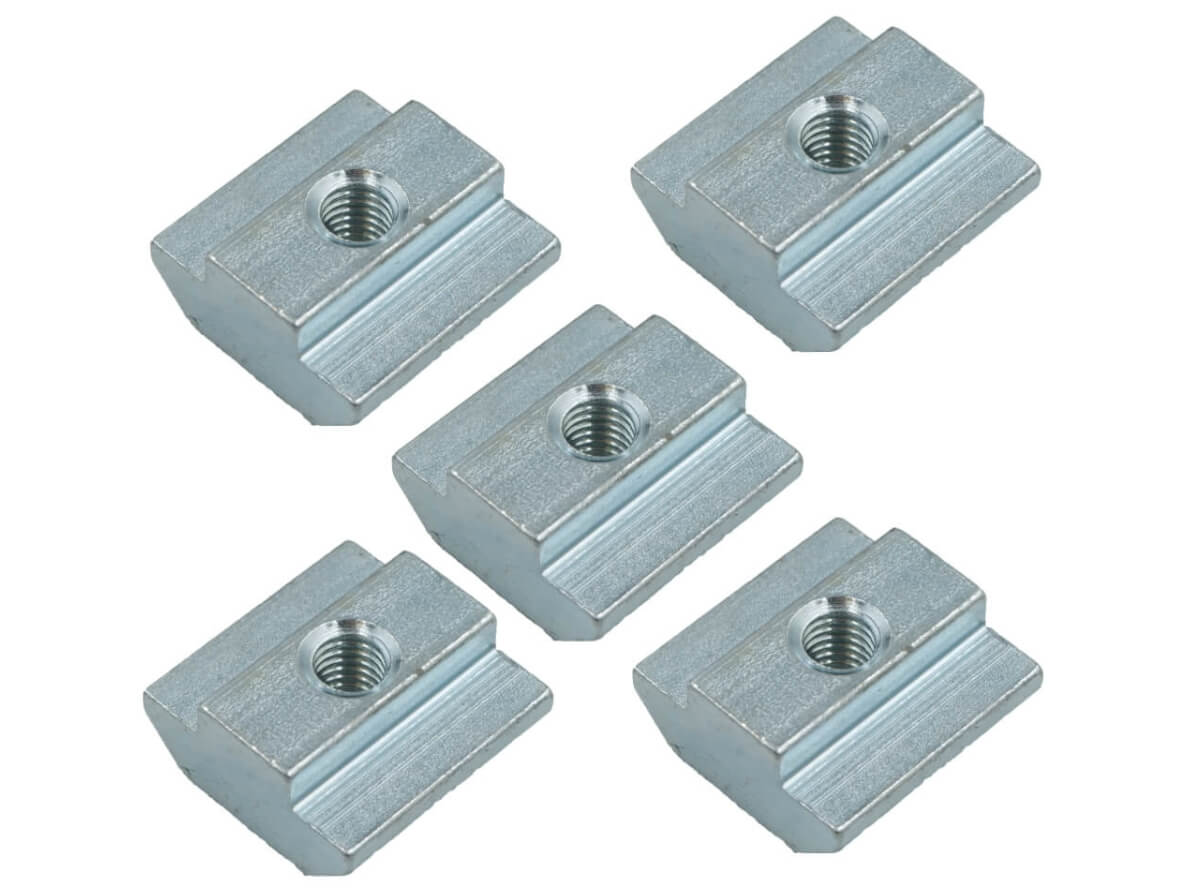

Please note: These T-nuts are sold in a pack of 5

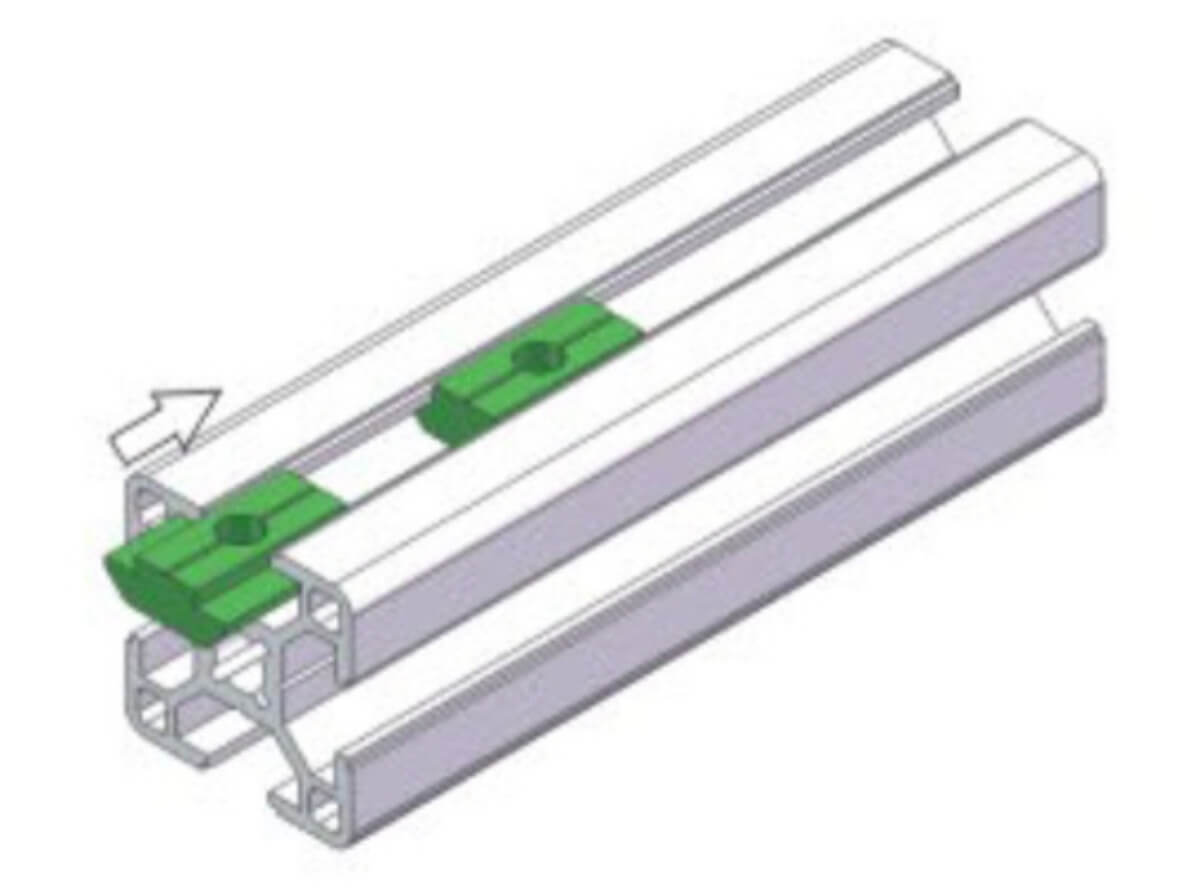

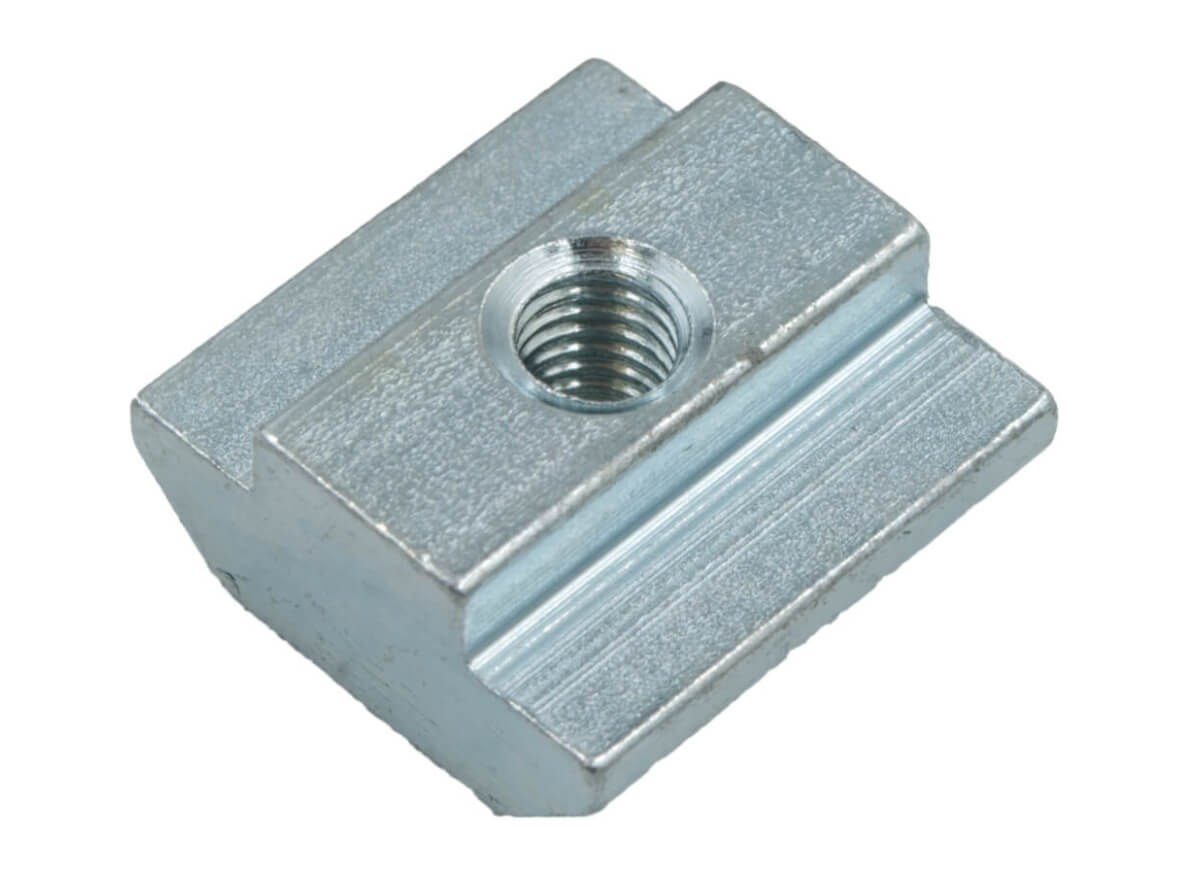

40-series slide T-nut. These T-nuts are used to clamp brackets or other fittings to T-slot extrusions. The slide T-nuts slide in from the end of the T-slot profile. Thus the T-nut needs to slide in while the end of the profile is still open.

This is for the 40 x 40mm profile.

Specifications:

• For profiles series: 40-Series
• T-nut type: Slide T-nut
• Thread size: M5
• Weight: 11g (each)
• Material: Galvanised steel
• Packaged: Pack of 5

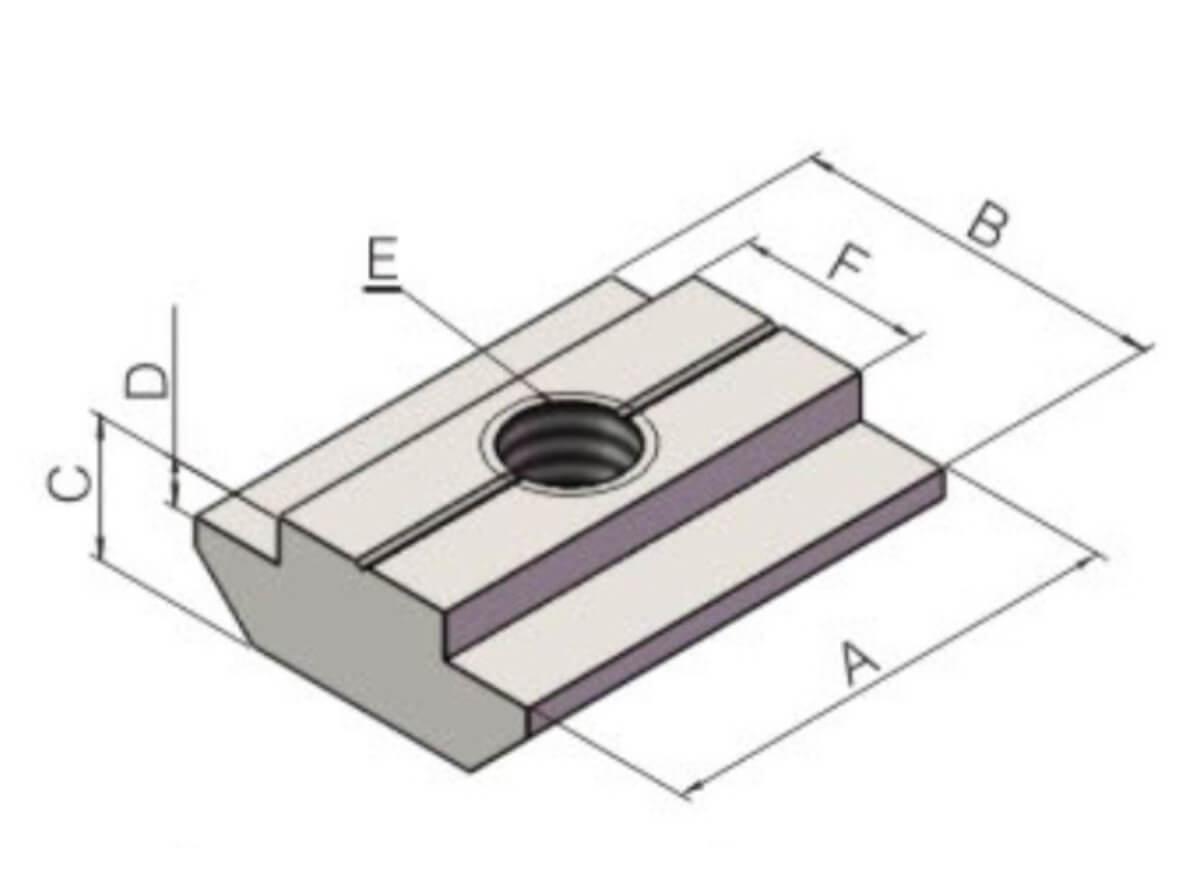

Dimensions:

A = 18mm

B = 18mm

C = 8.5mm

D = 3mm

E = M5

F = 8mm
