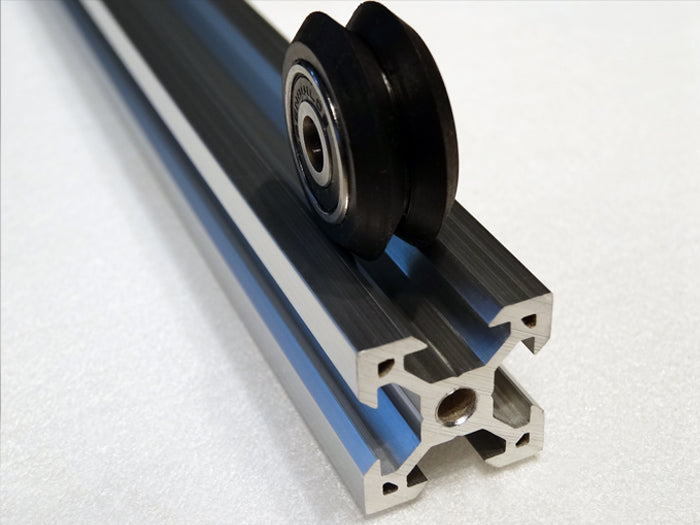

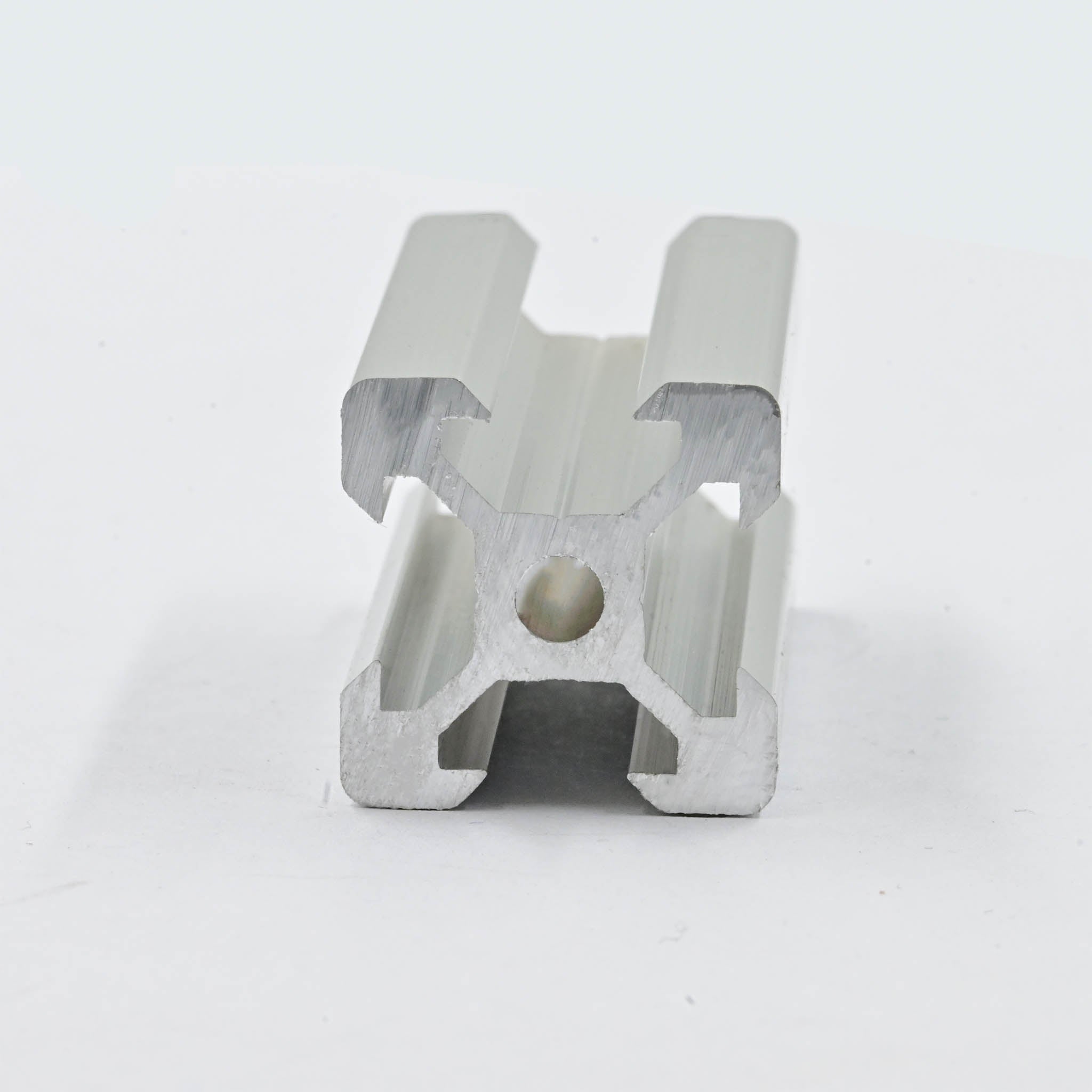

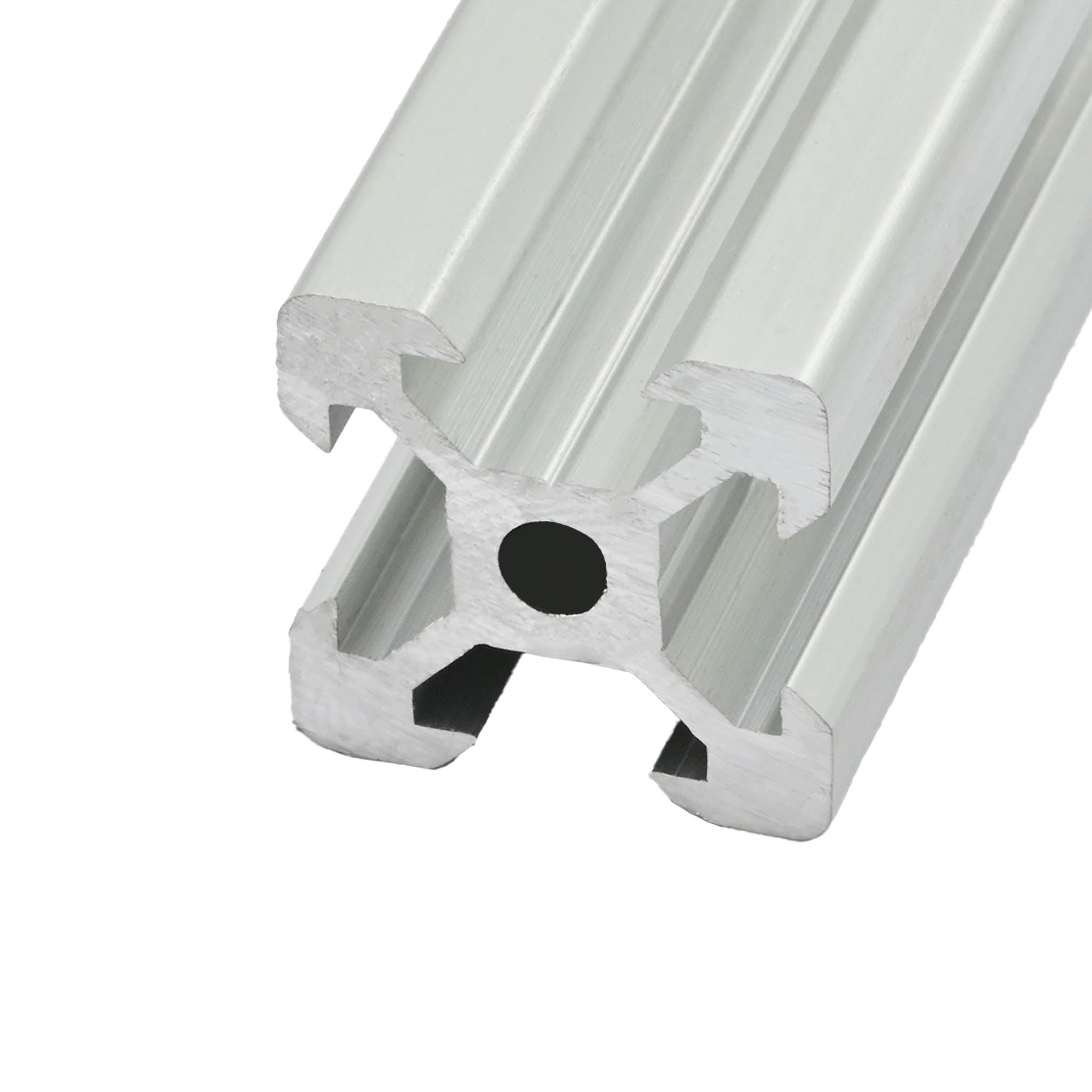

20 x 20 Aluminium V-Slot Profile for a wide variety of projects. This is a high quality and high accurate profile coated with Silver anodizing design for V-wheels for linear motion. This is the smallest profile in the V-Slot range and are meant for light load applications. The advantage of using these profiles is that it serves as the frame of the machine as well as the linear rails for movement. The profiles are ordered in 3m lengths and we cut it to any length as required.

All profiles are sold in standard lengths of 1m and 3m. You can only buy the aluminium in a 1m or 3m length. We can also cut it for you if you require. The cutting tolerance is +-1mm. For example, if you require a 1500mm length and 3 x 500mm lengths then specify as follows: 1 x 1500mm, 3 x 500mm.

We can ship lengths up to 2m with our standard courier service. For longer lengths, please contact us for the courier options or you can pick it up from our store in Centurion.

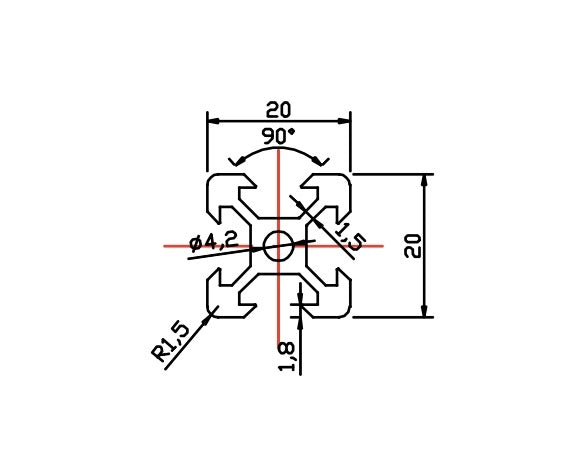

Specifications:

• Profile size: 20 x 20mm
• Length: 5mm to 3000mm (We cut to size)
• Maximum length: 3m
• Material: Aluminium 6063 T5
• Coating: Silver Anodized
• Profile weight: 0.48kg/m
• Ix = 0.72
• Iy = 0.72
