DDCS V3.1 CNC Controller, 4 Axis

Out of Stock
Regular price R 6,499.95 incl. VAT

The Digital Dream DDCS Version 3.1 controller is a stand alone CNC machine controller. It has a large screen to display the current state of the machine with control buttons on the front interface, opto-isolated inputs and outputs, spindle control, 3 or 4 axis functionality, coolant control, up to 500kHz motor control, power cut recovery and optional MPG pendant input. This is a mouth full, in short this is a powerful computer designed to run your CNC machine. The G-code is supplier via USB and the results is a smooth very stable machine controller.


  • Manufacturer: Digital Dream
  • Model: DDCS V3.1 - 4 Axis
  • Supply voltage: 24V DC (Minimum 0.5A)

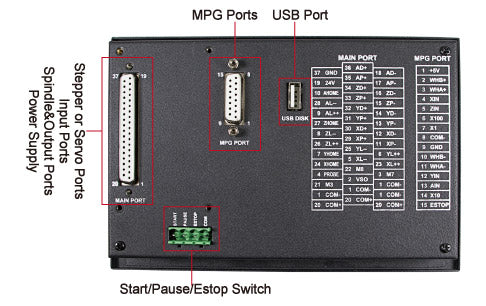

  • Inputs: 16 opto-isolated digital inputs
  • Outputs: 3 opto-isolated digital outputs
  • Analog 0-10V spindle control (can be modified as PWM output)
  • Axis: 3 axis motor control
  • Motor control speed: Up to 500kHz per axis
  • Processors: ARM9 main control chip and FPGA core algorithm chip
  • Display: 5 inches TFT screen, resolution ratio: 480x272px
  • Data input: USB flash disk for G-code file, no size limitation for the G-code file
  • Pendant: Support standard MPG Pendant
  • Manual control modes: Jog function for each axis (continuous, step or defined distance)
