ATC Spindle 3KW, 100mm, ER20, Water Cooled

Only 1 left
SKU: ATC001
Regular price R 36,999.95 incl. VAT

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

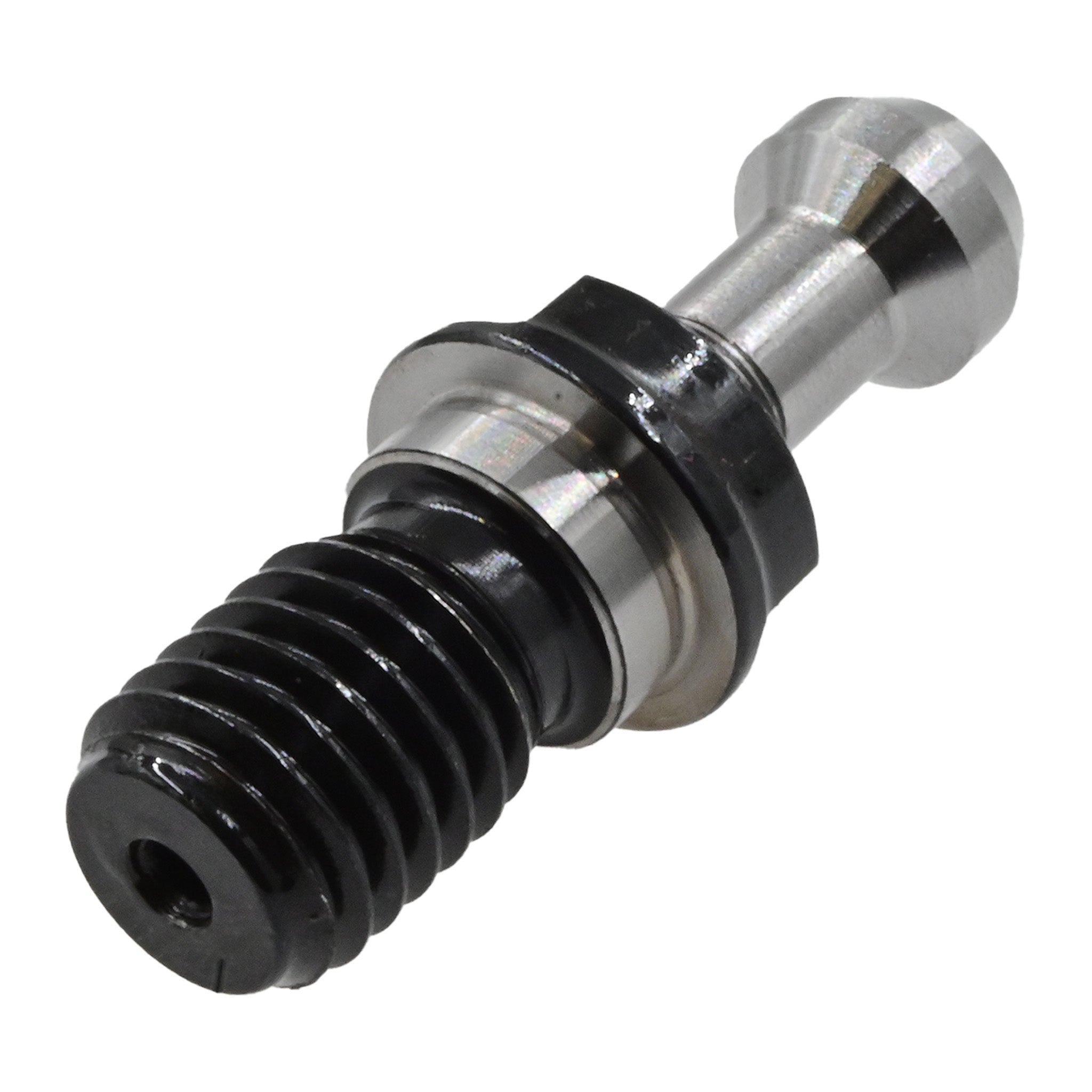

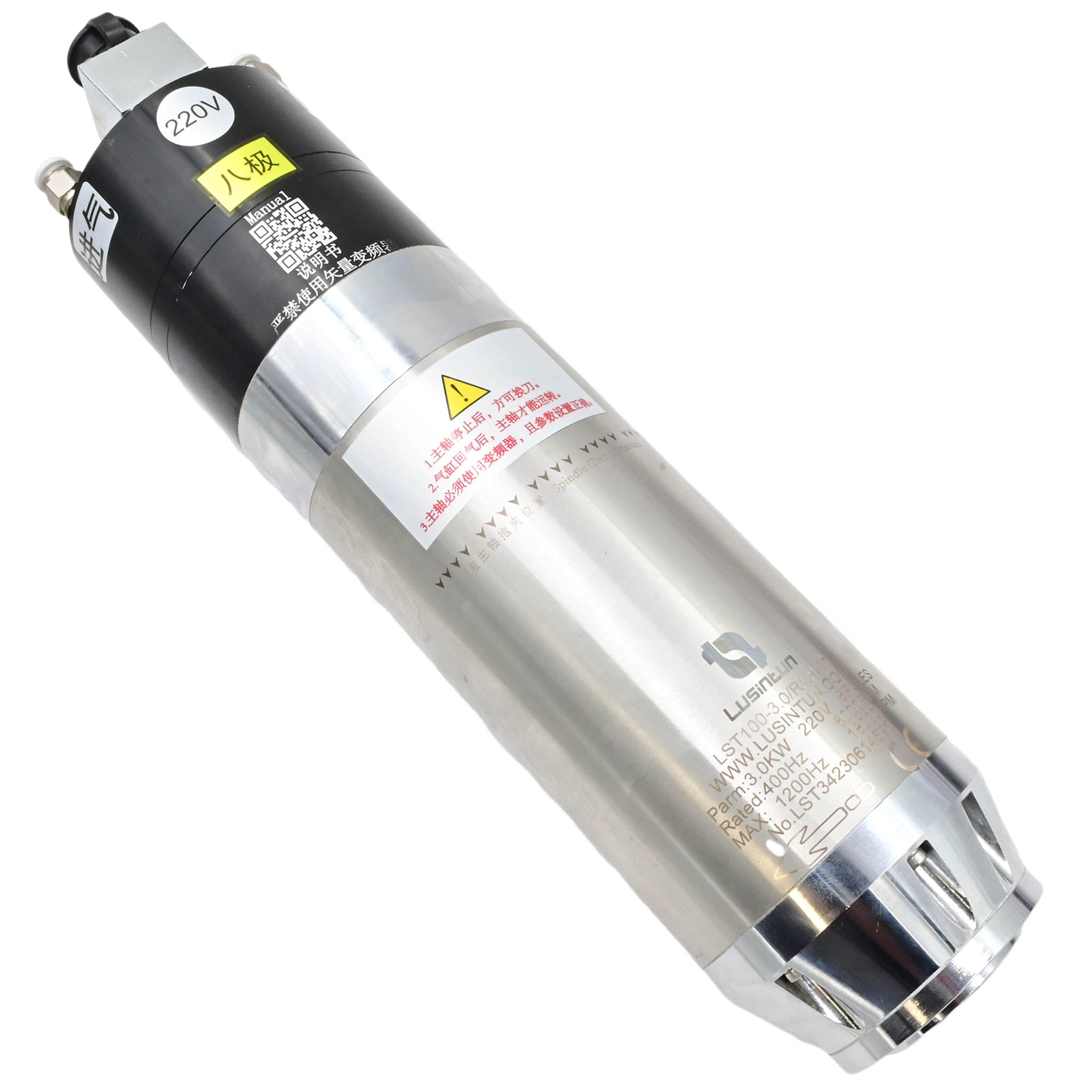

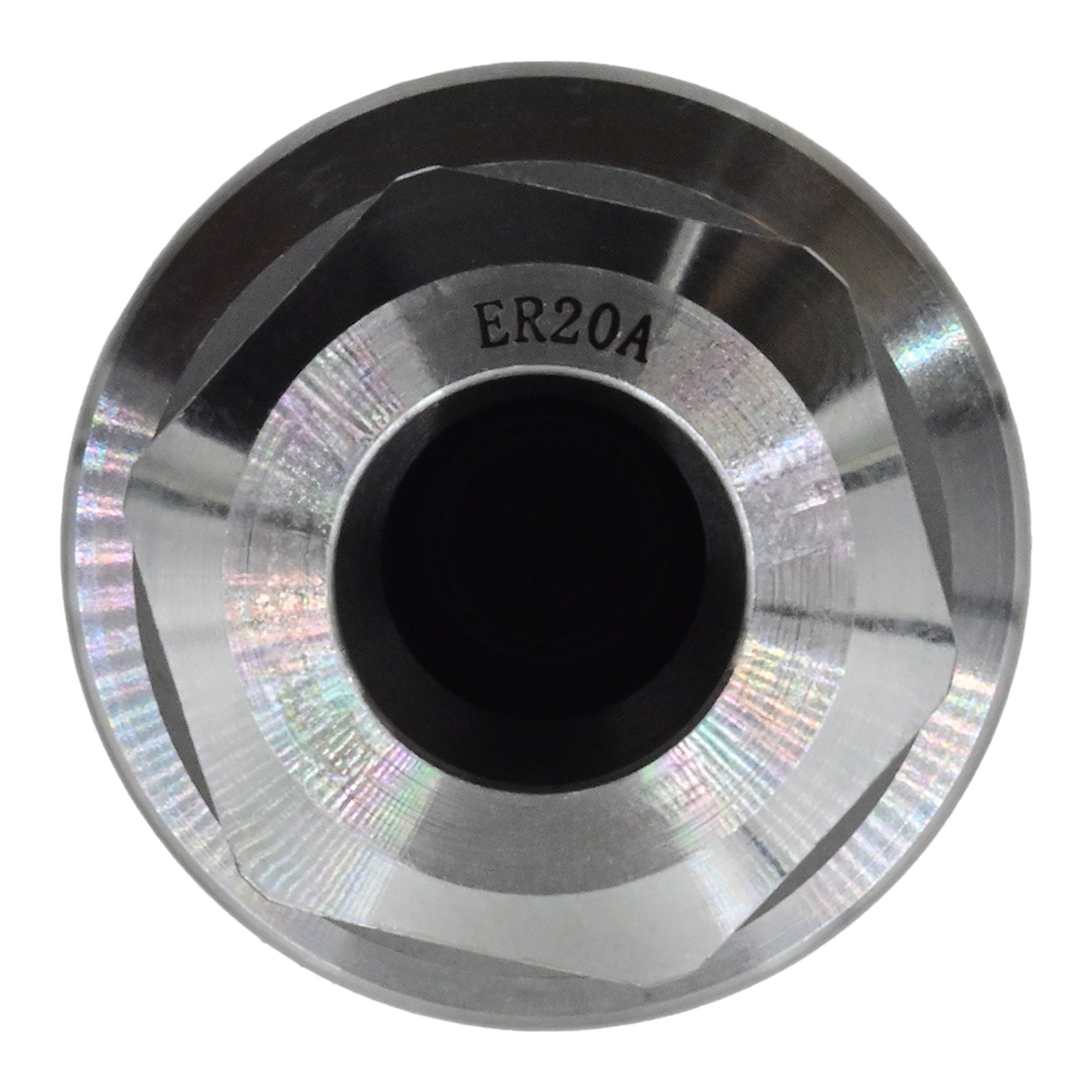

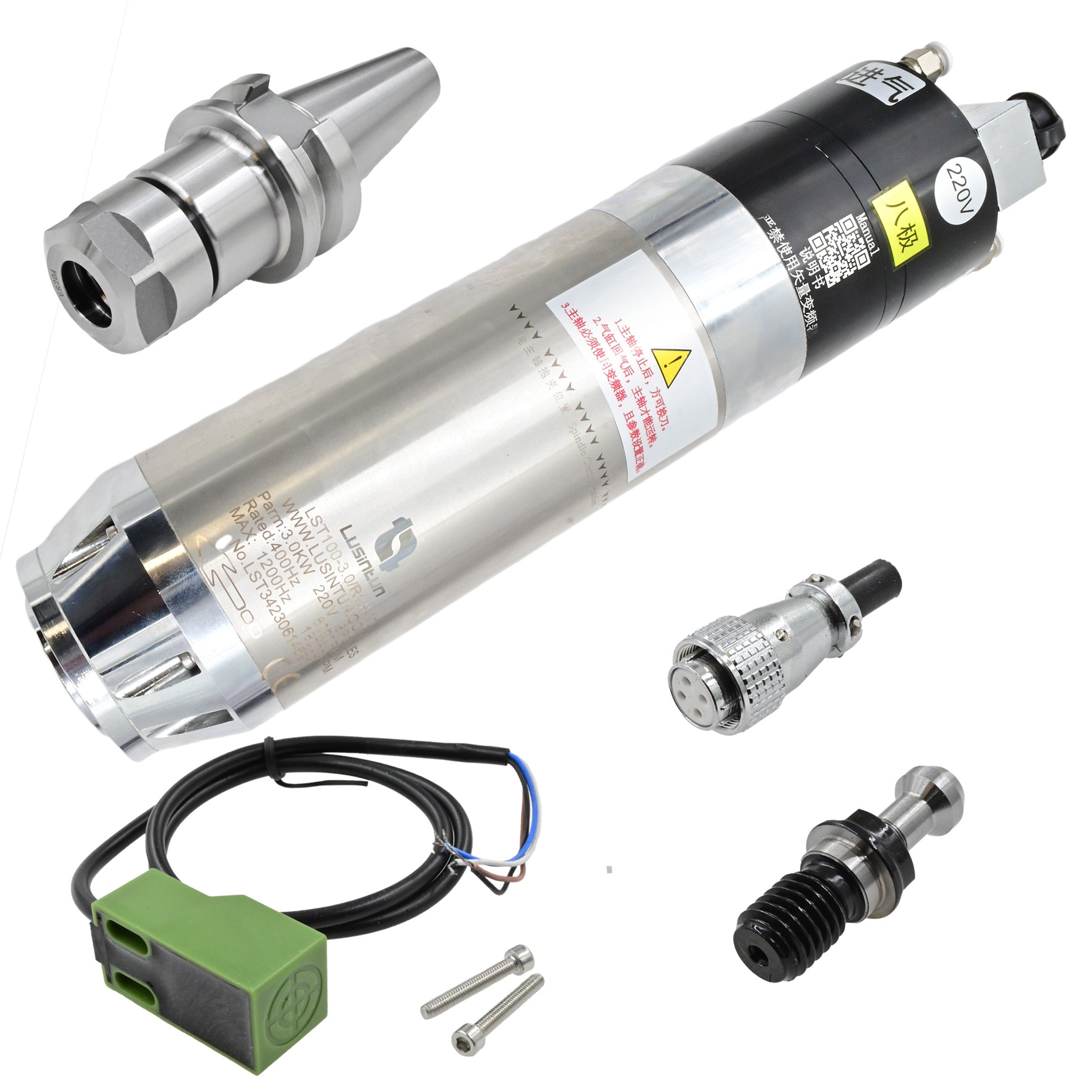

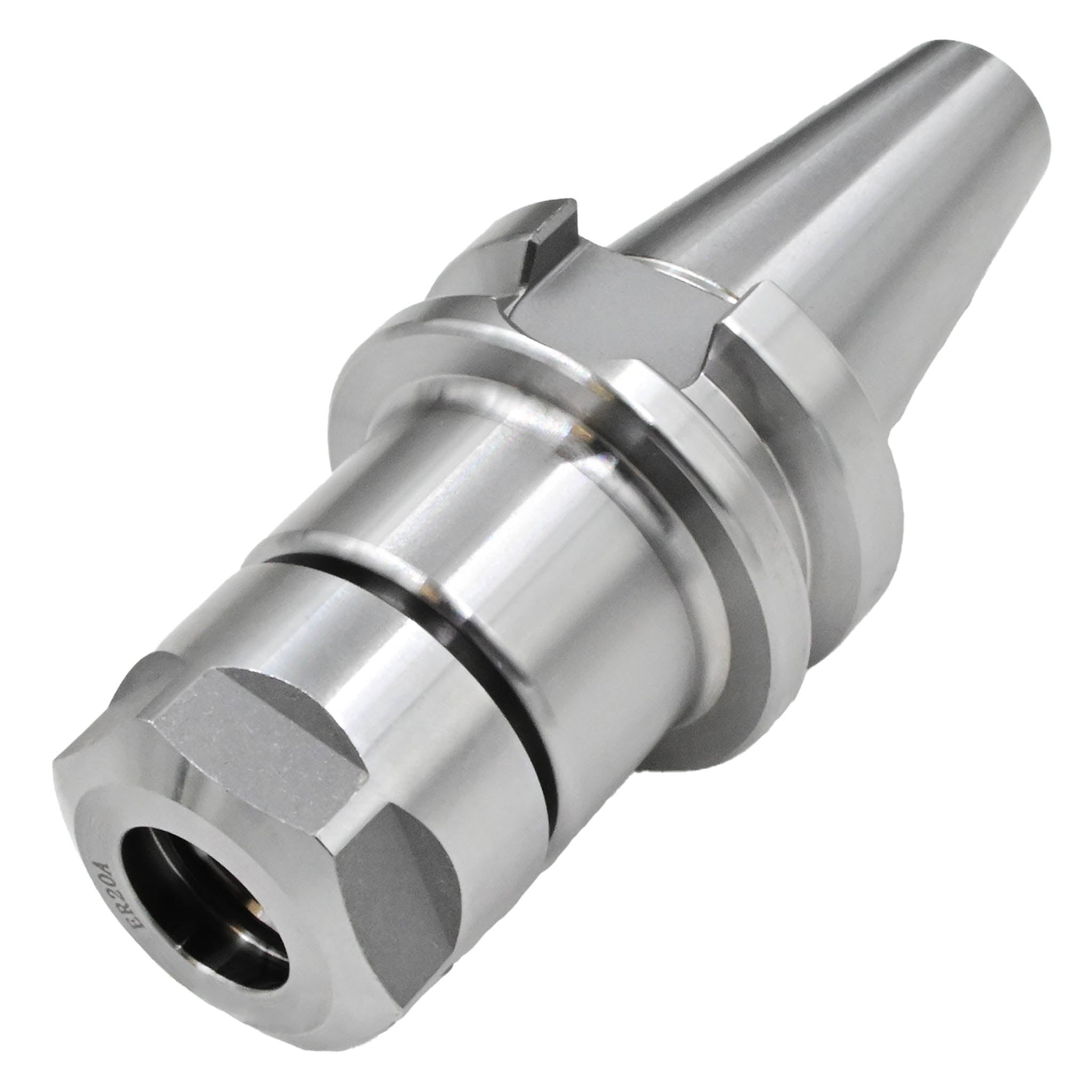

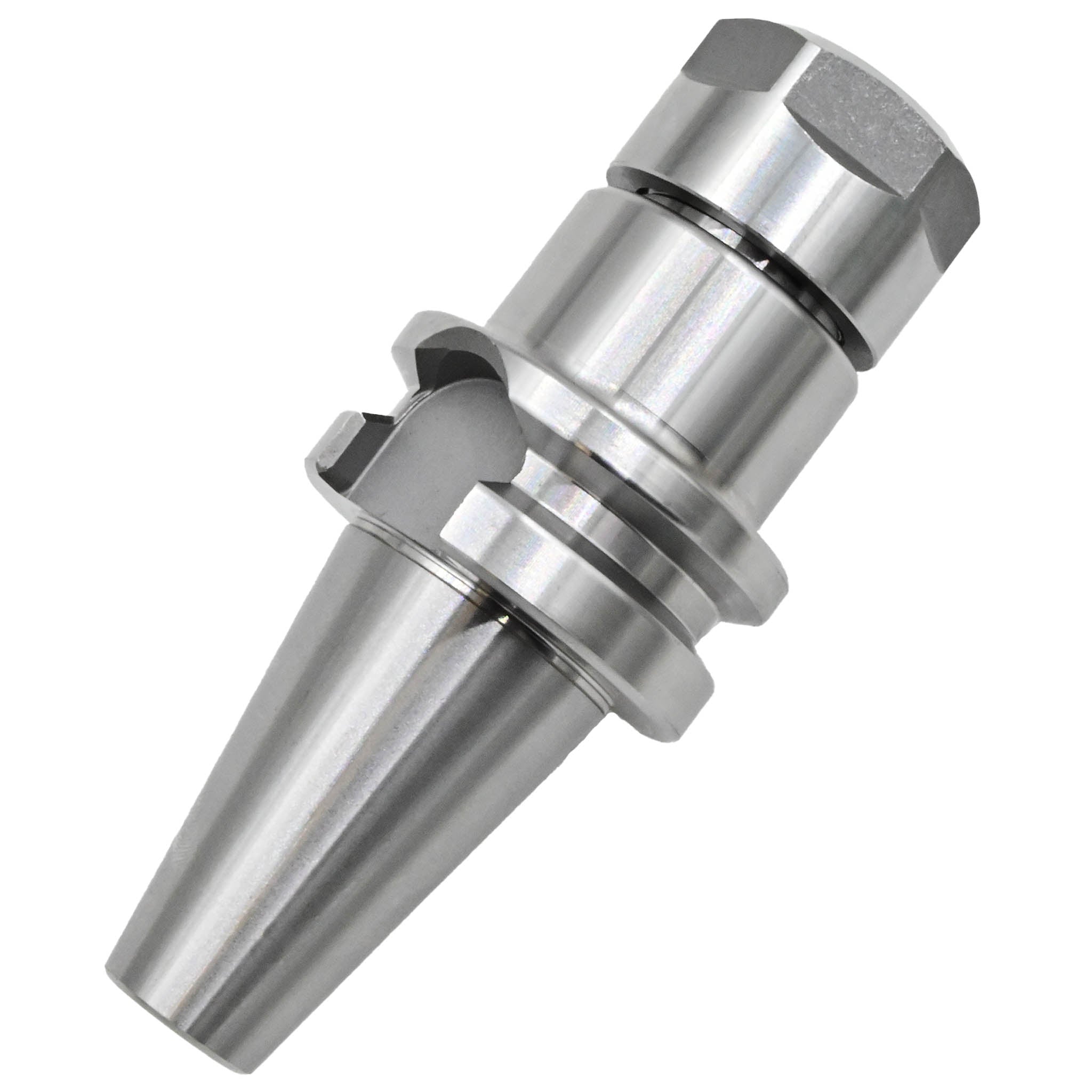

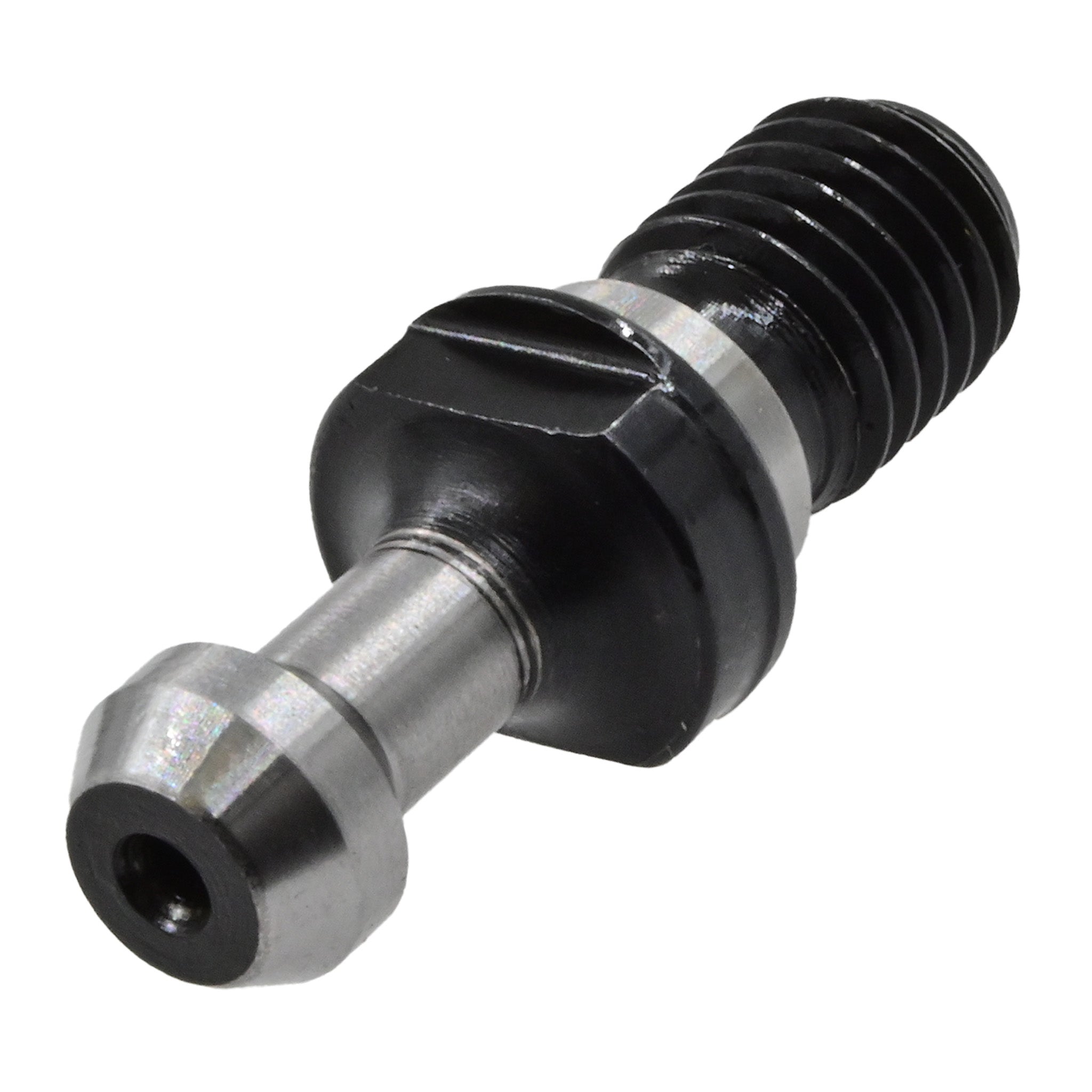

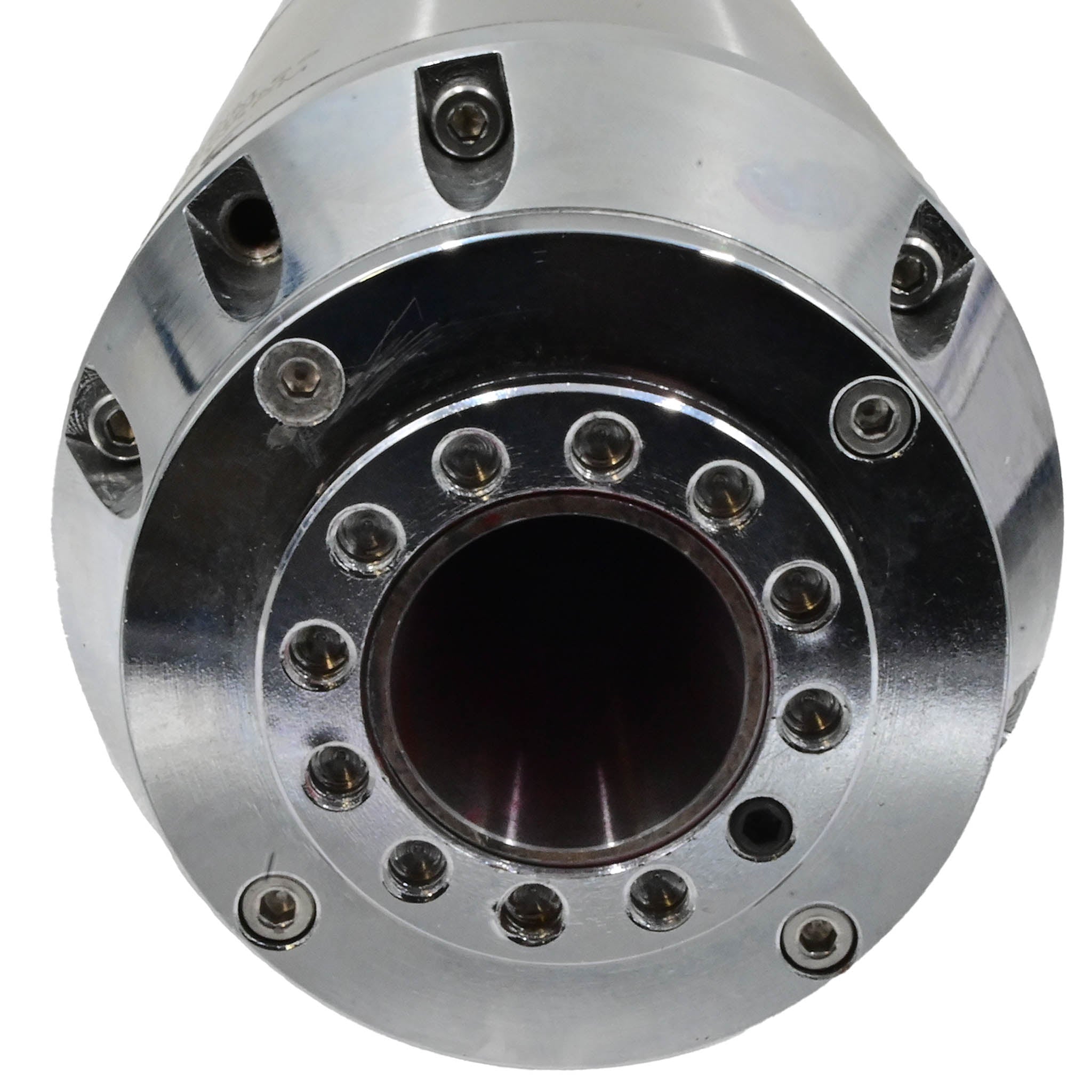

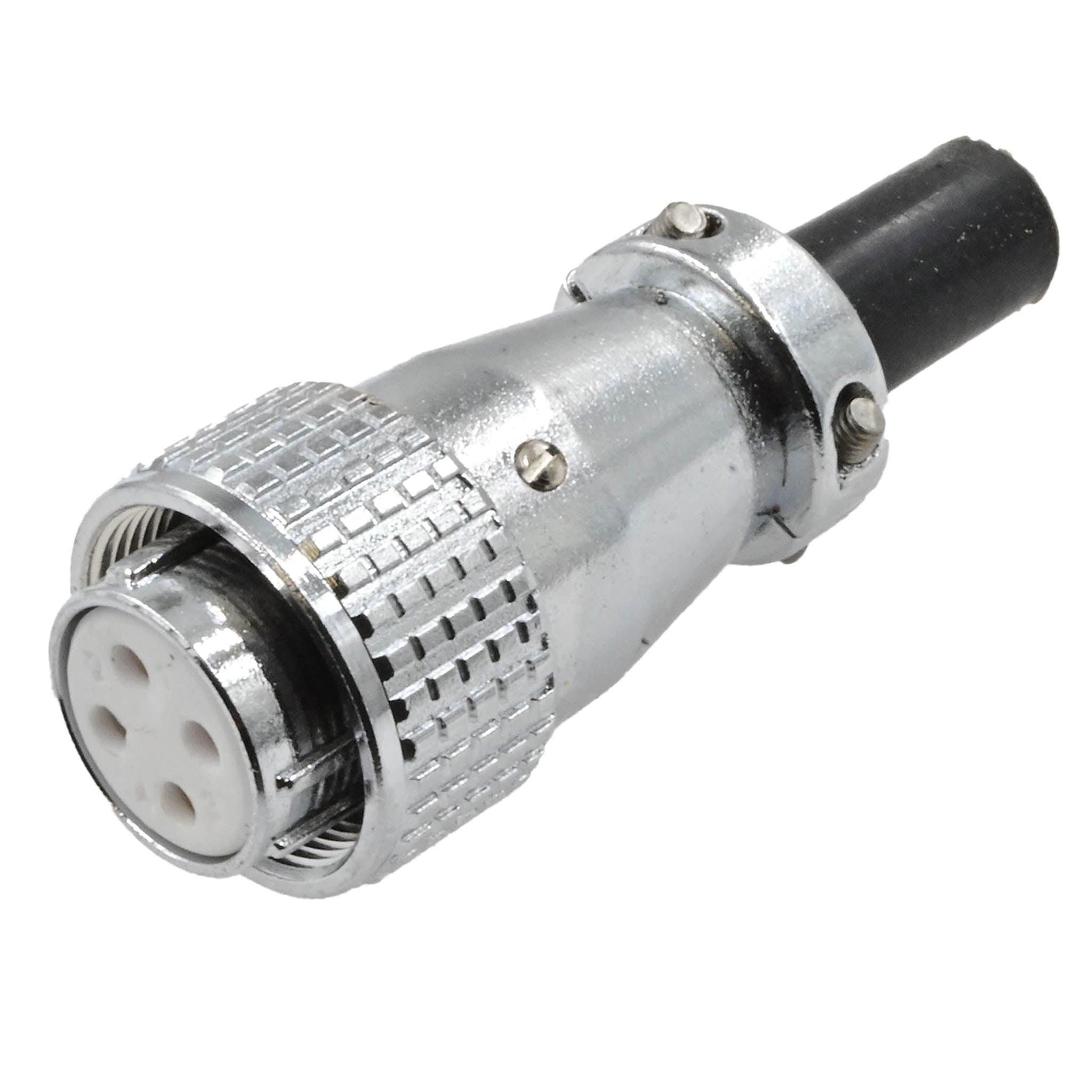

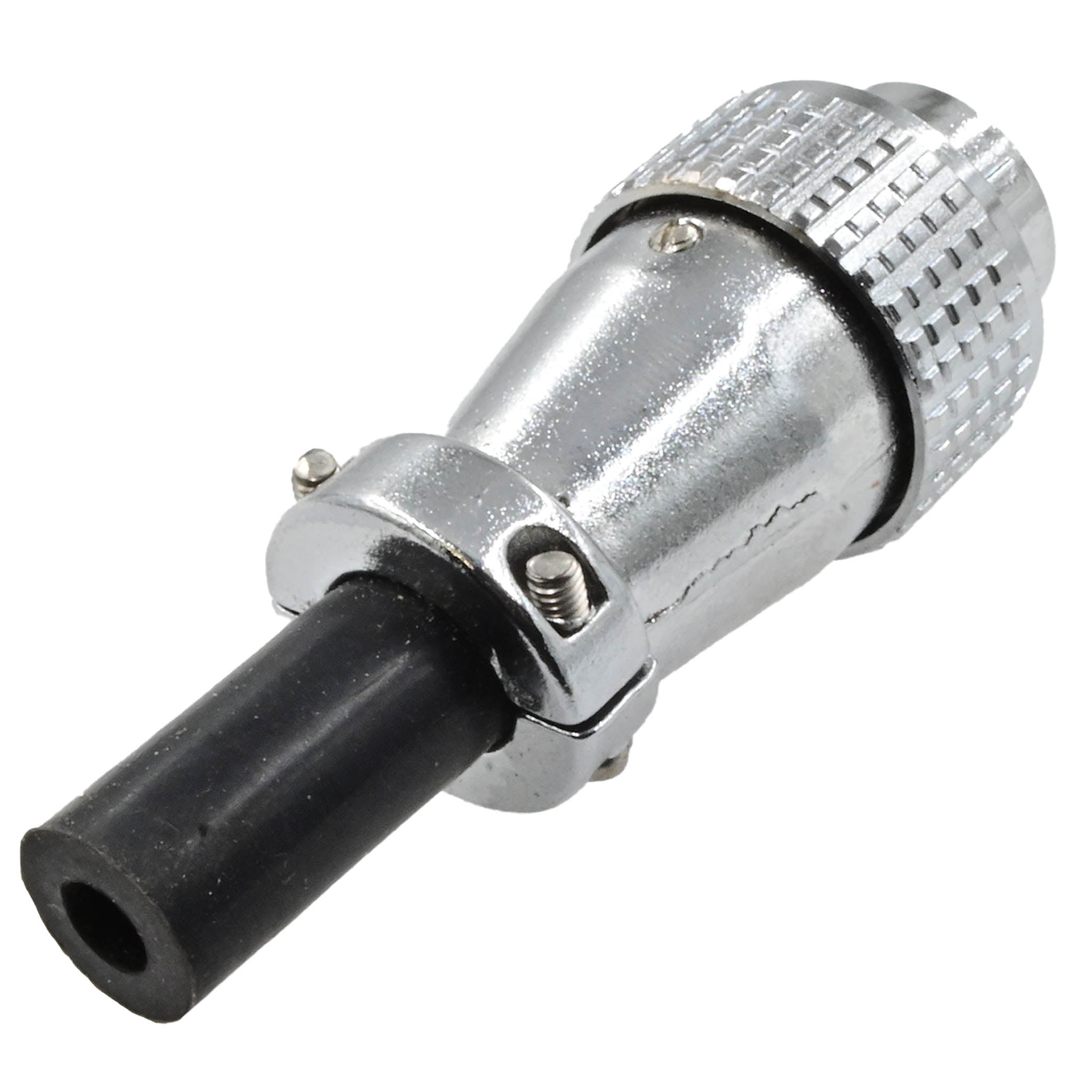

3kW Water Cooled Automatic Tool Change (ATC) Spindle for CNC machine. This is a 3-phase spindle designed to work with a 3kW or bigger Variable Frequency Drive (VFD). It is designed for the BT30 tool change handles and comes with 1 x BT30 handle for ER20 collet and 1 x pull stud.  The ER20 collet sizes range from 1mm to 13mm.

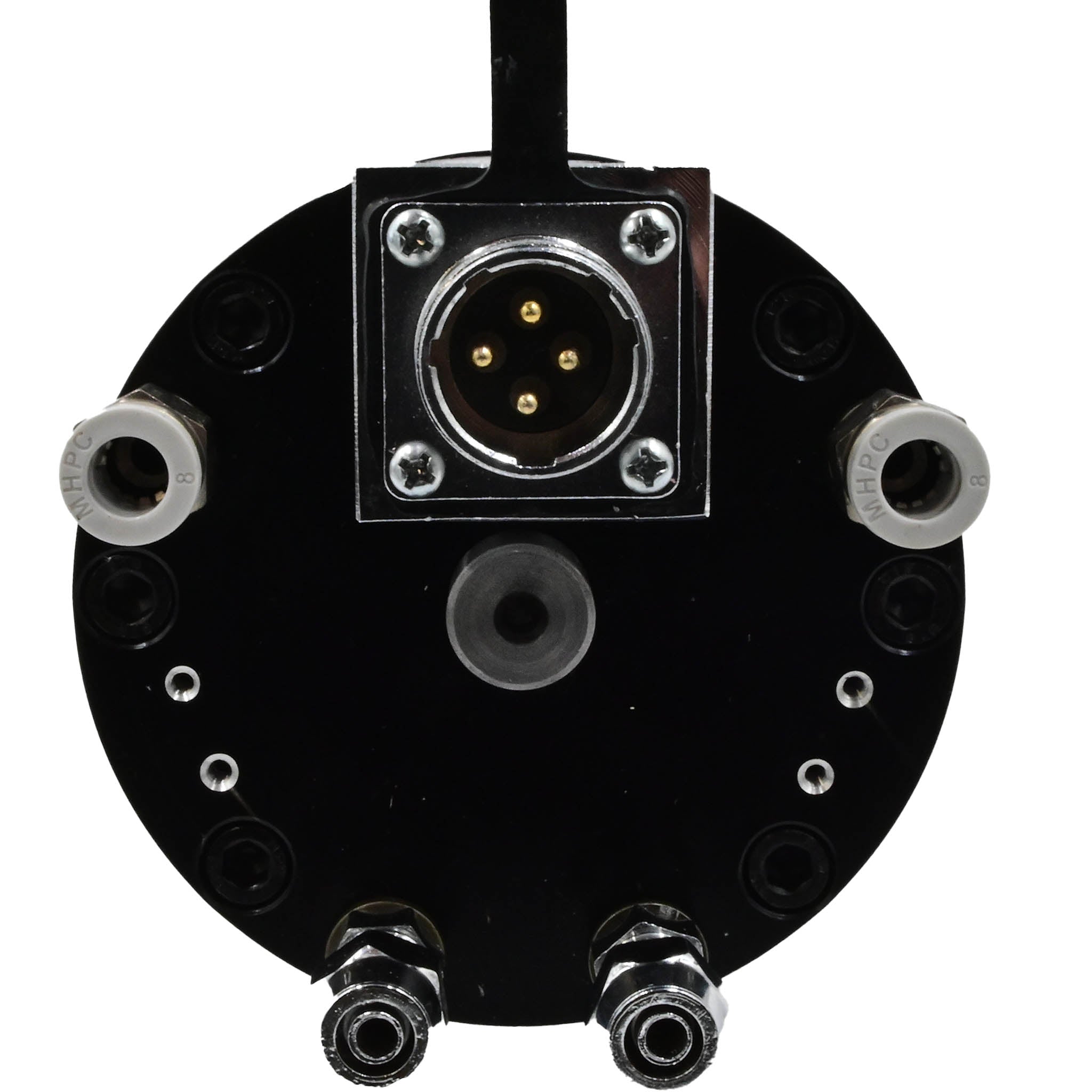

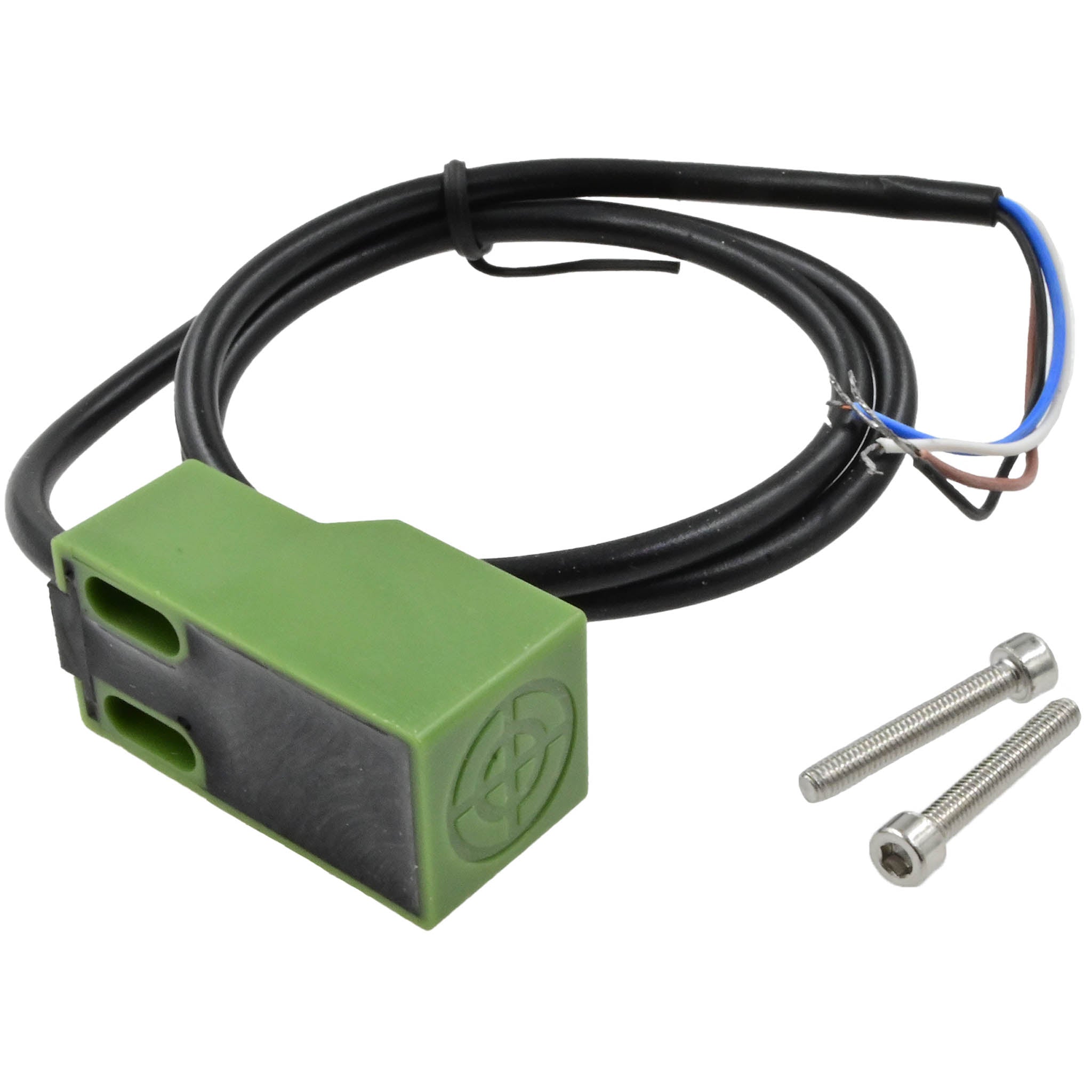

The tool change mechanism is operated pneumatically and an included proximity sensor is to be mounted at the back of the spindle to monitor if the ATC mechanism is engaged or not.

We recommend the 3.7kW VFD we sell to be used with this spindle.  The recommended mounting bracket for this spindle is the 100mm Spindle Mounting Bracket.  Additional BT30 handles and pull studs are also available as well as the holder to hold the BT30 handles.

Please see the user manual for assembly and operating instructions: User Manual

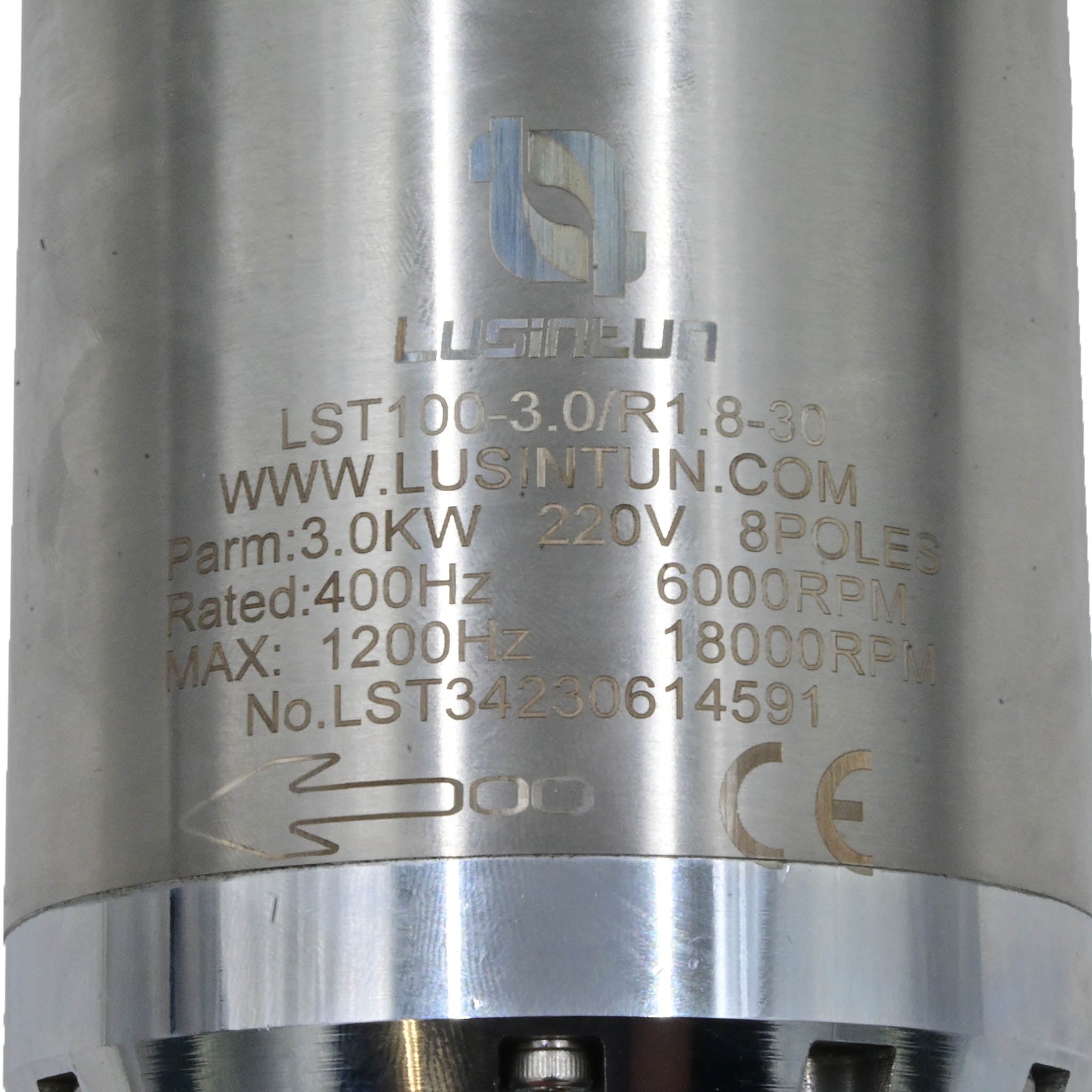

Specification:

  • Diameter: 100mm
  • Power: 3kW
  • Voltage: 220V
  • Rated frequency: 400Hz
  • Maximum frequency: 1200Hz
  • Number of poles: 8
  • Rated speed: 6000rpm (@ 400Hz)
  • ATC Handle: BT30
  • Collet Size: ER20
  • Cooling: Water Cooled
  • Runout: 0.003mm - 0.005mm
  • Brand: Lusintun
